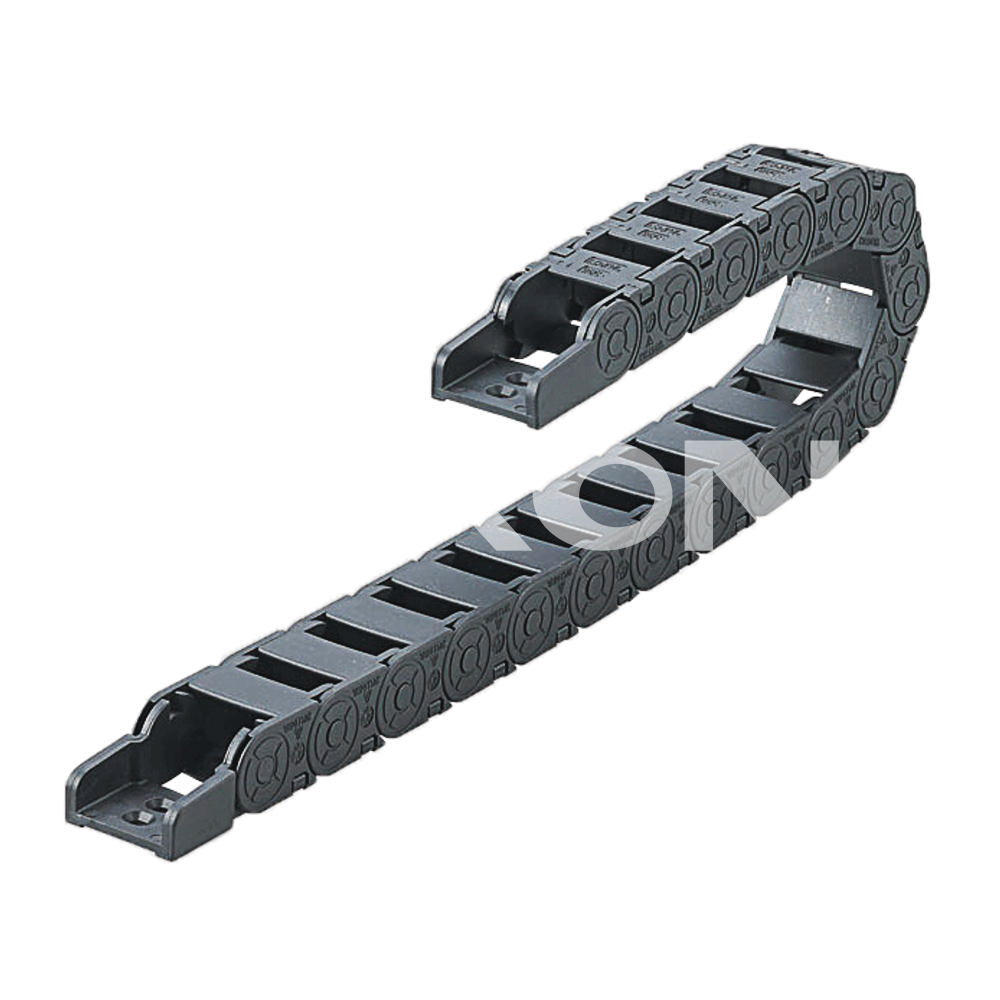

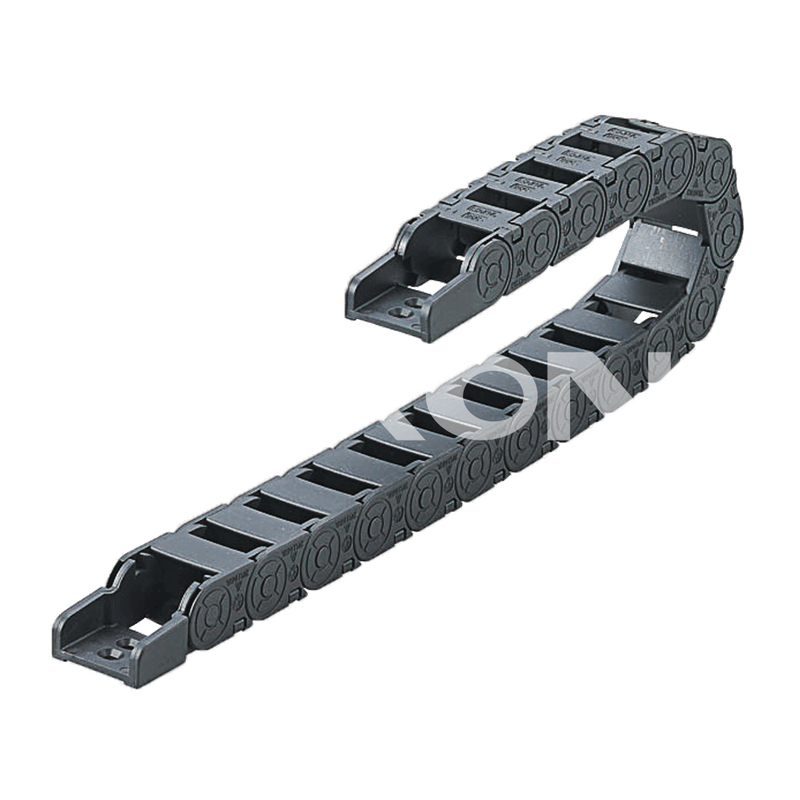

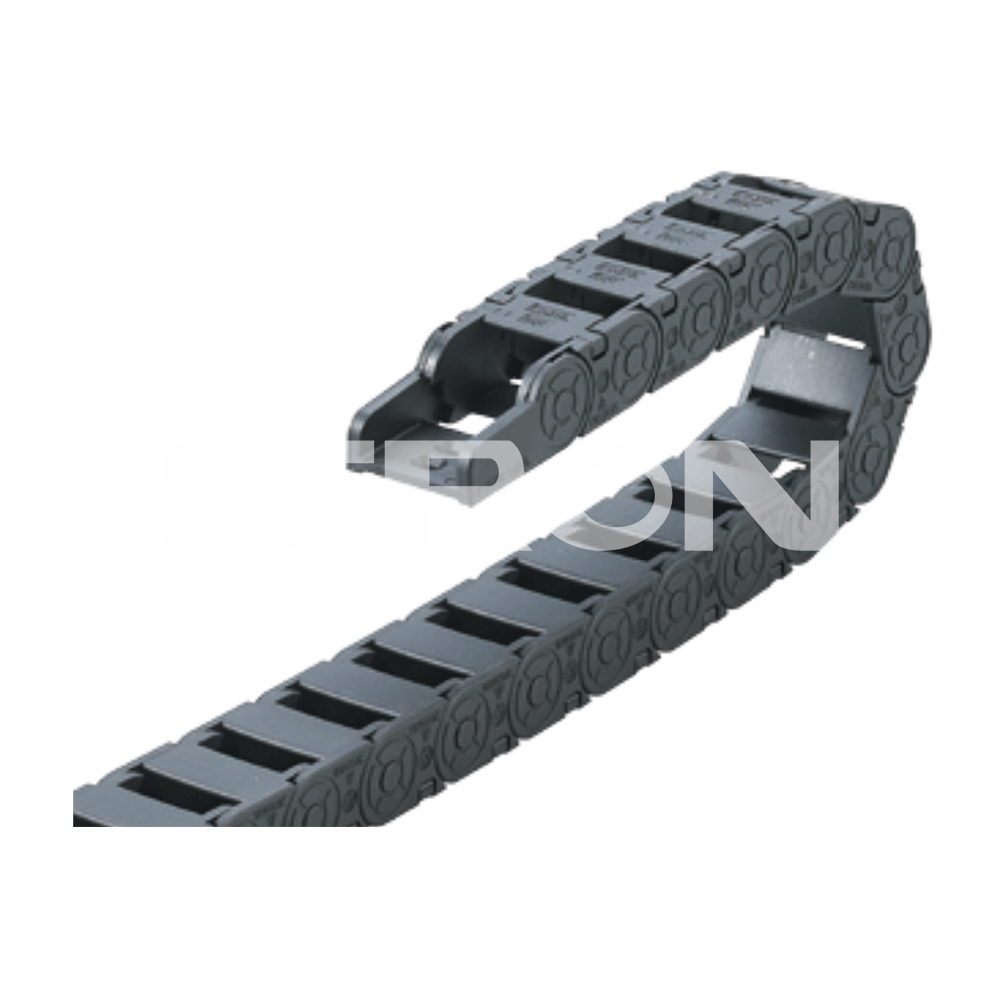

SiRON X70 Series Inner Height 10/15/18 Chain-bridge Open outside Drag

Name: SiRON X70 Series Inner Height 10/15/18 Chain-bridge Open outside Drag
Brand: SiRON
Rating: 5.0 (6 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket

Model:
X70
Brand:
SiRON
Code:
8544421100

X70 Series bridge type Drag X70 Series drag chain Inner Height 10/15/18 X70 Series Chain-bridge Open outside Drag

Product Description

Order

d58baa4b-8088-412d-ada4-c08a56fd4d9c

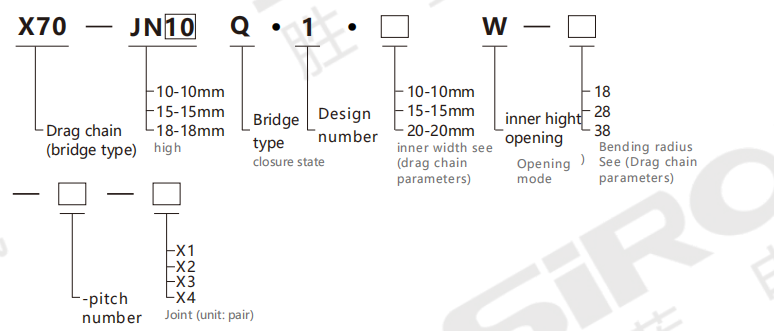

Selection example :X70-JN15Q.1.15W-18-18-X1 represents the X70 series drag chain, with an inner height of 15mm, bridge type, inner width of 15mm, outer opening, bending radius of 18mm, 18 sections, and X1 joints (1 pair).

Order the connector model separately :X70-JN15Q.1.15W-X1 1 pair

Towing chain size table

model	bending radius R	Inner height	inner width	Outer height	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H;	Maximum line Cable diameter Q(mm)	load 、 (kg/m)	Installation dimensions of drag chains拖链安装尺寸
													H	D	K
X70-JN10Q.1.10W	18	10	10	14.5	17.5	14.5	14.5	16.7	60	H+14.5	9	0.2	50.5	43	90
	28												70.5	53	120
	38												90.5	63	150
	48												110.5	73	180
X70-JN10Q.1.15W	18		15		22.5								50.5	43	90
	28												70.5	53	120
	38												90.5	63	150
	48												110.5	73	180
X70-JN10Q.1.20W	18		20		27.5								50.5	43	90
	28												70.5	53	120
	38												90.5	63	150
	48												110.5	73	180
X70-JN10Q.1.30W	18		30		37.5								50.5	43	90
	28												70.5	53	120
	38												90.5	63	150
	48												110.5	73	180
