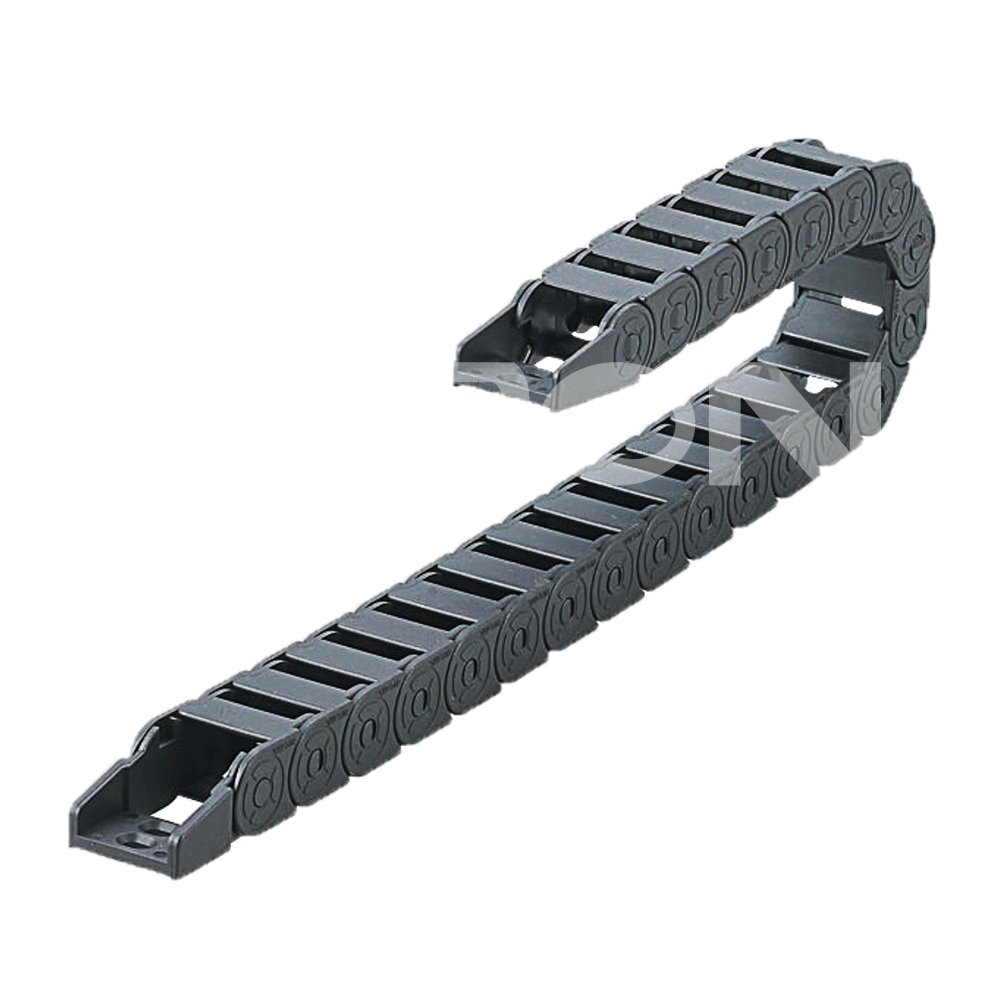

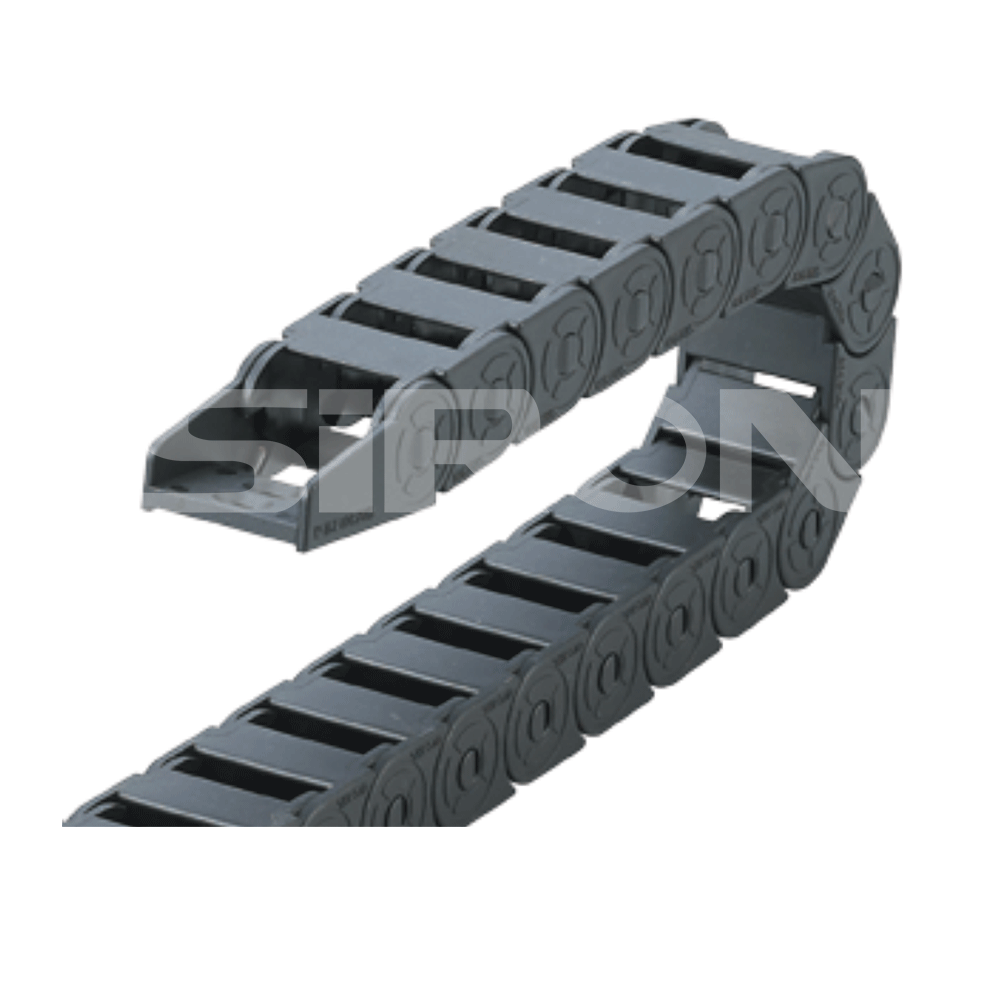

SiRON X70 Series Chain-bridge Inner Height 15/18 Type Cannot Be Opened Drag

Name: SiRON X70 Series Chain-bridge Inner Height 15/18 Type Cannot Be Opened Drag
Brand: SiRON
Rating: 5.0 (40 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket

Model:
X70
Brand:
SiRON
Code:
8544421100

X70 Series bridge type Drag X70 Series drag chain New PA plus Pa66 X70 Series Inner Height 15/18 Drag

Product Description

Order

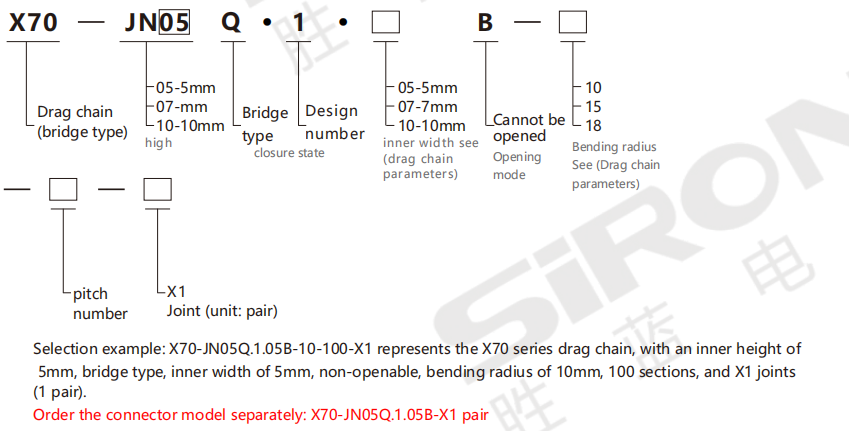

adb5cc3c5c3ac29c76efb842407e751f

Selection example: X70-JN15Q.1.15B-28-50-X1 represents the X70 series drag chain, with aninner height of 15mm, bridge type, inner width of 15mm, non-openable, bending radius of 28mm,50 sections, and X1 joints (1 pair).

Order the connector model separately:X70-JN15Q.1.15B-X11 pair

Towing chain size table

appearance	Model	Bending radius R	Inner hight	inside width	outsidehight	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H	Maximum line Cable diameterQ(mm)	load、 (kg/m)	Installation dimensions of chains
														H	D	K
	X70-JN15Q.1.15B	28	15	15	20	24	20	20	20	50	H+20	13	0.3	76	58	140
		38												96	68	160
		48												116	28	200
	X70-JN15Q.1.20B	28		20		28								76	58	140
		38												96	68	160
		48												116	28	200
	X70-JN15Q.1.30B	28		30		38								76	58	140
		38												96	68	160
		48												116	28	200
	X70-JN15Q.1.40B	28		40		48								76	58	140
		38												96	68	160
		48												116	28	200
