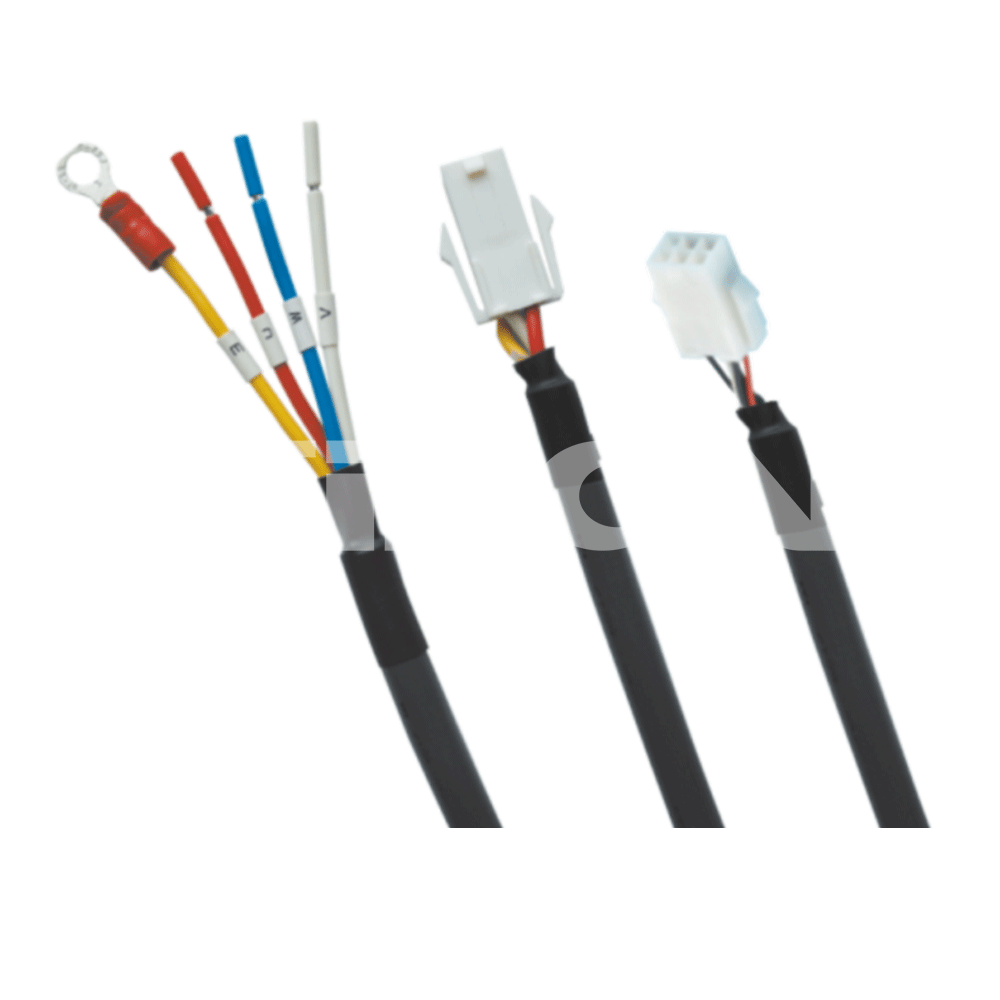

SiRON X350 Series Inovance servo cable

Name: SiRON X350 Series Inovance servo cable
Brand: SiRON
Rating: 5.0 (82 reviews)

Features

Cable oversheath is made of low tack and high wear-resistance material.
With high flexural strength and high flexibility;
With oil and refrigerant resistance function, uneasy to leave scratch;
Applicable to general wiring situation and towing transmission places.

Quantity:
Availability:





Inquire Add to Basket

Model:
X350
Brand:
SiRON
Code:
8544421100

X350 high wear-resistance Inovance servo cable X350 Servo Cable X350 high flexural strength

Product Description

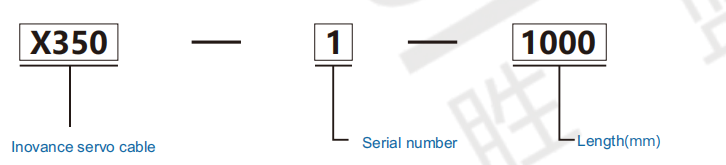

Order

f95fdd268d1600203346160cb6511642

Notice:the shortest length is 1000mm, such as theneed to increase to 1000mm for increasing unit.

Specification

Model	Wre diameler	Motor power (P)	Motonearwe madel	Originalfaclory models (lop7)	type
X350-1	AWG20	P≤400W	MS1H1 MSH4 ISMH1 iSMH4 ISMseries1KW Do not select these six wires for the motor	S6-L-M100-length S6-L-M000-length S6-L-M00-length	Wire-type (Z-S)
X350-1H	AWG17	400W<P≤1000W		S6-L-M100-length S6-L-M000-length S6-L-M00-length
X350-2	AWG20	P≤400W		S6-L-B100-length S6-L-B000-length S6-L-B00-length
X350-2H	AWG17	400W<P≤1000W
X350-2T	AWG20X4C AWG22X2C	400W<P≤1000W
X350-3	AWG24	P≤1000W	IS620,IS810	S6-L-P00-length S6-L-P010-length
X350-3	AWG24	P≤750W	IS600P	S6-L-P00-length S6-L-P010-length
X350-6	AWG24	P≤1000W	MS1H1,MS1H4	S6-L-P110-length
X350-14	AWG24	P≤1000W	SV660 SV630 SV820N	S6-L-P120-length
X350-14T	AWG24	P≤1000W	SV660 SV630 SV820N	S6-L-P120-length
X350-7	AWG24	P≤1000W	Sv660 SV630 SV820N	S6-L-P124-length	terminal (Z)
X350-8	AWG20	P≤1000W	MS1H1 MS¹H4	S6-L-B107-length
X350-9	AWG20	P≤1000W	MS1H1 MS¹H4	S6-L-M107-length
X350-10	AWG24	P≤1000W	IS620 iS810	S6-L-P024-length
X350-11	AWG24	P≤1000W	MS1H1,MS1H4	S6-L-P014-length S6-L-P015-length
X350-12	AWG24	P≤1000W	MS1H1,MS1H4	S6-L-P114-length
X350-15	AWG24	1000W<P≤2900W	MS1H2,MS1H3	S6-L-P111-length	Connector type
X350-16/16T	AWG24	1000W<P≤2900W	MS1H2,MS1H3	S6-L-P121-length
X350-17	AWG24	P≤2900W	MS1H3	S6-L-P011-length
X350-18	AWG24	P≤2900W	MS1H3	S6-L-P021-length
X350-19/19T	AWG15	1800W≤P≤3000W	MS1H2,MS1H3	S6-L-M111-length
X350-20	AWG13	P≤2900W	MS1H2,MS1H3	S6-L-M112-length S6-L-M012-length
X350-20H	AWG11	P≥4400W	MS1H3	S6-L-M022-length
X350-21	AWG16x4C AWG20x2C	1800W≤P≤3000W	MS1H2,MS1H3	S6-L-B111-length
X350-22H	AWG11x4C AWG20×2C	P≥4400W	MS1H3	S6-L-B022-length
