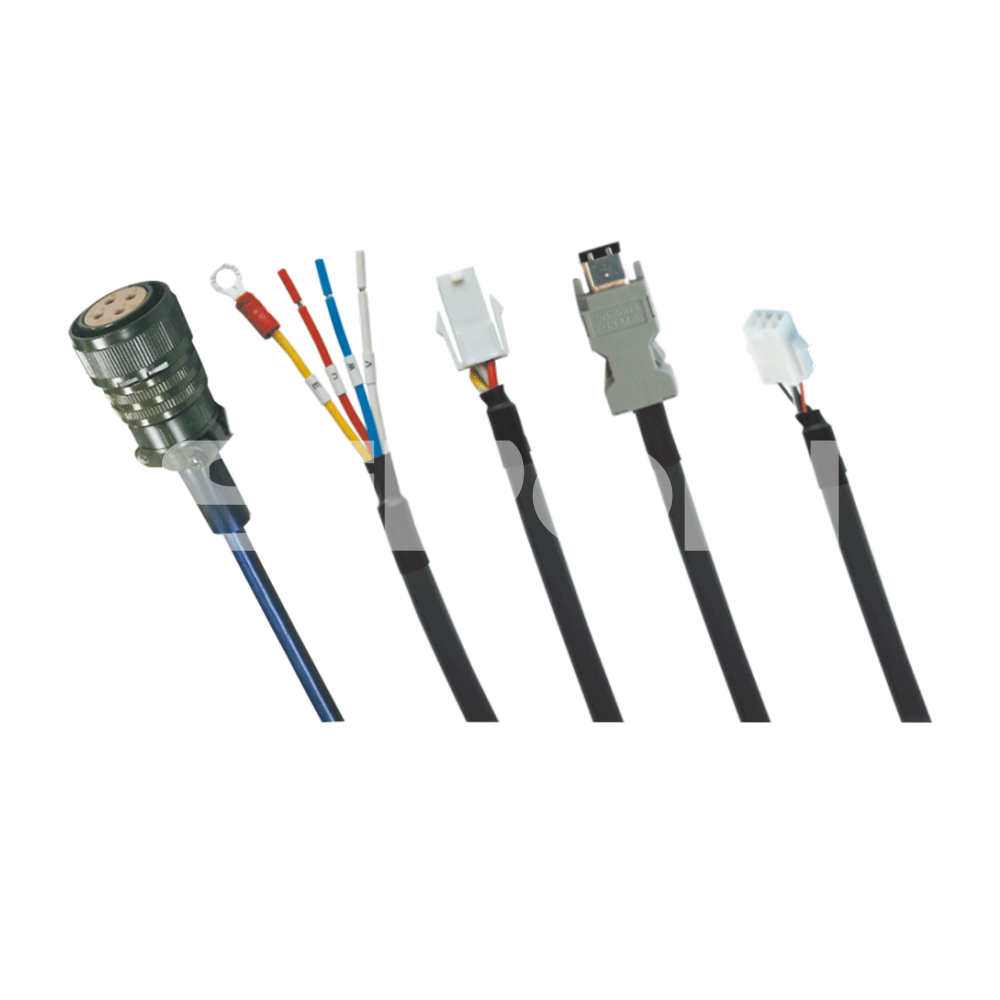

SiRON X320 Series Servo for Panasonic A4/A5/A6 Cable

Name: SiRON X320 Series Servo for Panasonic A4/A5/A6 Cable
Brand: SiRON
Rating: 5.0 (6 reviews)

Features

Cable oversheath is made of low tack and high wear-resistance material.
With high flexural strength and high flexibility;
With oil and refrigerant resistance function, uneasy to leave scratch;
Applicable to general wiring situation and towing transmission places.

Quantity:
Availability:





Inquire Add to Basket

Model:
X320
Brand:
SiRON
Code:
8544421100

X320 Series Servo Cable X320 Panasonic A4/A5/A6 Cable X320 high flexural strength

Product Description

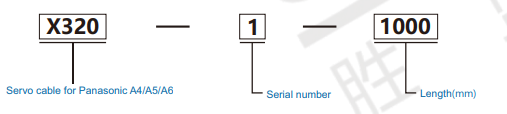

Order

9b927e83-1098-4768-b4ce-0cf41bf4ee04

Notice：The shortest length is 1000mm, such as theneed to increase to 1000mm for increasing unit.The above is standard cable model. If you want to use the chain wire, Please sign “T” after the model.Please contact sales for more details

Specification

Model	Cable specification	Corresponding power	Driver	Correspanding Motor
			MIANS
X320-1	AWG20	50-400W	A4 series	MAMA01(02,03,04) MQMA01(02,04) MSMD5A(01,02,04)
			A5/A6series	MSMD5A(01,02,04) MHMD02(04) MHMF5A(01,02,04)
X320-1H	AWG17	750W	A4series	MAMA08 MSMD08
			A5/A6series	MHMD08 MSMD08 MHMF5A08
X320-2	AWG20	50-400W	A4/A6series	MSME5A(01,0204) MSMF5A(01,02,04)
X320-2H	AWG17	750W	A5/A6series	MSME08 MSMF5A08
X320-3/3T	AWG24	50-750W	A4series	MAMA01(02,03,04) MQMA01(02,04) MSMD5A(01,02,04)
X320-3H/3HT			A5series	MSMD5A(01,02,04) MHMD02(04)MSMF
			A6series
X320-4	AWG24	50-750W	A5series	MSME5A(01,02,04,08)
X320-5 X320-5T	AWG20	50-750W	A4series	MAMA01(02,03,04,08)MQMA01(02,04) MSMD5A(01,02,04,08)
			A5/A6series	MSMD5A(01,02,04,08)MHMD02(04,08) MHMF5A(01,02,04,08)
X320-6	AWG20	50-750W	A5series	MSME5A(01,02,04,08) MSMF5A(01,02,04,09)
X320-7	AWG17	400-1500W	A4series	MFMA-04,-05,-08,-09,-10,-15
X320-8	AWG17	500-1000W	A4series	MSMA-10 MDMA-10 MGMA-09 MHMA(-05,-08,-09,-10)
			A5/A6series	MSME-10 MDME-10 MGME-09 MHME-10 MSMF-10 MDMF-10
X320-8H	AWG13	1500-2000W	A4series	MSMA-15,-20 MDMA-15,-20 MHMA-20
			A5/A6series	MSME-15,-20 MDME-15,-20 MHME-15 MSMF-15,-20 MDMF-15,-20
X320-9	AWG13	2000-3000W	A4series	MSMA-30 MDMA-30 MGMA-20,-25,-30 MHMA-30 MDMF-30
			A5/A6series	MSME-30 MDME-30 MGME-20,-30 MHME-20,-30 MSMF-30
X320-9H	AWG10	4000-5000W	A4series	SMA-40,-45,-50 MDMA-40,-45,-50 MGMA-40,-45 MHMA-40,-45,-50
			A5/A6series	MSME-40,-50 MSMF-40,-50	MDME-40,-50 MDMF-40,-50	MHME-40,-50
