| Quantity: | |
|---|---|
X310
SiRON
8544421100
Order

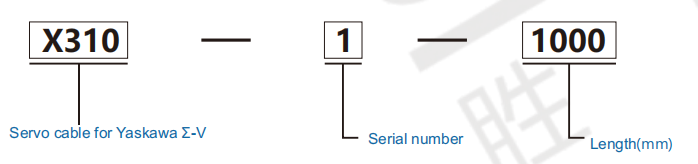

Notice：The shortest length is 1000mm, such as theneed to increase to 1000mm for increasing unit.The above is standard cable model. If you want to use the chain wire, Please sign “T” after the model.Please contact sales for more details
Specification
| Model | Corresponding power | Driver | Corresponding Motor | Original model |
| X310-1 | 50-100W | Z-V/2-7 rotary type | SGMJV-A5A SGMJV-01A SGM7J/7A-01A SGMAV-A5A SGMAV-01A SGMPS-01A SGM7J/7A-A5A | JZSP-C7M10F-*-E |
| X310-2 | 200-600W | Z-V/2-7 rotary type | SGMJV-02A SGMJV-04A SGM7J/7A-04A SGMAV-02A SGMAV-04A SGM7J/7A-06A SGMPS-02A SGMPS-04A SGMAV-06A SGM7J/7A-02A | JZSP-C7M20F--E |
| X310-3 | 750W | Z-V/Z-7 rotary type | SGMJV-08A SGMAV-08A SGM7J/7A-08A | JZSP-C7M30F-*-E |
| X310-4 | 50-100W | Z-V/Z-7 rotary type | SGMJV-A5A SGMJV-01A SGM7J/7A-01A SGMAV-A5A SGMAV-01A SGMPS-01A SGM7J/7A-A5A | JZSP-C7M13F-*-E |
| X310-5 | 200-600W | Z-V/Z-7rotary type rotary type | SGMJV-02A SGMJV-04A SGM7J/7A-04A SGMAV-02A SGMAV-04A SGM7J/7A-06A SGMPS-02A SGMPS-04A SGMAV-06A SGM7J/7A-02A | JZSP-C7M23F-*-E |
| X310-6 | 750W | Z-V/-7 rotary type | SGMJV-08A SGMAV-08A SGM7J/7A-08A | JZSP-C7M33F-*-E |
| X310-7 | 50-750W | Z-V/2-7 rotary type | SGMJV-A5A SGMPS-08A SGMJV-01A(01A,2A,04A-08A) SGMAV-A5A SGMAV-01A(01A,2A,04A-08A) SGMPS-01A(01A,2A,04A)SGM7J | JZSP-CSP01-*-E JZSP-C7PIOD-*-E |
| X310-8 | 300-1000W | 2-V rotary type | voltage 400V SGMGV-0.3/-0.5 SGMSV-10 | / |
| X310-8H | 2000-2500W | 2-V rotary type | voltage 400V SGMSV-20,-25 | JZSP-UVA101-*-E JZSP-UVA301-*-E JZSP-UVA501-*-E |
| X310-9 | 900-3000W | 2-V rotary type | voltage400V SGMGV-0.9,-13,-20,-30 SGMSV-30 | JZSP-UVA601-*-E |
| X310-9H | 4000-5000W | Z-V/Z-7 rotary type | voltage 400V SGMGV-44 SGMSV-40,-50 | JZSP-UVA701-*-E |
| X310-10 | 1000W | Z-V/2-7 rotary type | voltage 200V SGM7A-10 SGMSV-10 | / |
| X310-10H | 1500-2000W | Z-V/Z-7 rotary type | voltage 200V SGM7A-15,-20,-25 SGMSV-15,-20,-25 | / |
| X310-11 | 3000W | Z-V/Z-7 rotary type | voltage 200V SGMSV-30 SGM7A-30 | / |
| X310-11H | 4000-5000W | 2-V rotary type | voltage 200V SGMSV-40,-50 | / |
| X310-12 | 5500W | 2-V rotary type | SGMGV-55 SGM7A-40,-50 | |
| X310-13 | 300-5500W | Z-V/Z-7 rotary type | SGMGV(-0.3,-0.5,-0.9,-13,-20,-30,-44,-55)SGM7A-10(-20,-25,-30,-40,-50) SGMSV(-10,-20,-25,-30,-40,-50) | JZSP-CVP01-*-E |
| X310-14 | 850-5500W | Z-V/2-7 rotary type | SGMGV(200V-400V general 0.85KW-5.5KW)SGMSV(400V 1KW-5KW) SGM7A-10(-20,-25,-30,-40,-50) | JZSP-U7B23-*-E |
| X310-15 | 100-750W | / | SGMPS-08A SGMJV-01ADD-08ADD | JZSP-CMM9-*-E |
| X310-16 | 100-750W | / | SGM7J-*AFC6S0102040608 | JZSP-UCMP00-*-E JZSP-CMP00-*-E |
| X310-17 | 100-750W | 1 | SGM7J-*AFC6S0102040608 | JZSP-C7M03-*-E JZSP-C7CM03-*-E |
| X310-18 | 100-750W | / | SGM7J-*AFC6S0102040608 | JZSP-C7M33-*-E JZSP-U7B23-*-E |
