| Quantity: | |
|---|---|

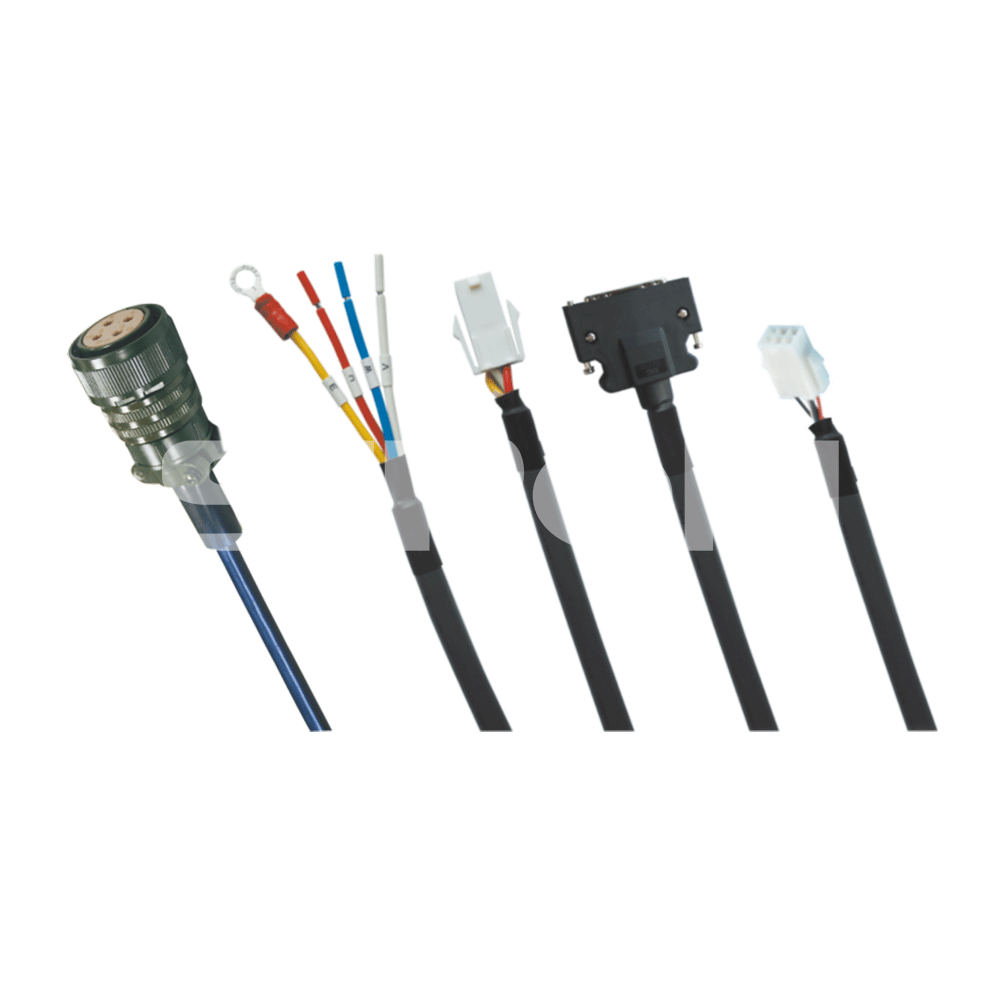

X301
SiRON
8544421100
Order

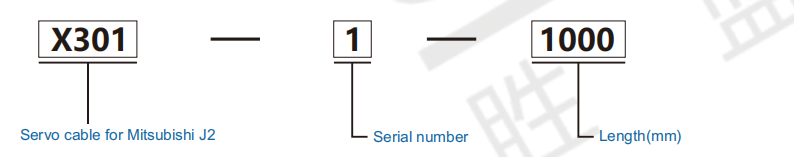

Notice：The shortest length is 1000mm, such as theneed to increase to 1000mm for increasing unit.The above is standard cable model. If you want to use the chain wire, Please sign “T” after the model.Please contact sales for more details
Specification
| Model | Corresponding power | Corresponding Servo Amplifier | Corresponding Motor |
| X301-1 | 100W-600W | MR-J2S-10A (20A,40A,60A) | HC-KFS13(23,43) HC-MFS13(23,43) HC-UFS13(23,43) HC-SFS52(53) |
| X301-1H | 700W | MR-J2S-70A | HC-MFS73 HC-UFS72(73) |
| X301-2 | |||
| X301-2H | 100W-600W | MR-J2S-10A (20A,40A,60A) | HC-KFS13(23,43) HC-MFS13(23,43) HC-UFS13(23,43) HC-SFS52(53) |
| X301-3 X301-3T | 100W-700W | MR-J2S-10A (20A,40A,60A,70A) | HC-KFS13(23,43) HC-MFS13(23,43,73) HC-UFS13(23,43,72,73) HC-SFS52(53) |
| X301-4 | 600W-1000W | MR-J2S-60A (-70A,-100A) | HC-SFS53 HC-SFS103 HC-UFS72 HC-SFS81 HC-SFS52 HC-SFS102 |
| X301-4H | 2000w | MR-J2S-200A | HC-SFS152 HC-SFS153 HC-RFS203 HC-UFS152 |
| X301-5 | 3000w | MR-J2S-350A | HC-SFS121,201,301 HC-SFS202,352, HC-SFS203 HC-RFS353 HC-UFS202,352 |
| X301-6 | 5000w | MR-J2S-500A | HC-SFS502 HC-SFS503 HC-RFS503 HC-UFS502 |
| X301-7 | 600W-5000w | MR-J2S-60A (-70A,-100A,-200A,-350A,-500A) | HC-SFS81(52,102,53,103,152,153, 121,201,301,202,352,502,203,503) HC-UFS72(152,202,352,502) HC-RFS203(353,503) |
| X301-8 | 1000W-5000W | MR-J2S-100A (-200A,-350A,-500A) | HC-SFS121,201,301 HC-SFS202,352,502,702 HC-RFS353,503 HC-UFS202,352,502 |
