| Quantity: | |
|---|---|
X300
SiRON
8544421100
Order

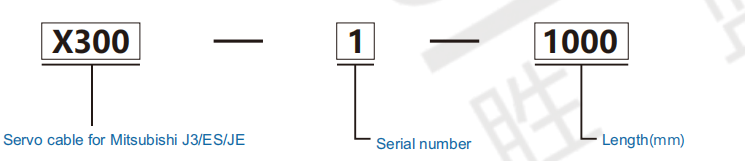

Notice：The shortest length is 1000mm, such as theneed to increase to 1000mm for increasing unit.The above is standard cable model. If you want to use the chain wire, Please sign “T” after the model.Please contact sales for more details
Specification
| Model | Corresponding power | Drive | Corresponding mofor | Oniginal model |
| X300-1 X300-1T | 100~600W | J3,J4 E,JE | HE-MP HG-MR HE-KP HG-KR HF-KE HG-KN HF-KN(13/23/43) | MR-PWS1CBL()-A1-L |
| X300-1H X300-1HT | 750W | J3,J4 E,JE | HF-MP HG-KE HE-KR HG-KN HF-KP HG-KR HF-MR (73) | MR-PWS1CBL()-A1-L |
| HF-SE(52) | ||||
| X300-2/2T | 100~750W | J3,J4 E,JE | HF-MP HG-KN HE-KP HG-KR HF-KE HG-MR HF-KW HF-KN (13/23/43/73) | B:MR-J3ENCBL()-L |
| X300-2B | MR-J3ENBTACBL()-L | |||
| X300-3 | S:MR-BKS1CBL()-A1-L | |||
| X300-4 | 600~1000W | J3,J4 E,JE | HF-SP(51/52/81/102) HG-SR(51/52/81/102) HF-SN(52/102) HF-SE52JWI-S100 HF-SE102JWI-10 | plug：MR-PWCNS4 |
| X300-4H | 2000W | J3,J4 E,JE | HF-SP(152) HF-SN(152) HG-SR(152) HF-SE152JWI-S100 | |
| X300-5 | 2000~3000W | J3,J4 E,JE | HF-SP(121/201/202/352) HF-SN(202302) HG-SR(121/201/202/301/352) | plug：MR-PWCNS5 |
| X300-5H | 5000W | J3,J4 | HF-SP(502) HG-SR(502) | |
| X300-6 | 600~5000W | J3,J4 JE | HFSP(51/52/81/102/121/152/201/202/352/502) | MR-J3ENSCBL()-L |
| HG-SR(51/52/81/102/121/152/202/201/301/352) | ||||
| HF-SN HG-KN HG-SN (52/102/152/202/302) | ||||
| X300-7 | 750~2000w | E | HF-SEOJWI-S100(52/102/152/202) HG-JR701M(4) HG-JR37K1M(4) HG-JR45K1M4HG JR55K1M4HG-JR601(4) HG-JR37K1(4) | / |
| X300-8 | 600~5000W | J3,J4 E,JE | HF-SP (51/52/102/121/152/201/202/352/502) | plug：MR-BKCNS1 |
| HF-SN(52102152202) | ||||
| HG-SR HG-SN (51/52/81/102/121/152/201/202/301) | ||||
| X300-10 X300-10B | total power | ALL SERIES / | ALL SERIES / | MR-J3BUS(M |
