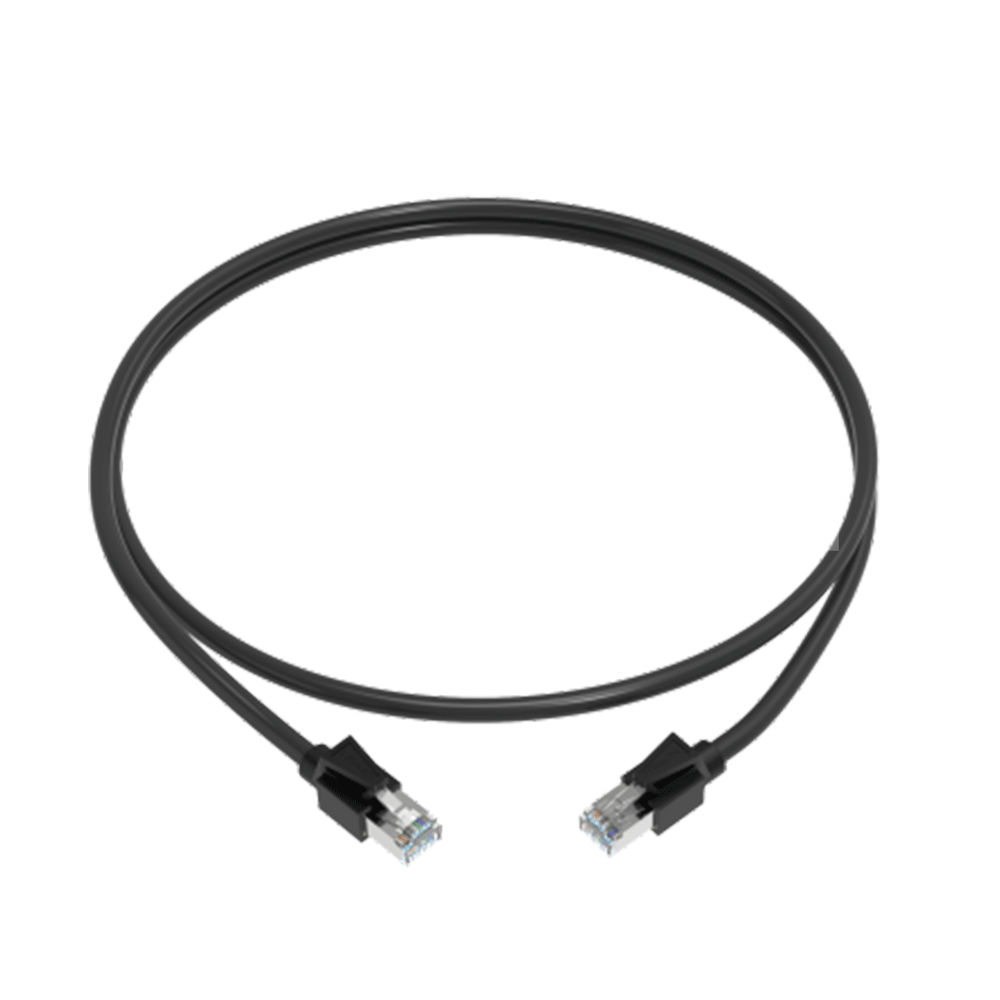

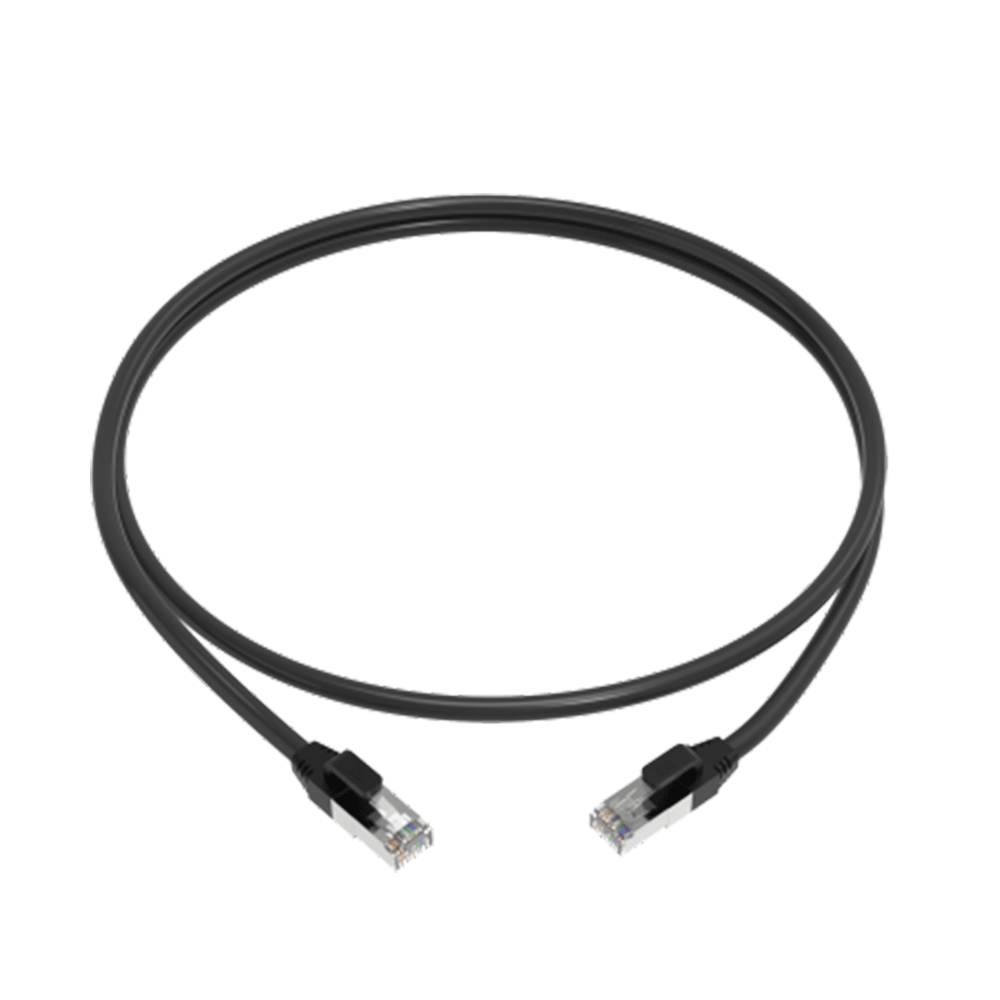

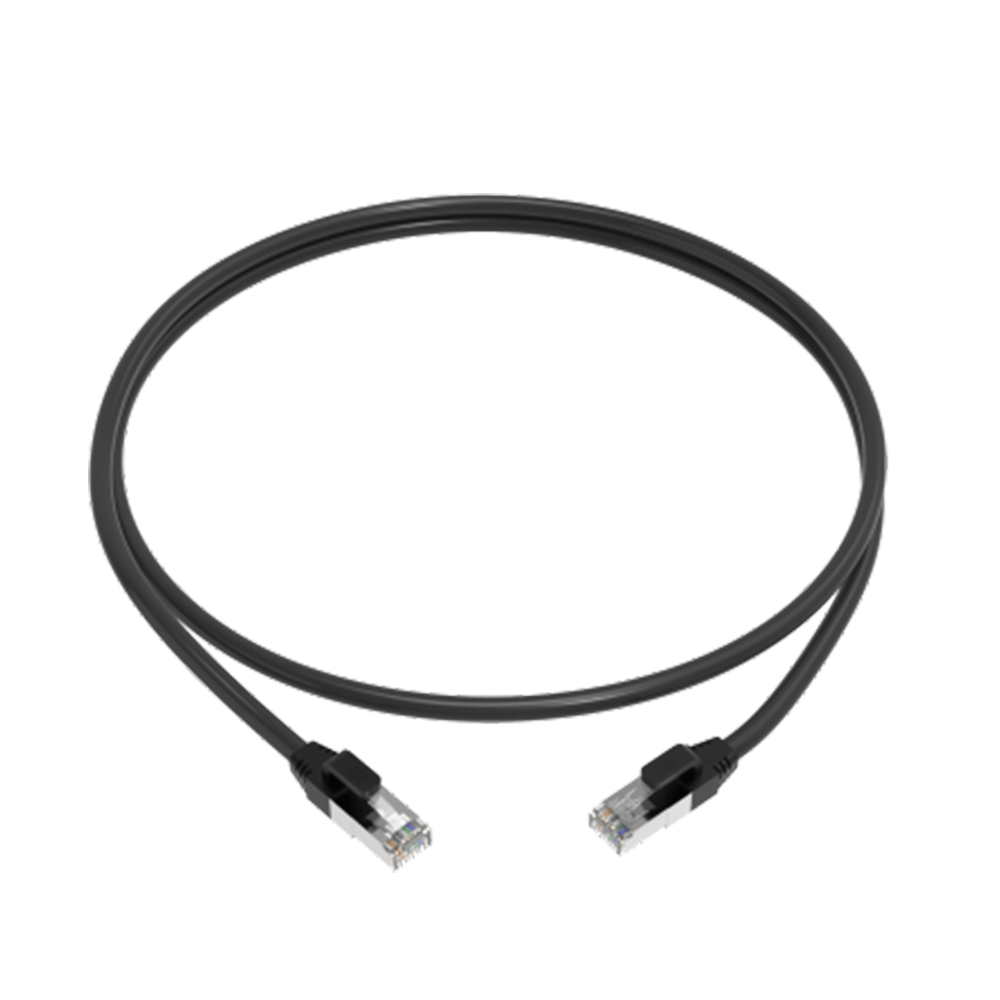

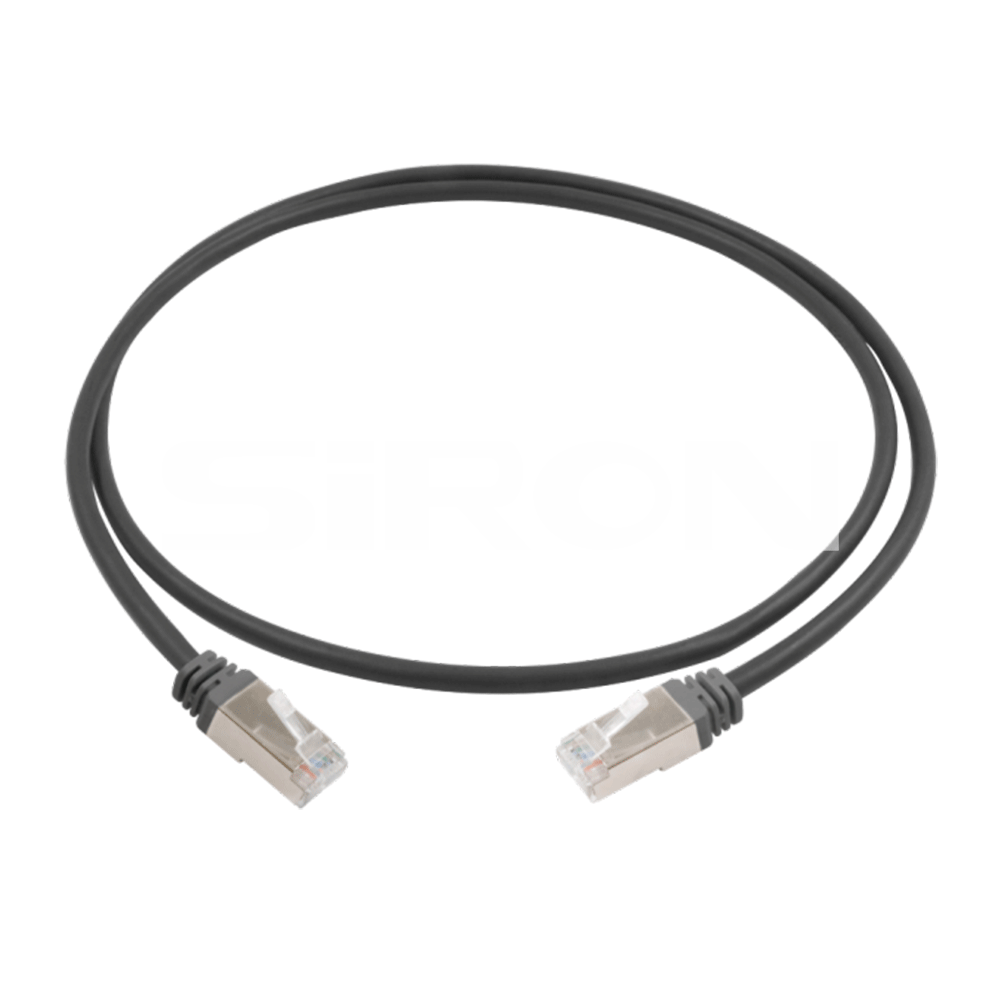

SiRON X235 Series Ethernet cable

Name: SiRON X235 Series Ethernet cable
Brand: SiRON
Rating: 5.0 (88 reviews)

Features

A cable with a characteristic impedance of 100 ohms for Ethernet data transmission;
26AWG/7 stranded bare copper conductor;Foam PE, HDPE insulation, PVC/PUR sheath;Super Category 5/Super
Category 6/Category 7/Shielded Industrial Ethernet Cable;
The wire specifications have UL and CE standards, which should be indicated when necessary.

Product Description

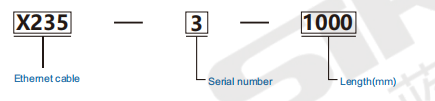

Order

Specification

Model	X235-2A	X235-3	X235-3T10	X235-4
Types	Category 6A/Shielding (≥40%)	Category 6A/Shielding (≥85%)	The number of times of super Category 6 / shielded (≥85%) drag chains is 10 million times	Category 7 / Shielding (≥85%)
Conductor DCresistance	≤14.8ohm/100m
Charactenisticimpedance	100±15 ohm@100MHz
Propagation delay	≤521ns
Dperatingvoltage	≤30V
Jacke characteristic	≥13.8MPa
Tensile strength(before aging)	≥100%
Eongation(before aging)	Category 7 / Shielding (≥85%)
Tensle strenghilateragng100℃×240n)	The minimum retention rate for unaging is 85%
Eiongation(atter aging100℃×240h)	≥100%
Haat shock	8 5 ℃ × 1 h , 变形 ≤ 5 0 % ( U L 4 4 4 )
Cold bend test(-40℃×4h)	8×OD.,No cracks
Operating temperature	-20℃~80℃;
Instalalion temperature	-20℃~55℃
Fame resistance	VW-1,CM
End	The minimum retention rate for unaging is 85%
