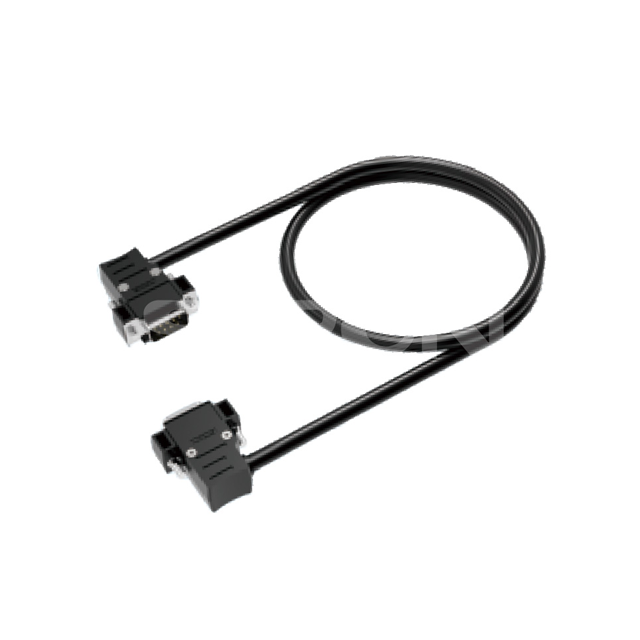

SiRON X230 Suitable Plug Servo Controller D-SUB Cable

Name: SiRON X230 Suitable Plug Servo Controller D-SUB Cable
Brand: SiRON
Rating: 5.0 (48 reviews)

Features

● X230-1applies to 9 p plug servo controller.
● X230-2 applies to 15 p plug servo controller.
● X230-3 applies to 25 p plug servo controller.
● X230-4applies to 37 p plug servo controller.
● X230-5 applies to 44 p plug servo controller.
● X230-6 applies to 60p plug servo controller.
● Saving wiring time, cooperating with our company terminal modules, make the wiring more convenient and intuitive.
● Please according to PLC and Terminal Block specifications,select the suitable cable.
● Please don’t arbitrarily changed cable internal product

Quantity:
Availability:





Inquire Add to Basket

Model:
X230
Brand:
SiRON

X230 D-SUB Cable Flexible X230 D-SUB Cable 10-foot X230 D-SUB Cable Industrial X230 D-SUB Cable X230 D-SUB Cable for monitors X230 D-SUB Cable bulk pack

Product Description

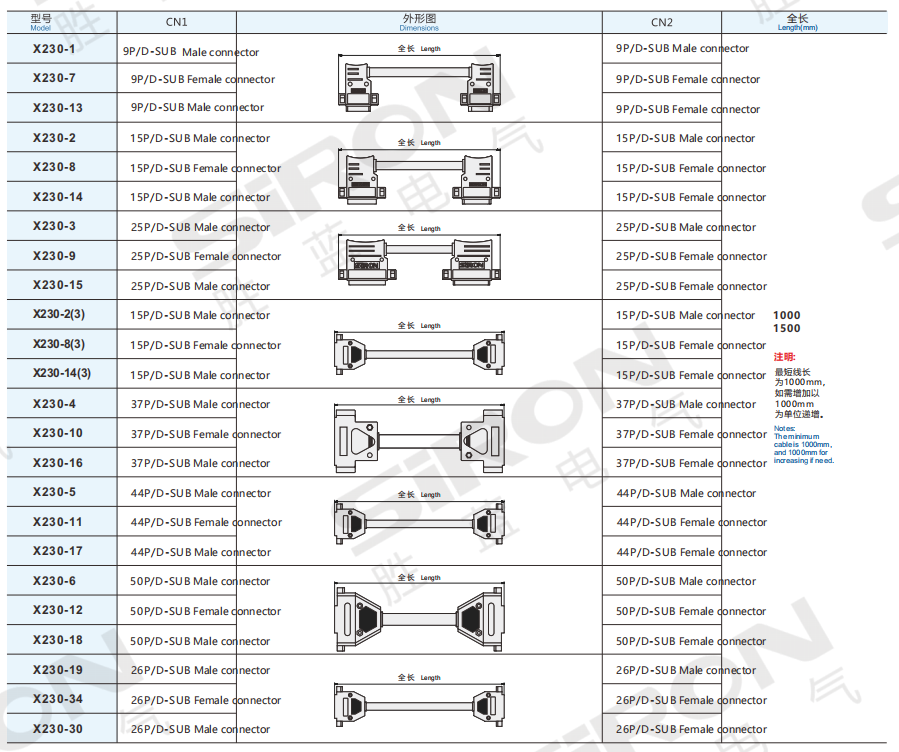

Example

Notice：The above are standard models. If the other side is a loose line, please add "D" after the model, and note screw ruler when placing the order Inch (0.65/0.45), the default is 0.65 if not indicated, please consult relevant sales personnel for details.

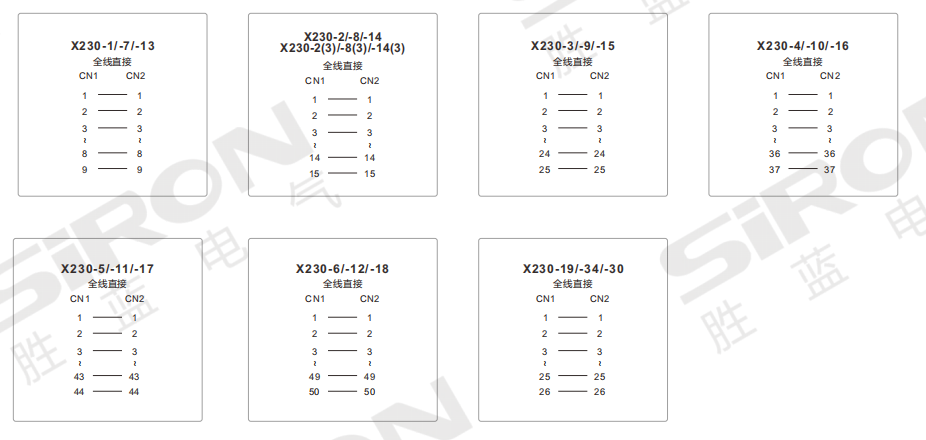

Holes arrangement table

Hole location arrangement plan for SiRON company define the order of the standard, different manufacturers female head side of the hole location order may be different, and when using please pay attention to check.

Product specification

Cable specification	AWG28
Mire consditute	7/0.127
Conductors and insulators material	Conductor:Soft copper wire Insulator :PE
Twist and polishing	Filling:Cotton thread Wrapping tape:Paper tape
Appearance condition coaling	PVC
Conductor resistance and insulation resistance	Conductor impedance:Below 239Ω/Kn;Insulation resistance:above 50 Ω/Kn
Voltage resistance (air)	AC500V/min

Product Port list

Port corresponding list

All the products mentioned on the table are owned by SiRON Company, and please refer to the comprehensive catalogue for the relative specifications of T series “T090-B," -B stands for male terminal station.

Model	Corresponding to CN1	Corresponding to CN2
Model	Brand	Terminal Blocks
X230-1	No limit PLC	T090 T091 T092 T093 T094 T096 T090-B* T091-B
X230-2
X230-3
X230-4
X230-5
X230-6
X230-7
X230-8

Model	Corresponding to CN1	Corresponding to CN2
Model	Brand	Terminal Blocks
X230-9	No limit PLC	T092-B T093-B T094-B T096-B T090/T090-B T091/T091-B T092/T092-B T093/T093-B T094/T094-B T096/T096-B T097
X230-10
X230-11
X230-12
X230-13
X230-14
X230-15
X230-16
X230-17
X230-18
X230-19
X230-34
X230-30
