SiRON K047-9～K047-12 Series Ring Proximity Switch - Metal Through Type

About selection

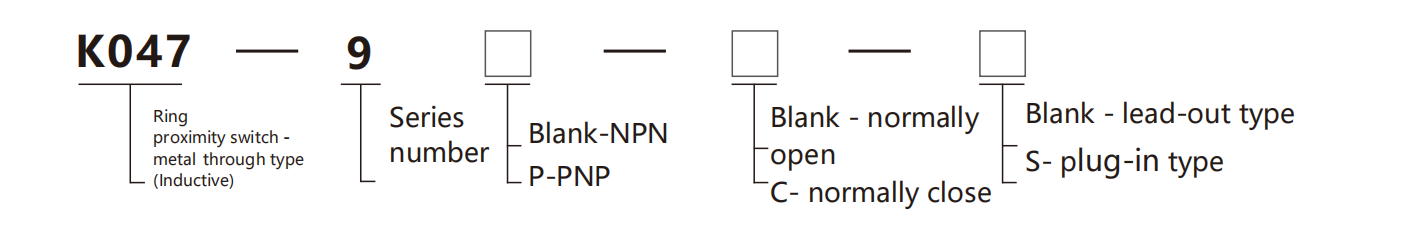

Selection example: K047-9 represents the K047 series, 9 serial number, NPN output, normally open,

                                      and lead-out type；

                                      K047-9p-s represents the K047 series, 9 serial number, PNP output, normally open,                                                                  and plug-in type.

Specifications

Name		Ring Proximity Switch (Inductive)—Metal Through Type
Model	NPNN.O	K047-9	K047-9-S	K047-10	K047-10-S	K047-11	K047-11-S	K047-12	K047-12-S
	NPNN.C	K047-9C	K047-9C-S	K047-10C	K047-10C-S	K047-11C	K047-11C-S	K047-12C	K047-12C-S
	PNP N.O	K047-9P	K047-9P-S	K047-10P	K047-10P-S	K047-11P	K047-11P-S	K047-12P	K047-12P-S
	PNP N.C	K047-9P-C	K047-9P-C-S	K047-10P-C	K047-10P-C-S	K047-11P-C	K047-11P-C-S	K047-12P-C	K047-12P-C-S
Wiring Form		Lead-outtype	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type

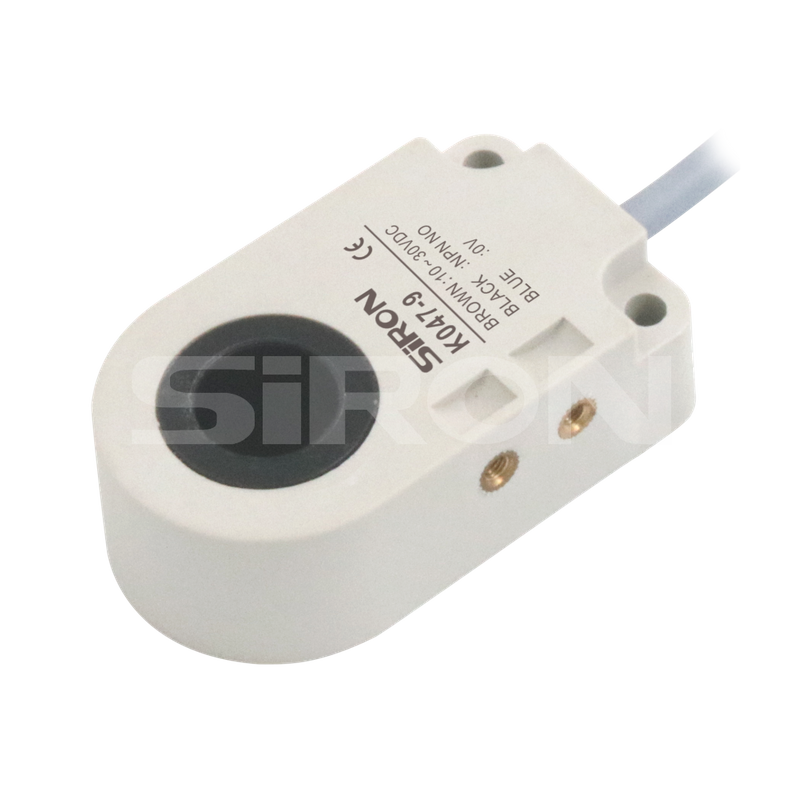

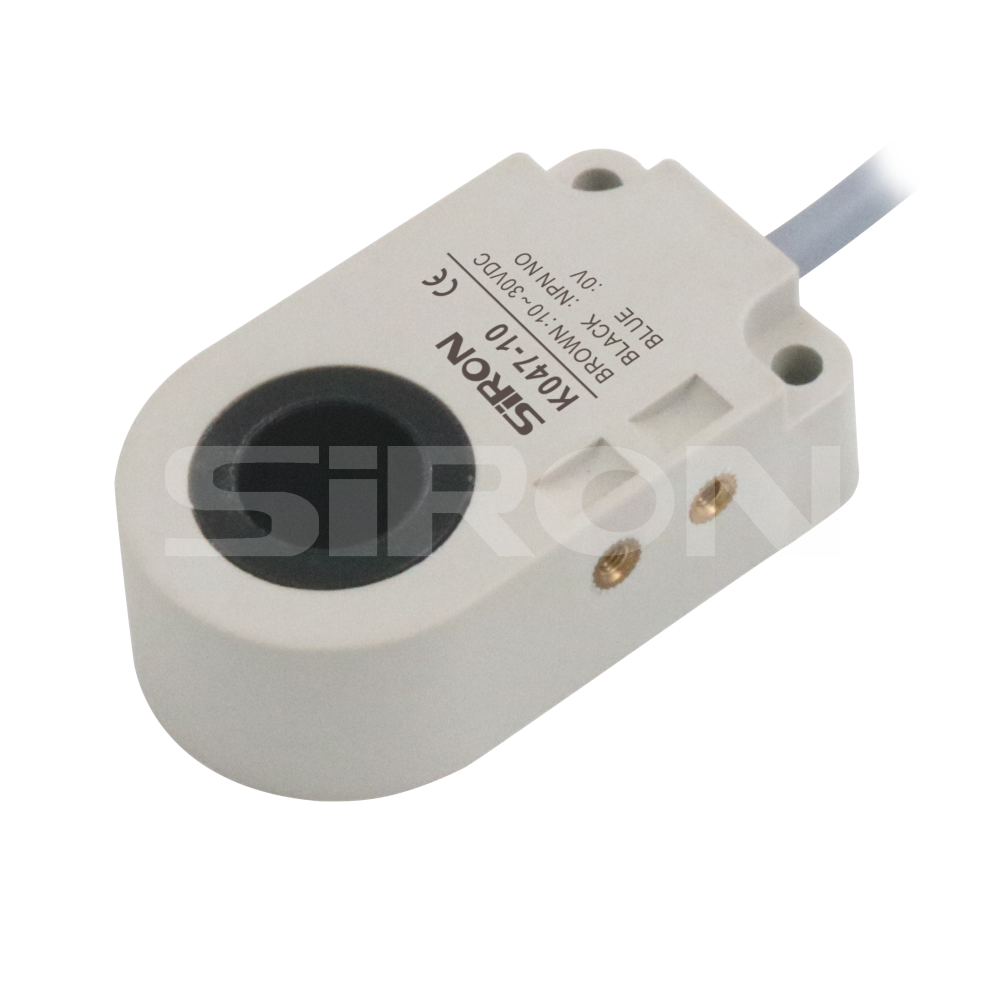

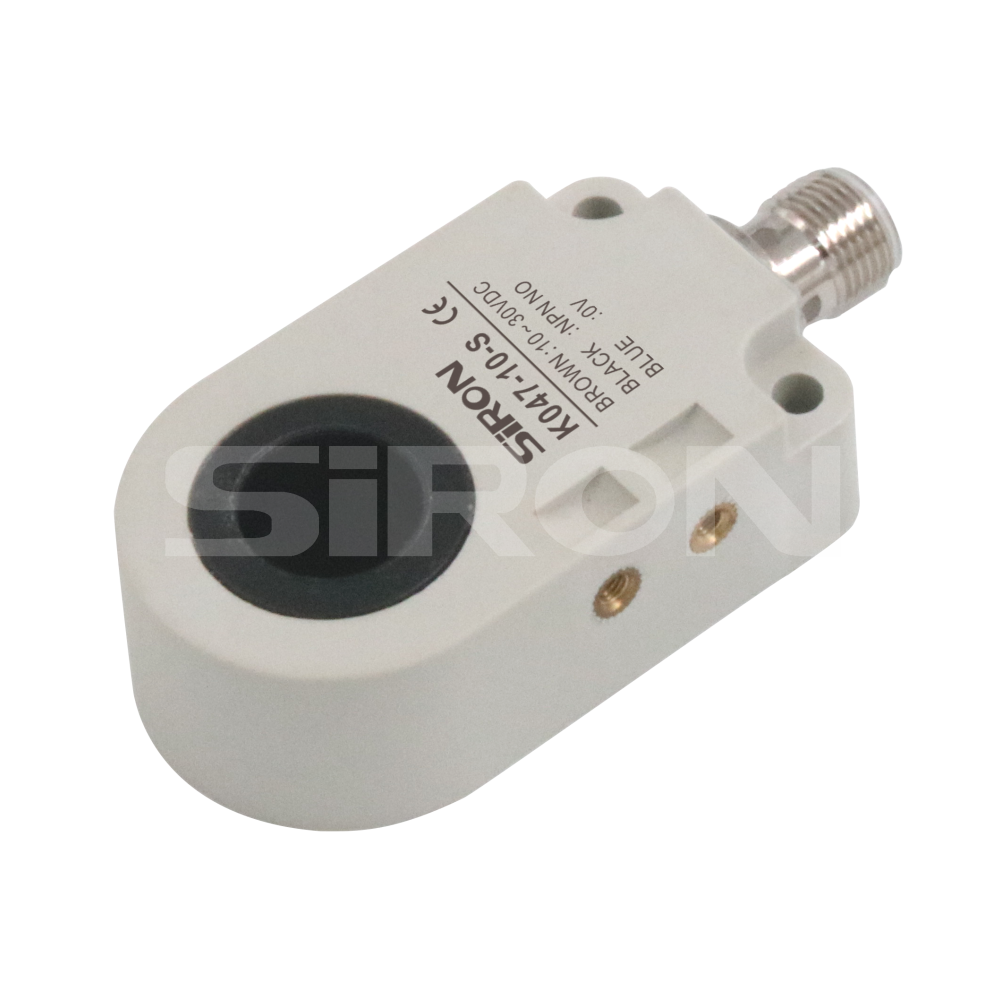

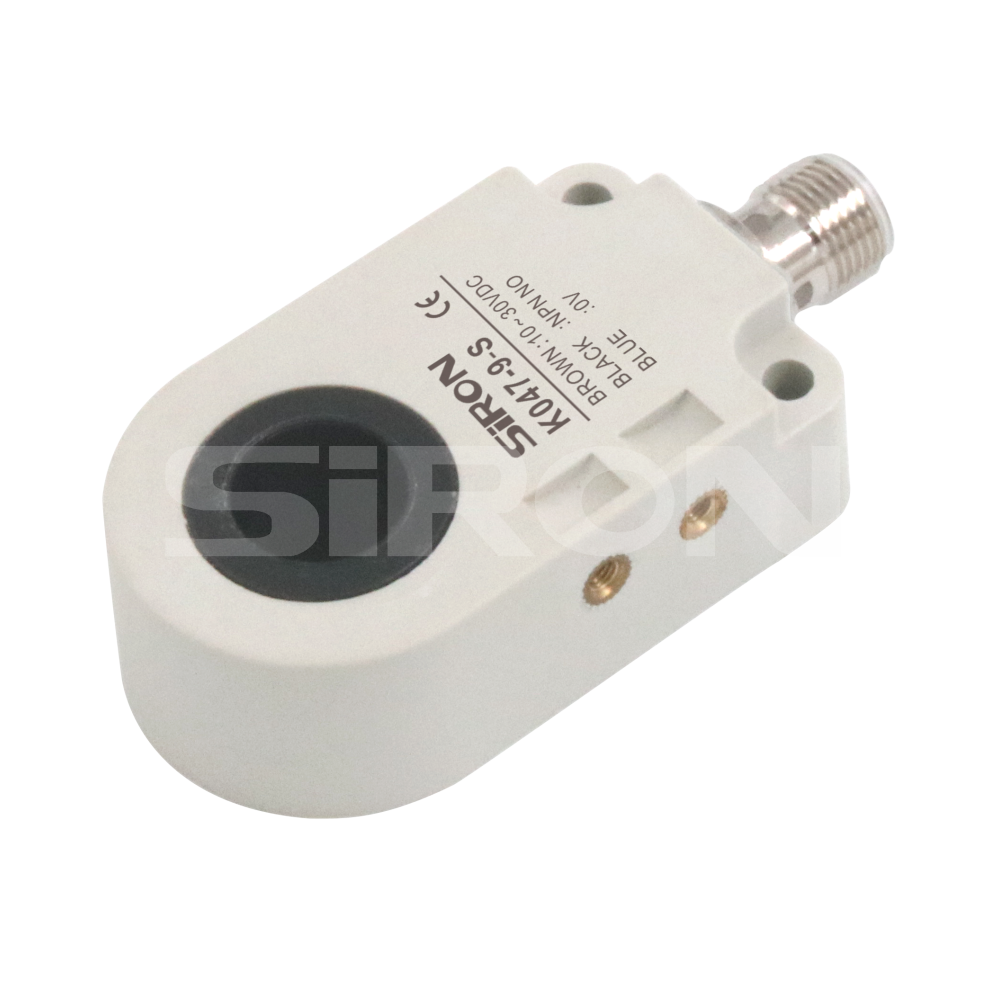

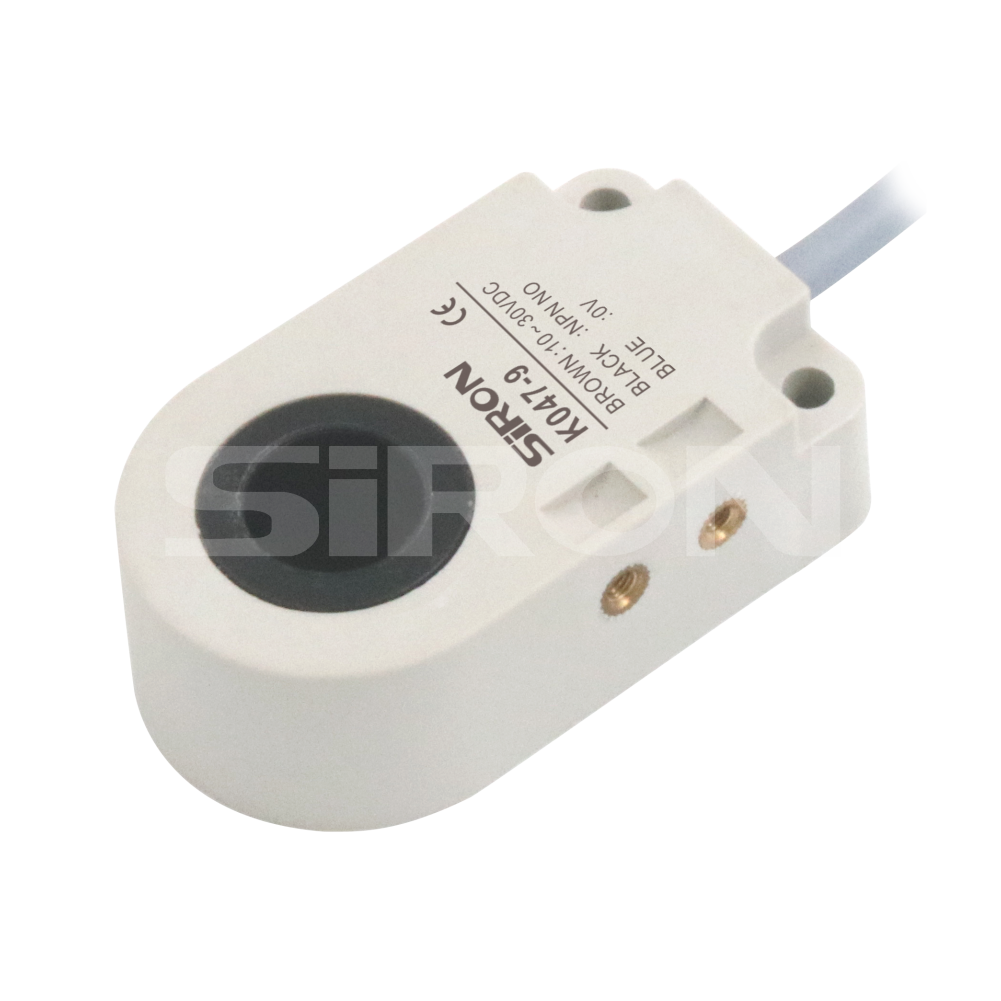

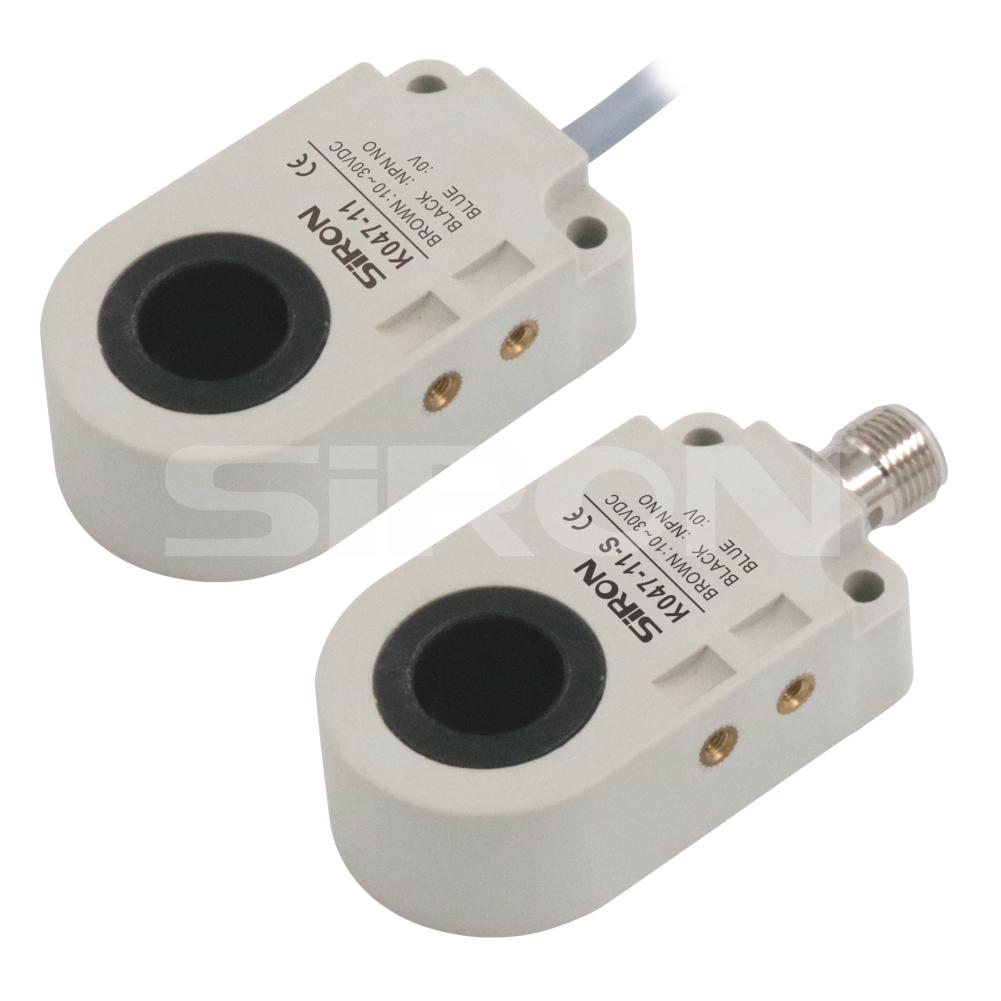

Appearance
Inner hole diameter		14mm		15mm		16mm		17mm
Minimum detectable		D=2.7mm;L=5mm		D=3mm;L=6mm		D=3mm;L=6mm		D=4mm;L=7mm
Detection distance		20mm
Install		Flush installation
LED display		Yes
Operating Voltage		10~30VDC
Allowable pulse voltage		Ripple<10%
Shortest interval time of the detected object		0.2ms
No-load current		<10mA
Maximum load current		200mA
Leakage current		<0.01mA
Voltage drop		<1.5Vat   200mA
On-offlevel		2KHz
Pulse impedance		1KV
Switching hysteresis		15%
Repeatability		<2%(Sr)
Protection class		IP67
Operating temperature		-25~+70℃
Temperature drift		±10%(Sr)
Reverse polarity protection		Yes
Short circuit protection		220mA
Current overload protection		220～280mA
EMC		RFI＞3V/m；EFI＞1KV；ESD＞4KV(contact)
Shock/vibration		IEC 60947-5-2，Part7.4.1 / IEC 60947-5-2，Part7.4.2
Material		Outer shell：PBT
Cable		Lead-out type: Oil-proof PVC cable；Φ4,3×0.15mm2 ；Plug-in type: M12 connector
Cable length		2M
