SiRON K046-9~K046-12 Series M18 Inductive Proximity Switch Corrosion Resistance

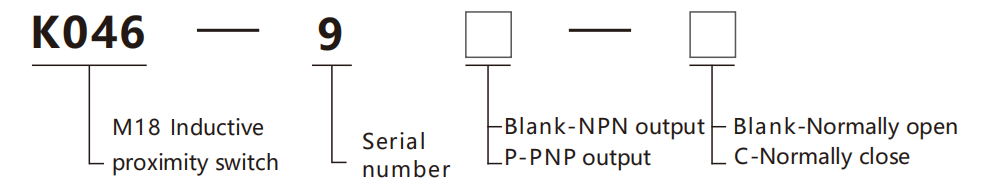

About selection

Selection example：

K046-9 indicates K046 series, serial number 9, NPN output, normally open state;

K046-9P-C indicates K046 series, serial number 9, PNP output, normally close state.

Specifications

Name		M18 Inductive proximity switch (Corrosion resistant)
Model	NPN     N.O	K046-9	K046-10		K046-11		K046-12
	NPN    N.C	K046-9C	K046-10C		K046-11C		K046-12C
	PNP     N.O	K046-9P	K046-10P		K046-11P		K046-12P
	PNP    N.C	K046-9P-C	K046-10P-C		K046-11P-C		K046-12P-C
Install		Flush installation			Non-flush installation

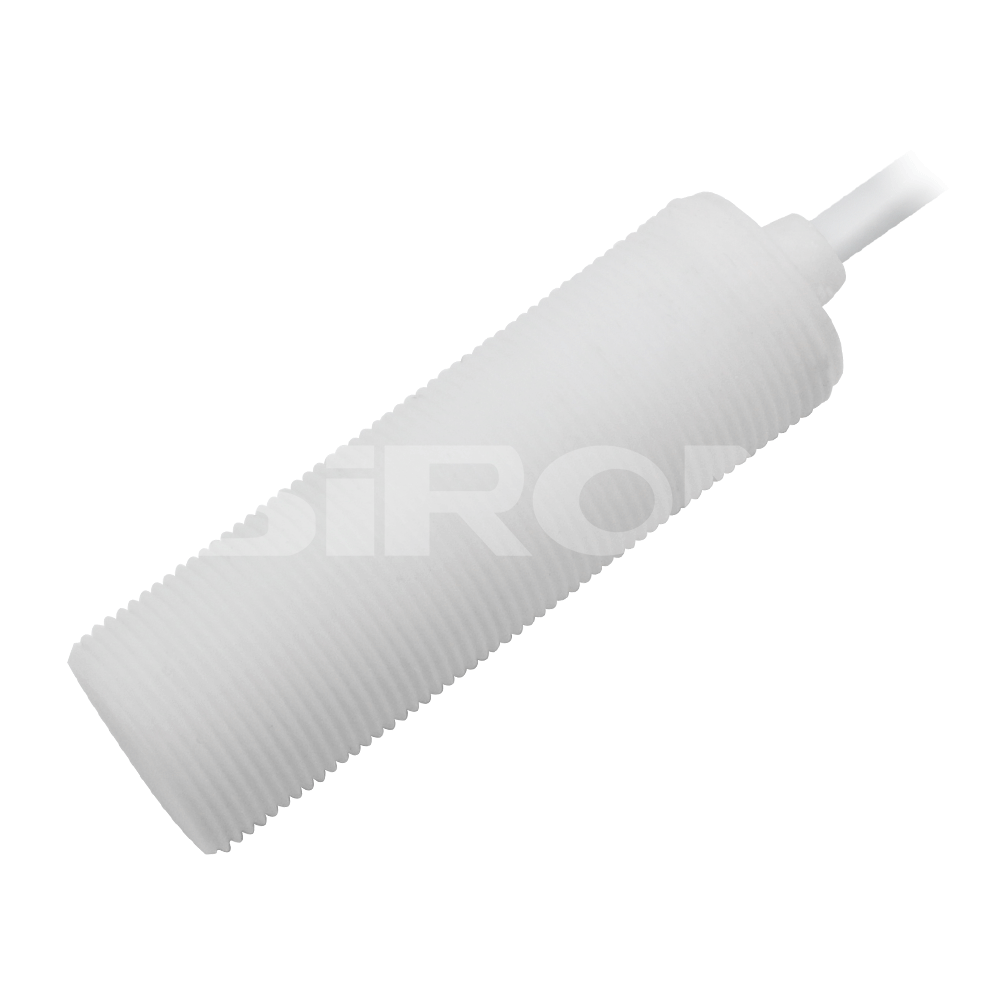

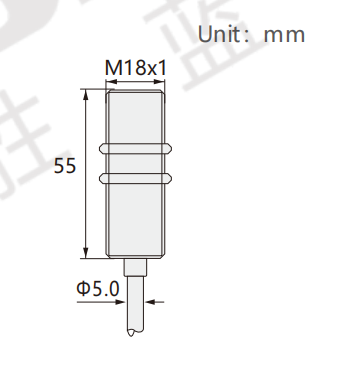

Appearance
Detection distance		5mm	8mm		8mm		16mm
Switching frequency		800Hz	1000Hz		500Hz		500Hz
Response time		0.2ms			0.5ms
Screw thread		M18×1mm		Overload protection  current		220mA
Operating voltage		10～30V     DC		Operating temperature		-25℃~+70℃
Allowable ripple voltage		<10%		Temperature drift		<10%(Sr)
Unloaded current		<10mA		Protection circuit		Short-circuit protection/reverse polarity protection
Load current		≤200mA		Shell material		Teflon
Leakage current		<0.01mA		Sensing surtace material		PTFE
Voltage drop		<2.0V		Class of protection		IP67
Switching hysteresis		<15%(Sr)		Cable		PTFE/PUR cable
Repeatability		<1.0%(Sr)		Line length		2m
