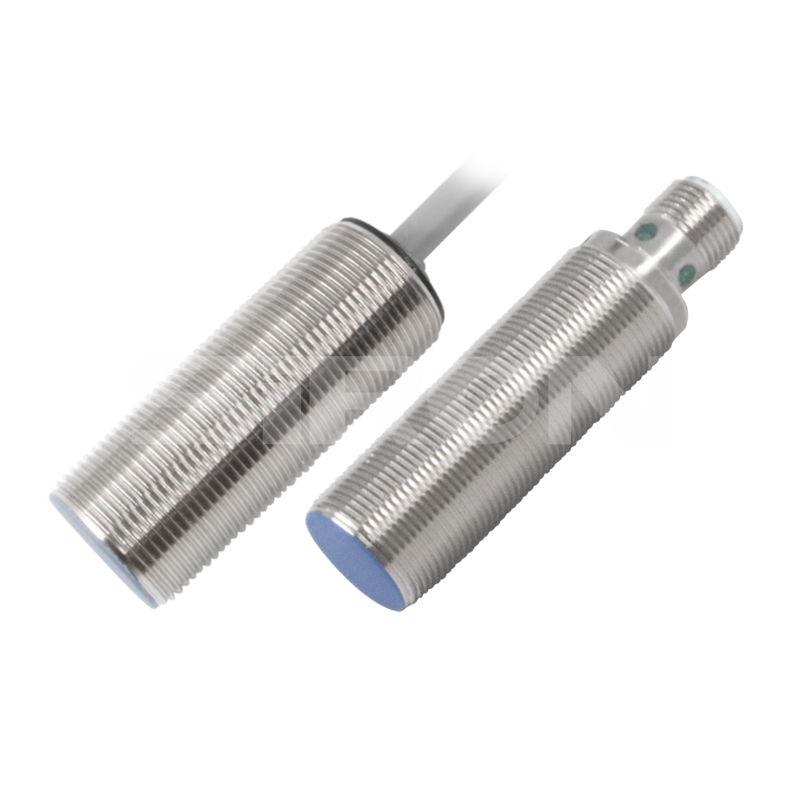

SiRON K041-15~K041-18 Series M18 Inductive Proximity Switch Short Type

About selection

 Selection example:  K041-15 indicates the K041 series, serial number 15, with NPN output,Normally open, outlet;

                                       K041-15-S  indicates the K041 series, serial number 15, with NPN output,Normally                                                                     open,connector.

 Specifications

Name		M18inductive proximity switch (short type)
Model	NPN  N.O	K041-15	K041-15-S	K041-16	K041-16-S	K041-17	K041-17-S	K041-18	K041-18-S
	NPN N.C	K041-15C	K041-15C-S	K041-16C	K041-16C-S	K041-17C	K041-17C-S	K041-18C	K041-18C-S
	PNP  N.O	K041-15P	K041-15P-S	K041-16P	K041-16P-S	K041-17P	K041-17P-S	K041-18P	K041-18P-S
	PNP N.C	K041-15P-C	K041-15P-C-S	K041-16P-C	K041-16P-C-S	K041-17P-C	K041-17P-C-S	K041-18P-C	K041-18P-C-S

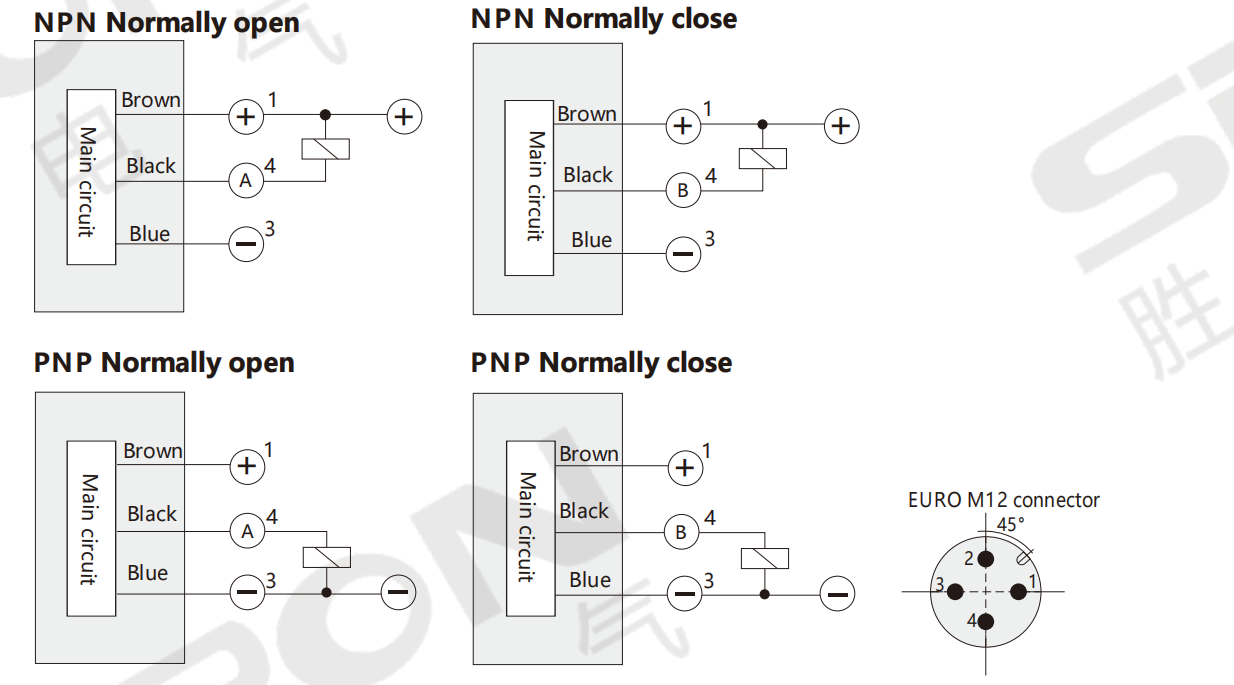

Wiring Form		Outlet	Connector	Outlet	Connector	Outlet	Connector	Outlet	Connector

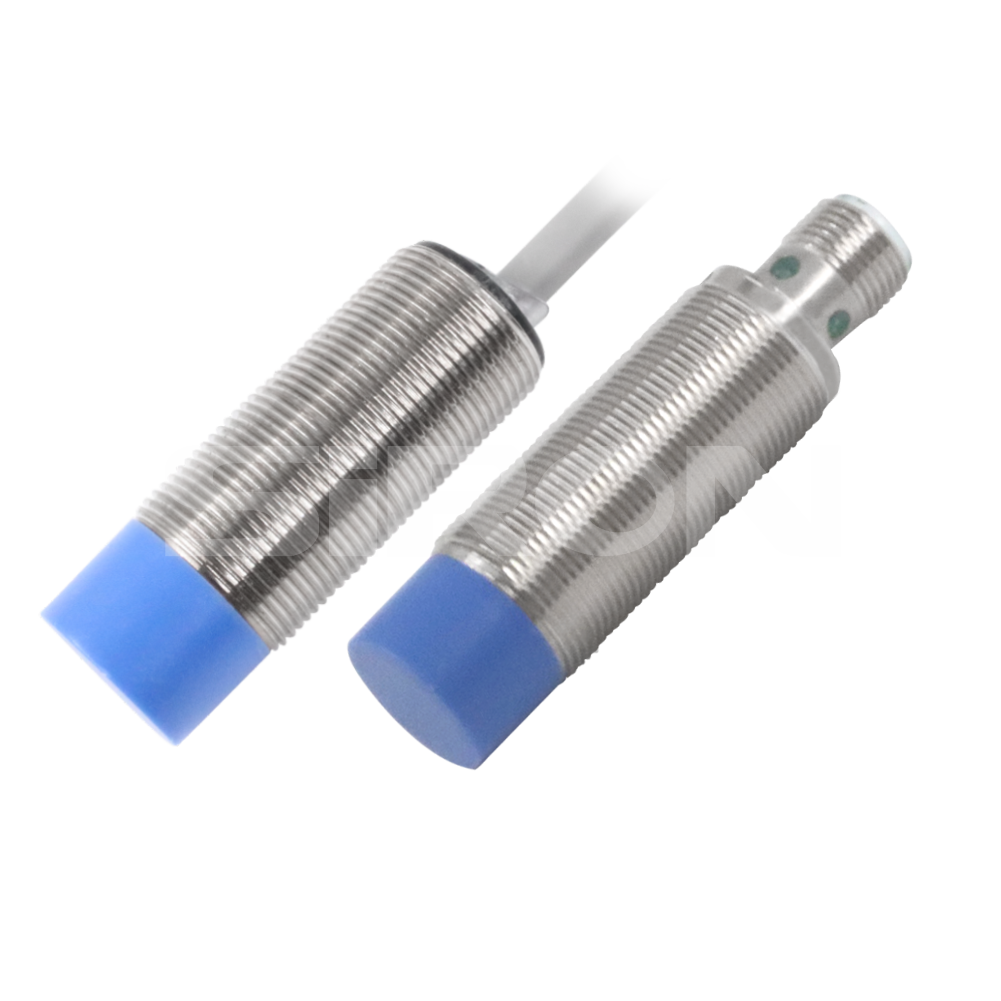

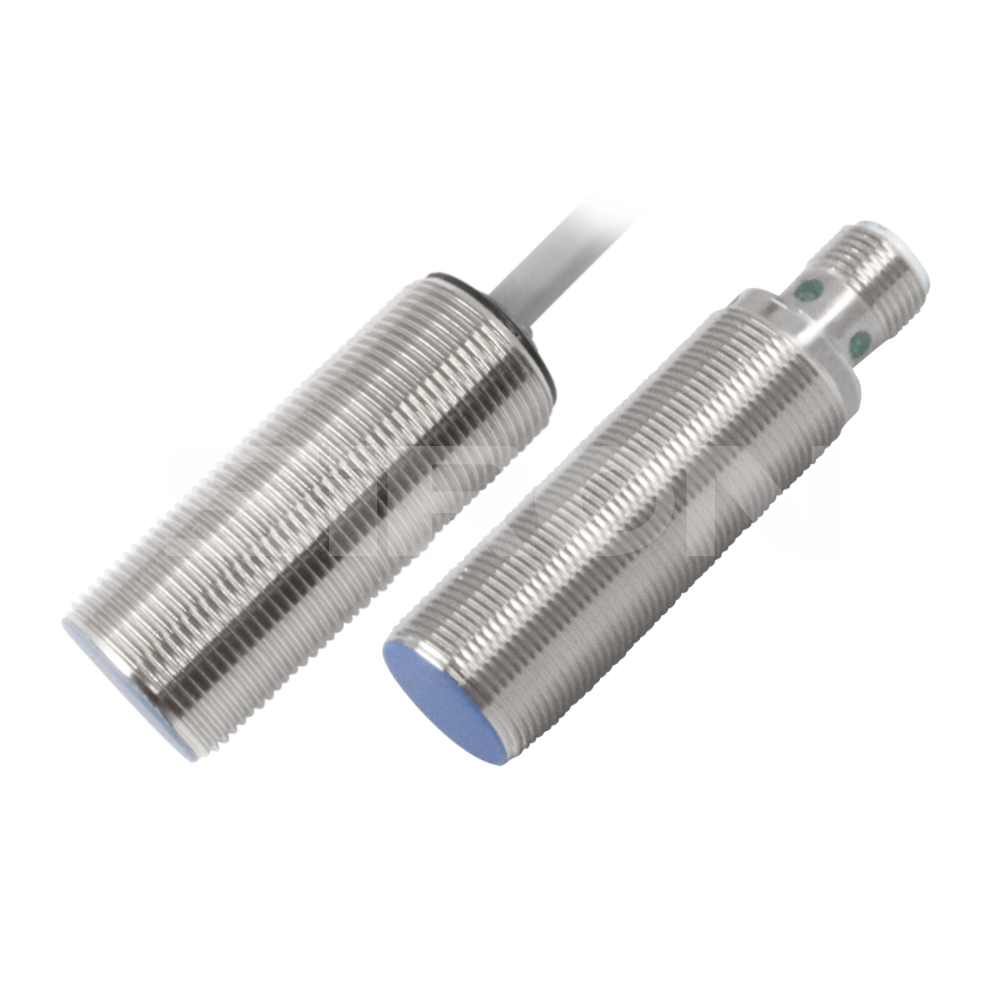

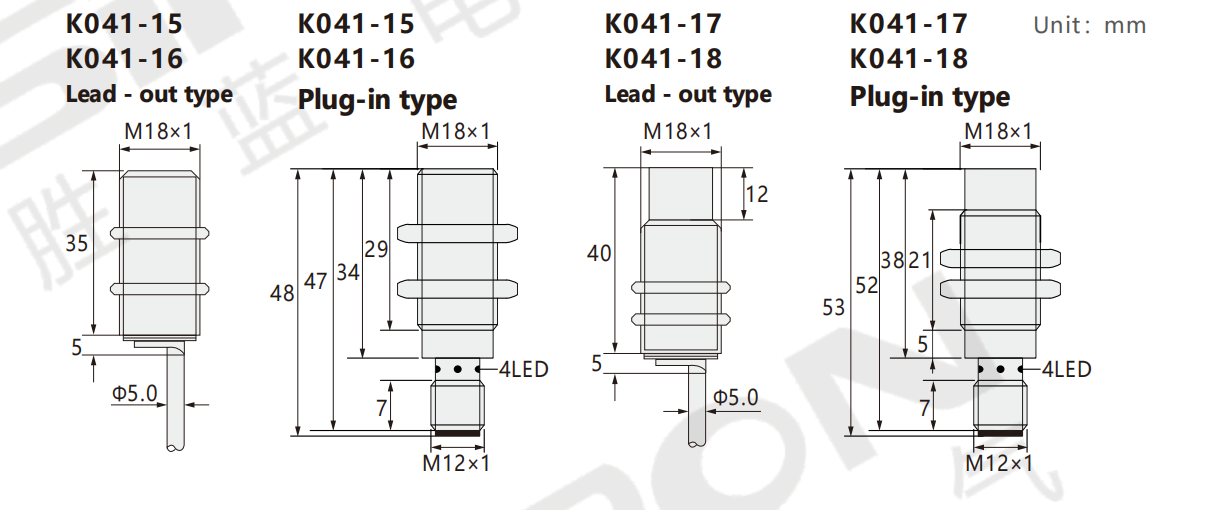

Appearance
Dete ction distance		8mm		12mm		16mm		20mm
Installation		Flush installation		Quasi-flush installation		Non-flush installation
Thread		M18×1mm
Operating Voltage		10~30V    DC
On-off level		3000Hz		800Hz		500Hz		400Hz
Pressure drop		≤2.0V
Load current		200mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25~70℃
Encosure rating		IP67
Material		Sensing surface: PBT; Shell: Copper plated with nickel
Cable		Outgoing type: PVC cable; 3 x 0.35 mm squared; Plug-in type: M12 connector
Cable length		2M

Example

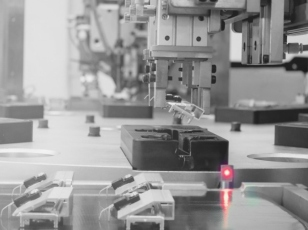

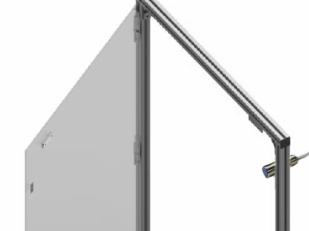

Detection of door opening and closing status                               Detection of workpiece pallet positioning
