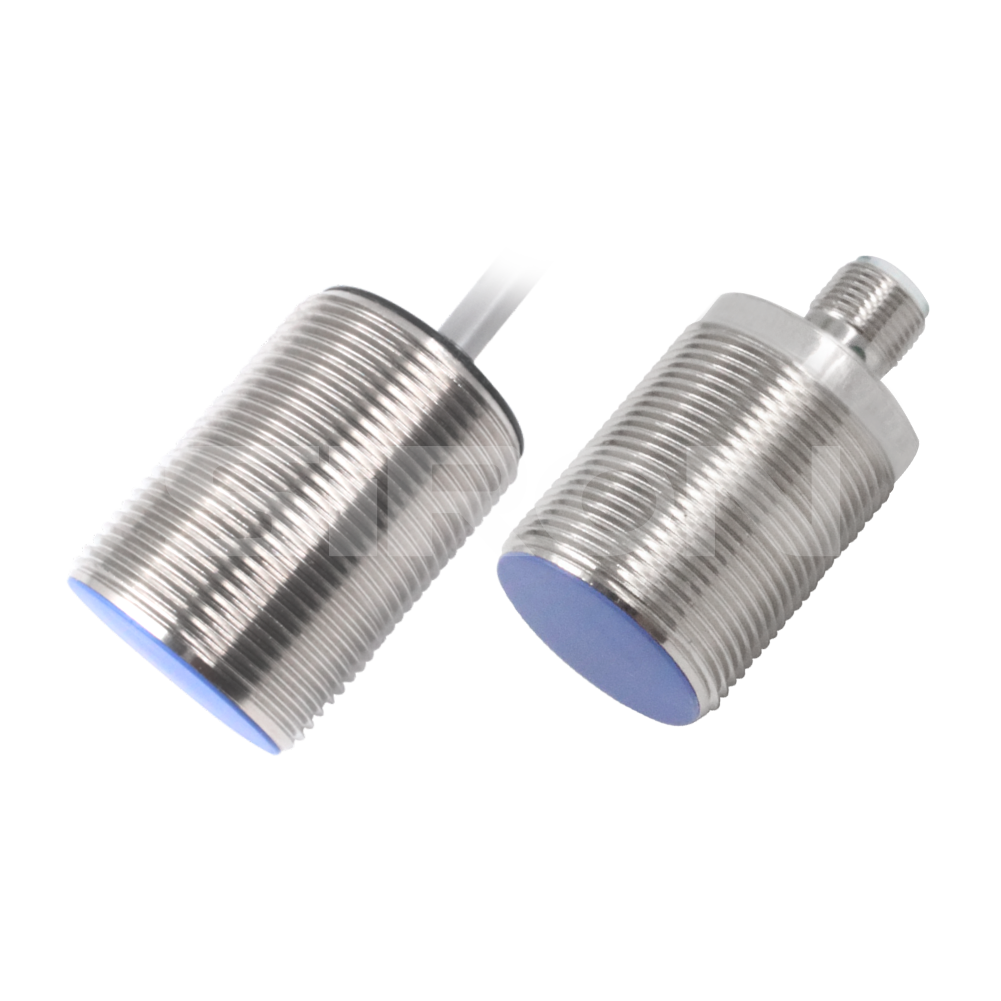

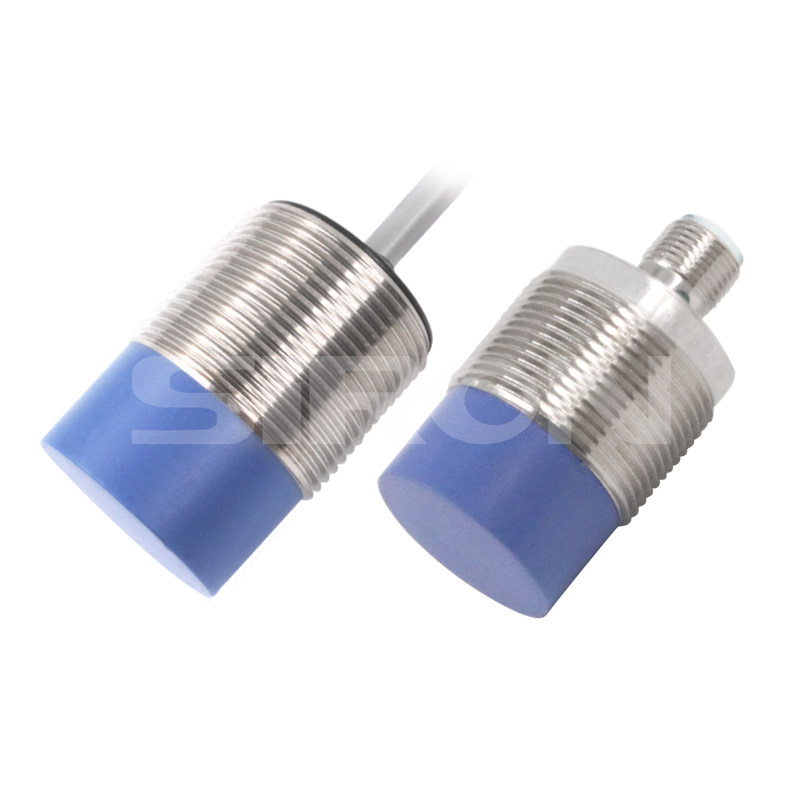

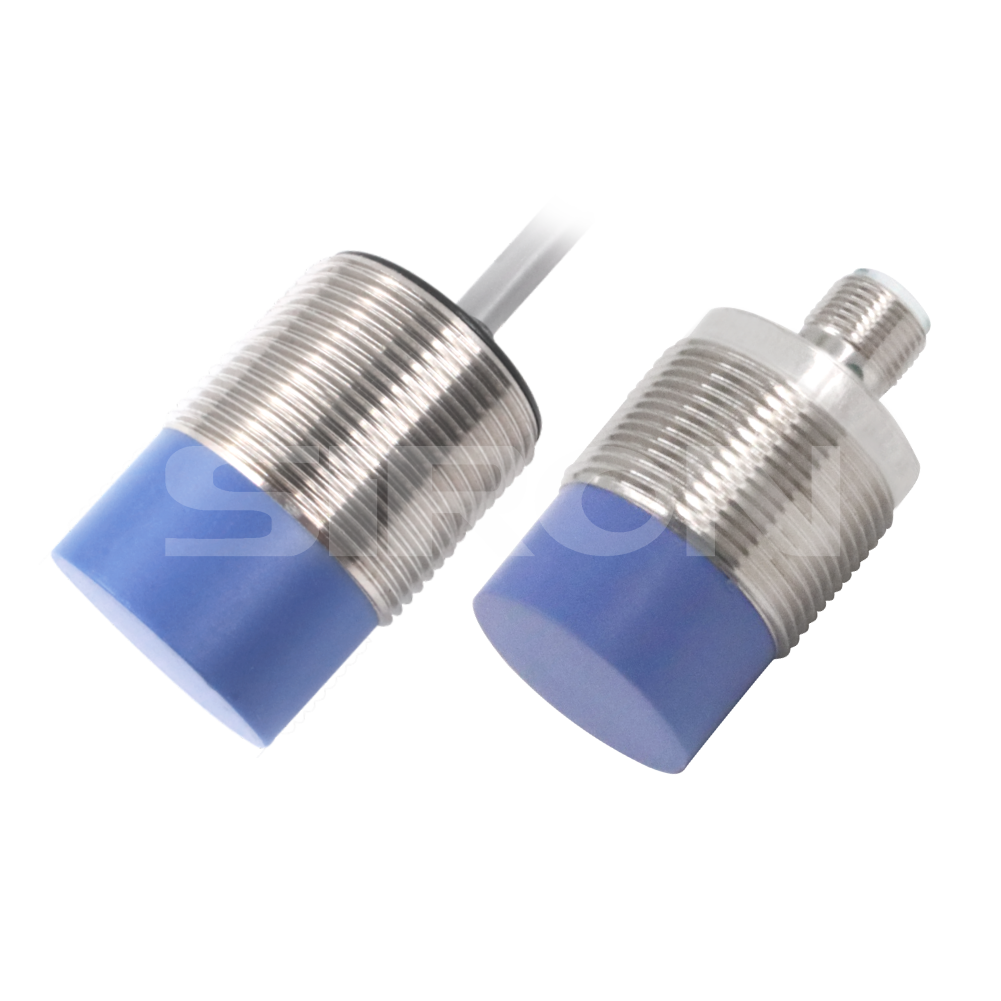

SiRON K041-19~K041-24 Series M30 Inductive Proximity Switch Short Type

About selection

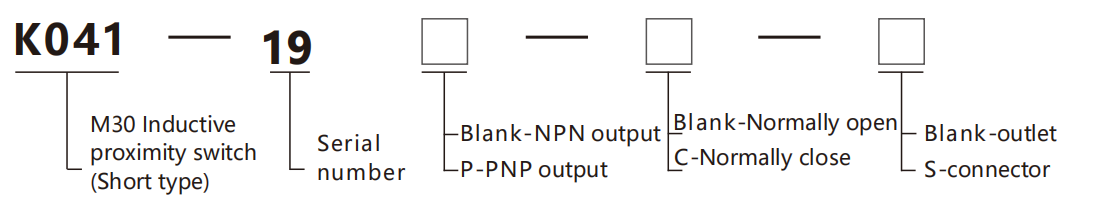

 Selection example:  K041-19 indicates the K041 series, serial number 19,  with NPN output,Normally open, outlet;

                                       K041-19-S  indicates the K041 series, serial number 19, with NPN output,Normally                                                                     open,connector.

 Specifications

Name

M30 inductive proximity switch (short type)

Model

NPN N.O

K041-19

K041-19-S

K041-20

K041-20-S

K041-21

K041-21-S

K041-22

K041-22-S

K041-23

K041-23-S

K041-24

K041-24-S

NPN N.C

K041-19C

K041-19C-S

K041-20C

K041-20C-S

K041-21C

K041-21C-S

K041-22C

K041-22C-S

K041-23C

K041-23C-S

K041-24C

K041-24C-S

PNP N.O

K041-19P

K041-19P-S

K041-20P

K041-20P-S

K041-21P

K041-21P-S

K041-22P

K041-22P-S

K041-23P

K041-23P-S

K041-24P

K041-24P-S

PNP N.C

K041-19P-C

K041-19P-C-S

K041-20P-C

K041-20P-C-S

K041-21P-C

K041-21P-C-S

K041-22P-C

K041-22P-C-S

K041-23P-C

K041-23P-C-S

K041-24P-C

K041-24P-C-S

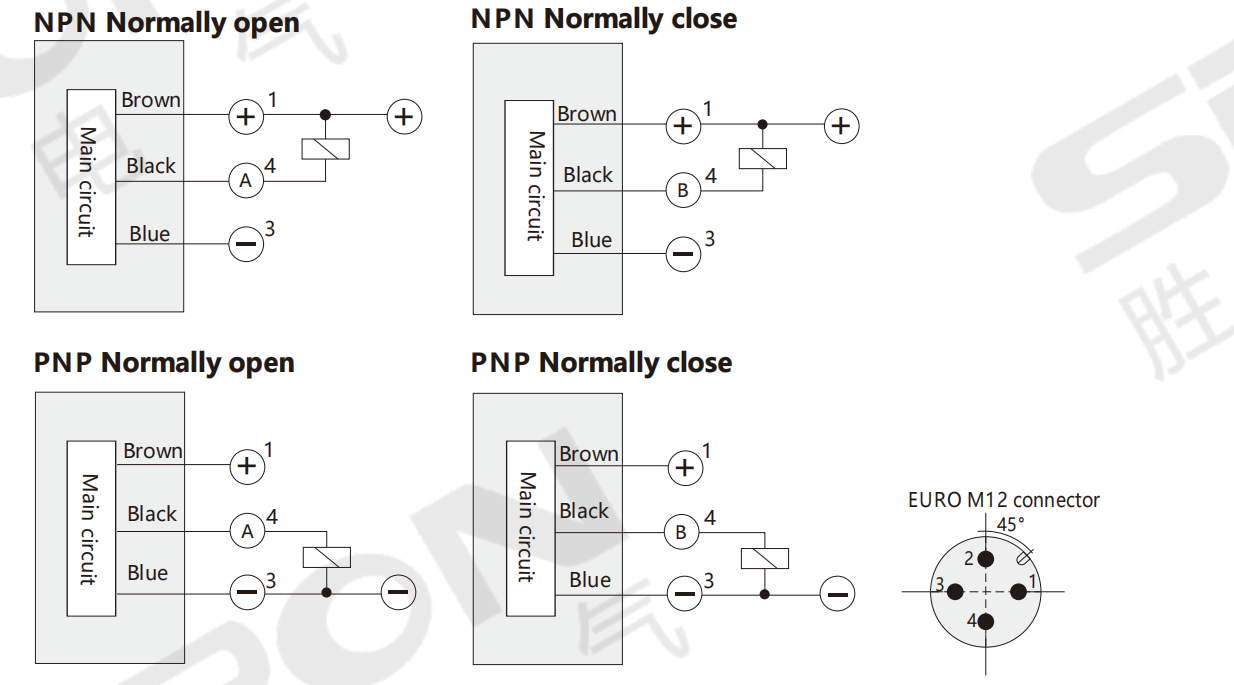

Wiring Form

Outlet

Connector

Outlet

Connector

Outlet

Connector

Outlet

Connector

Outlet

Connector

Outlet

Connector

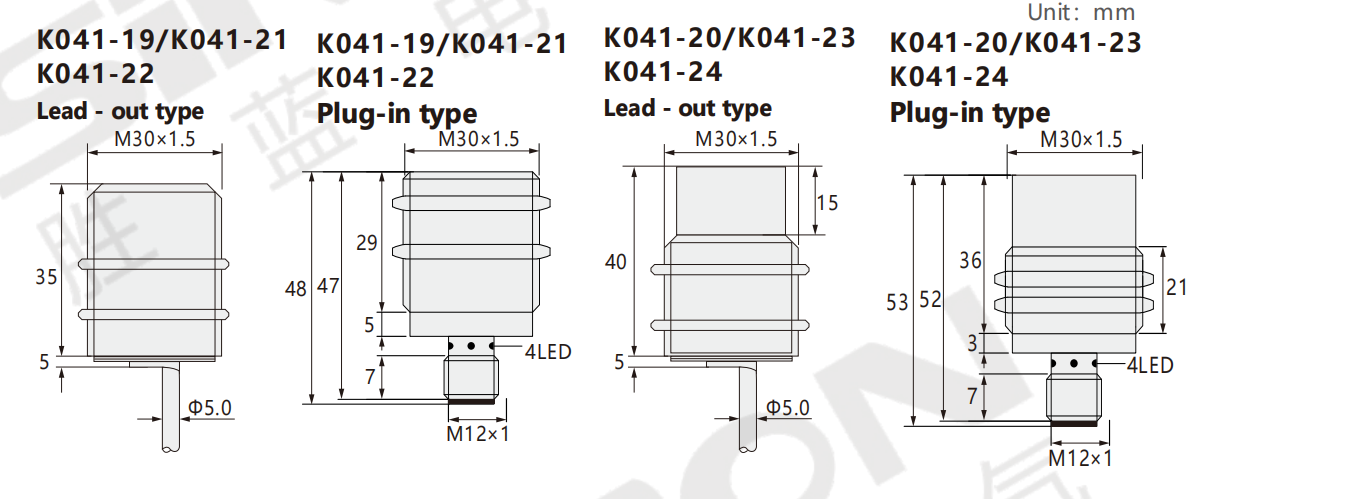

Appearance

Detecion distance

10mm

15mm

16mm

22mm

25mm

40mm

Installation

Flush installation

Non-flush installation

Flush installation

Quasi-flush installation

Non-flush installation

Thread

M30×1.5mm

Operating Voltage

10~30V    DC

On-off level

300Hz

100Hz

300Hz

100Hz

Pressure drop

≤2.0V

Load cument

200mA

No-load cument

≤10mA(24V)

Hysteresis

<15%(Sr)

Repeatability

<1.0%(Sr)

Ambient temperature

-25～70℃

Enclosure raing

IP67

Matenal

Sensing surface: PBT; Shell: Copper plated with nickel

Cable

Sensing surface: PBT; Shell: Copper plated with nickel

Cable length

2M

Example

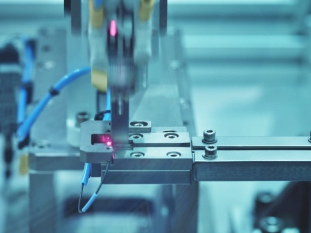

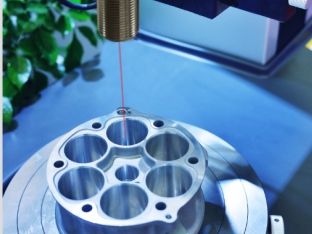

Detection of hole positions in metal components                               Positioning detection of the pallet
