SiRON K046-31~K046-32 Series M8 Capacitive Proximity Switches Corrosion Resistance

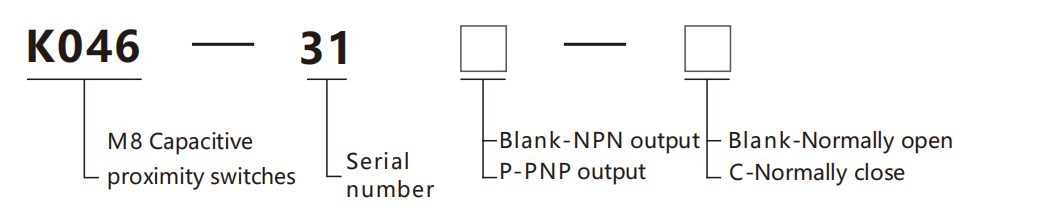

About selection

Selection example：

K046-31 indicates K046 series, serial number 31, NPN output, normally open state;

K046-31P-C indicates K046 series, serial number 31, PNP output, normally close state.

Specifications

Name		M8 Capacitive proximity switch (Corrosion resistant)
Model	NPN    N.O	K046-31		K046-32
	NPN   N.C	K046-31C		K046-32C
	PNP    N.O	K046-31P		K046-32P
	PNP    N.C	K046-31P-C		K046-32P-C
Install		Flush installation		Non-flush installation

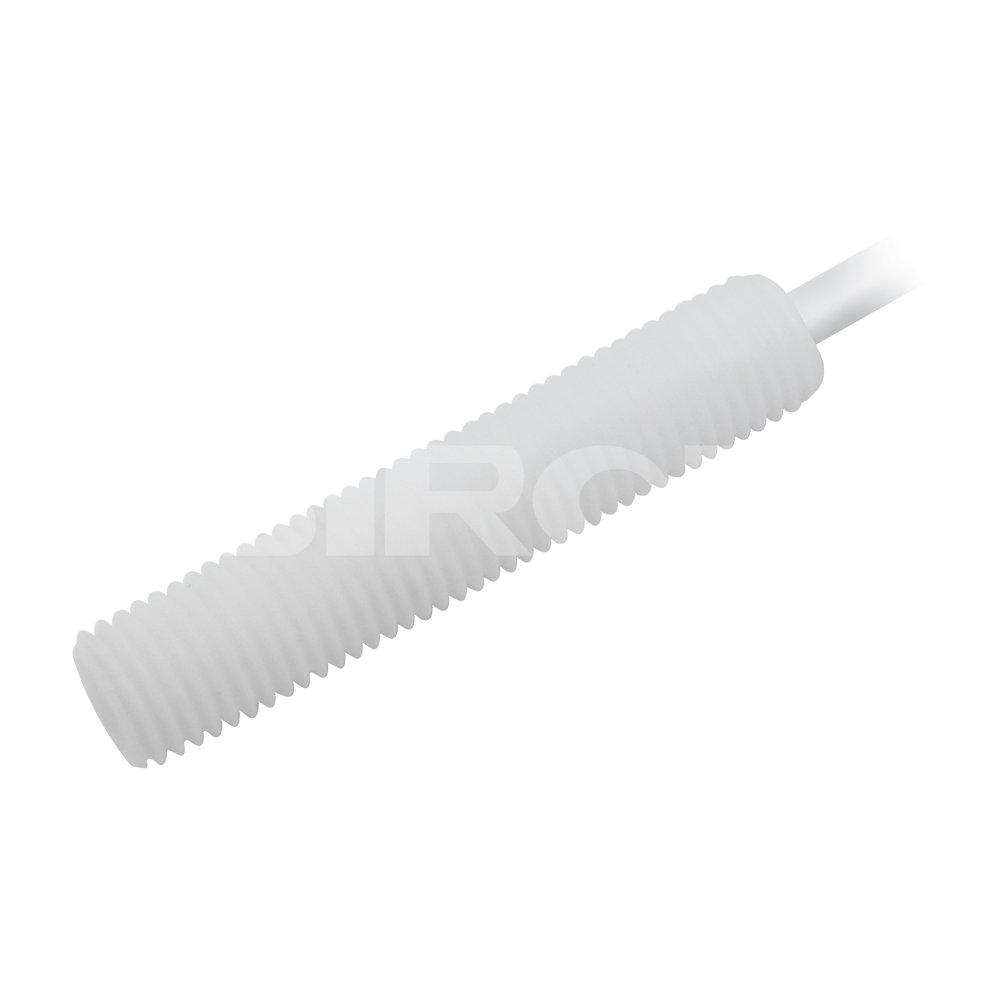

Appearance
Detection distance		1mm		2mm
Switching frequency		100Hz	Repeatability		<5.0%(Sr)
Response time		1.5ms	Overload protection current		220mA
Screw thread		M8×1mm	Operating temperature		-25℃~+70℃
Operating voltage		10～30V   DC	Temperature drift		<10%(Sr)
Allowable ripple voltage		<10%	Protection circuit		Short-circuit protection/reverse polarity protection
Unloaded current		<10mA	Shell material		PTFE
Load current		≤200mA	Sensing surface material		PTFE
Leakage current		<0.01mA	Class of protection		IP67
Voltage drop		<2V	Cable		PT FE/PUR Cable
Switching hysteresis		<15%(Sr)	Line length		2m
