SiRON K046-5~K046-8 Series M12 Inductive Proximity Switch Corrosion Resistance

About selection

Selection example：

K046-5 indicates K046 series, serial number 5, NPN output, normally open state;

K046-5P-C indicates K046 series, serial number 5, PNP output, normally close state.

Specifications

Name		M8 Inductive proximity switch (Corrosion resistant)
Model	NPN     N.O	K046-5	K046-6		K046-7		K046-8
	NPN    N.C	K046-5C	K046-6C		K046-7C		K046-8C
	PNP     N.O	K046-5P	K046-6P		K046-7P		K046-8P
	PNP    N.C	K046-5P-C	K046-6P-C		K046-7P-C		K046-8P-C
Install		Flush installation			Non-flush installation

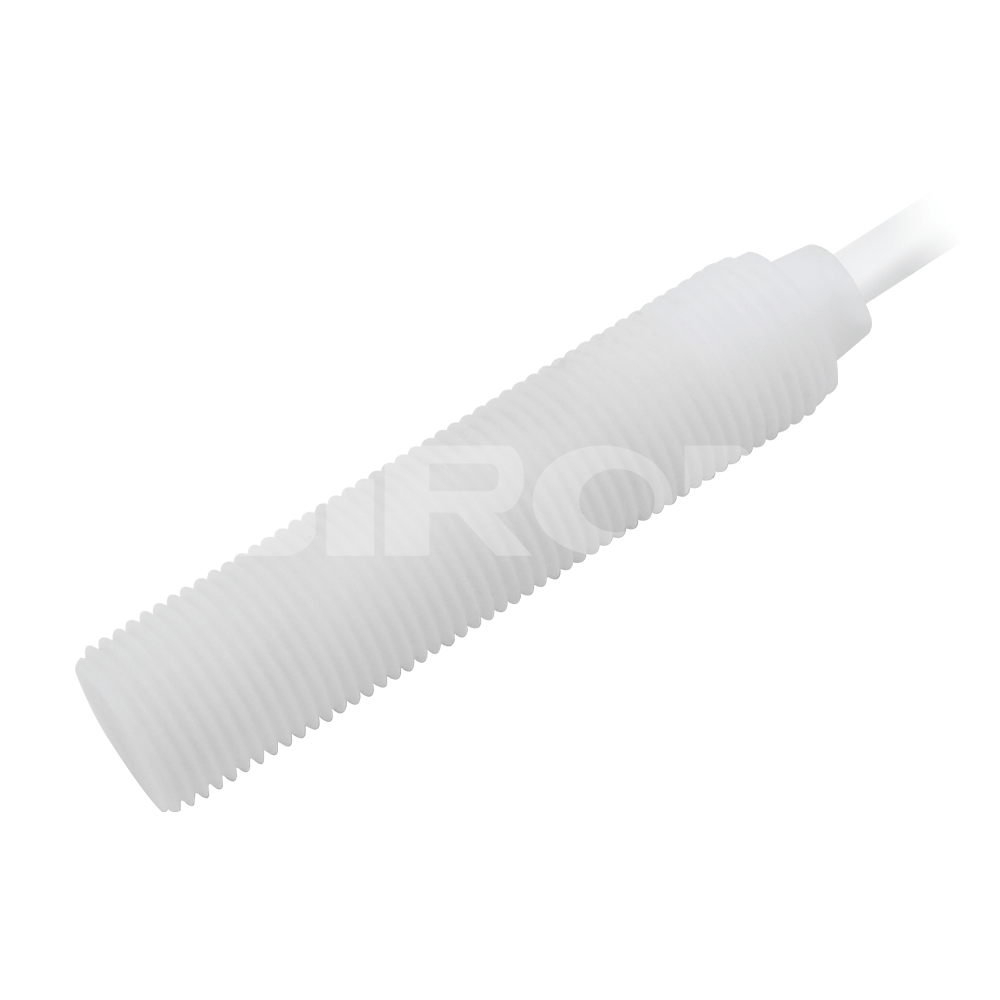

Appearance
Detection distance		2mm	4mm		4mm		8mm
Switching frequency		1000Hz					500Hz
Response time		0.2ms					0.5ms
Screw thread		M12×1mm		Overload protection  current		220mA
Operating voltage		10～30V     DC		Operating temperature		-25℃~+70℃
Allowable ripple voltage		<10%		Temperature drift		<10%(Sr)
Unloaded current		<10mA		Protection circuit		Short-circuit protection/reverse polarity protection
Load current		≤200mA		Shell material		Teflon
Leakage current		<0.01mA		Sensing surtace material		PTFE
Voltage drop		<2.0V		Class of protection		IP67
Switching hysteresis		<15%(Sr)		Cable		PTFE/PUR cable
Repeatability		<1.0%(Sr)		Line length		2m
