SiRON K048-13～K048-15 Series Ring Proximity Switch

About selection

Seection example: K048-13 represents the K048 series, 13 serial number, NPN output, normally open,

                                      and lead-out type.

                                      K048-13p-s represents the K048 series, 13 serial number, PNP output, normally open,

                                     and plug-in type.

Specifications

Name		Ring Proximity Switch (Capacitive)
Model	NPN N.O	K048-13	K048-13-S	K048-14	K048-14-S	K048-15	K048-15-S
	NPN N.C	K048-13C	K048-13C-S	K048-14C	K048-14C-S	K048-15C	K048-15C-S
	PNP N.O	K048-13P	K048-13P-S	K048-14P	K048-14P-S	K048-15P	K048-15P-S
	PNP N.C	K048-13P-C	K048-13P-C-S	K048-14P-C	K048-14P-C-S	K048-15P-C	K048-15P-C-S
Wiring Form		Lead-out type	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type

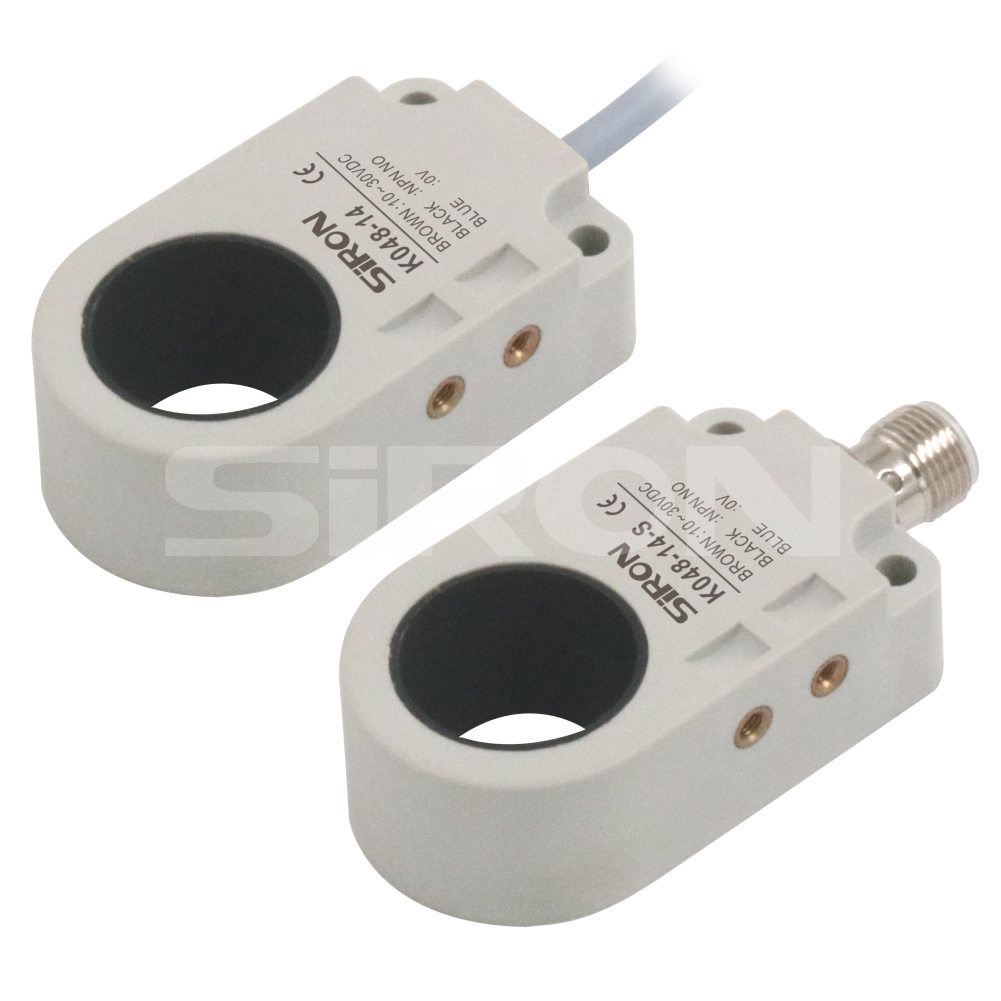

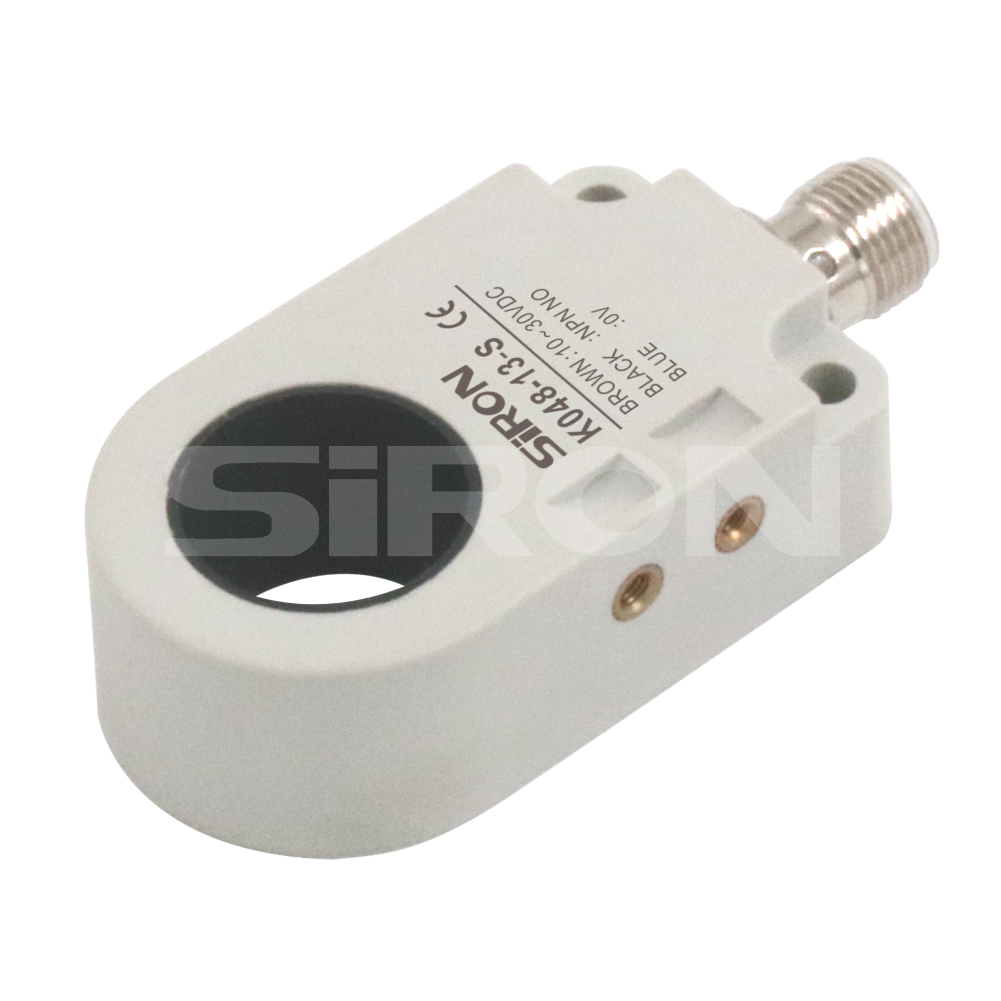

Appearance
Inner hole diameter		21mm		22mm		25mm
Minimum detectable		D=6mm;L=12mm		D=6mm;L=12mm		D=7mm;L=13mm
Detection distance		20mm
Install		Non-flush installation
LED display		Yes
Operating Voltage		10～30VDC
Allowable pulse voltage		Ripple<10%
No-load current		10mA
Maximum load current		200mA
Leakage current		<0.01mA
Voltage drop		<1.5V at 200mA
On-offlevel		500Hz		400Hz		300Hz
Switching hysteresis		15%
Repeatability		<2%(Sr)
Protection class		IP67
Operating temperature		-25～+70℃
Temperature drift		±10%(Sr)
Short circuit protection/Reverse polarity protection		Yes
Current overload protection		220～280mA
EMC		RFI＞3V/m；EFI＞1KV；ESD＞4KV(contact)
Shock/vibration		IEC 60947-5-2，Part7.4.1 / IEC 60947-5-2，Part7.4.2
Material		Outer shell：PBT；Inner Ring：PA
Cable		Lead-out type: Oil-proof PVC cable；Φ4,3×0.15mm2 ；Plug-in type: M12 connector
Cable length		2M

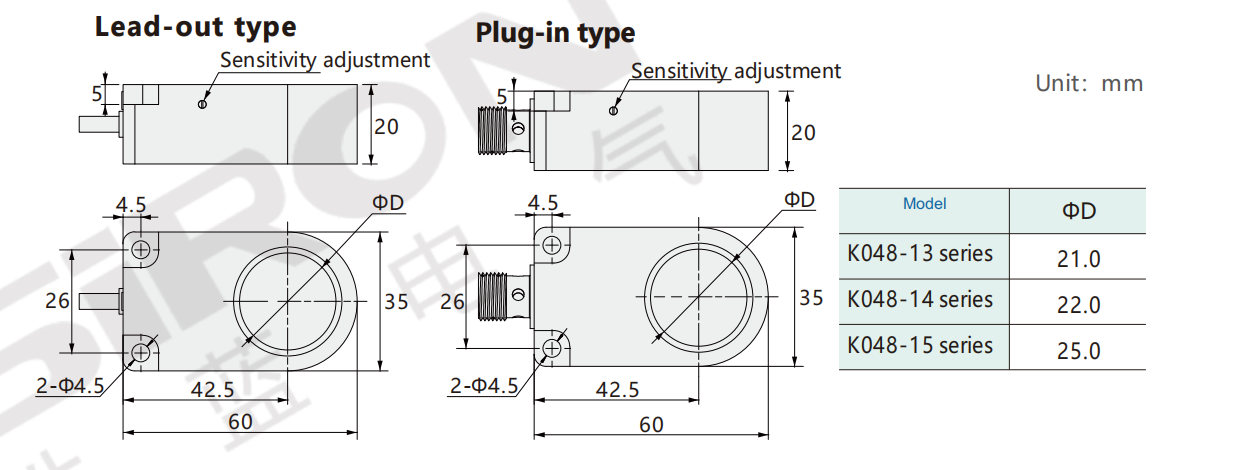

Dimension

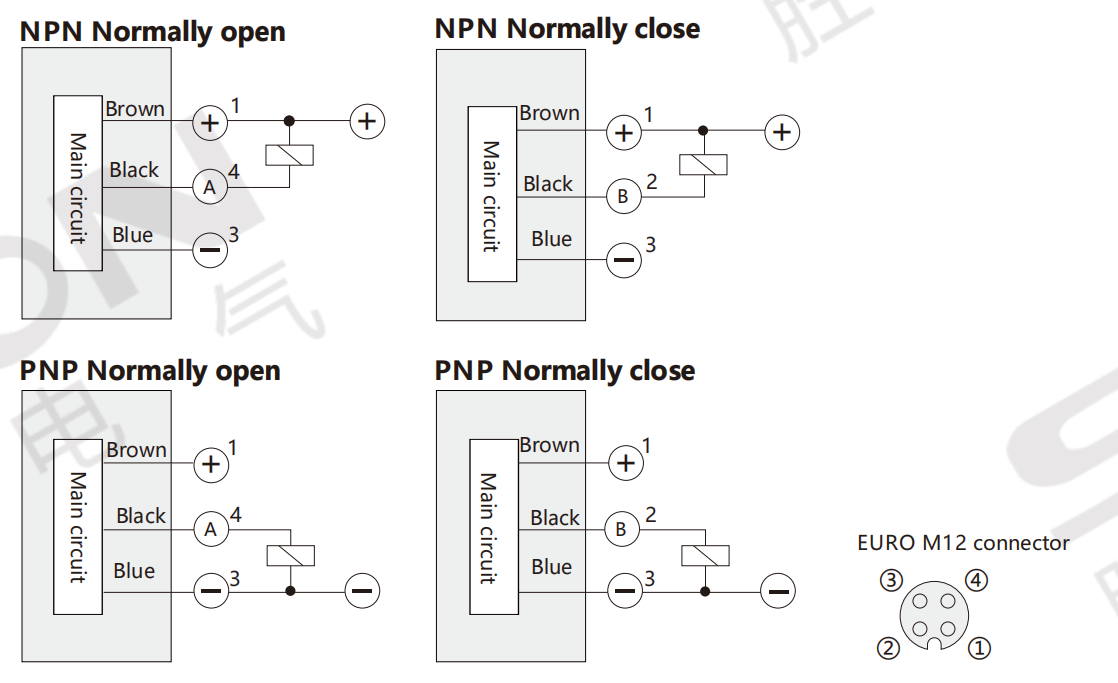

Wiring diagram
