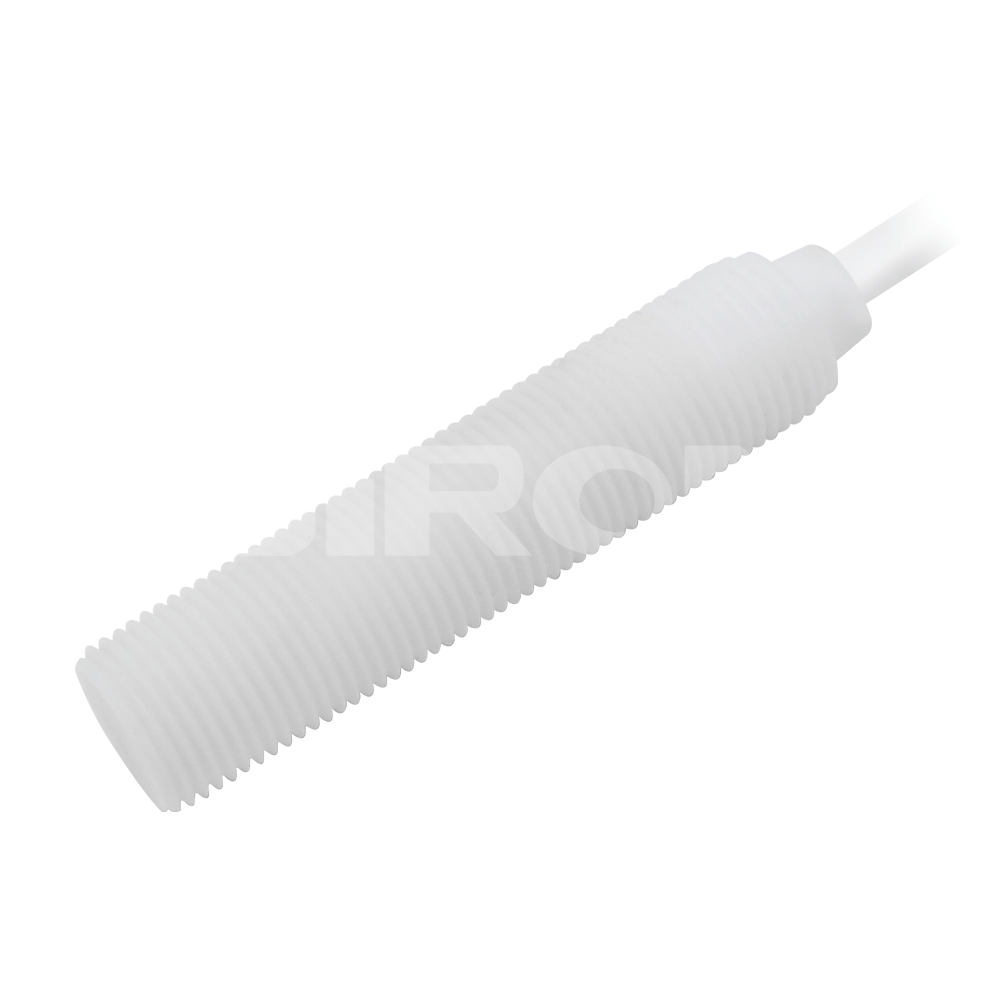

SiRON K046-33~K046-34 Series M12 Capacitive Proximity Switches Corrosion Resistance

About selection

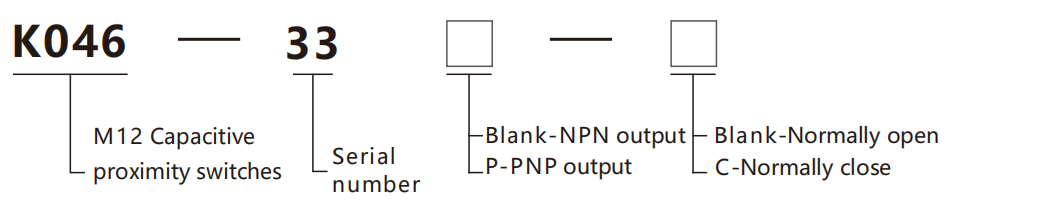

Selection example：

K046-33 indicates K046 series, serial number 33, NPN output, normally open state;

K046-33P-C indicates K046 series, serial number 33, PNP output, normally close state.

Specifications

Name		M12 Capacitive proximity switch (Corosion re sistant)
Model	NPN    N.O	K046-33		K046-34
	NPN   N.C	K046-33C		K046-34C
	PNP    N.O	K046-33P		K046-34P
	PNP    N.C	K046-33P-C		K046-34P-C
Install		Flush installation		Non-flush installation
Appearance
Detection distance		1~3mm		1～6mm
Switching frequency		100Hz		300Hz
Response time		1.5ms	Overoad protection current		220mA
Screw thread		M12×1mm	Operating temperature		-25℃~+70℃
Operating woltage		10～30V    DC	Temperature drit		<10%(Sr)
Alowable ripple voltage		<10%	Protection circuit		Short-circuit protection/reverse polarity protection
Unloaded current		<10mA	Shell matenal		PTFE
Loadcurrent		≤200mA	Sensing surface material		PTFE
Leakage current		<0.01mA	Class of protection		IP67
Voltage drop		<2V	Cable		PT FE/PUR Cable
Switching hysteresis		<15%(Sr)	Line length		2m
Repeatability		<5.0%(Sr)
