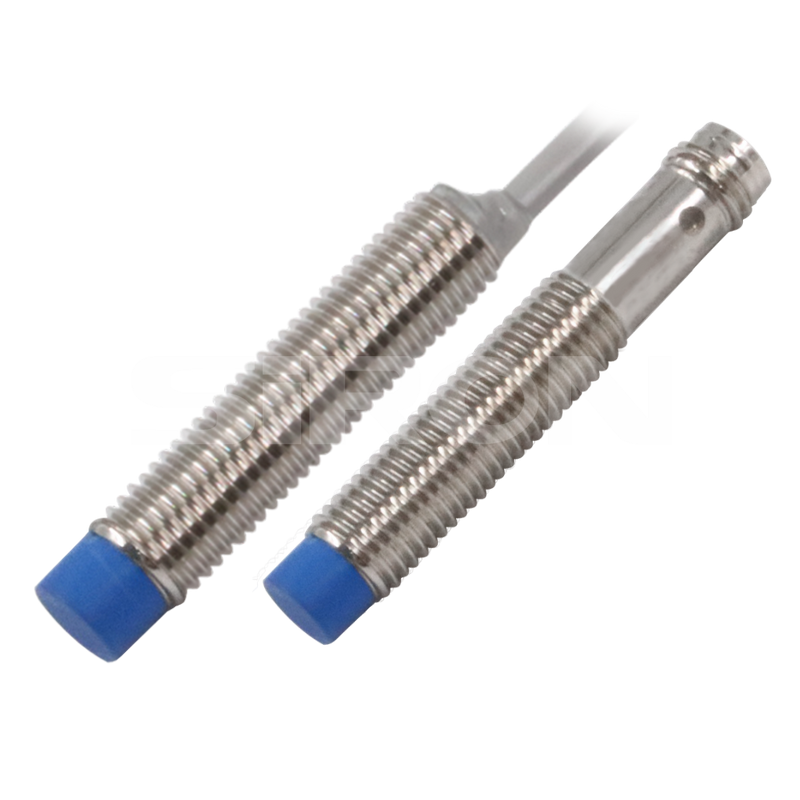

SiRON K041-7~K041-10 Series M8 Inductive Proximity Switch Short Type

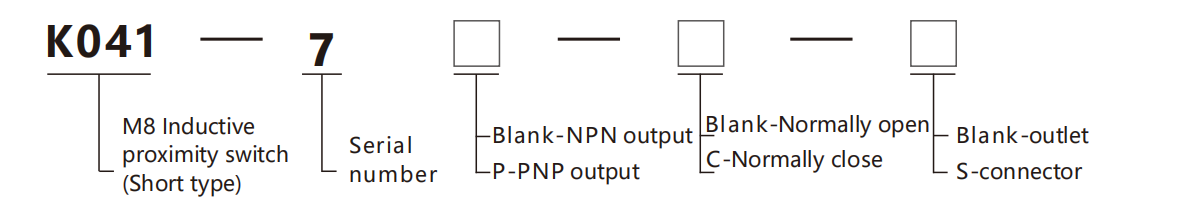

About selection

 Selection example:  K041-7 indicates the K041 series, serial number 7, with NPN output,Normally open, outlet;

                                       K041-7-S  indicates the K041 series, serial number 7, with NPN output,Normally open,connector.

 Specifications

Name		M8 inductive proximity switch(short type)
Model	NPN N.O	K041-7	K041-7-S	K041-8	K041-8-S	K041-9	K041-9-S	K041-10	K041-10-S
	NPN N.C	K041-7C	K041-7C-S	K041-8C	K041-8C-S	K041-9C	K041-9C-S	K041-10C	K041-10C-S
	PNP N.O	K041-7P	K041-7P-S	K041-8P	K041-8P-S	K041-9P	K041-9P-S	K041-10P	K041-10P-S
	PNP N.C	K041-7P-C	K041-7P-C-S	K041-8P-C	K041-8P-C-S	K041-9P-C	K041-9P-C-S	K041-10P-C	K041-10P-C-S

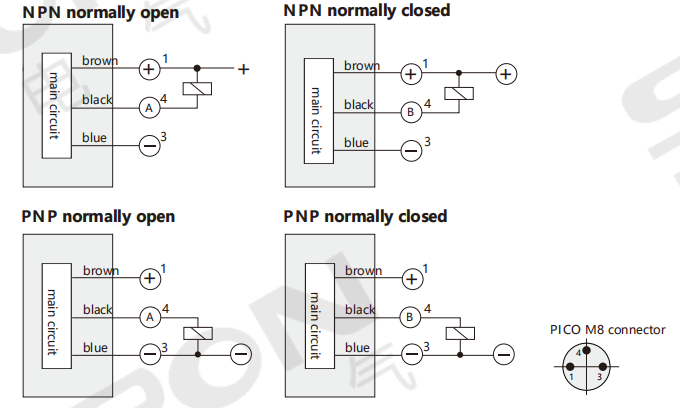

Wiring Form		Outlet	Connector	Outlet	Connector	Outlet	Connector	Outlet	Connector

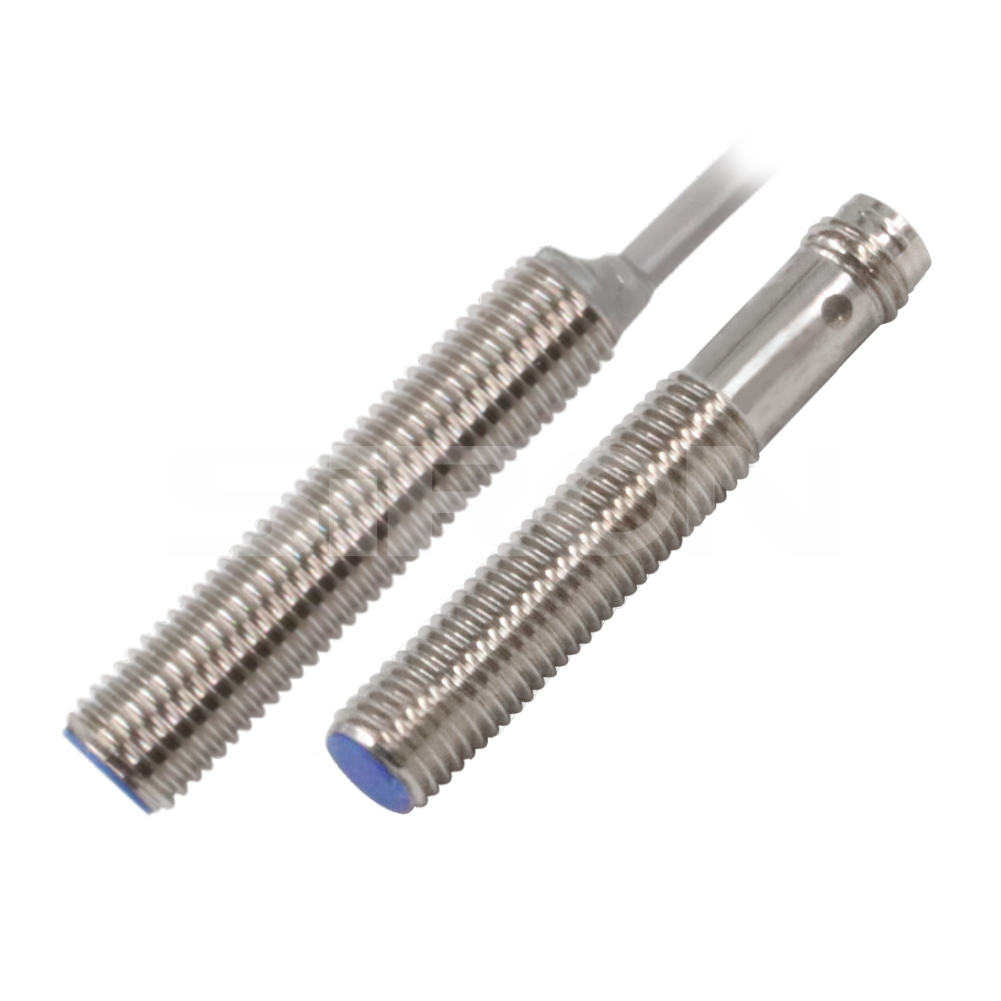

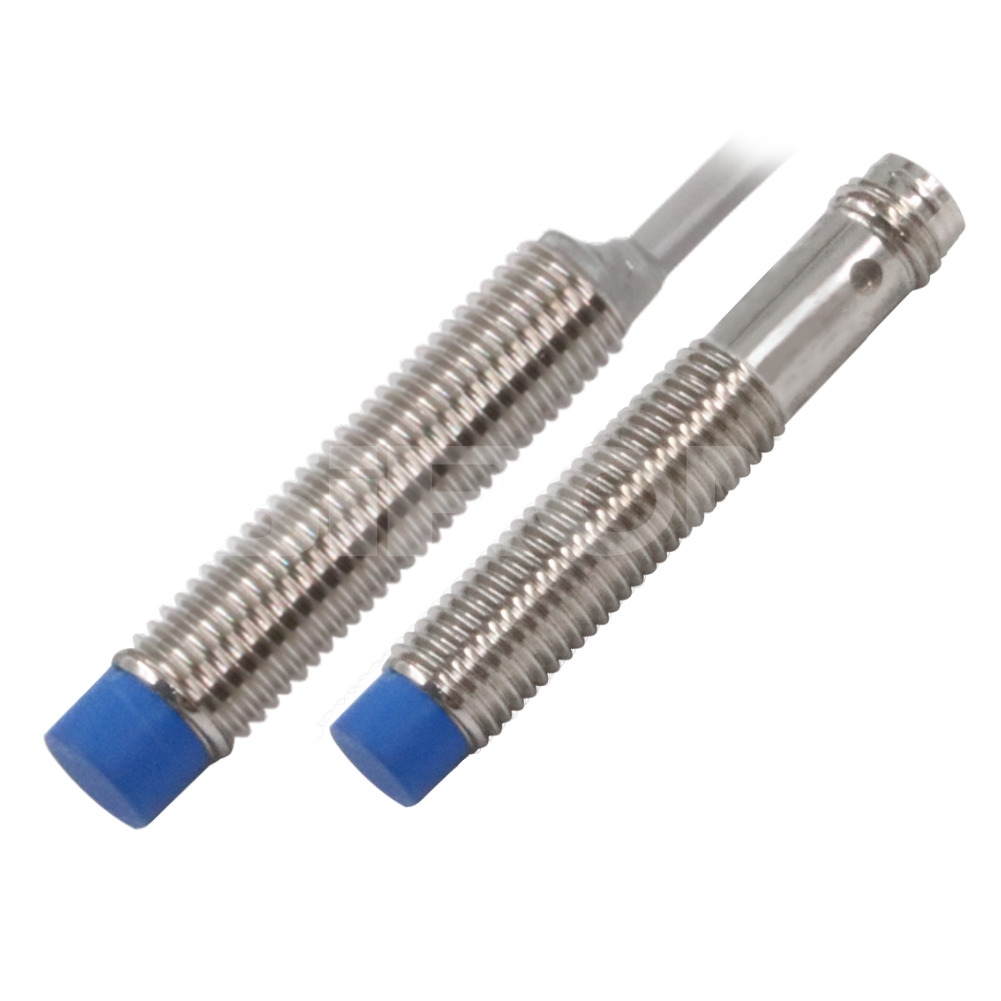

Appearance
Detection distance		2mm		3mm		4mm		6mm
Installation		Flush installation		Quasi-flush installation		Non-flush installation

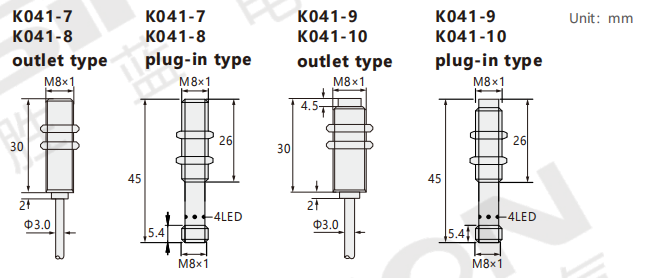

Thread		M8×1mm
Operating Voltage		10～30VDC
On-off level		2000Hz		1000Hz		1000Hz		500Hz
Pressure drop		≤2.0V
Load current		100mA
No-oad current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25～70℃
Enclosure rating		IP67
Material		Sensing surface: POM; Shell: Stainless steel
Cable		Outgoing type: PVC cable; 3 x 0.18 mm squared; Plug-in type: M8 connector
Cable length		2M

Example

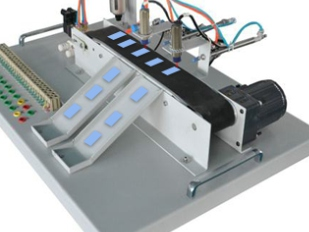

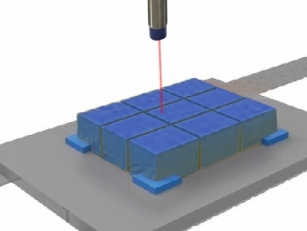

Quantity inspection of electronic components                                    There is no inspection of workpieces
