SiRON K043-13~K043-20 Series M30 Inductive Proximity Switch High Temperature Resistant

About selection

 Selection example:  K043-13 indicates the K043 series, serial number 13,  with NPN output;

                                       K043-13P  indicates the K043 series, serial number 13, with PNPoutput.



 Specifications

Name		M30 inductive proximity switch (hightemperatureresistant)
Model	NPN	K043-13	K043-14	K043-15	K043-16	K043-17	K043-18	K043-19	K043-20
	PNP	K043-13P	K043-14P	K043-15P	K043-16P	K043-17P	K043-18P	K043-19P	K043-20P

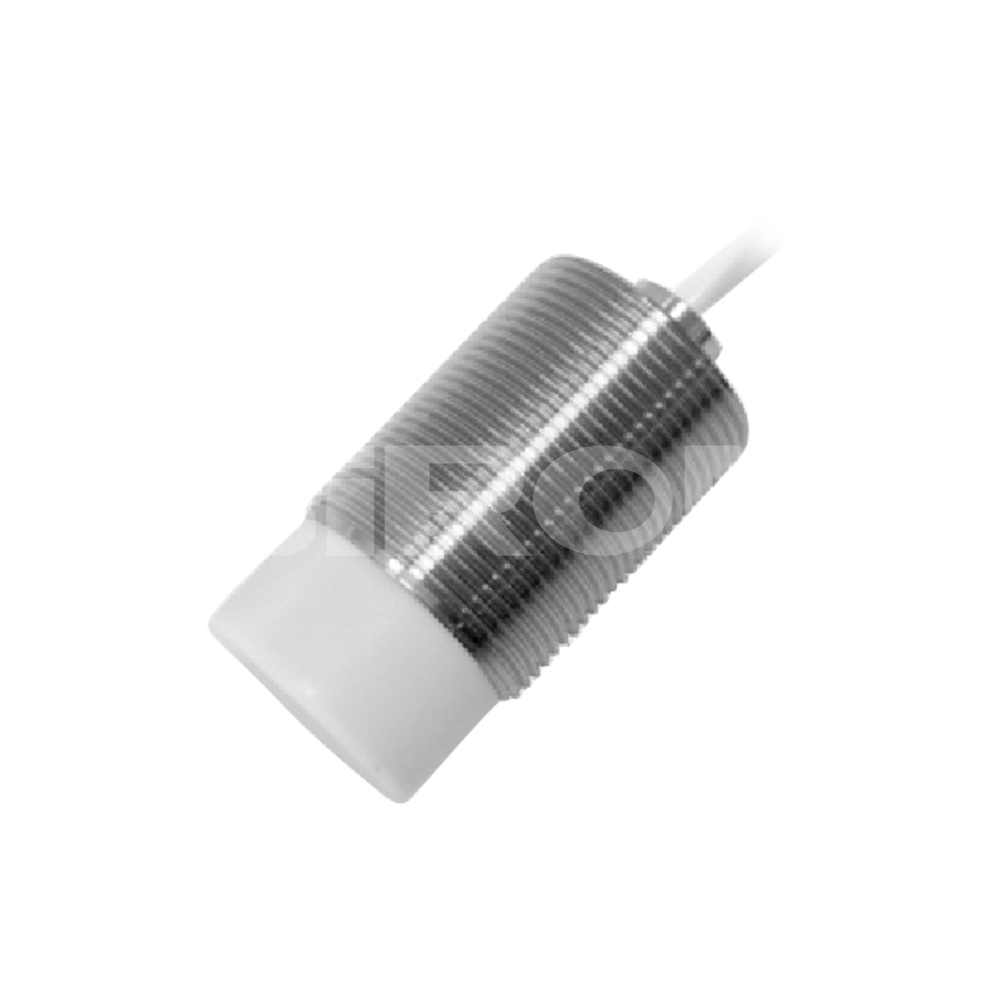

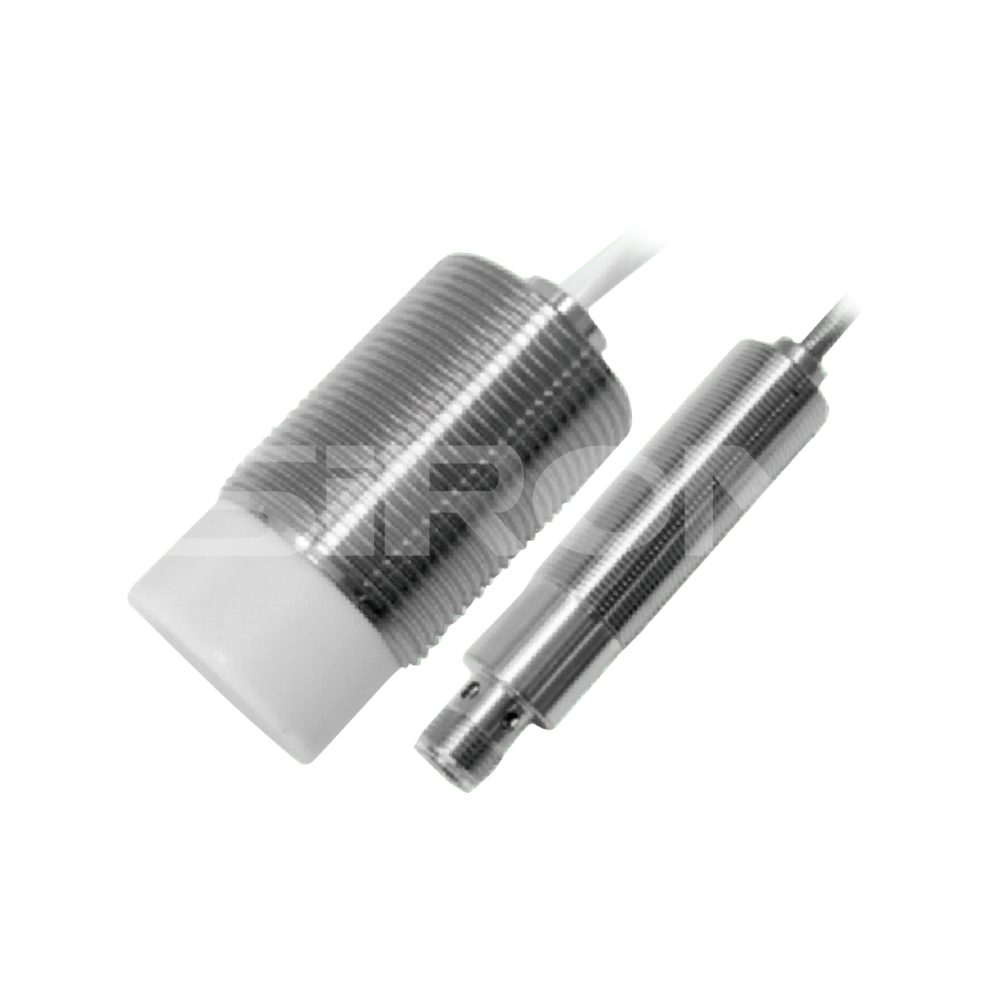

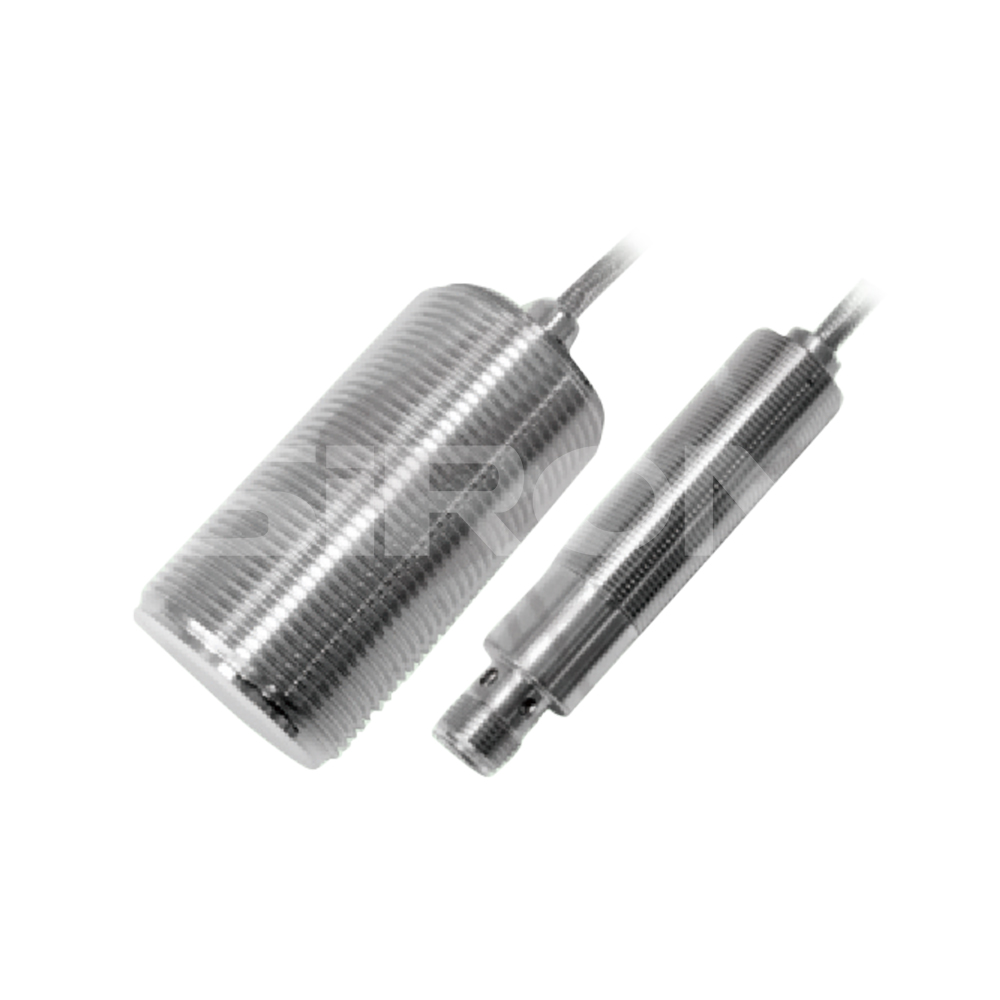

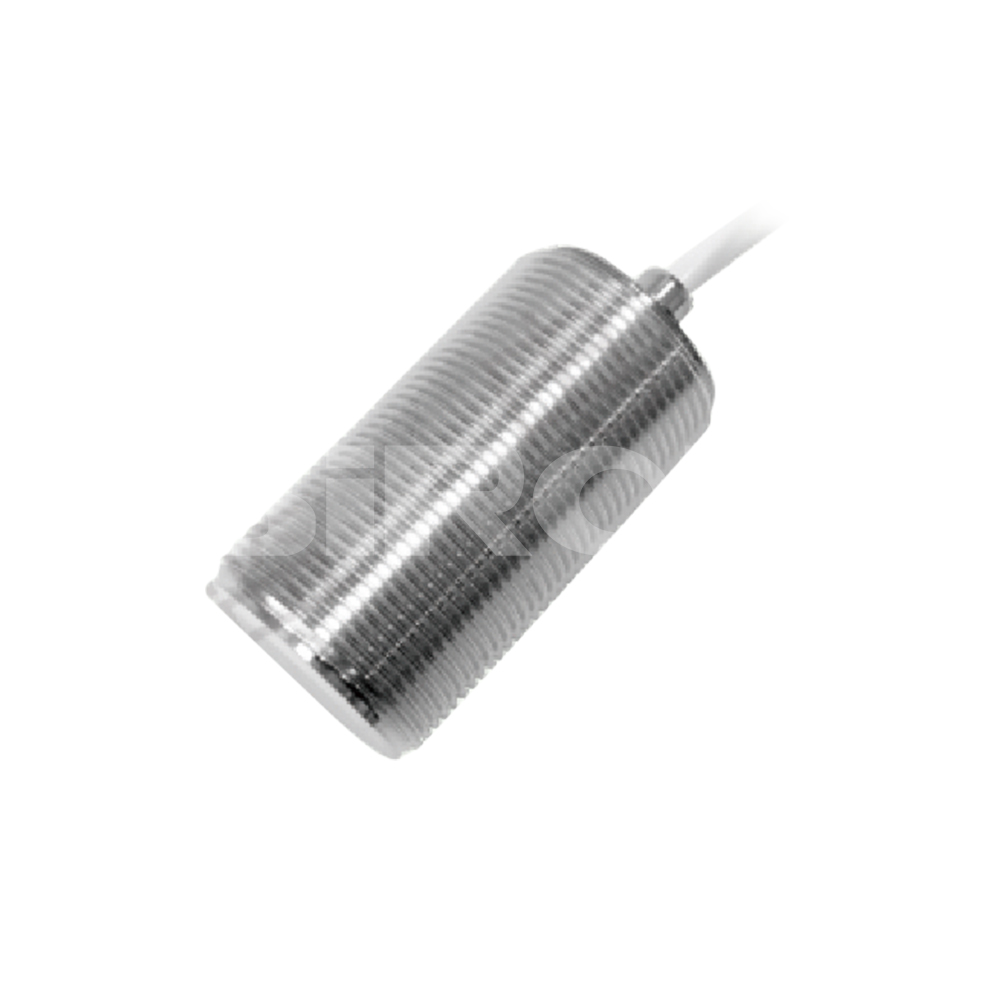

Appearance
Detedion distance		10mm	15mm	10mm	15mm	10mm	15mm	10mm	15mm
installation		Flush installation	Non-flush installation	Flush installation	Non-flush installation	Flush installation	Non-flush installation	Flush installation	Non-flush installation
Thread		M30×1.5mm
Operating Voltage		10～30V   DC
On-off level		200Hz/120℃		200Hz/150℃		200Hz/180℃		200Hz/230℃
Pressure drop		<1.8V
Amplifer		/		extraposition
Load current		150mA/24VDC		200mA
No-load current		≤10mA(24V)		≤25mA(24V)
Hysteresis		3~15%(Sr)
Repeatability		<3.0%(Sr)
Ambient temperature		-25~120℃		-25~150℃		-25～180℃		-25~230℃
Enclosure rating		IP66
Shell material		stainless steel
Sensing surface material		PTFE		PEEK
Cable		PTFE cable；3×0.18mm²		Teflon armored shielded wire /S12 connector
Cable length		2M		3M

Example

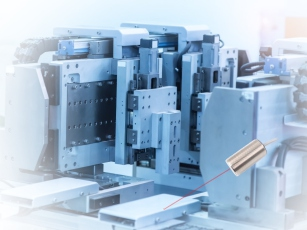

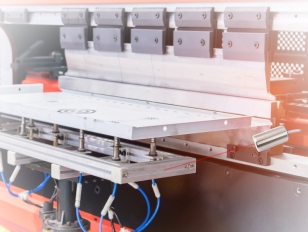

Detection of the pallet position                                                         Detect metal

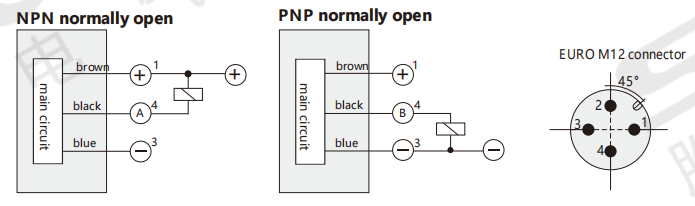

Wiring diagram

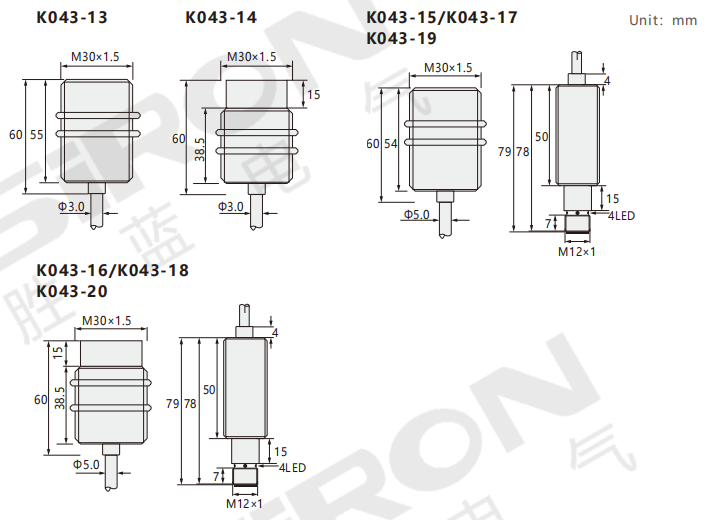

Dimension
