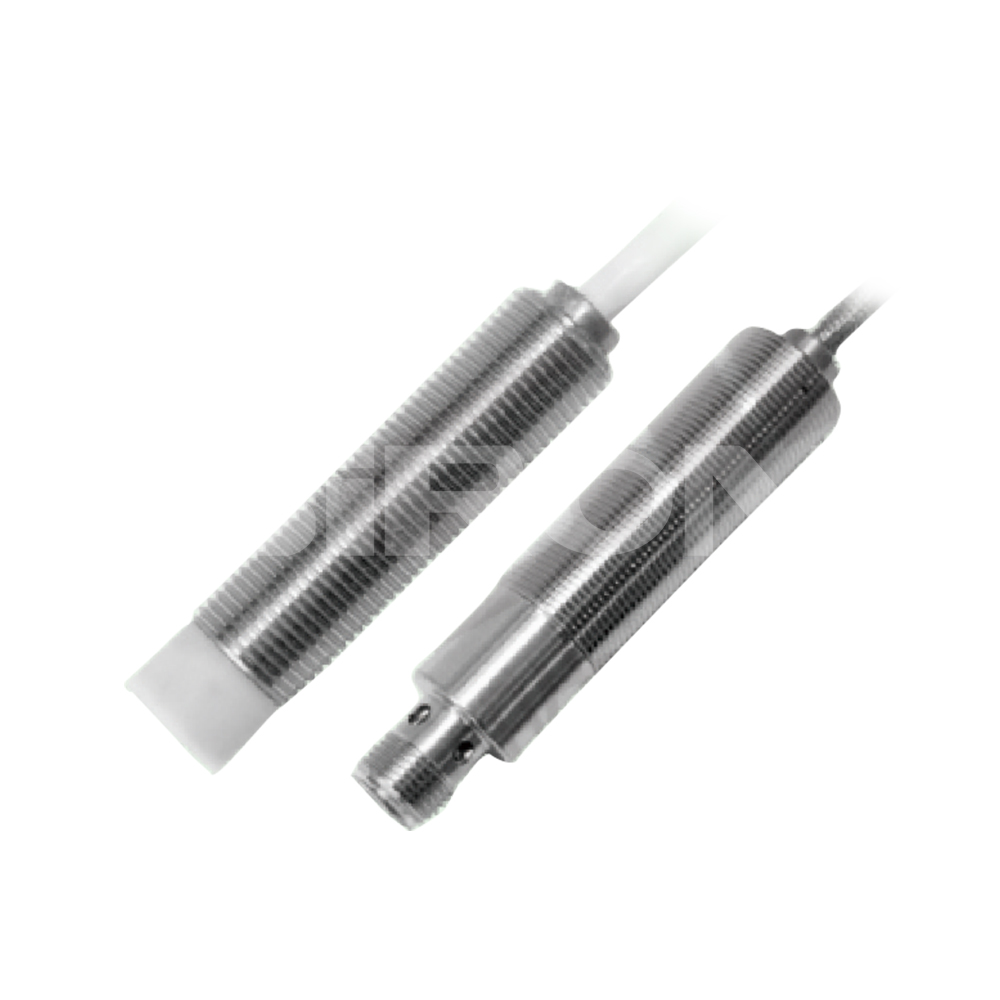

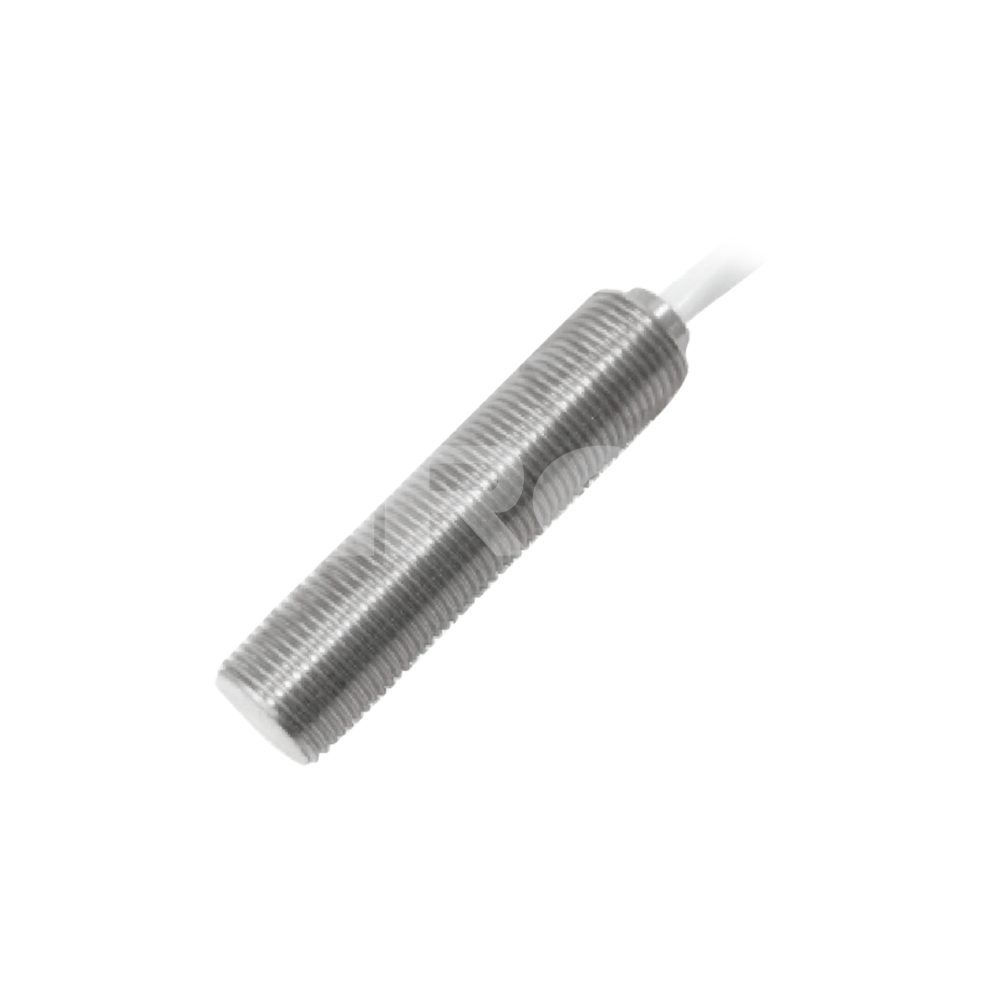

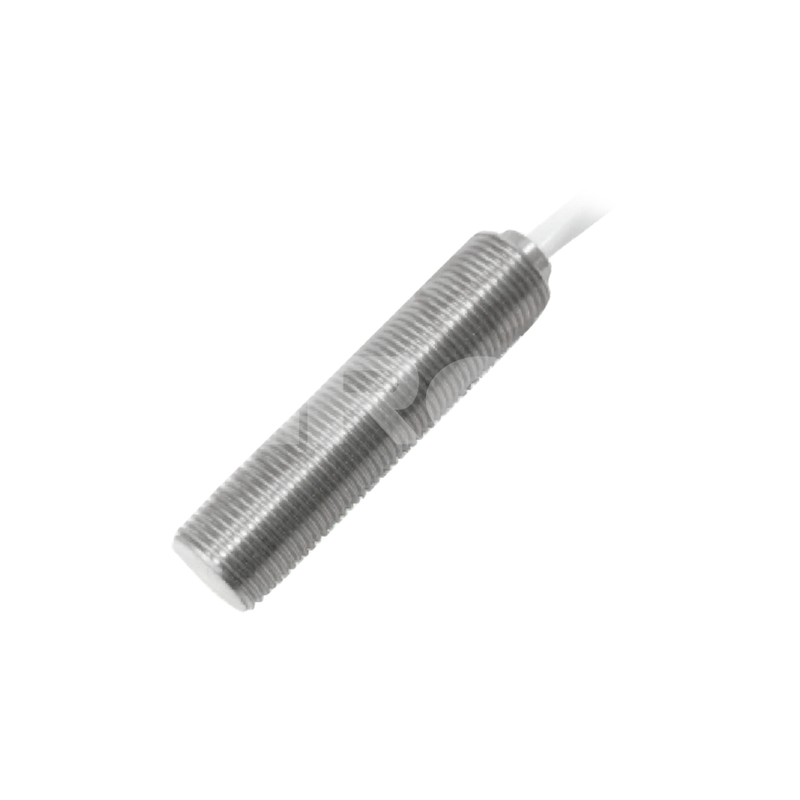

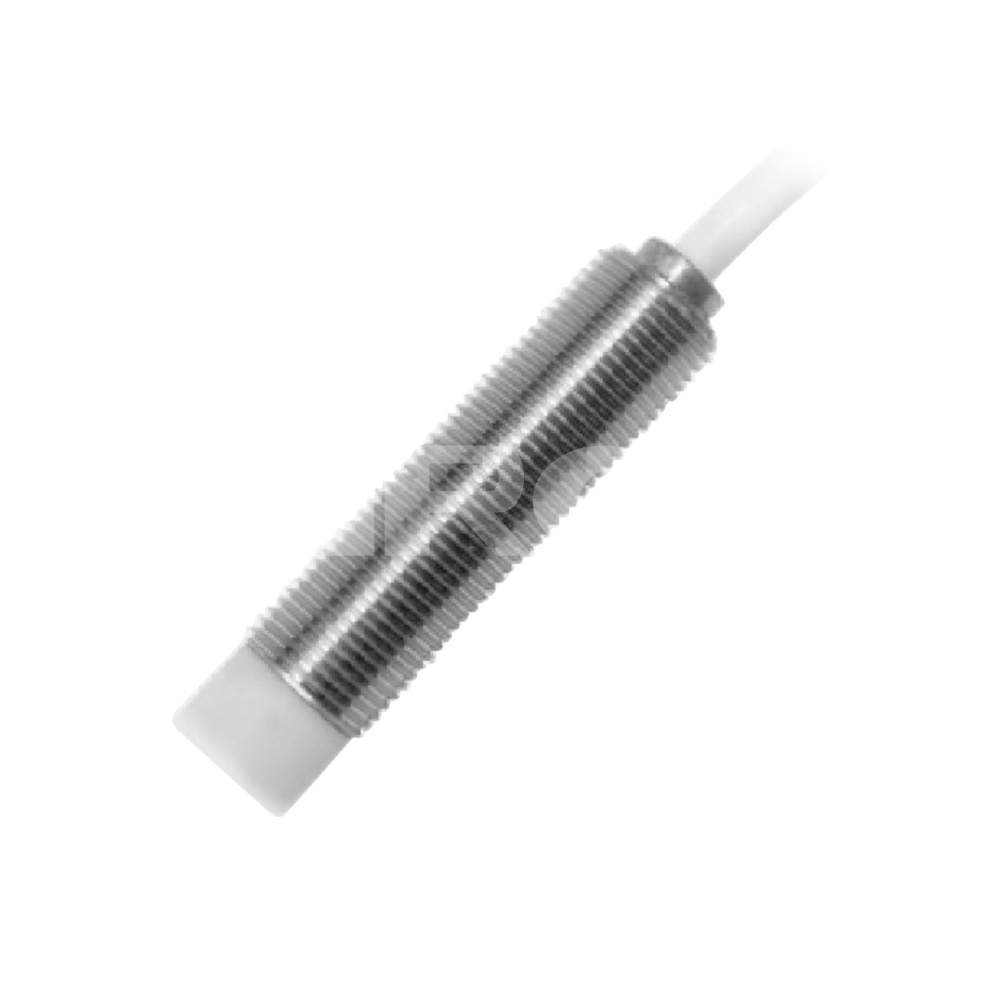

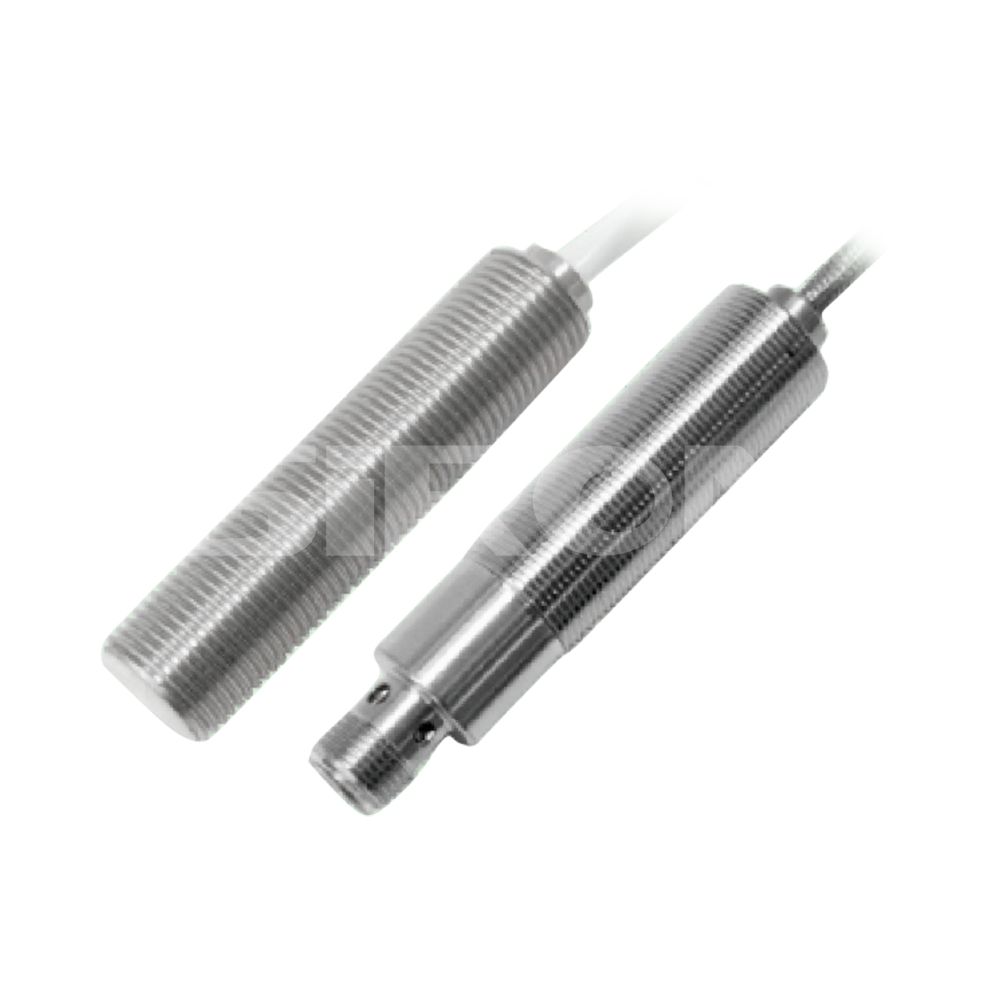

SiRON K043-1~K043-5 Series M12 Inductive Proximity Switch High Temperature Resistant

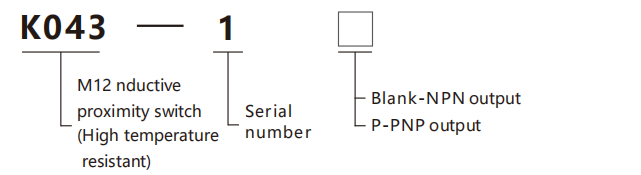

About selection

 Selection example:  K043-1 indicates the K043 series, serial number 1,  with NPN output;

                                             K043-1P  indicates the K043 series, serial number 1, with PNPoutput.

 Specifications

Name		M12inductive proximity switch (high temperature resistant)

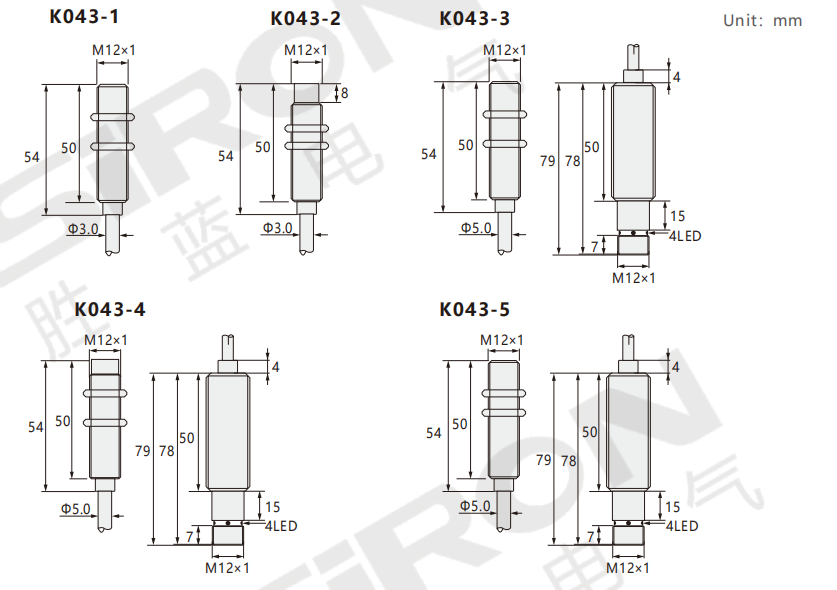

Model	NPN	K043-1	K043-2	K043-3	K043-4	K043-5
	PNP	K043-1P	K043-2P	K043-3P	K043-4P	K043-5P
Appearance
Detection distance		2mm	4mm	3mm	4mm	2mm
Installation		Flush installation	Non-flush installation	Flush installation	Non-flush installation	Flush installation
Thread		M12×1   mm
Operating Voltage		10～30V   DC
On-off level		500Hz/120℃		500Hz/150℃		500Hz/220℃
Pressure drop		<1.8V
Amplier		/		extraposition
Load current		100mA/24VDC		200mA
No-load cuIent		≤10mA(24V)		≤25mA(24V)
Hysteresis		3～15%(Sr)
Repeatability		<3.0%(Sr)
Ambient temperature		-25~120℃		-25～150℃		-25～220℃
Enclosure rating		IP66
Shell material		stainless steel
Sensing surface matenial		PTFE		PEEK
Cable		PTEE cable；3×0.18mm²		Teflon armored shielded wire /S12 connector
Cable length		2M		3M

Example

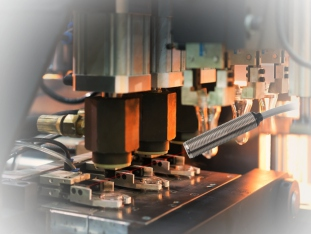

Metal detection (in high-temperature environments)                    Detection of steel plate position

                                                                                                                                        (in high-temperature environments)
