SiRON K041-11~K041-14 Series M8 Inductive Proximity Switch Short Type

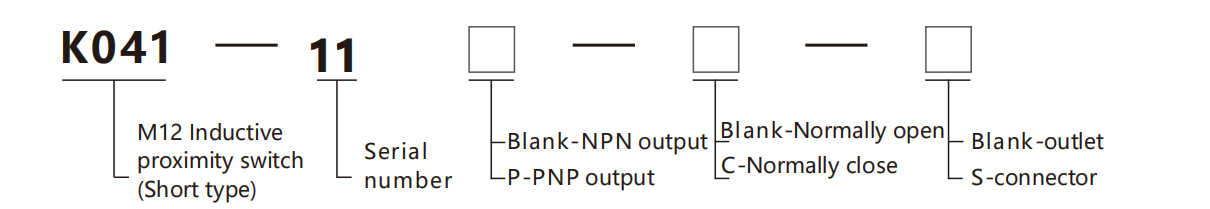

About selection

 Selection example:  K041-11 indicates the K041 series, serial number 11, with NPN output,Normally open, outlet;

                                       K041-11-S  indicates the K041 series, serial number 11, with NPN output,Normally                                                                     open,connector.

 Specifications

Name		M12 inductive proximity switch (short type)
Model	NPN N.O	K041-11	K041-11-S	K041-12	K041-12-S	K041-13	K041-13-S	K041-14	K041-14-S
	NPN N.C	K041-11C	K041-11C-S	K041-12C	K041-12C-S	K041-13C	K041-13C-S	K041-14C	K041-14C-S
	PNP N.O	K041-11P	K041-11P-S	K041-12P	K041-12P-S	K041-13P	K041-13P-S	K041-14P	K041-14P-S
	PNP N.C	K041-11P-C	K041-11P-C-S	K041-12P-C	K041-12P-C-S	K041-13P-C	K041-13P-C-S	K041-14P-C	K041-14P-C-S

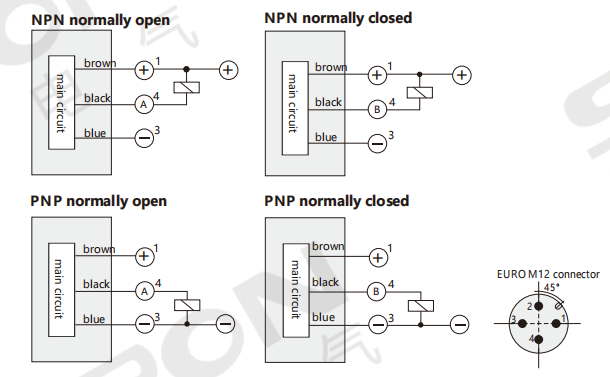

WiringFom		Outlet	Connector	Outlet	Connector	Outlet	Connector	Outlet	Connector

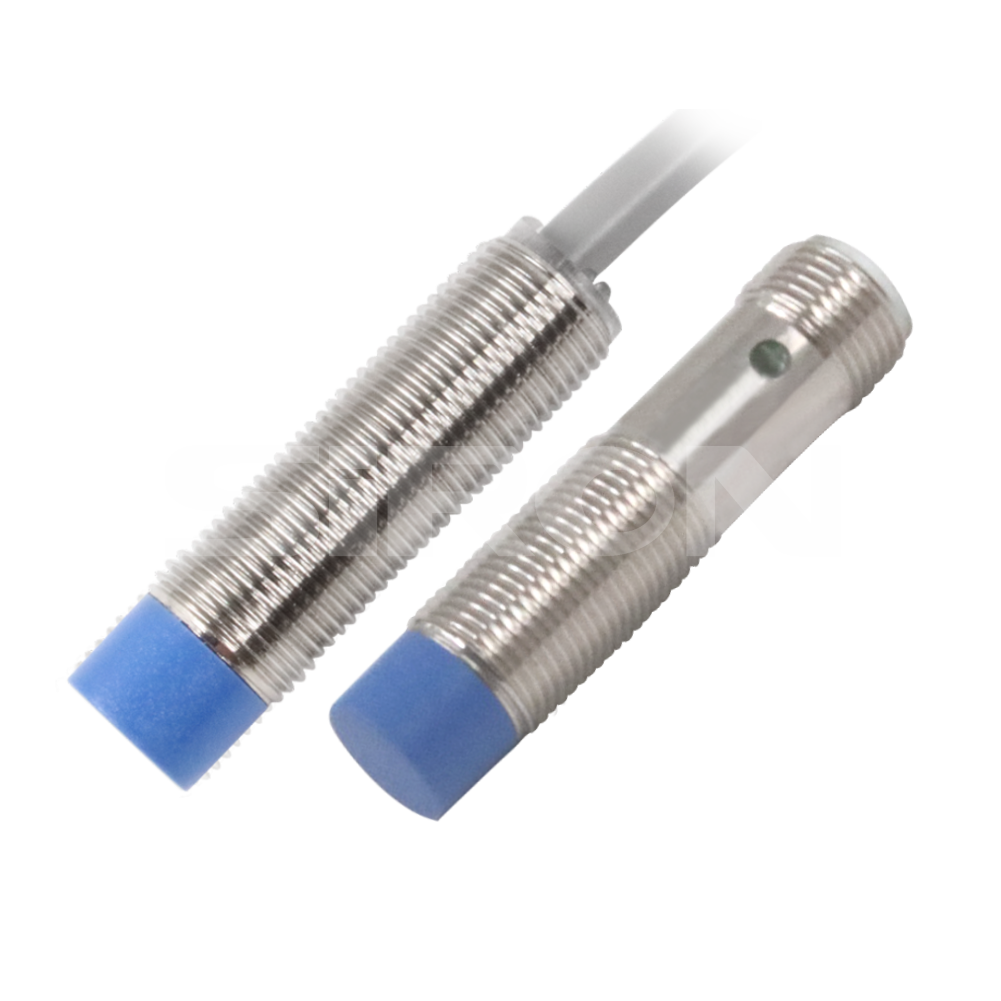

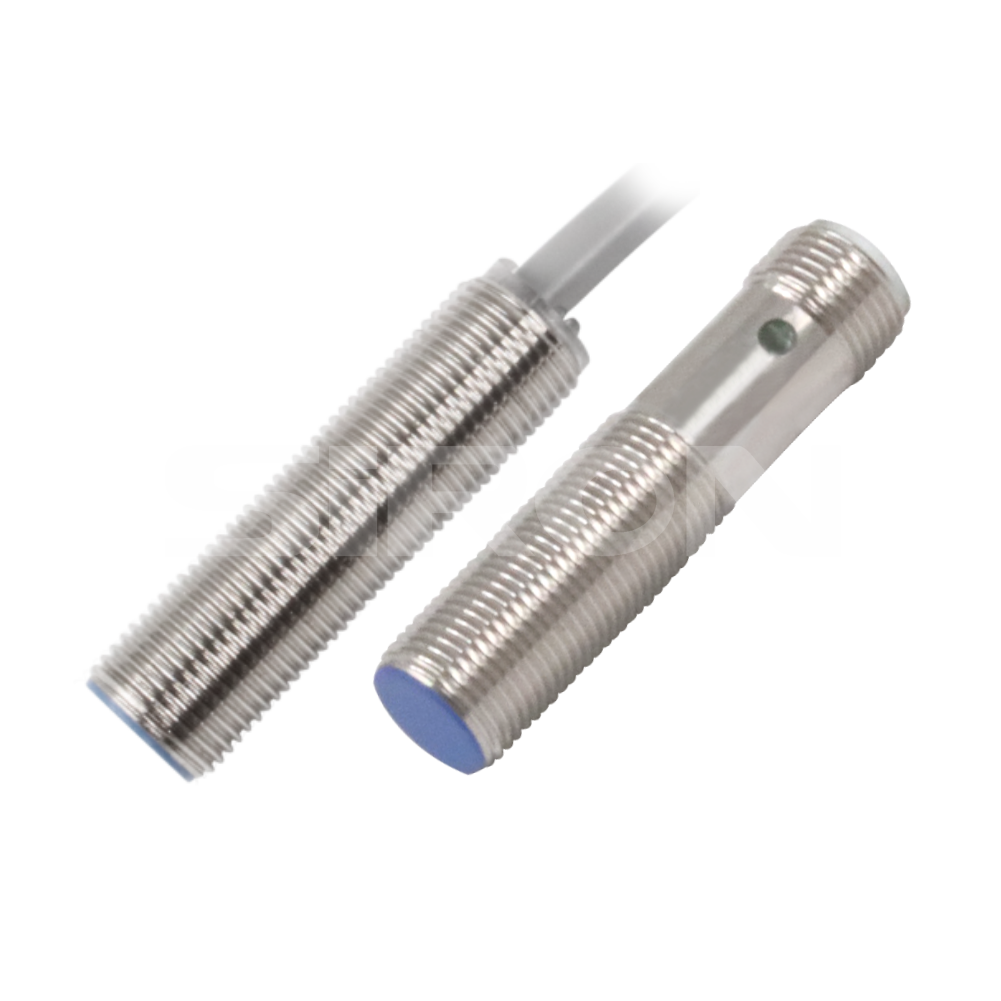

Appearance
Detection distance		4mm		6mm		8mm		10mm
Installation		Flush installation		Quasi-flush installation		Non-flush installation
Thread		M12×1mm
Operating Voltage		10～30V DC
On-off level		3000Hz		800Hz		500Hz		400Hz
Pressure drop		≤2.0V
Load current		200mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25～70℃
Enclosure rating		IP67
Material		Sensing surface: PBT; Shell: Copper plated with nickel
Cable		Outgoing type: PVC cable; 3 x 0.35 mm squared; Plug-in type: M12 connector
Cable length		2M

Example

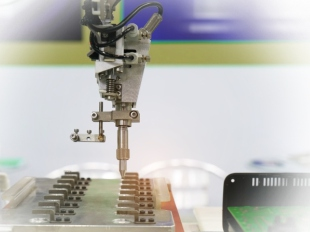

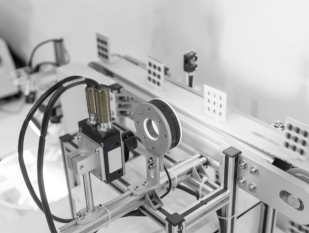

Inspection of machine tool workpieces                                        Detection of the quantity of metal parts
