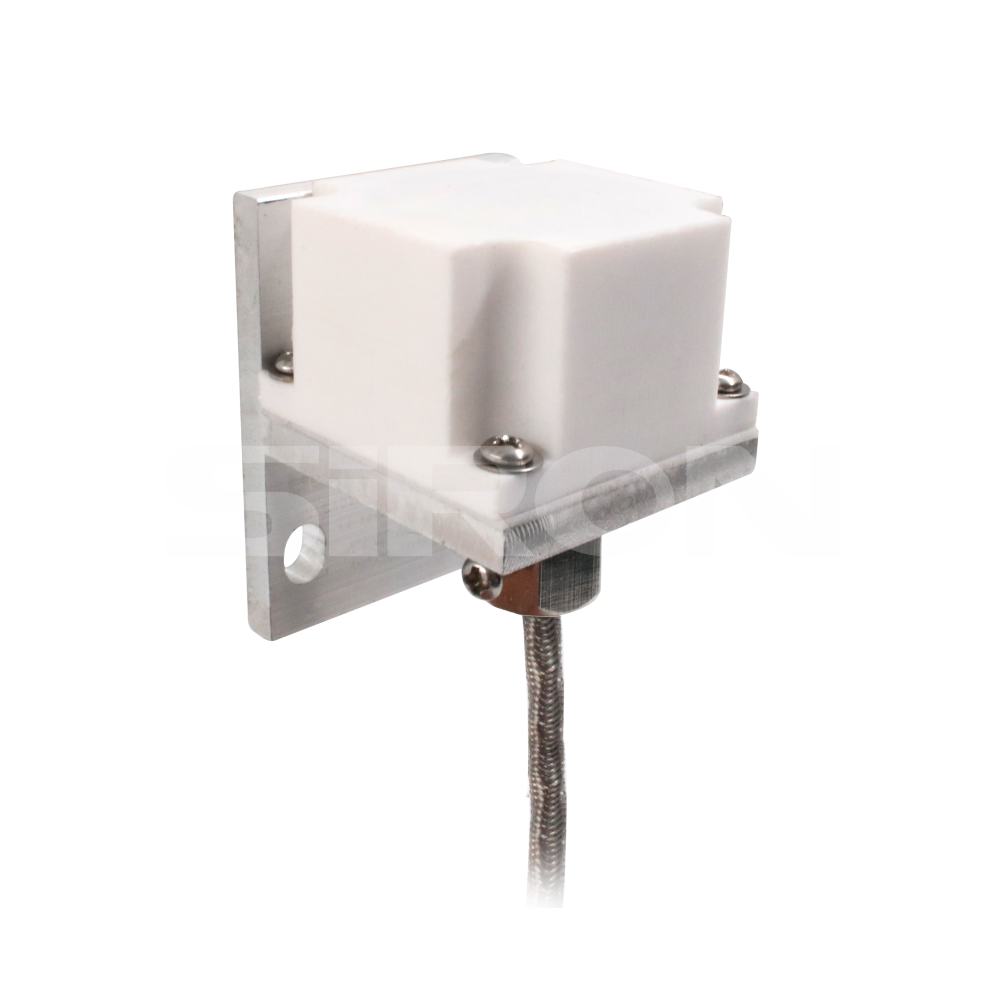

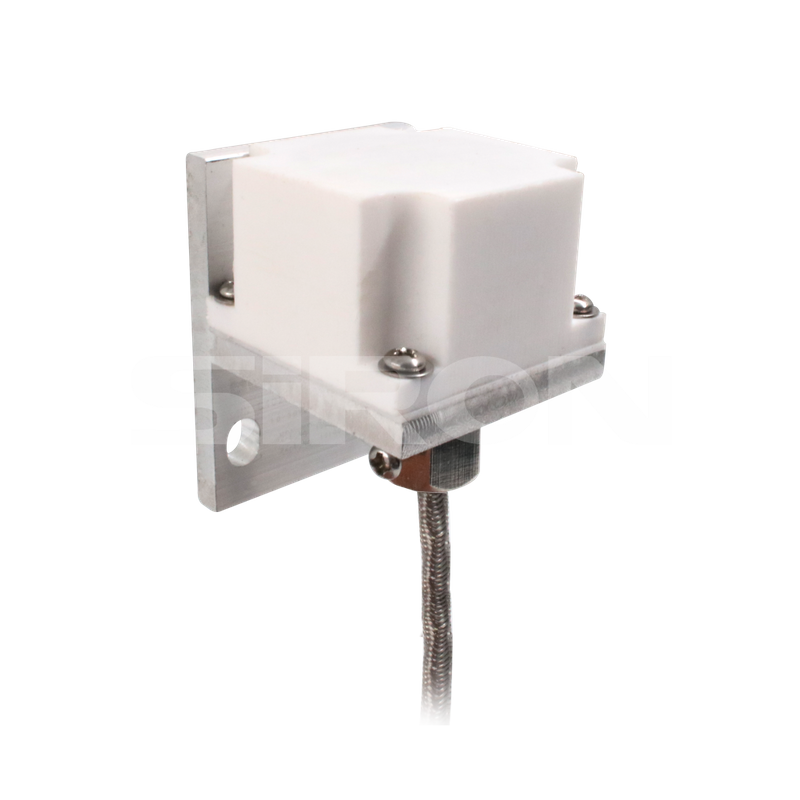

SiRON K043-21 Series Inductive Proximity Switch High Temperature Resistant

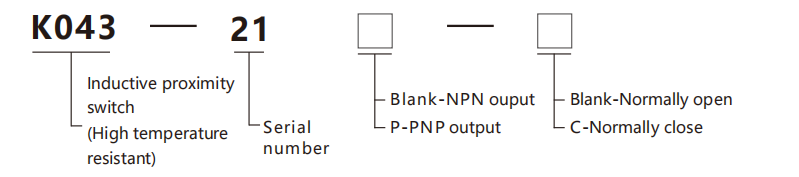

About selection

 Selection example:  K043-21 indicates the K043 series, serial number 21,  with NPN output,normally open;

                                       K043-21P-C  indicates the K043 series, serial number 21, with PNP output,normally close.

 Specifications

Name	Indudive proxamity switch (high temperature resistant)
Model	K043-21	K043-21C	K043-21P	K043-21P-C
Output state	NPN    N.O	NPNN.C	PNPN.O	PNPN.C

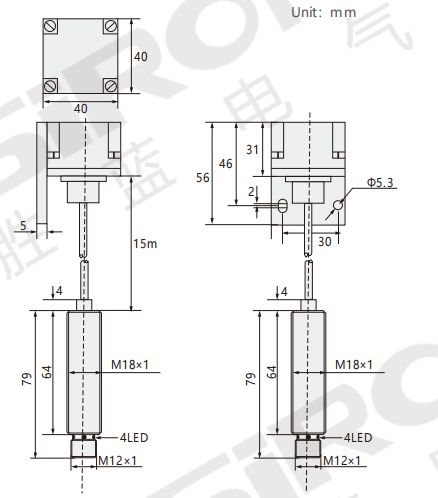

Appearance
Delecion distance	25mm
Instalation	Flush installation
Mnimumbencrgradus d movemet	15cm
Operating Voltage	10～30V    DC
On-oIflevel	0~20Hz
Pressure drop	≤3V
Load current	0~200mA
No-oad current	≤25mA
Hysteresis	0 . 3 ~ 5 typical value 2 %
Reliabe operating range	0~20mm
Ambient temperature	0~250℃(273...523K)
EnClosure raing	Amplifier IP67, sensor IP40
Short orcuit prolecfon	pulse
Swich statusindicafion	Yellow LED indicator light
Attenuabion cDeficient	0.5
Attenuabon CDeficient	0.5
Attenuaion cDefCient	0.6~1
instalation angle	Al
Shellmaterial	Stainless steel (amplifier housing),PTFE/Al/V2A
Sensing surace material	PTFE(Teflon)

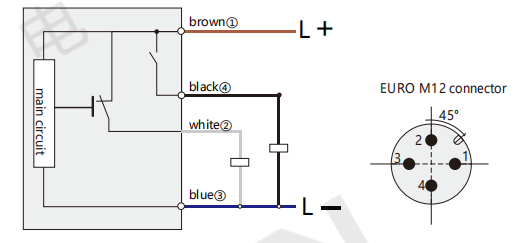

Inierface (electical connecfon)	Teflon armored shielded wire /S12 connector
Cabe lngth	3M

Example

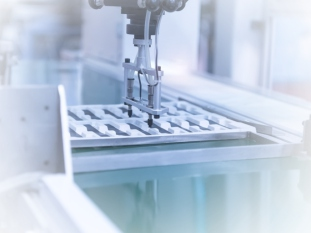

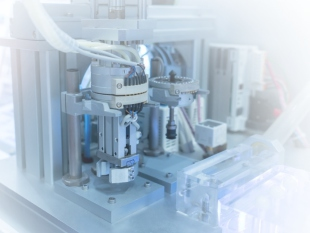

Inspection of metal parts                                                      Inspection of metal parts
