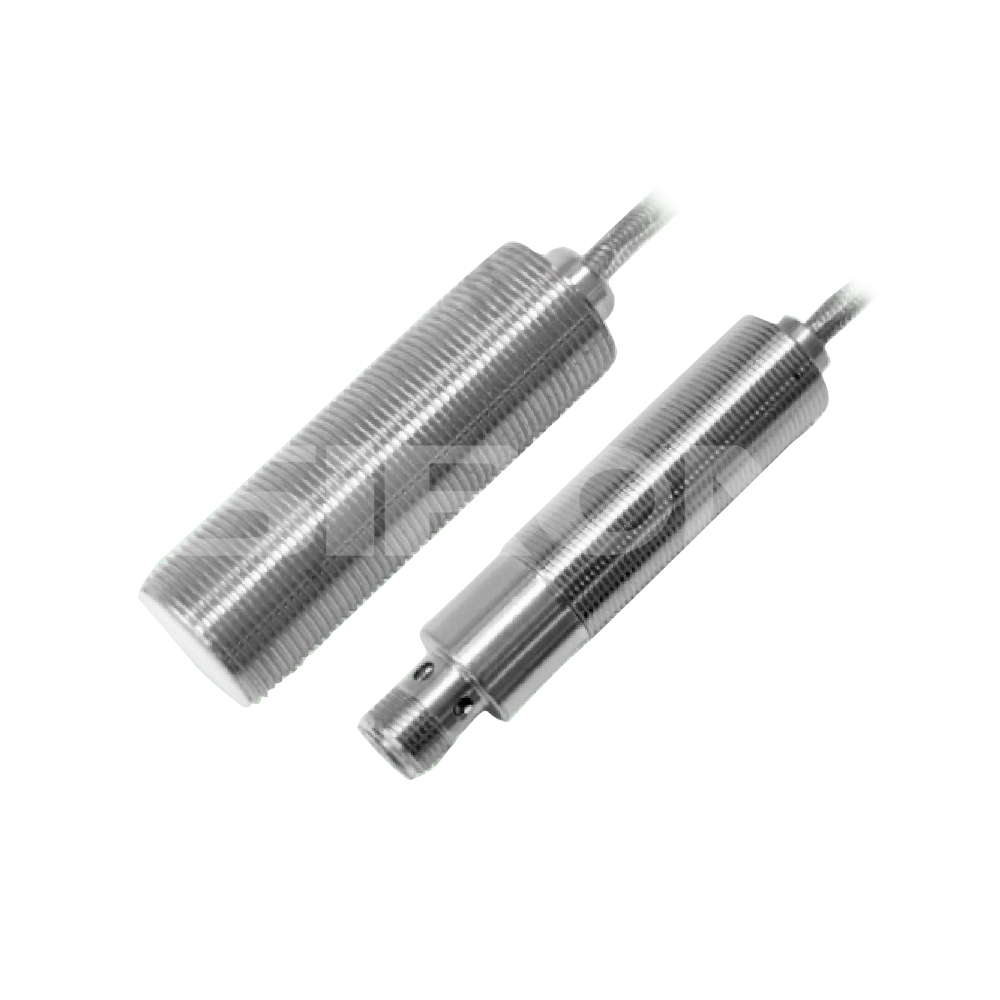

SiRON K043-6~K043-12 Series M18 Inductive Proximity Switch High Temperature Resistant

About selection

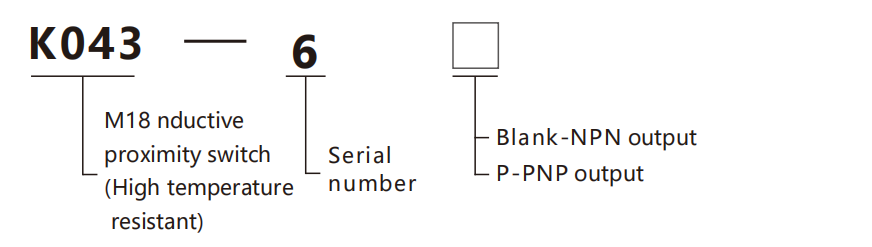

 Selection example:  K043-6 indicates the K043 series, serial number 6,  with NPN output;

                                             K043-6P  indicates the K043 series, serial number 6, with PNPoutput.

 Specifications

Name		M18 inductive proximity switch(high temperature resistant)
Model	NPN	K043-6	K043-7	K043-8	K043-9	K043-10	K043-11	K043-12
	PNP	K043-6P	K043-7P	K043-8P	K043-9P	K043-10P	K043-11P	K043-12P

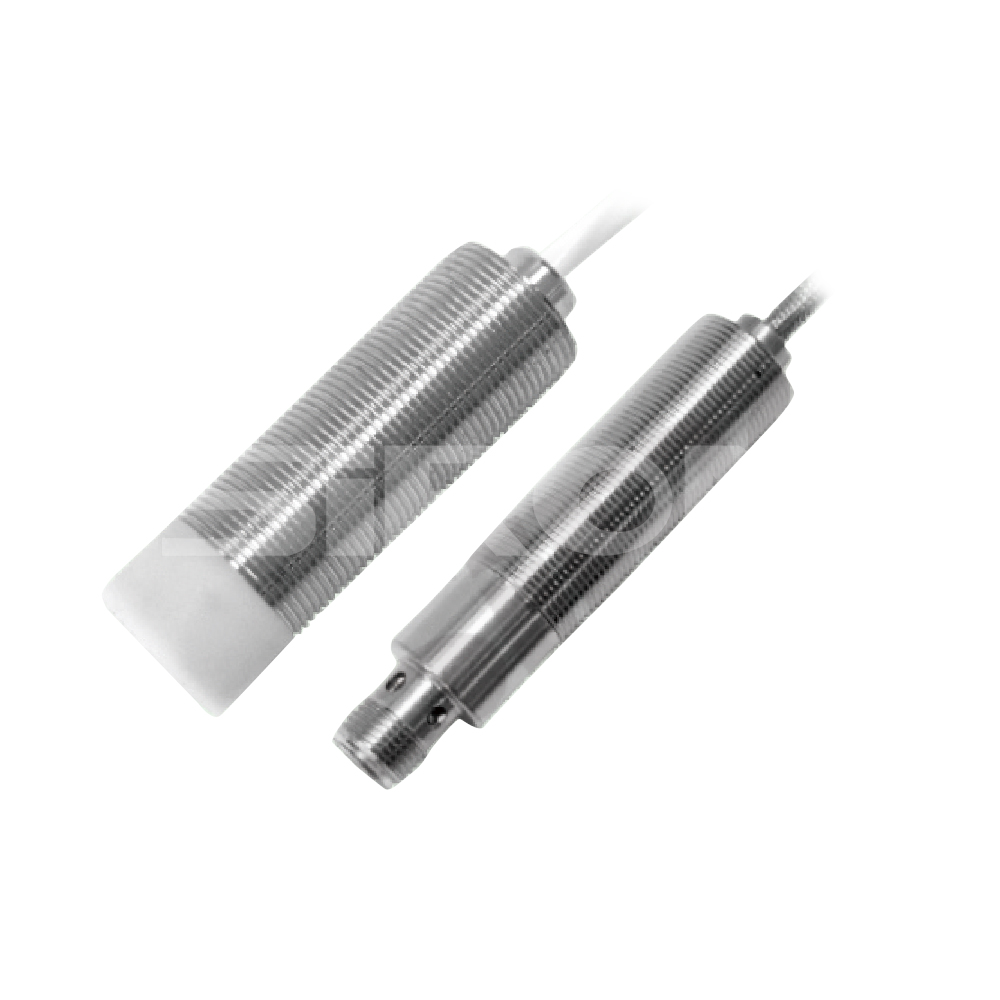

Appearance
Detection distance		8mm	5mm	8mm	5mm	8mm	5mm	8mm
Installation		Non-flush installation	Flush  installation	Non-flush installation	Flush  installation	Non-flush installation	Flush  installation	Non-flush installation
Thread		M18×1mm
Operating Voltage		10～30V   DC
On-offlevel		800Hz/120℃	800Hz/150℃		800Hz/180℃		500Hz/230℃
Pressure drop		<1.8V
Amplifier		/	extraposition
Load current		100mA/24VDC	200mA
No-load current		≤10mA(24V)	≤25mA(24V)
Hysteresis		3～15%(Sr)
Repeatability		<3.0%(Sr)
Ambient temperature		-25~120℃	-25~150℃		-25~180℃		-25~230℃
Enclosure rating		IP66
Shellmatenial		stainless steel
Sensing surface material		PTFE	PEEK
Cable		PTFE cable；3×0.18mm²	Teflon armored shielded wire /S12 connector
Cable length		2M	3M

Example

Inspection iron plate                                                                          Inspection of qualified workpieces
