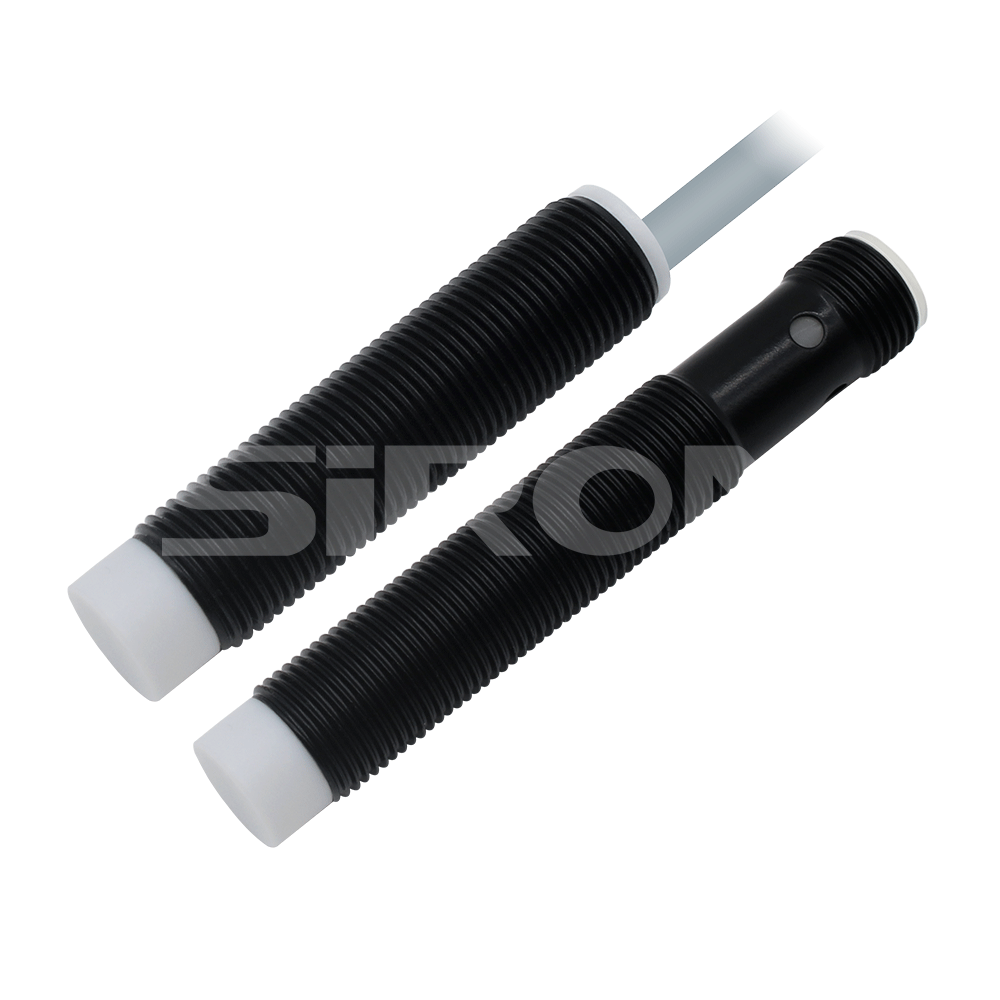

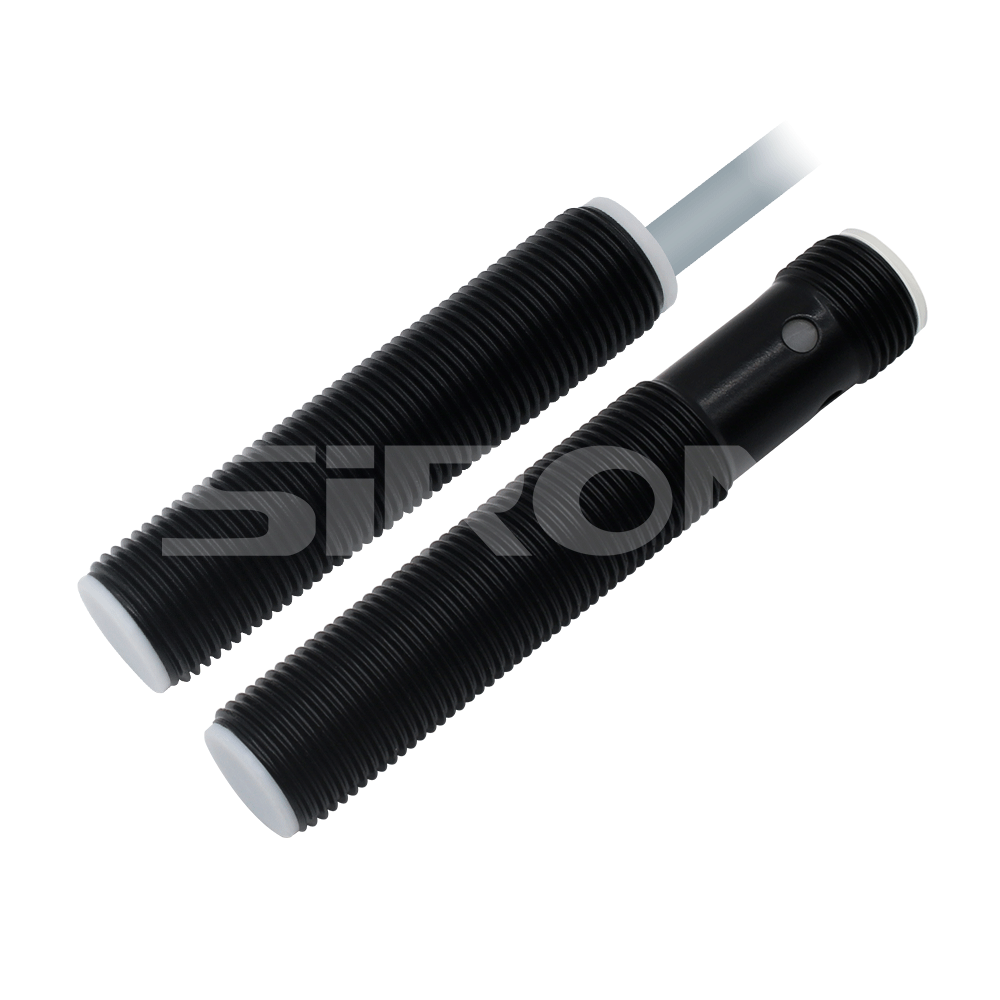

SiRON K045-5~K045-8 Series Inductive Proximity Switch

About selection

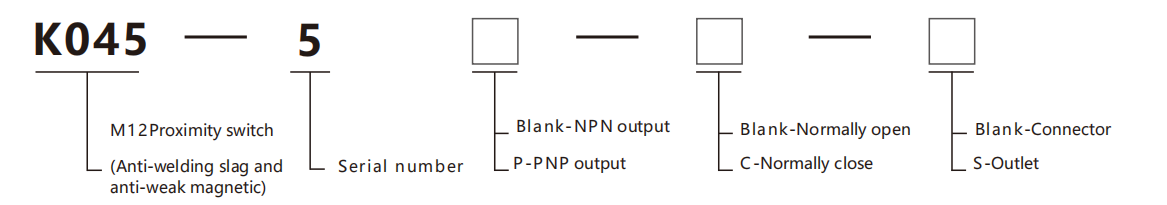

Selection example：

K045-5 indicates K045 series, serial number 5, NPN output, normally open state, outlet type;

K045-5-S indicates K045 series, serial number 5, NPN output, normally open state, plug-in type.

Specifications

Name	M8proximityswitch (Weld spatter prevention and weak magnetic resistance)
Model	NPN   NO	K045-5	K045-5-S	K045-6	K045-6-S	K045-7	K045-7-S	K045-8	K045-8-S
	NPN N.C	K045-5C	K045-5C-S	K045-6C	K045-6C-S	K045-7C	K045-7C-S	K045-8C	K045-8C-S
	PNP N.O	K045-5P	K045-5P-S	K045-6P	K045-6P-S	K045-7P	K045-7P-S	K045-8P	K045-8P-S
	PNP N.C	K045-5P-C	K045-5P-C-S	K045-6P-C	K045-6P-C-S	K045-7P-C	K045-7P-C-S	K045-8P-C	K045-8P-C-S

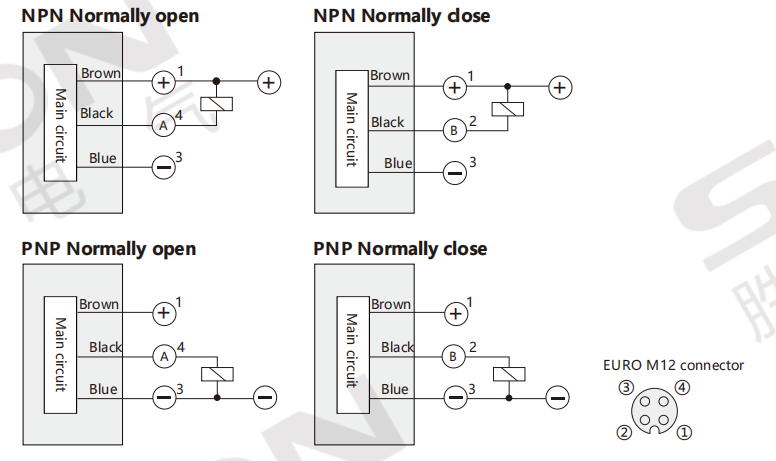

Wiring Fom		Outlet	Outlet	Outlet	Outlet	Outlet	Outlet	Outlet	Outlet

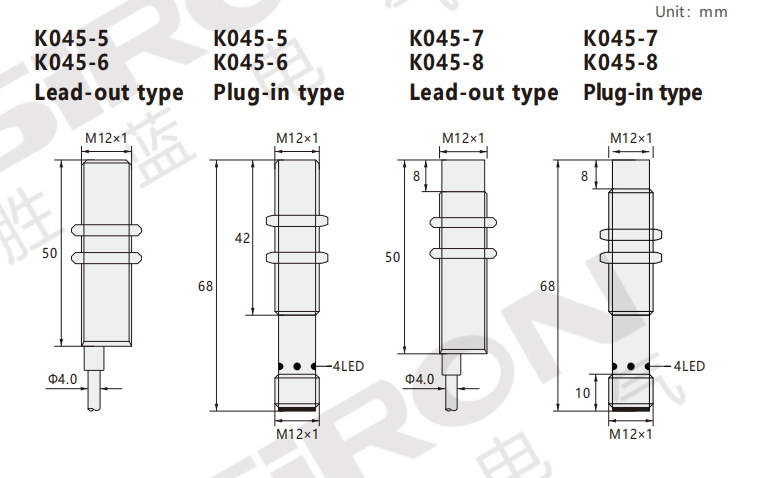

Appeaance
Detection distance		2mm		4mm		4mm		8mm
Install		Flush installation				Non-flush installation
Switching frequency		1000Hz		1000Hz		800Hz		500Hz
Response time		0.2ms	0.1ms	0.2ms	0.3ms	0.3ms		0.3ms	0.5ms
Screw thread		M12x1mm
Operating voltage		10～30V DC
Alowable ripple voltage		<10%
Unloaded aurrent		<10mA
Load curent		≤200mA
Leakage current		<0.01mA
Voltage drop		<1.5V
Switching hysteresis		<15%(Sr)
Constant magnetic field B		15mT
Atemating magnetic fieldB		15mT
Repeatabity		<1.0%(Sr)
Operatingtemperature		-25℃~+85℃
Temperature dift		<10%(Sr)
Protection cicuit		Short-circuit protection/reverse polarity protection
Overload protecton curent		220mA
Shell matenal		Brass, Teflon coating
Sensing surface material		Teflon(PTFE)
Class of protection		IP67
cable		Outgoing type: Oil-proof PUR cable; Plug-in type: M8 connector
Line length		2m
