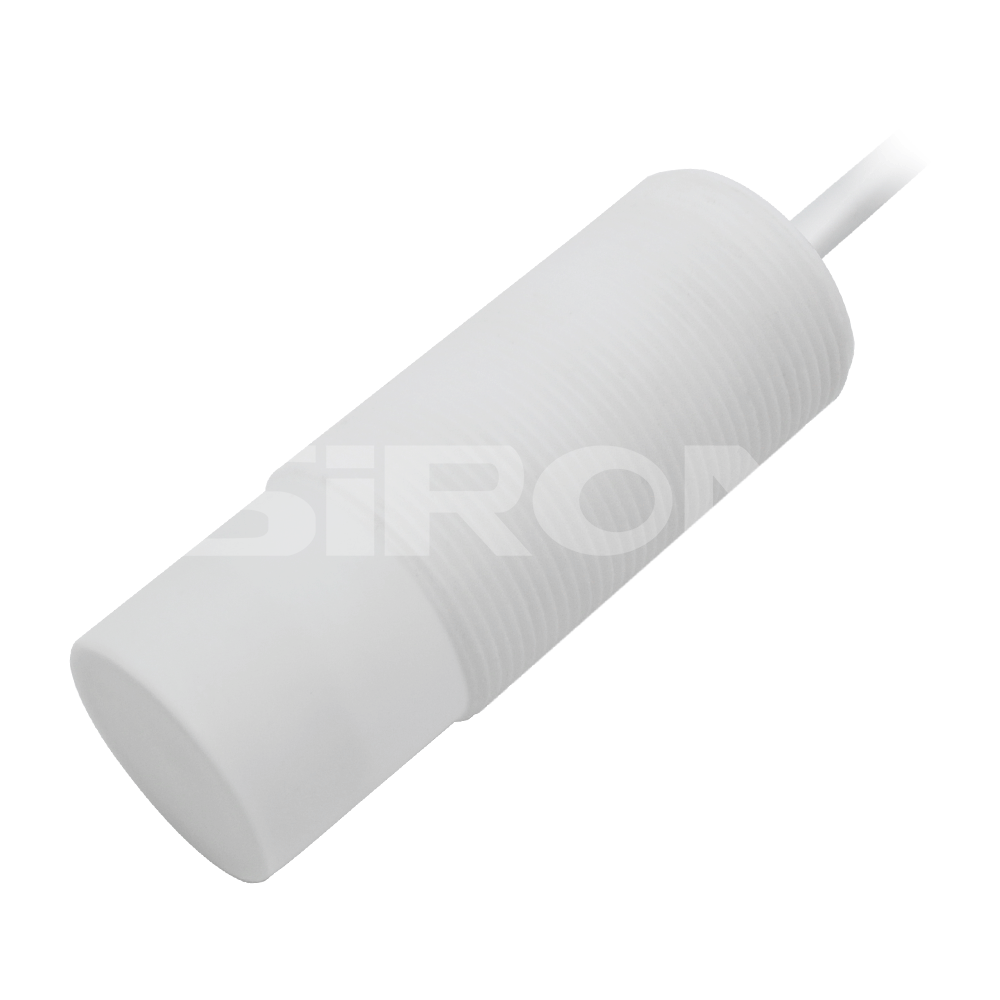

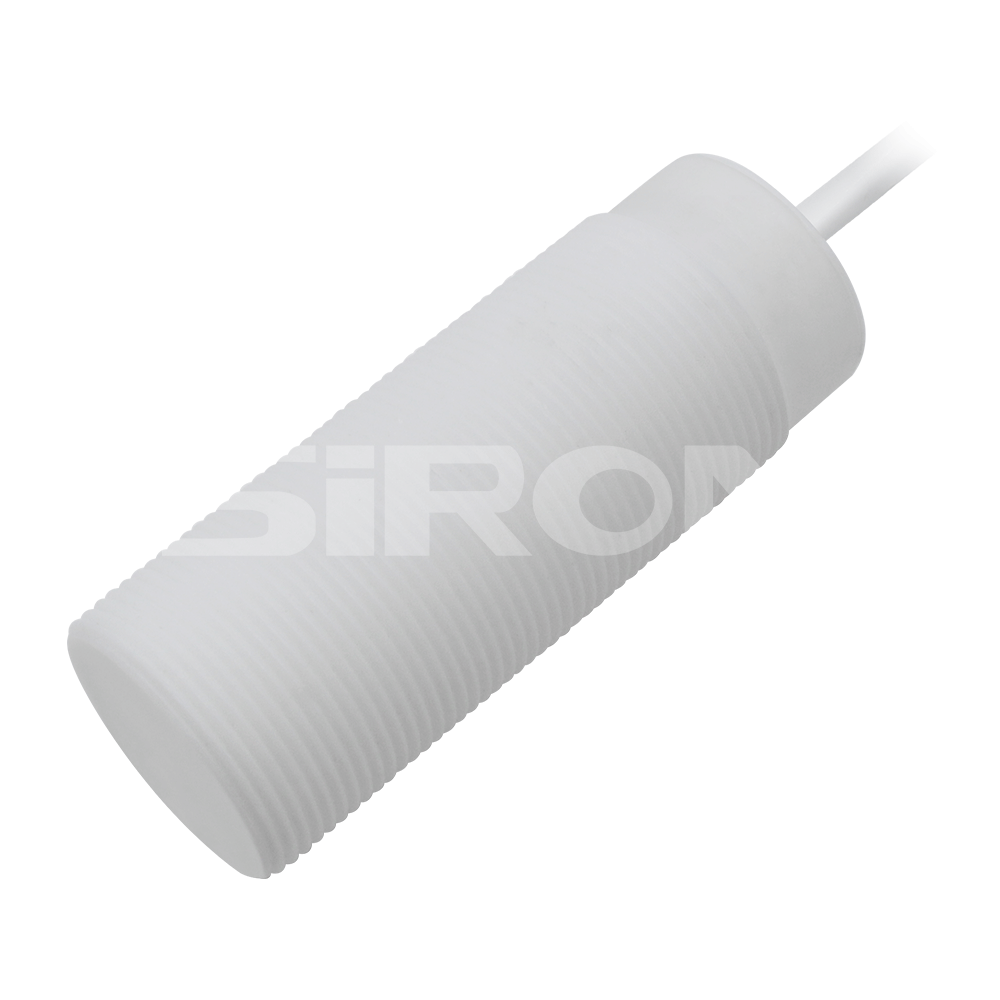

SiRON K046-37~K046-38 Series M30 Capacitive Proximity Switches Corrosion Resistance

About selection

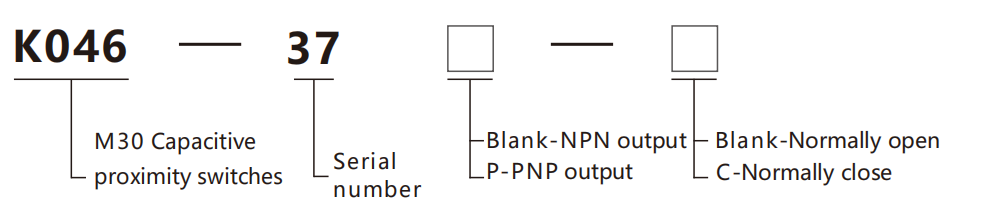

Selection example：

K046-37 indicates K046 series, serial number 37, NPN output, normally open state;

K046-37P-C indicates K046 series, serial number 37, PNP output, normally close state.

Specifications

Name		M30 Capacitive proximity switch (Corrosion resistant)
Model	NPN    N.O	K046-37		K046-38
	NPN   N.C	K046-37C		K046-38C
	PNP    N.O	K046-37P		K046-38P
	PNP    N.C	K046-37P-C		K046-38P-C
Install		Flush installation		Non-flush installation

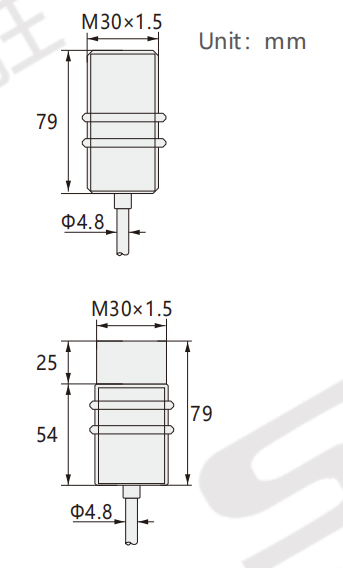

Appearance
Detection distance		2~20mm		2~30mm
Switching frequency		100Hz	Repeatability		<5.0%(Sr)
Response time		1.5ms	Overload protection current		220mA
Screw thread		M30×1.5mm	Operating temperature		-25℃~+70℃
Operating voltage		10～30V   DC	Temperature drift		<10%(Sr)
Allowable ripple voltage		<10%	Protection circuit		Short-circuit protection/reverse polarity protection
Unloaded current		<10mA	Shell material		PTFE
Load current		≤200mA	Sensing surface material		PTFE
Leakage current		<0.01mA	Class of protection		IP67
Voltage drop		<2V	Cable		PT FE/PUR Cable
Switching hysteresis		<15%(Sr)	Line length		2m
