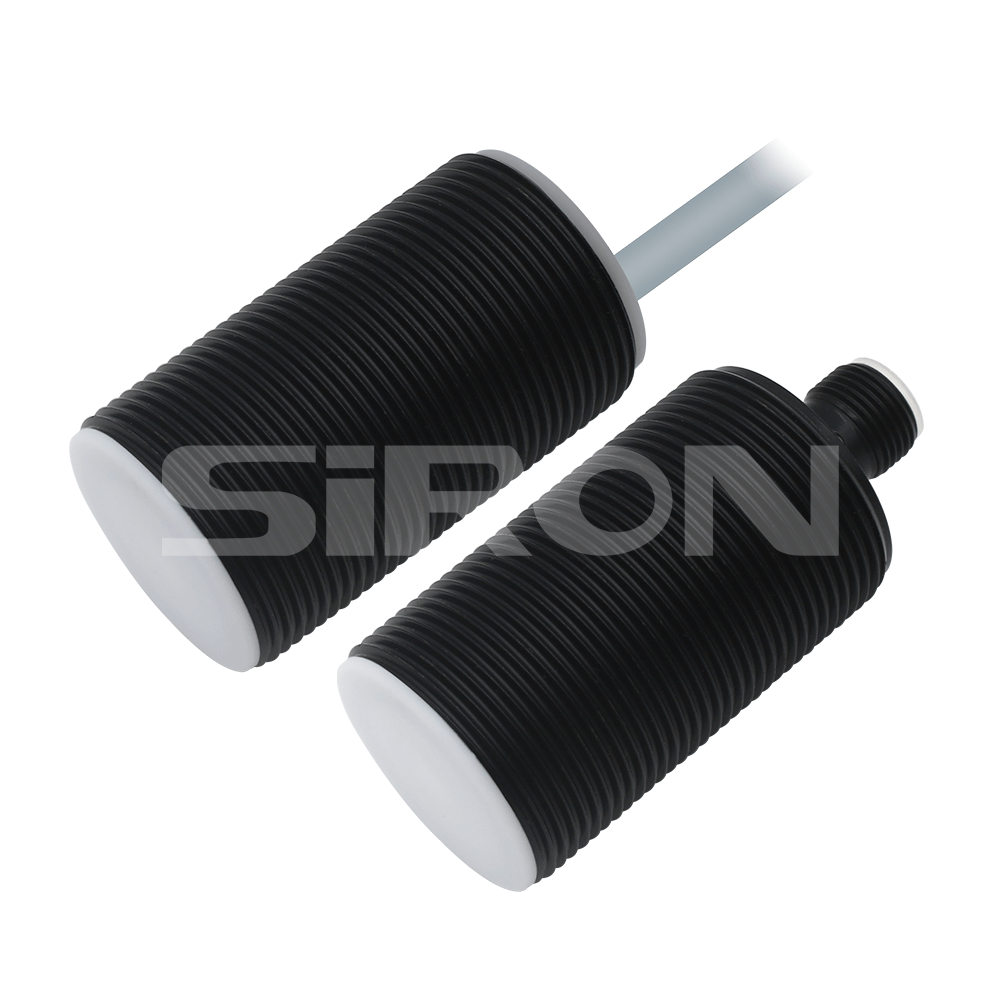

SiRON K045-13~K045-16 Series Inductive Proximity Switch

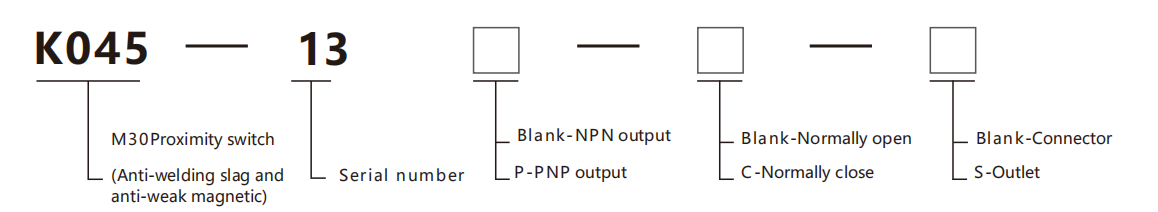

About selection

Selection example：

K045-13 indicates K045 series, serial number 13, NPN output, normally open state, outlet type;

K045-13-S indicates K045 series, serial number 13, NPN output, normally open state, plug-in type.

Specifications

Name	M8proximityswitch (Weld spatter prevention and weak magnetic resistance)
Model	NPN   NO	K045-13	K045-13-S	K045-14	K045-14-S	K045-15	K045-15-S	K045-16	K045-16-S
	NPN N.C	K045-13C	K045-13C-S	K045-14C	K045-14C-S	K045-15C	K045-15C-S	K045-16C	K045-16C-S
	PNP N.O	K045-13P	K045-13P-S	K045-14P	K045-14P-S	K045-15P	K045-15P-S	K045-16P	K045-16P-S
	PNP N.C	K045-13P-C	K045-13P-C-S	K045-14P-C	K045-14P-C-S	K045-15P-C	K045-15P-C-S	K045-16P-C	K045-16P-C-S

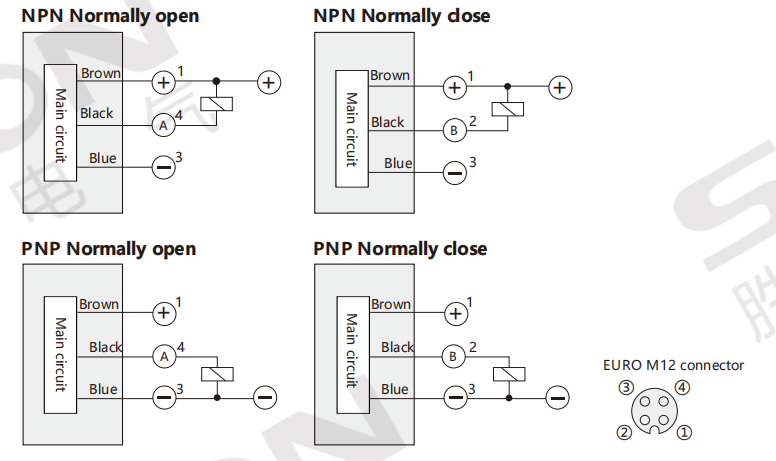

Wiring Fom		Outlet	Outlet	Outlet	Outlet	Outlet	Outlet	Outlet	Outlet

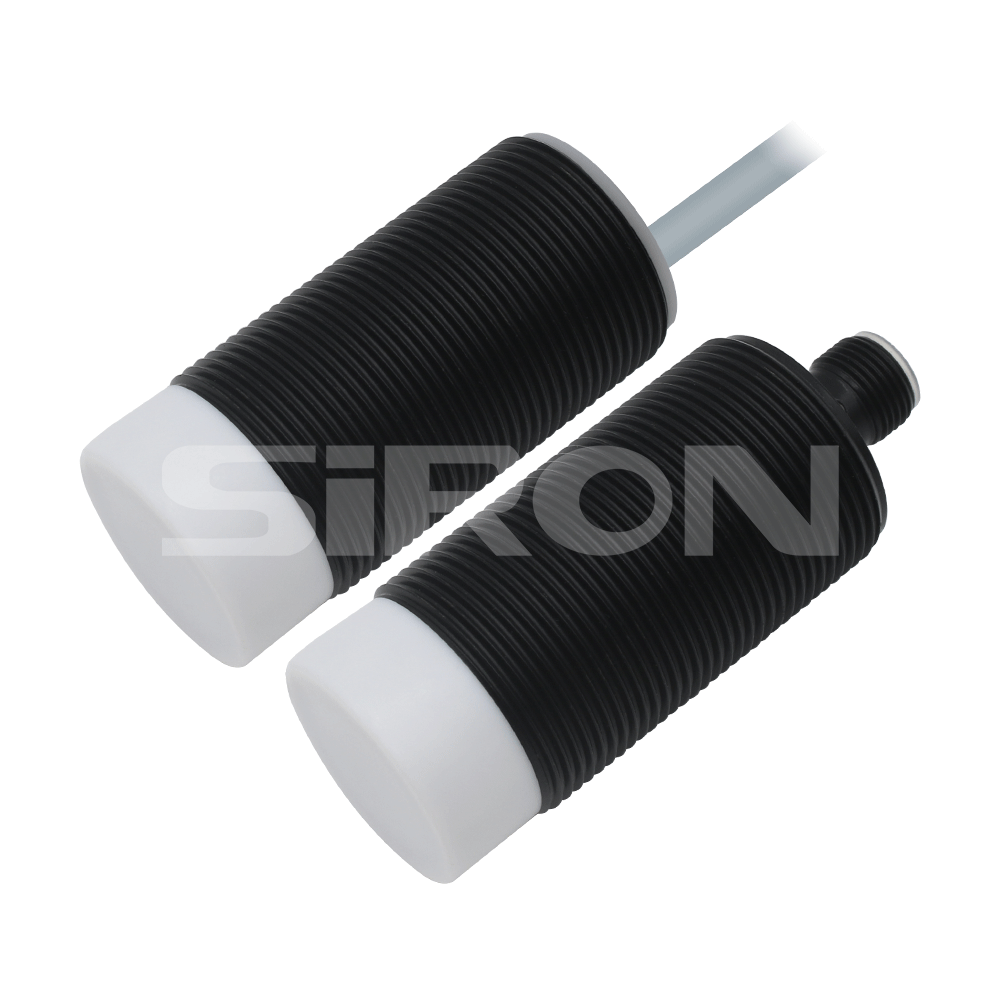

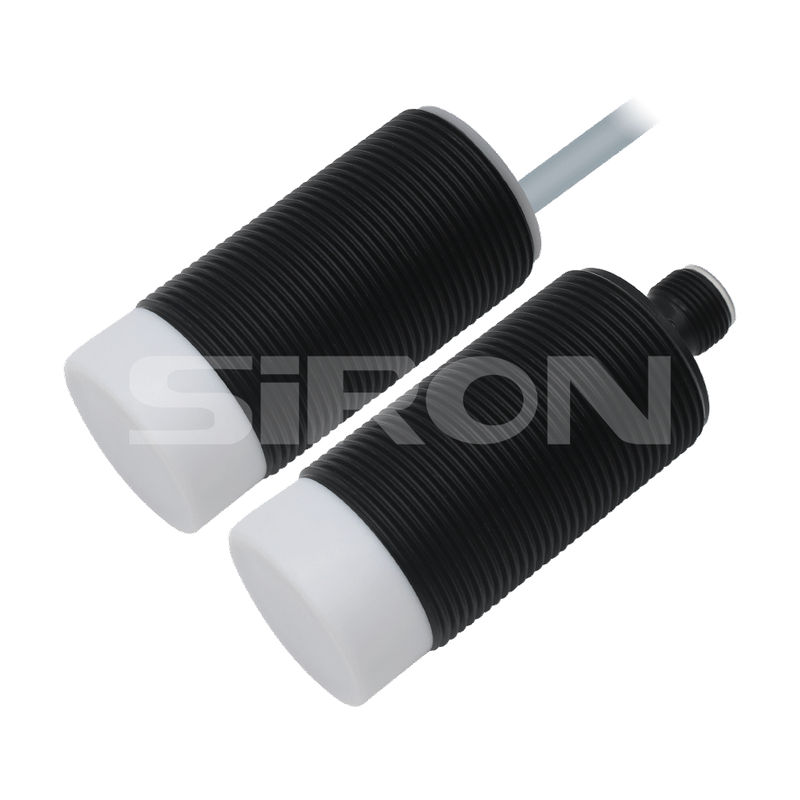

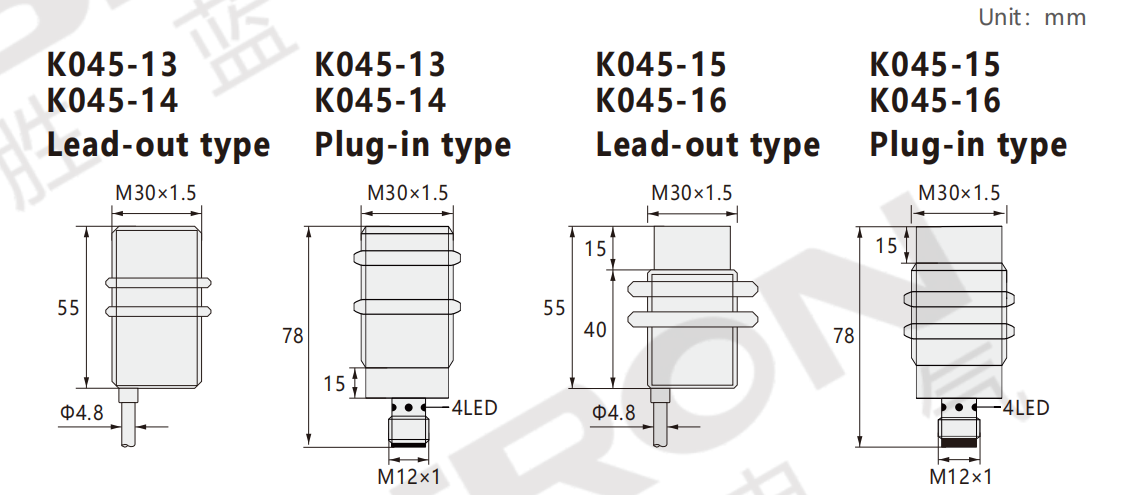

Appeaance
Detection distance		10mm		16mm		15mm		25mm
Install		Flush installation				Non-flush installation
Switching frequency		300Hz		150Hz		150Hz		100Hz
Response time		0.5ms		1ms		1ms		1.5ms
Screw thread		M30x1.5mm
Operating voltage		10～30V DC
Alowable ripple voltage		<10%
Unloaded aurrent		<10mA
Load curent		≤200mA
Leakage current		<0.01mA
Voltage drop		<1.5V
Switching hysteresis		<15%(Sr)
Constant magnetic field B		15mT
Atemating magnetic fieldB		15mT
Repeatabity		<1.0%(Sr)
Operatingtemperature		-25℃~+85℃
Temperature dift		<10%(Sr)
Protection cicuit		Short-circuit protection/reverse polarity protection
Overload protecton curent		220mA
Shell matenal		Brass, Teflon coating
Sensing surface material		Teflon(PTFE)
Class of protection		IP67
cable		Outgoing type: Oil-proof PUR cable; Plug-in type: M12 connector
Line length		2m
