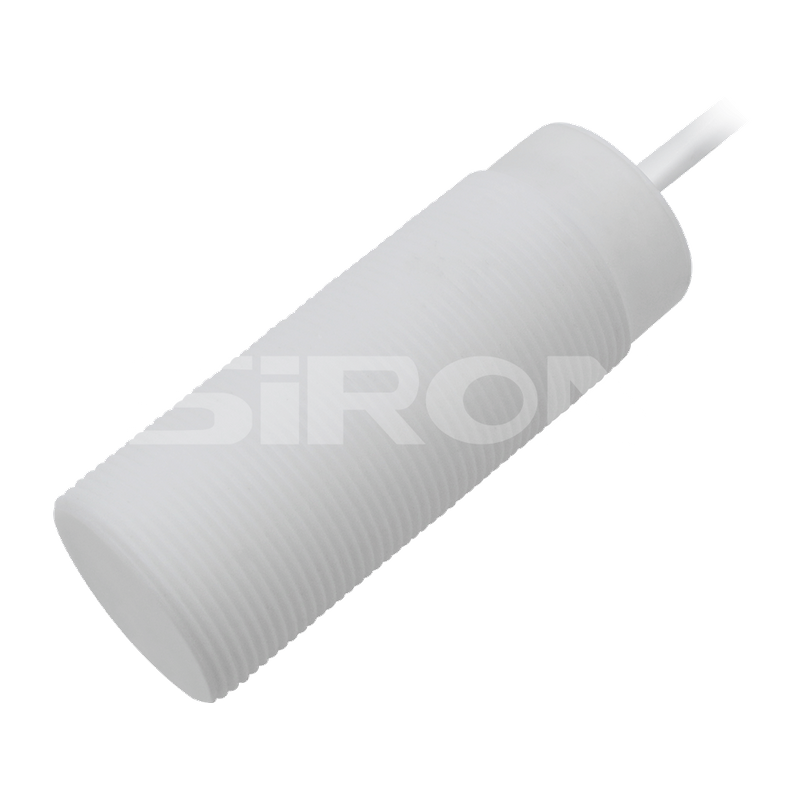

SiRON K046-13~K046-14 Series M30 Inductive Proximity Switch Corrosion Resistance

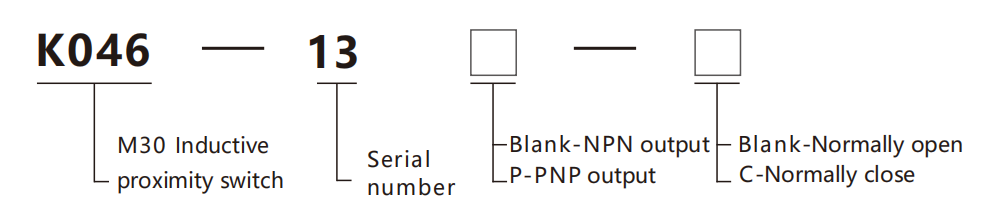

About selection

Selection example：

K046-13 indicates K046 series, serial number 13, NPN output, normally open state;

K046-13P-C indicates K046 series, serial number 13, PNP output, normally close state.

Specifications

Name		M30 Inductive proximity switch(Corrosion resistant)
Model	NPN    N.O	K046-13		K046-14
	NPN    N.C	K046-13C		K046-14C
	PNP     N.O	K046-13P		K046-14P
	PNP    N.C	K046-13P-C		K046-14P-C
Install		Flush installation		Non-flush installation

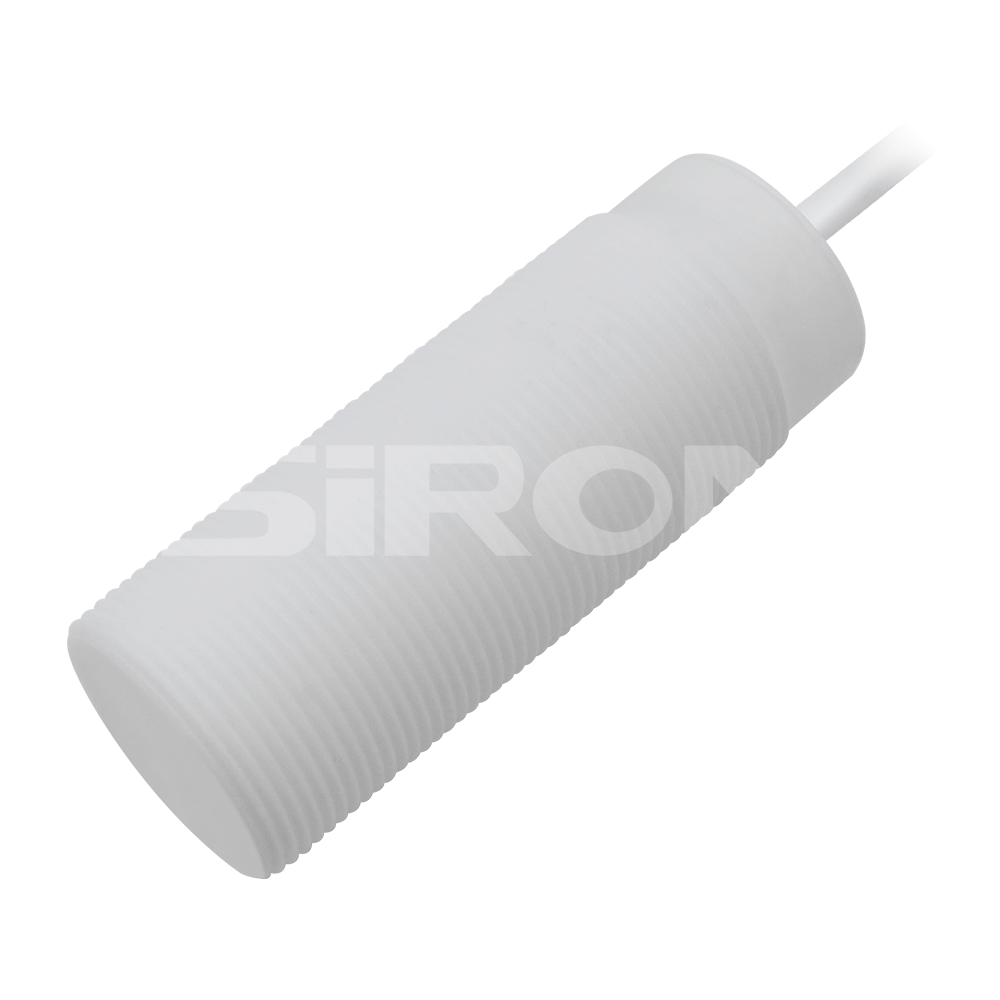

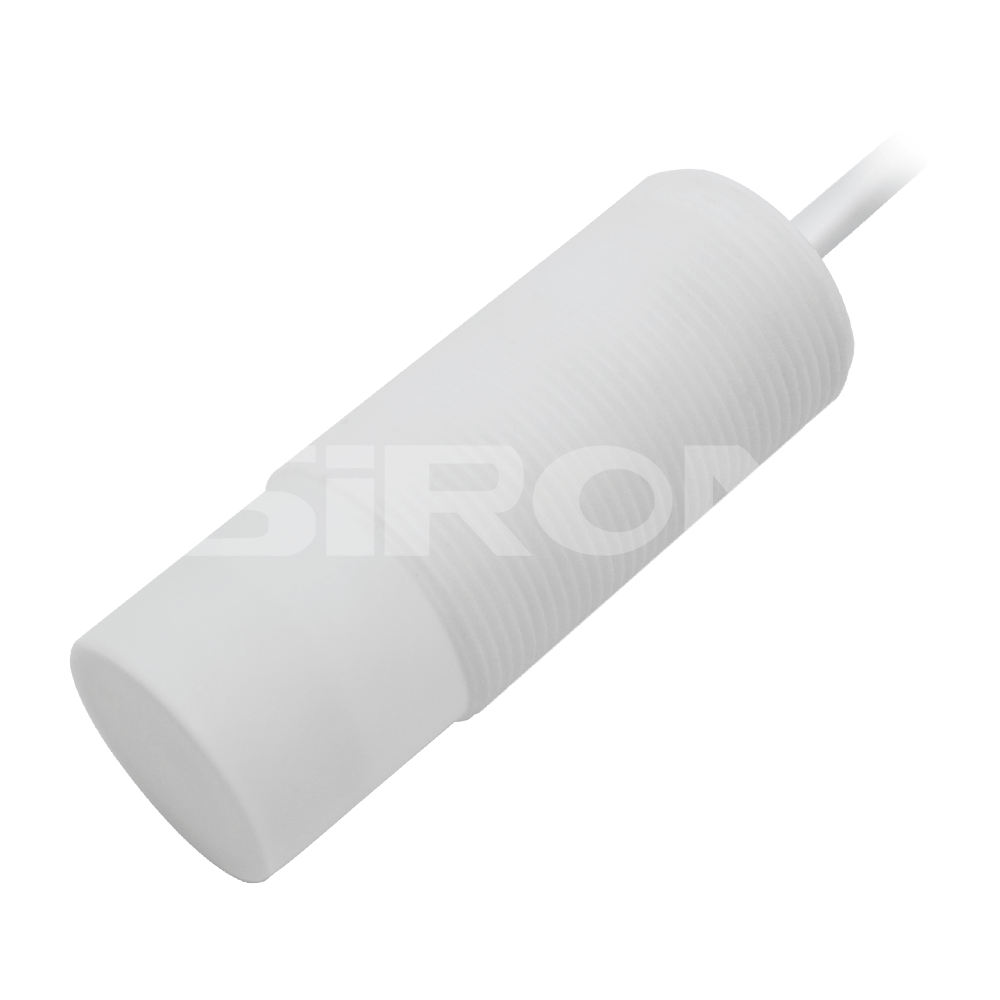

Appearance
Detection distance		10mm		15mm
Switching frequency		300Hz		150Hz
Response time		0.5ms		1ms
Scmew thread		M30×1.5mm	Overoad protection current		220mA
Operating woltage		10～30V     DC	Operating temperature		-25℃~+70℃
Allowable ripple voltage		<10%	Temperature drift		<10%(Sr)
Unloaded current		<10mA	Protection circuit		Short-circuit protection/reverse polarity protection
Load current		≤200mA	Shel material		Teflon
Leakage current		<0.01mA	Sensing surface material		PTFE
Voltage drop		<1.5V	Class of protection		IP67
Switching hysteresis		<15%(Sr)	Cable		PTFE/PUR Cable
Repeatability		<1.0%(Sr)	Line length		2m
