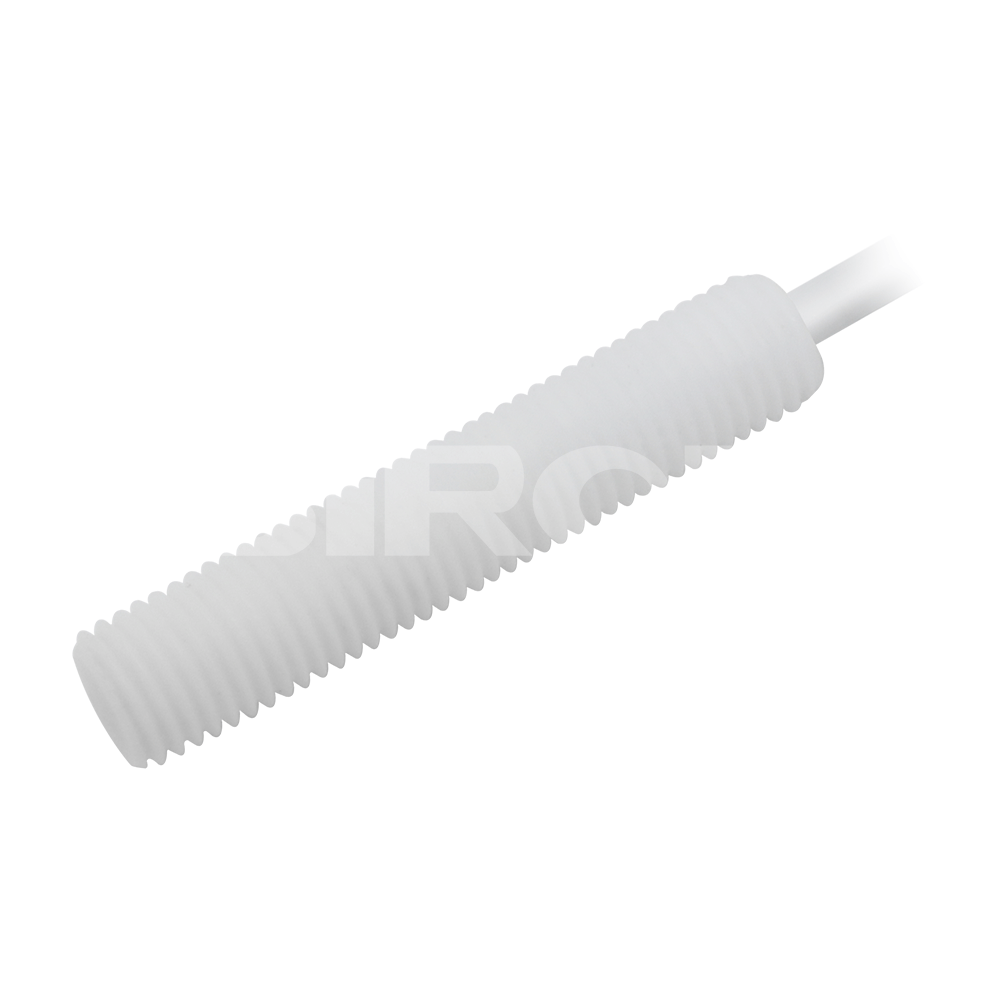

SiRON K046-1~K046-4 Series Inductive Proximity Switch Corrosion Resistance

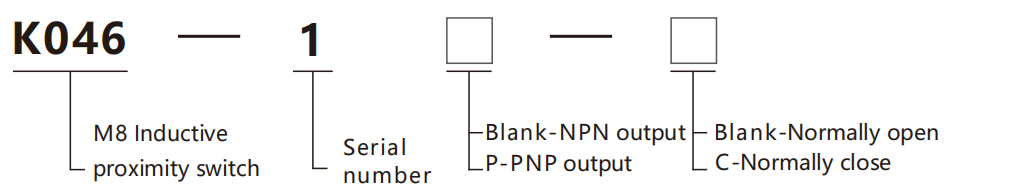

About selection

Selection example：

K046-1 indicates K046 series, serial number 1, NPN output, normally open state;

K046-1P-C indicates K046 series, serial number 1, PNP output, normally close state.

Specifications

Name		M8 Inductive proximity switch (Corrosion resistant)
Model	NPN     N.O	K046-1	K046-2		K046-3		K046-4
	NPN    N.C	K046-1C	K046-2C		K046-3C		K046-4C
	PNP     N.O	K046-1P	K046-2P		K046-3P		K046-4P
	PNP    N.C	K046-1P-C	K046-2P-C		K046-3P-C		K046-4P-C
Install		Flush installation			Non-flush installation

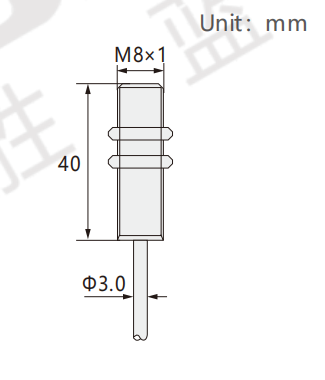

Appearance
Detection distance		1mm	2mm		2mm		4mm
Switching frequency		2000Hz					1000Hz
Response time		0.1ms					0.2ms
Screw thread		M8×1mm		Overload protection  current		220mA
Operating voltage		10～30V     DC		Operating temperature		-25℃~+70℃
Allowable ripple voltage		<10%		Temperature drift		<10%(Sr)
Unloaded current		<10mA		Protection circuit		Short-circuit protection/reverse polarity protection
Load current		≤200mA		Shell material		Teflon
Leakage current		<0.01mA		Sensing surtace material		PTFE
Voltage drop		<1.5V		Class of protection		IP67
Switching hysteresis		<15%(Sr)		Cable		PTFE/PUR cable
Repeatability		<1.0%(Sr)		Line length		2m
