SiRON K048-9～K048-12 Series Ring Proximity Switch

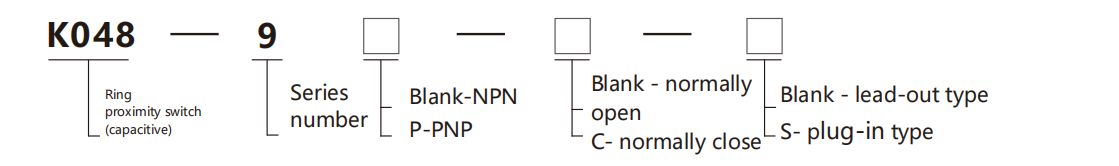

About selection

Selection example: K048-9 represents the K048 series, 9 serial number, NPN output, normally open,

                                     and lead-out type.

                                     K048-9p-s represents the K048 series, 9 serial number, PNP output, normally open,

                                     and plug-in type.

Specifications

Name		Ring Proximity Switch (Capacitive)
Model	NPN N.O	K048-9	K048-9-S	K048-10	K048-10-S	K048-11	K048-11-S	K048-12	K048-12-S
	NPN N.C	K048-9C	K048-9C-S	K048-10C	K048-10C-S	K048-11C	K048-11C-S	K048-12C	K048-12C-S
	PNP N.O	K048-9P	K048-9P-S	K048-10P	K048-10P-S	K048-11P	K048-11P-S	K048-12P	K048-12P-S
	PNP N.C	K048-9P-C	K048-9P-C-S	K048-10P-C	K048-10P-C-S	K048-11P-C	K048-11P-C-S	K048-12P-C	K048-12P-C-S
Wiring Fom		Lead-out type	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type

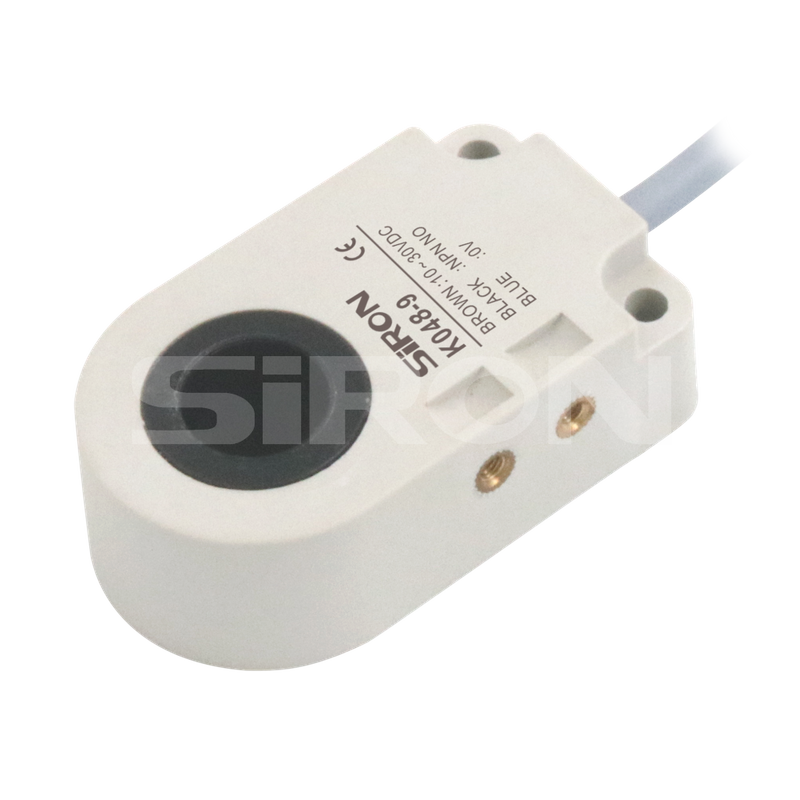

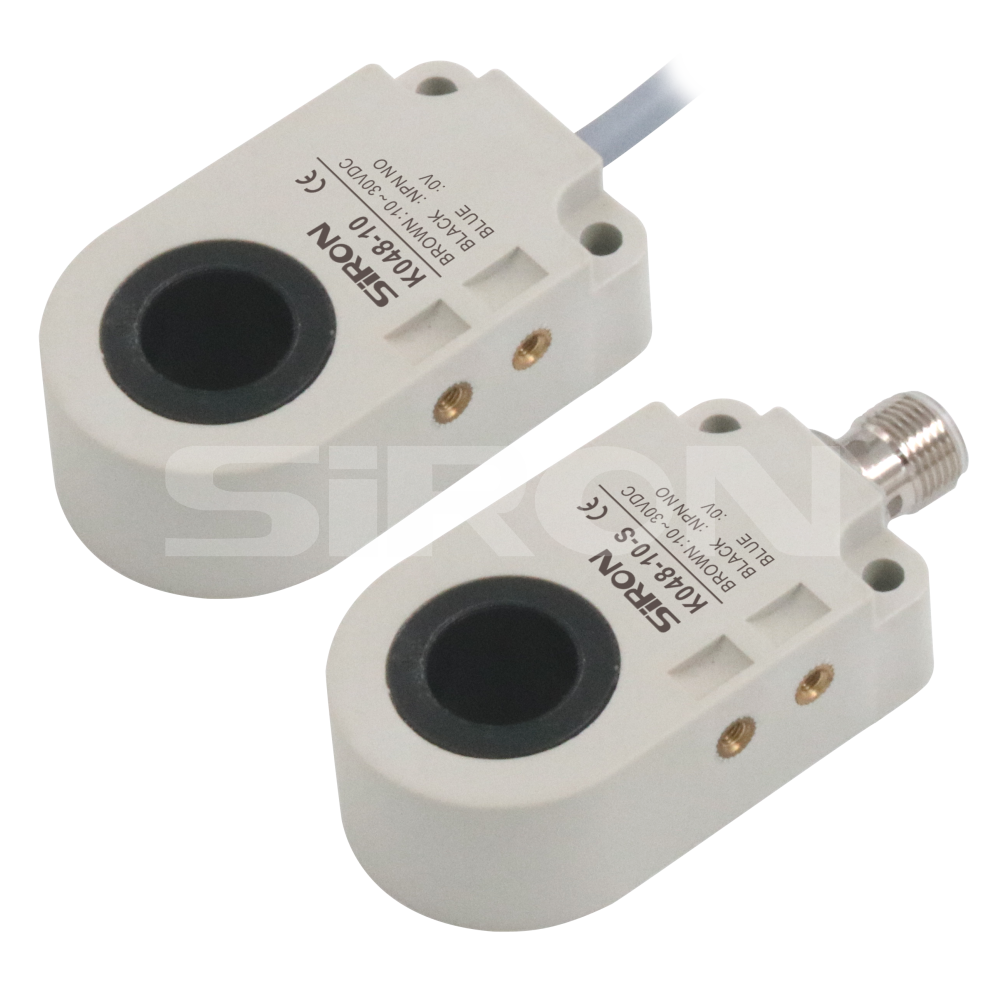

Appearance
Inner hole diameter		14mm		15mm		16mm		17mm
Minimum detectable		D=3mm;L=6mm		D=3mm;L=6mm		D=3mm;L=6mm		D=4mm;L=7mm
Detection distance		20mm
Install		Non-flush installation
LED display		Yes
Operating Voltage		10～30VDC
llowable pulse voltag		e                                                             Ripple<10%
No-load current		10mA
Maximum load current		200mA
Leakage current		<0.01mA
Voltage drop		<1.5V at 200mA
On-offlevel		400Hz		300Hz		500Hz
Switching hysteresis		15%
Repeatability		<2%(Sr)
Protection class		IP67
Operating temperature		-25~+70℃
Temperature drift		±10%(Sr)
Short circuit protection/Reverse polarity protection		Yes
Current overload protection		220~280mA
EMC		RFI＞3V/m；EFI＞1KV；ESD＞4KV(contact)
Shock/vibration		IEC 60947-5-2，Part7.4.1 / IEC 60947-5-2，Part7.4.2
Material		Outer shell：PBT；Inner Ring：PA
Cable		Lead-out type: Oil-proof PVC cable；Φ4,3×0.15mm² ；Plug-in type: M12 connector
Cable length		2M

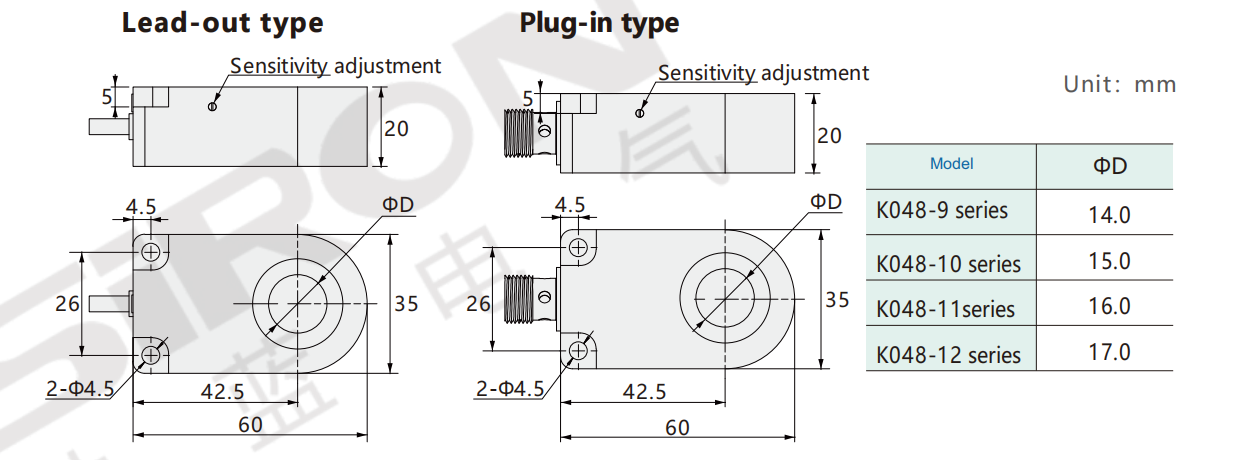

Dimension

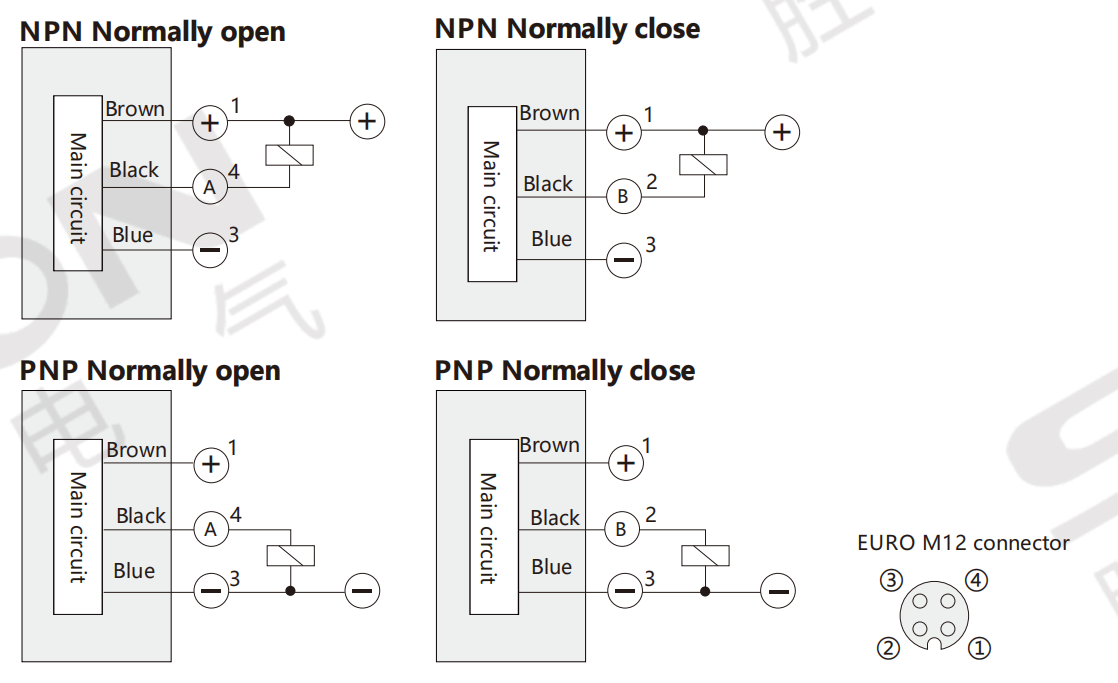

Wiring diagram
