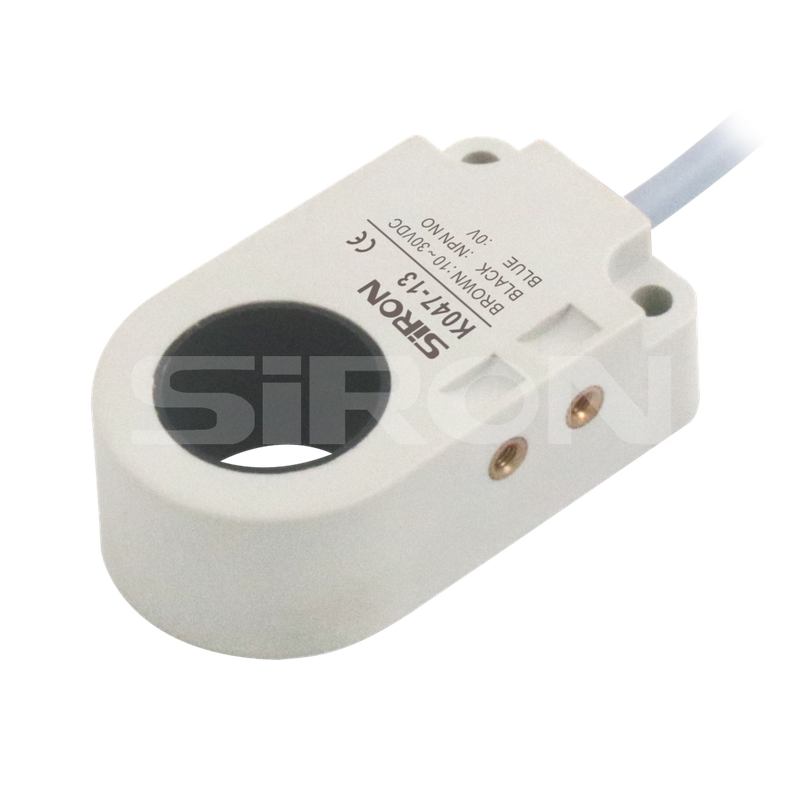

SiRON K047-13～K047-15 Series Ring Proximity Switch - Metal Through Type

About selection

Selection example: K047-13 represents the K047 series, 13 serial number, NPN output, normally open,

                                     and lead-out type；

                                     K047-13p-s represents the K047 series, 13 serial number, PNP output, normally open,

                                     and plug-in type.

Specifications

Name		Ring Proximity Switch (Inductive)—Metal Through Type
Model	NPNN.O	K047-13	K047-13-S	K047-14	K047-14-S	K047-15	K047-15-S
	NPNN.C	K047-13C	K047-13C-S	K047-14C	K047-14C-S	K047-15C	K047-15C-S
	PNP N.O	K047-13P	K047-13P-S	K047-14P	K047-14P-S	K047-15P	K047-15P-S
	PNP N.C	K047-13P-C	K047-13P-C-S	K047-14P-C	K047-14P-C-S	K047-15P-C	K047-15P-C-S

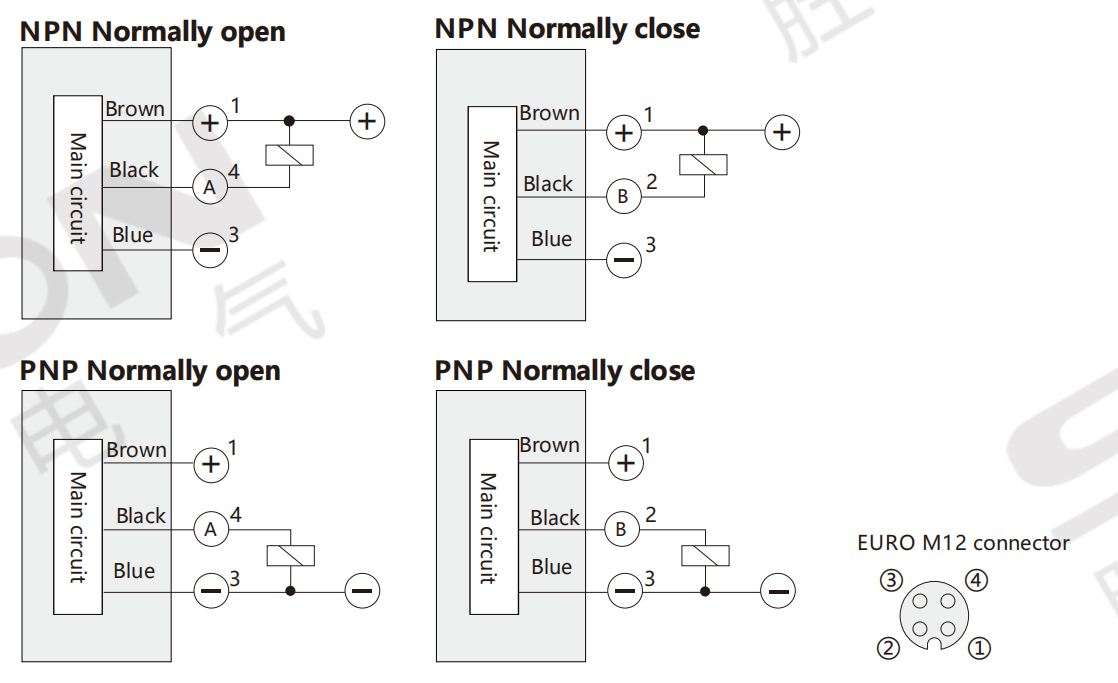

Wiring Form		Lead-out type	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type

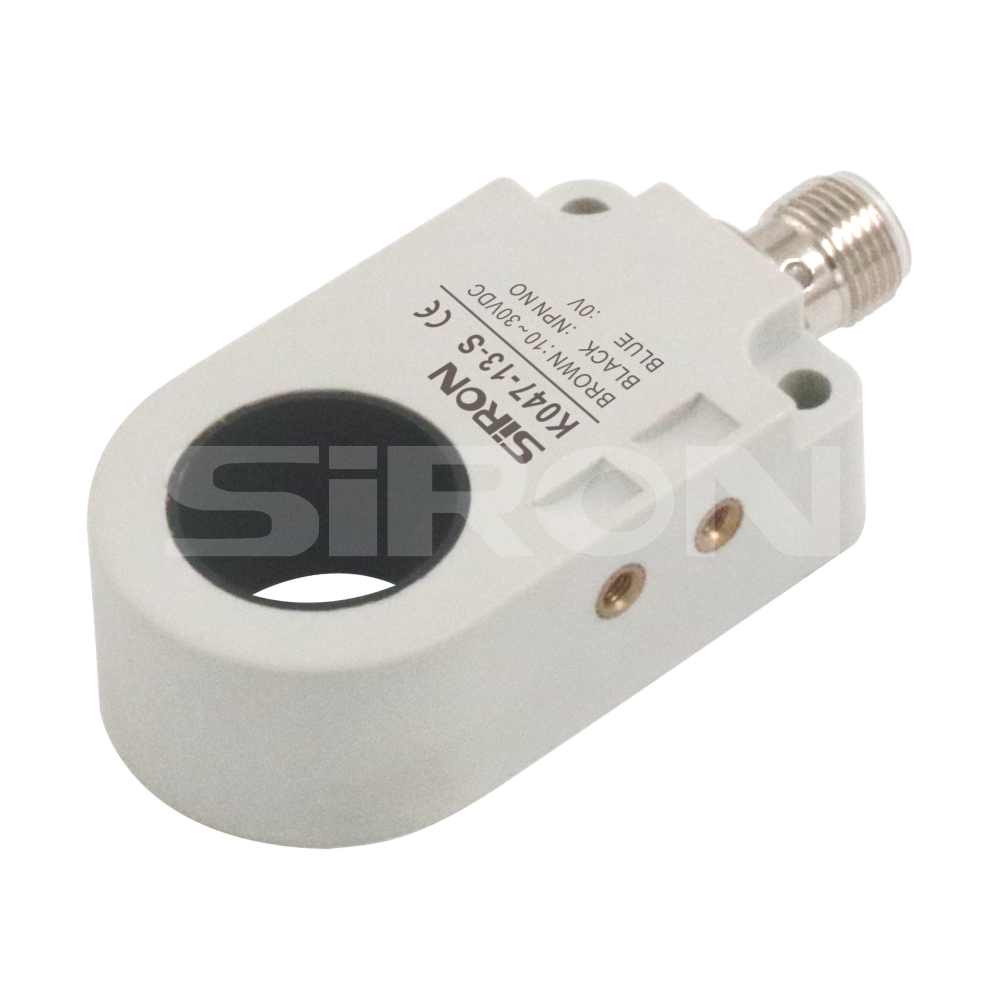

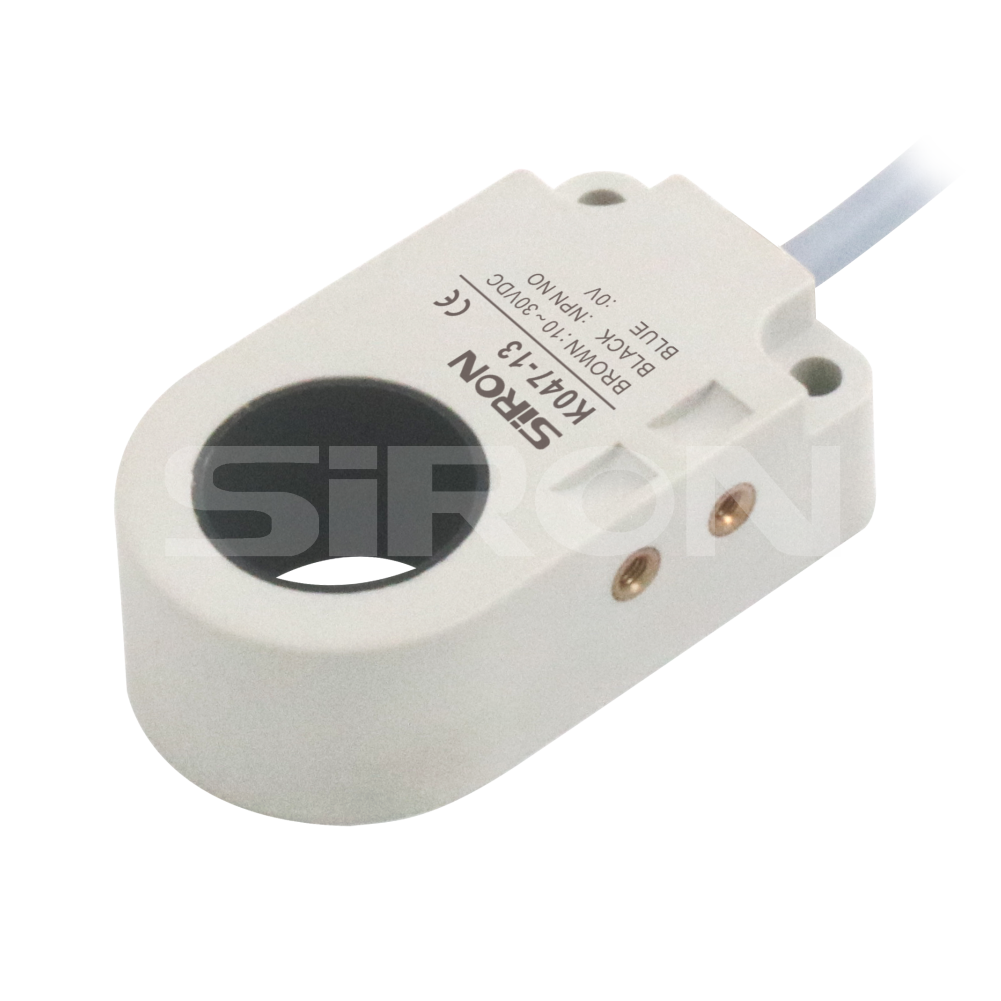

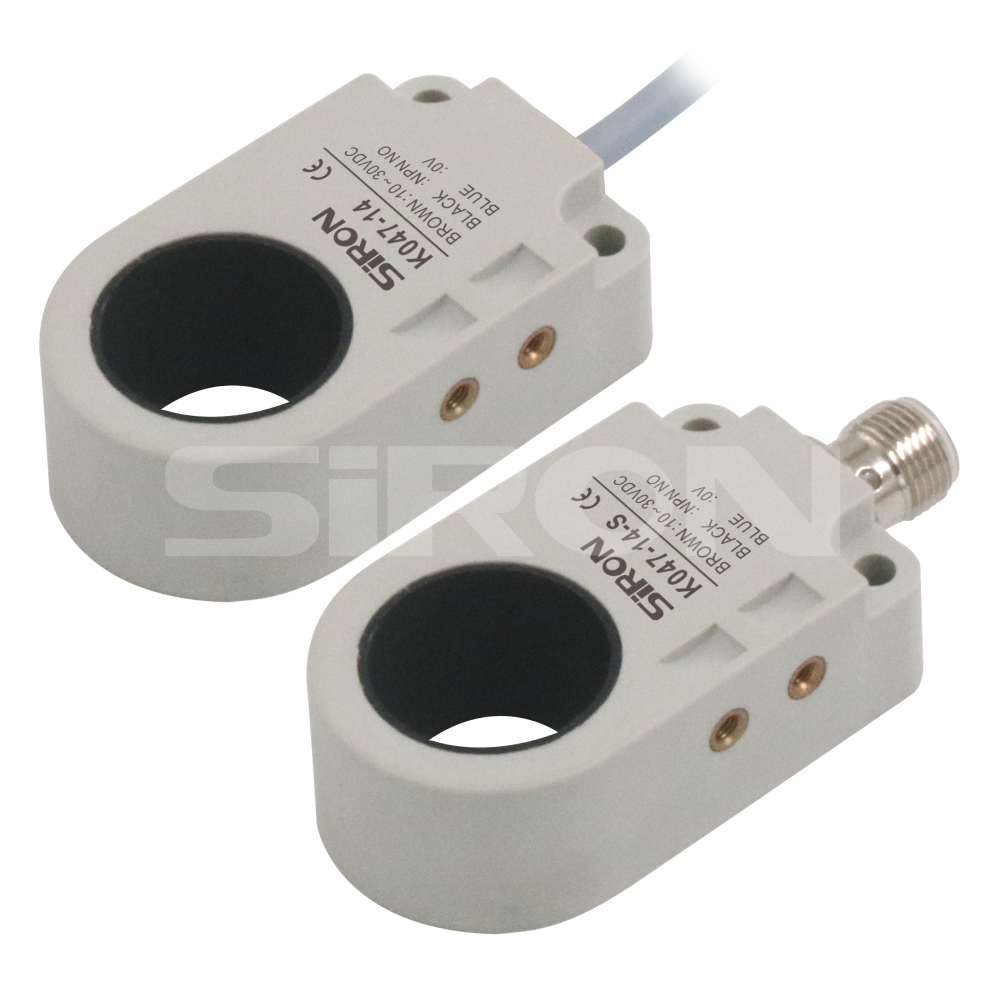

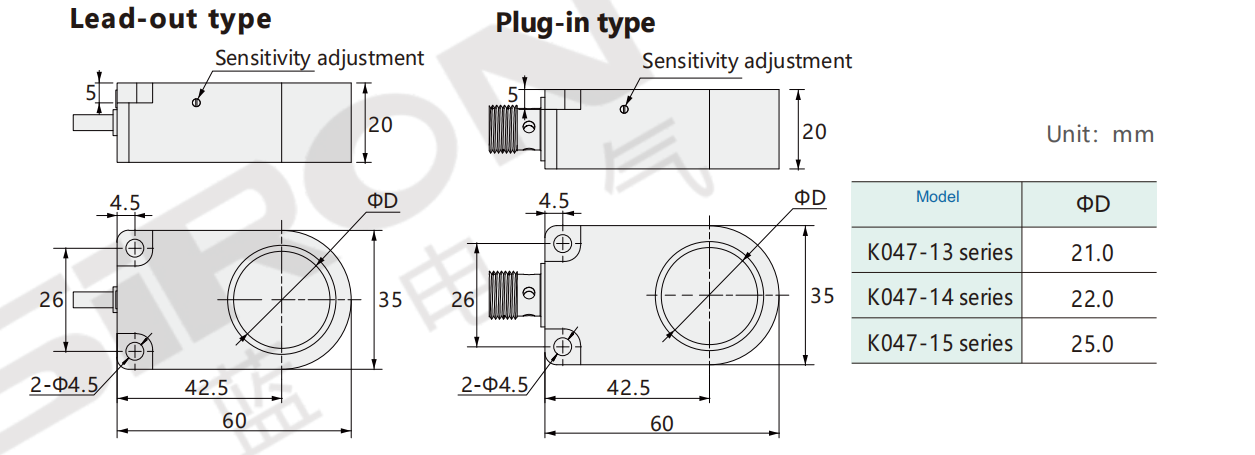

Appearance
Inner hole diameter		21mm		22mm		25mm
Minimum detectable		D=6mm;L=12mm		D=6mm;L=12mm		D=7mm;L=13mm
Detection distance		20mm
Install		Flush installation
LED display		Yes
Operating Voltage		10~30VDC
Allowable pulse voltage		Ripple<10%
Shortest interval time of the detected obiect		0.2ms
No-load current		<10mA
Maximum load curent		200mA
Leakage current		<0.01mA
Voltage drop		<1.5Vat 200mA
On-off level		2KHz
Pulse impedance		1KV
Switching hysteresis		15%
Repeatability		<2%(Sr)
Protection class		IP67
Operating temperature		-25~+70℃
Temperature drift		±10%(Sr)
Reverse polarity protection		Yes
Short circuit protection		220mA
Current overload protection		220～280mA
EMC		RFI＞3V/m；EFI＞1KV；ESD＞4KV(contact)
Shock/vibration		IEC 60947-5-2，Part7.4.1 / IEC 60947-5-2，Part7.4.2
Material		Outer shell：PBT
Cable		Lead-out type: Oil-proof PVC cable；Φ4,3×0.15mm2 ；Plug-in type: M12 connector
Cable length		2M
