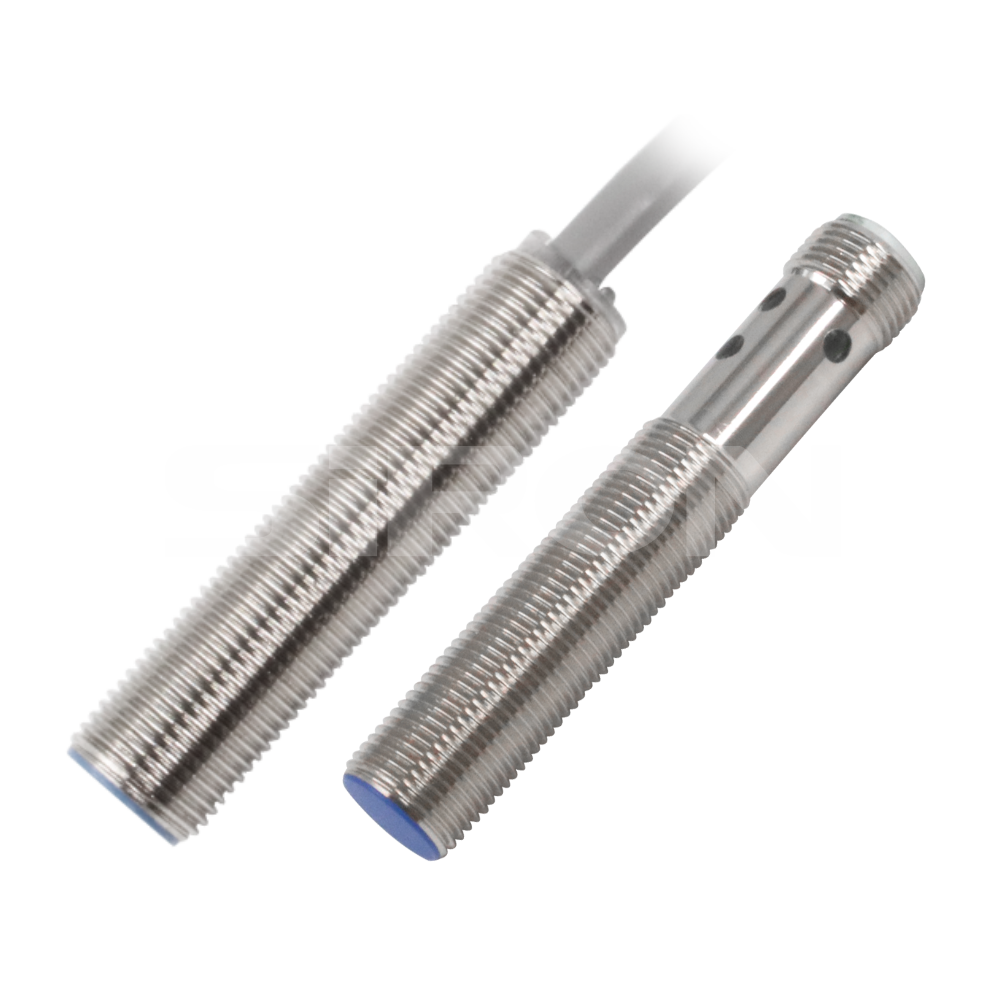

SiRON K040-16～K040-20 Series M12 Inductive Proximity Switch

About selection

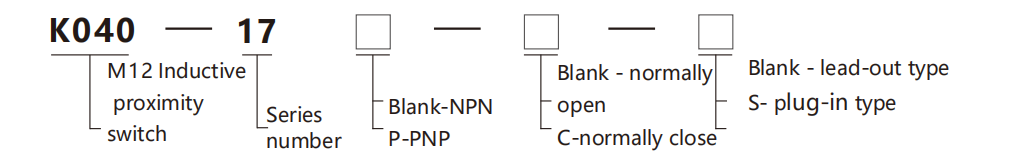

Selection example: K040-17 represents the K040 series, 17 serial number, NPN output, normally open,

                                      and lead-out type.

                                       K040-17-s represents the K040 series, 17 serial number, NPN output, normally open,

                                       and plug-in type.

Specifications

Name		M12 inductive proximity switch
Model	NPN N.O	K040-16	K040-16-S	K040-17	K040-17-S	K040-18	K040-18-S	K040-19	K040-19-S	K040-20	K040-20-S
	NPN N.C	K040-16C	K040-16C-S	K040-17C	K040-17C-S	K040-18C	K040-18C-S	K040-19C	K040-19C-S	K040-20C	K040-20C-S
	PNP N.O	K040-16P	K040-16P-S	K040-17P	K040-17P-S	K040-18P	K040-18P-S	K040-19P	K040-19P-S	K040-20P	K040-20P-S
	PNP N.C	K040-16P-C	K040-16P-C-S	K040-17P-C	K040-17P-C-S	K040-18P-C	K040-18P-C-S	K040-19P-C	K040-19P-C-S	K040-20P-C	K040-20P-C-S
Wiring Form		Lead-out type	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type	Lead-out type	Plug-in type

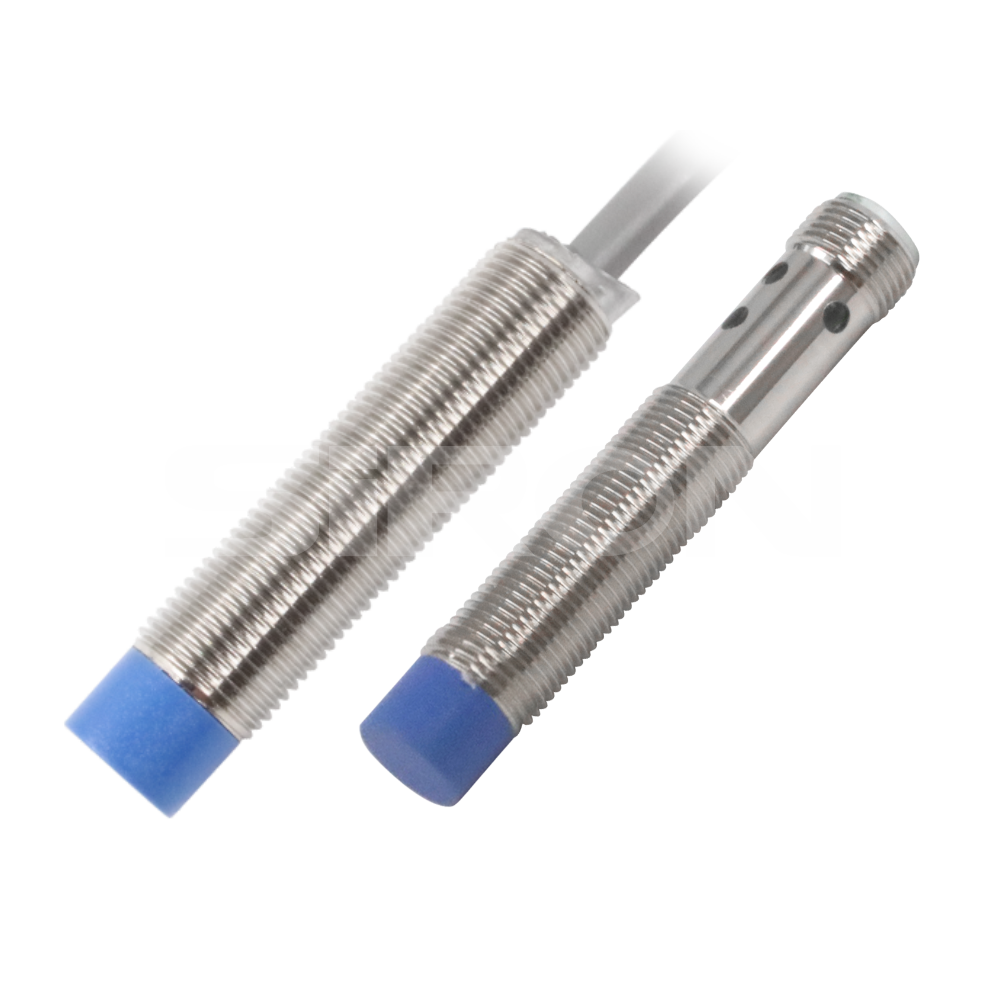

Appearance
Detection distance		2mm		4mm		6mm		8mm		10mm
Installation		Flush installation		Flush installation		Quasi-flush installation		Non-flush installation
Thread		M12×1mm
Operating Voltage		10～30VDC
On-offlevel		3000Hz		3000Hz		800Hz		500Hz		400Hz
Pressure drop		≤2.0V
Load current		200mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25~70℃
Enclosure rating		IP67
Material		Sensing surface:PBT;Shell:Copper plated with nickel
Cable		PVC  cable;3×0.25mm² Plug-in type:M12 connector		Lead-out type:PVC cable;3×0.35mm²;Plug-in type:M12 connector
Cablelength		2M

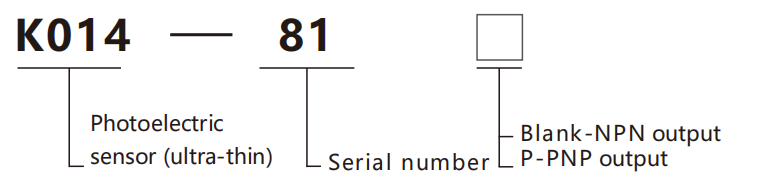

 Selection example: K014-81  indicates the K014 series, serial number 81, with NPN output;

                                         K014-81P indicates the K014 series, serial number 81, with PNP outpute.

Specifications

Name		Photoelectric sensor (ultra-thin type)
Model	NPN	K014-81	K014-82	K014-83
	PNP	K014-81P	K014-82P	K014-83P
Type		diffuse reflection	Through-beam	Through-beam
Detection surface		Front detection	Front detection	Side detection

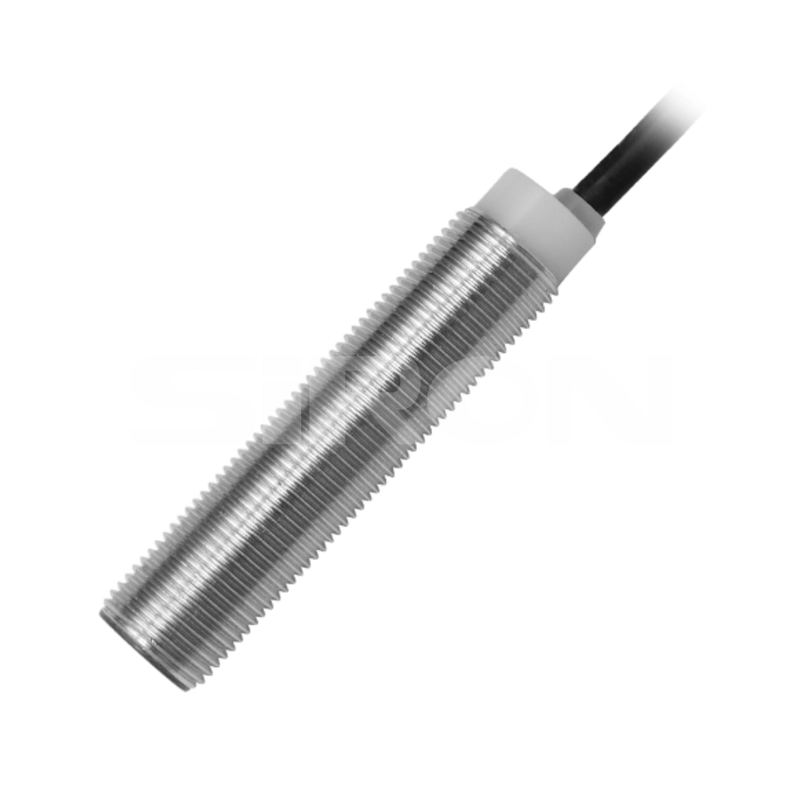

Appearance
Detecion distance		2 ~ 3 0 m m ( White paper)		300mm
Should be sent		Less than 15% of the action distance		/
Detecion of objects		φ1mm opaque object
The powersupply voltage		DC     12~24V±10%
Curent consumpion		Below 2 5 m A
Indicator light		Output indicator light: red; steady indicator light: green
The response time		Less than 1ms (action/reset)
Cast light element		Infrared LED light
Protection circuit		Reverse polarity protection, short circuit protection
Protecion grade		IP64
Environmentalphotometric		Incandescent lamp: below 3000lx, daylight: below 10000lx
Environment temperature		-25～+55℃
Environmental humidity		35～85%RH
Resistance to shock		Frequency 10–500Hz; double amplitude 3mm (MAX:20G), 2 hours each in X, Y, Z directions
Impact resistance		Acceleration of 500m/s⊃2; (approximately 50G), 3 times each in the X, Y, and Z directions
Cable length		2M
Shellmaterial		ABS

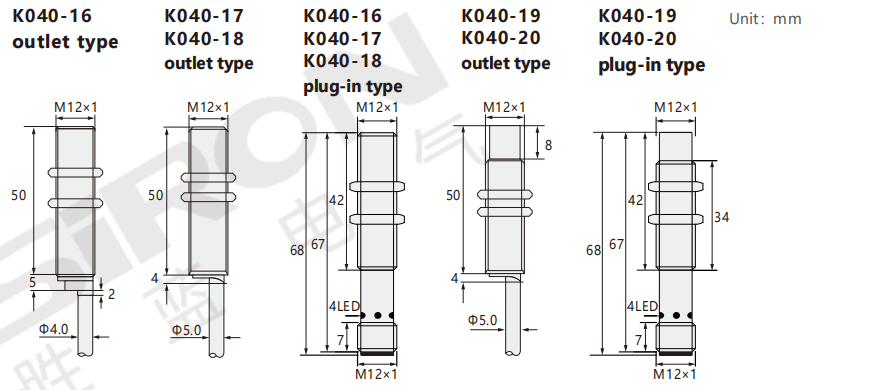

Dimension

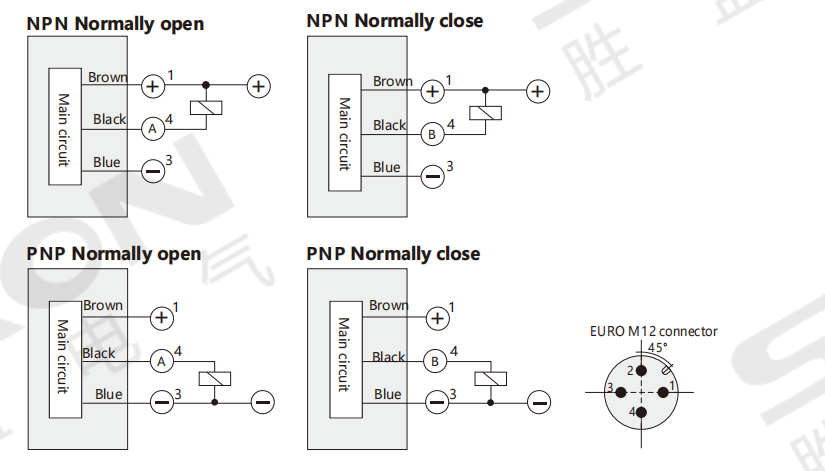

Wiring diagram
