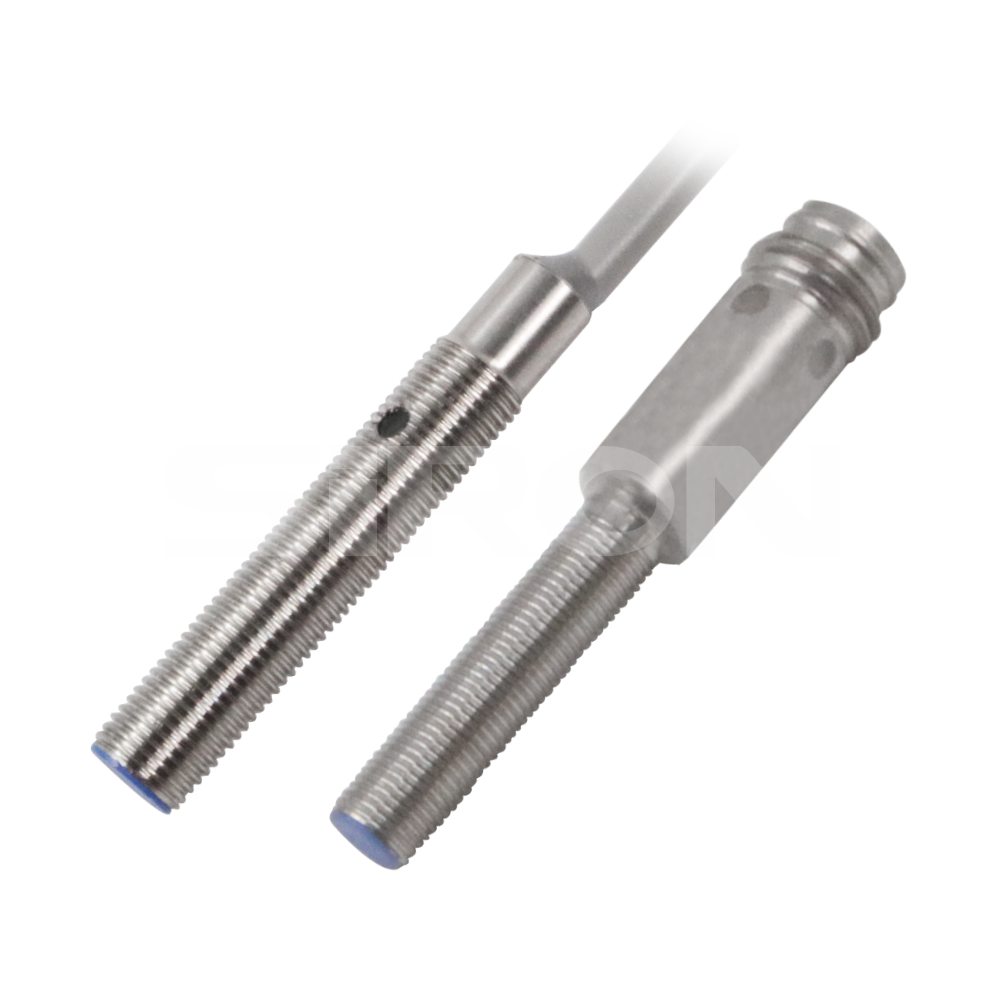

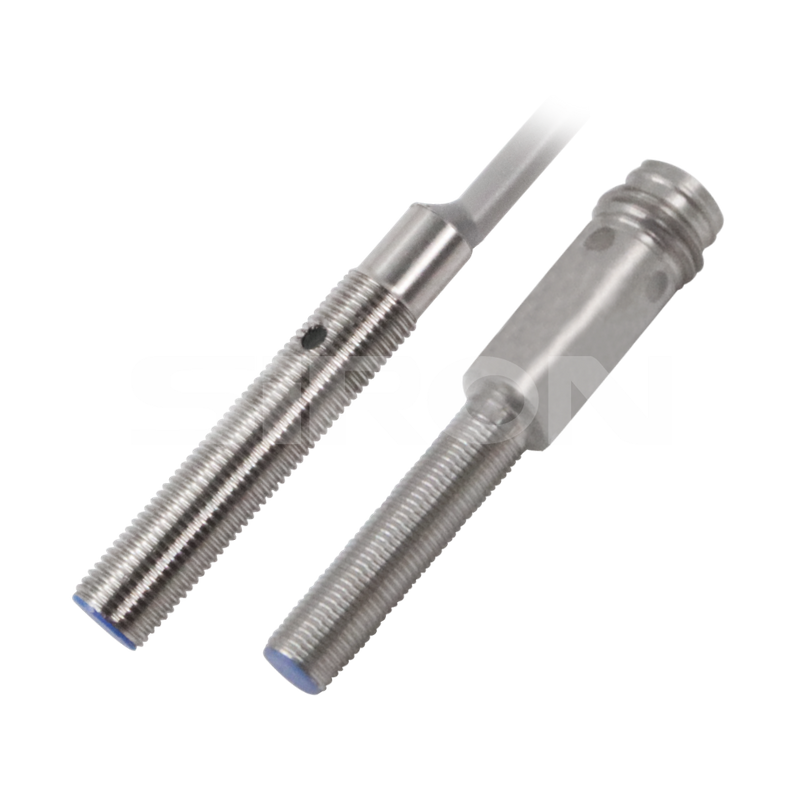

SiRON K040-5～K040-6 Series M5 Inductive Proximity Switch

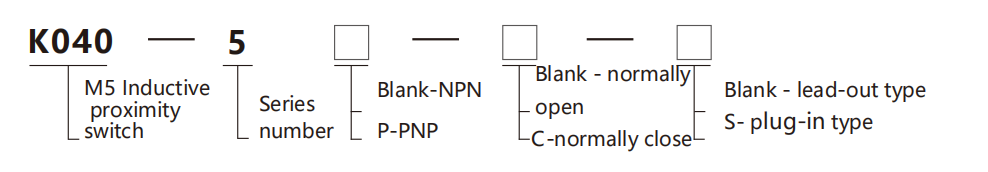

About selection

Selection example: K040-5 represents the K040 series, 5 serial numbers, NPN output, normally open,

                                      and lead-out type.

                                      K040-5-s indicates the K040 series, 5 serial numbers, NPN output, normally open,

                                      and plug-in type.

Specifications

Name		M5 inductive proximity switch
Model	NPN N.O	K040-5	K040-5-S	K040-6	K040-6-S
	NPN N.C	K040-5C	K040-5C-S	K040-6C	K040-6C-S
	PNP N.O	K040-5P	K040-5P-S	K040-6P	K040-6P-S
	PNP N.C	K040-5P-C	K040-5P-C-S	K040-6P-C	K040-6P-C-S

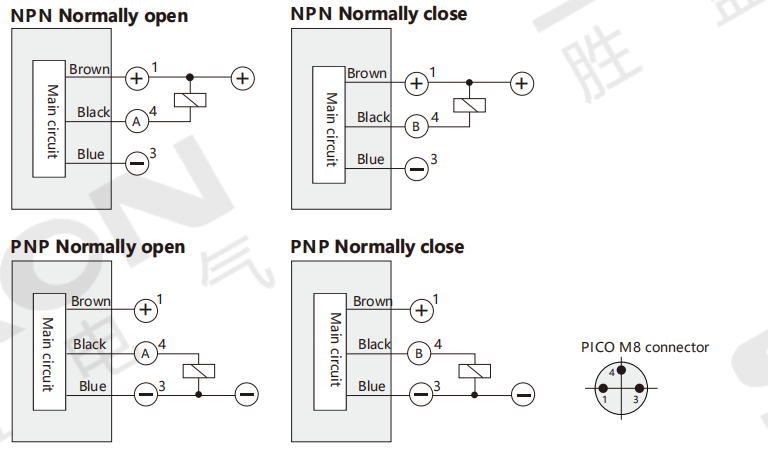

Wiring Form		Lead-out type	Plug-in type	Lead-out type	Plug-in type

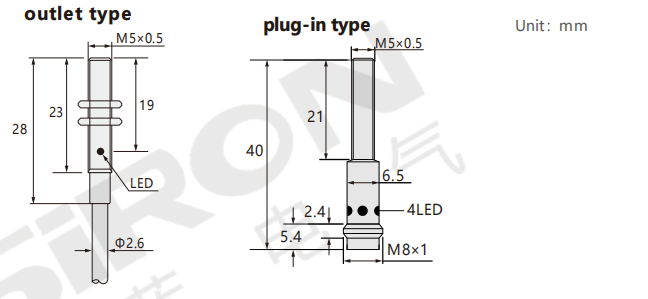

Appearance
Detection distance		0.8mm		1.2mm
Installation		Flush installation
Operating Voltage		M5×0.5mm
Thread		10～30V DC
On-off level		2000Hz
Pressure drop		≤2.0V
Load current		100mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperatu		re                                                              -25~70℃
Enclosure rating		IP67
Material		Sensing surface:POM;Shell:Stainless steel
Cable		Lead-out type:PVC cable;3x0.15mm²;Plug-in type:M8 connector
Cable length		2M
