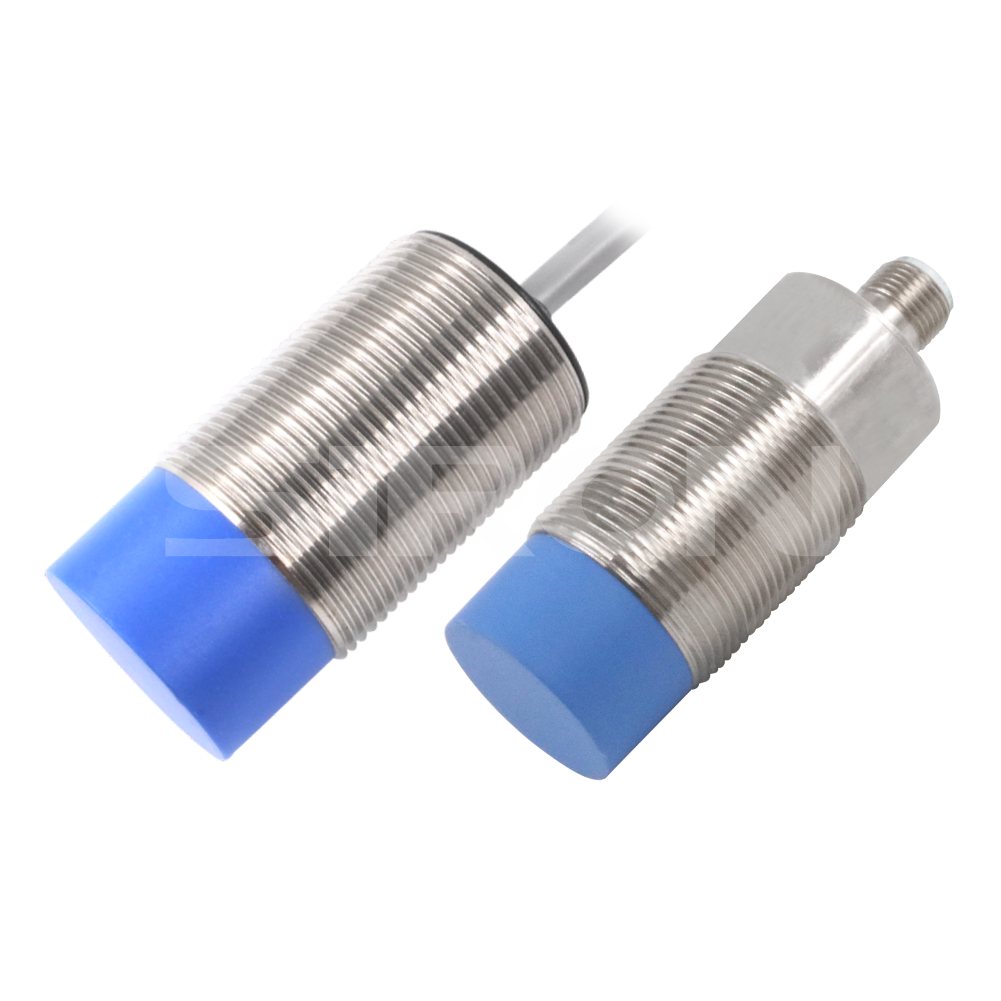

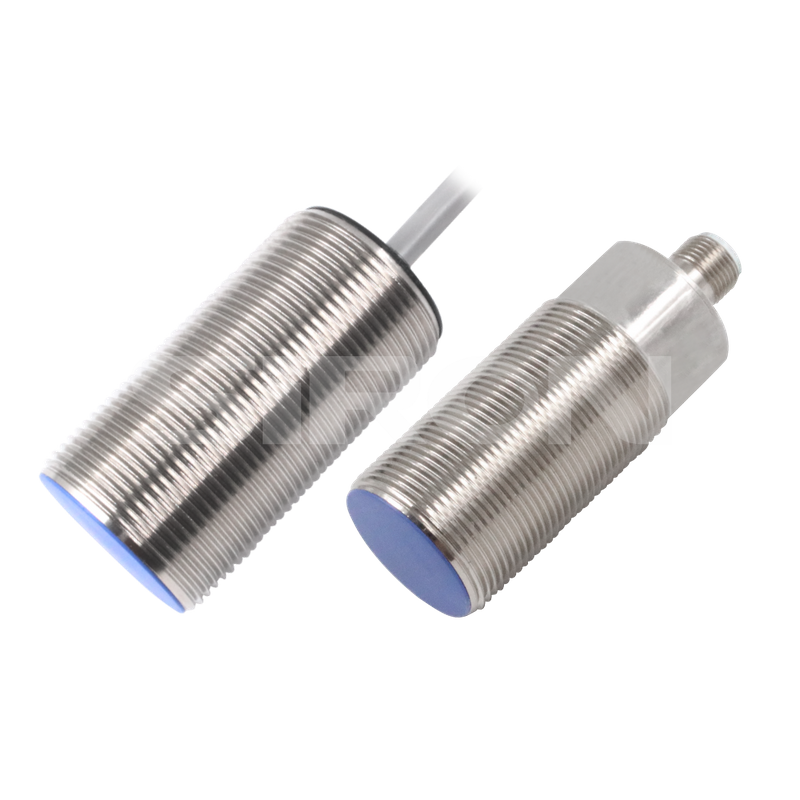

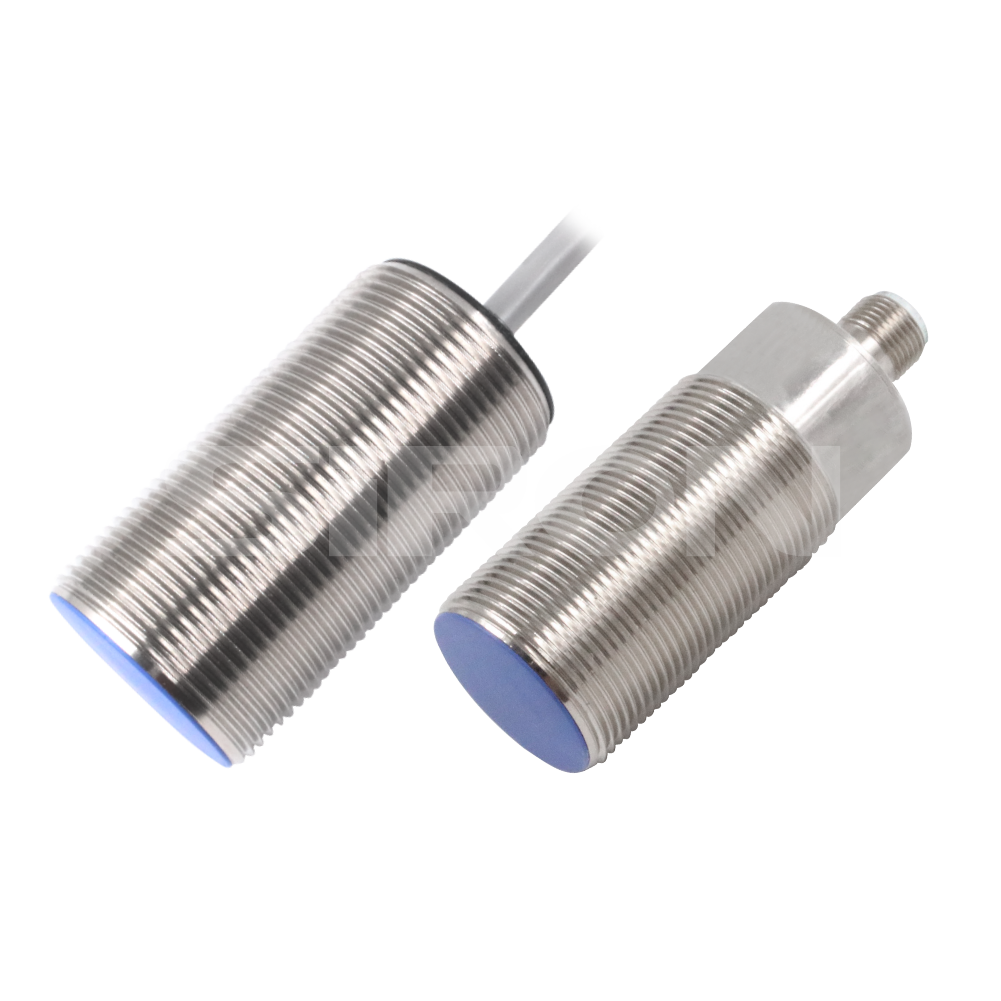

SiRON K040-27～K040-32 Series M30 Inductive Proximity Switch

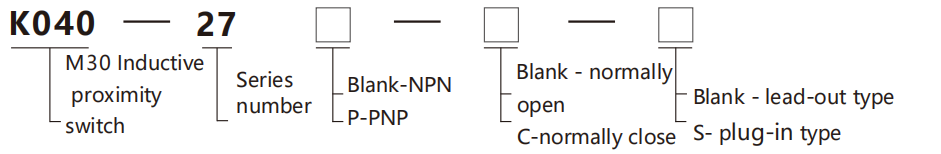

About selection

Selection example: K040-27 represents the K040 series, 27 serial number, NPN output, normally open,

                                     and lead-out type.

                                     K040-27-s represents the K040 series, 27 serial number, NPN output, normally open,

                                     and plug-in type.

Specifications

Name

M30 inductive proximity switch

Mode

NPN N.O

K040-27

K040-27-S

K040-28

K040-28-S

K040-29

K040-29-S

K040-30

K040-30-S

K040-31

K040-31-S

K040-32

K040-32-S

NPN N.C

K040-27C

K040-27C-S

K040-28C

K040-28C-S

K040-29C

K040-29C-S

K040-30C

K040-30C-S

K040-31C

K040-31C-S

K040-32C

K040-32C-S

PNP N.O

K040-27P

K040-27P-S

K040-28P

K040-28P-S

K040-29P

K040-29P-S

K040-30P

K040-30P-S

K040-31P

K040-31P-S

K040-32P

K040-32P-S

PNP N.C

K040-27P-C

K040-27P-C-S

K040-28P-C

K040-28P-C-S

K040-29P-C

K040-29P-C-S

K040-30P-C

K040-30P-C-S

K040-31P-C

K040-31P-C-S

K040-32P-C

K040-32P-C-S

Wiring Form

Lead-out type

Plug-in type

Lead-out type

Plug-in type

Lead-out type

Plug-in type

Lead-out type

Plug-in type

Lead-out type

Plug-in type

Lead-out type

Plug-in type

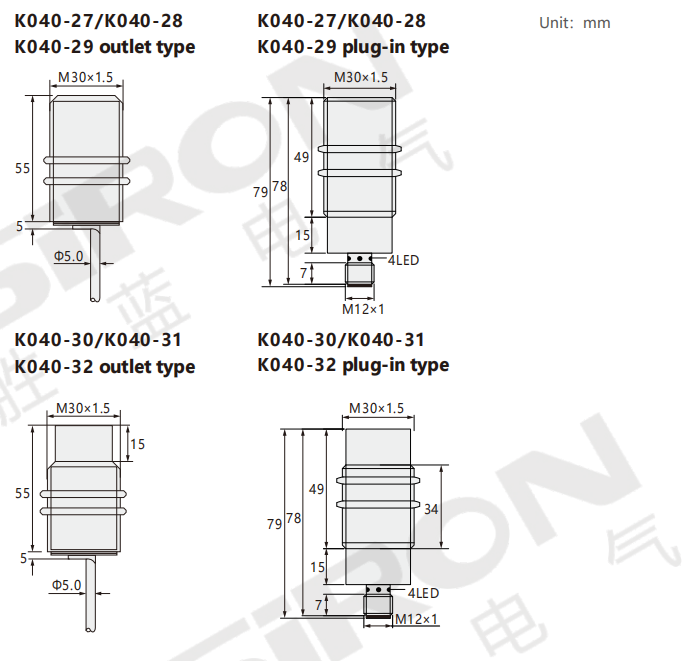

Appearance

Detection distance

10mm

16mm

22mm

15mm

25mm

40mm

Installation

Flush installation

Quasi-flush installation

Non-flush installation

Thread

M30×1.5mm

Operating Voltage

10～30V DC

On-offlevel

300Hz

300Hz

100Hz

300Hz

300Hz

100Hz

Pressure drop

≤2.0V

Load current

200mA

No-load current

≤10mA(24V)

Hysteresis

<15%(Sr)

Repeatability

<1.0%(Sr)

Ambient temperature

-25~70℃

Enclosure rating

IP67

Material

Sensing surface:PBT;Shell:Copper plated with nickel

Cable

Lead-out type:PVCcable;3×0.35mm²;Plug-in type:M12 connector

Cable length

2M
