SiRON K040-11～K040-15 Series M8 Inductive Proximity Switch

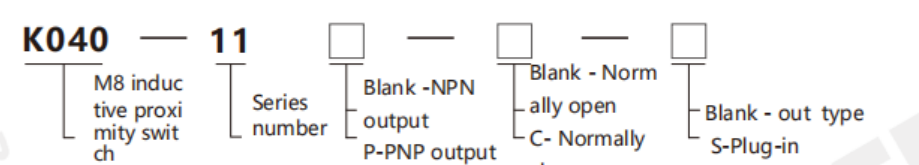

About selection

Selection example: K040-11 means K040 series, serial number 11, NpN output, normally open, outlet type.

                                     K040-11-S means K040 series, serial number 11, NPN output, normally open, plug-in type.

Specifications

Name		M8 inductive proximity switch
Model	NPN N.O	K040-11	K040-11-S	K040-12	K040-12-S	K040-13	K040-13-S	K040-14	K040-14-S	K040-15	K040-15-S
	NPN N.C	K040-11C	K040-11C-S	K040-12C	K040-12C-S	K040-13C	K040-13C-S	K040-14C	K040-14C-S	K040-15C	K040-15C-S
	PNP N.O	K040-11P	K040-11P-S	K040-12P	K040-12P-S	K040-13P	K040-13P-S	K040-14P	K040-14P-S	K040-15P	K040-15P-S
	PNP N.C	K040-11P-C	K040-11P-C-S	K040-12P-C	K040-12P-C-S	K040-13P-C	K040-13P-C-S	K040-14P-C	K040-14P-C-S	K040-15P-C	K040-15P-C-S
Wining Fom		Outlet type	Plug-in type	Outlet type	Plug-in type	Outlet type	Plug-in type	Outlet type	Plug-in type	Outlettype	Plug-in type

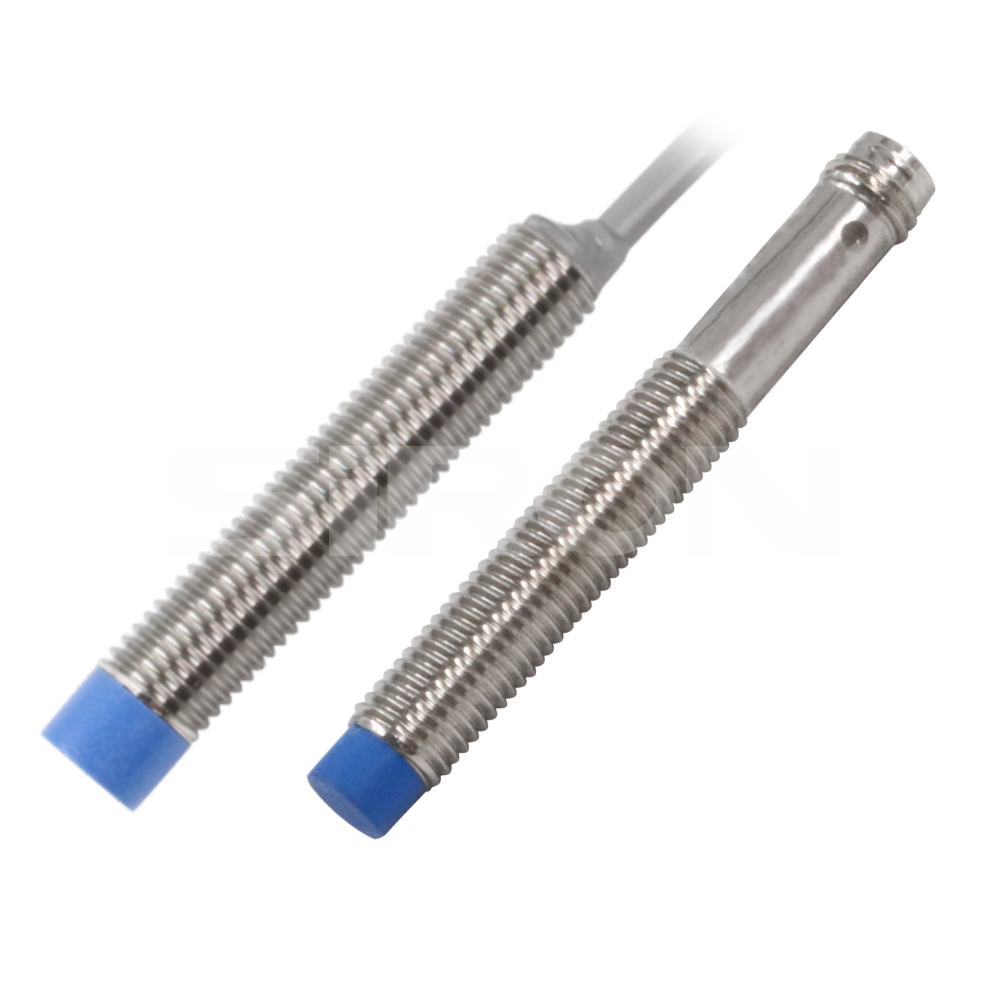

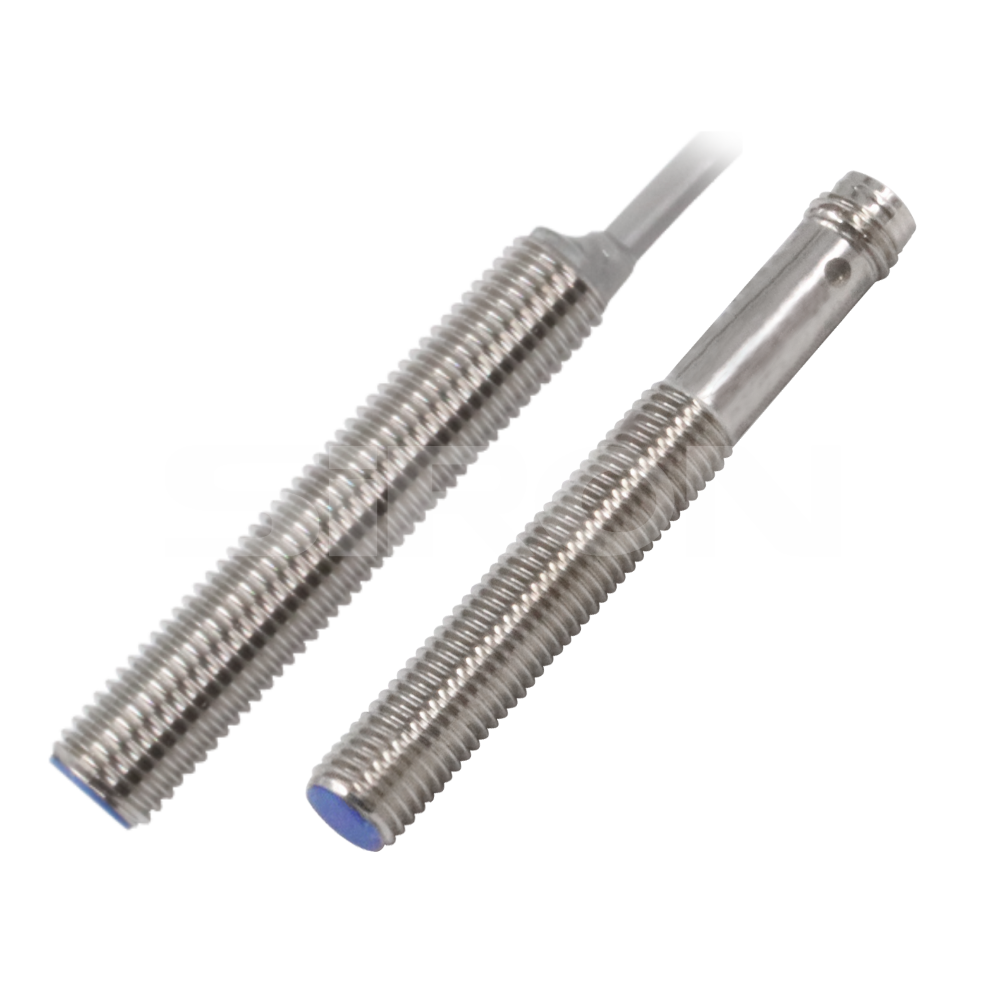

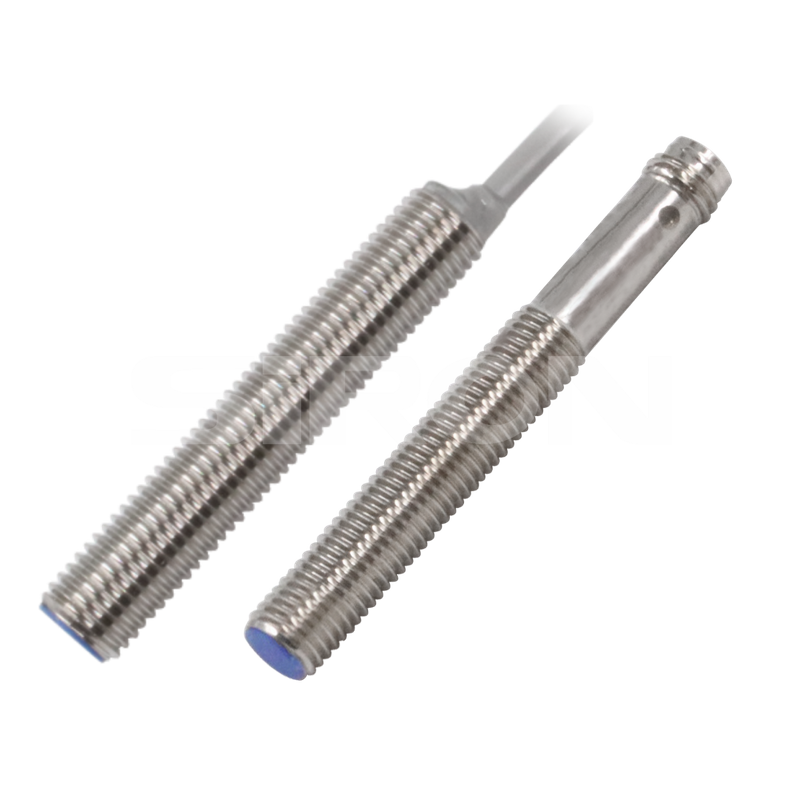

Appearance
Detection distance		1.5mm		2mm		3mm		4mm		6mm
Installation		Flush installation				Quasi-flush installation		Non-flushinstallation
Thread		M8×1mm
Operating Votage		10～30V DC
On-oif level		2000Hz		3000Hz		1000Hz		1000Hz		500Hz
Pressure drop		≤2.0V
Load cuent		100mA
No-łoad  current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatabililty		<1.0%(Sr)
Ambient temperature		-25～70℃
Enclosure rating		IP67
Material		Sensing surface:POM;Housing:stainless steel
Cable		Outlet type:PVC cable;3×0.18mm2;Plug-in type:M8 connector
Cable length		2M
