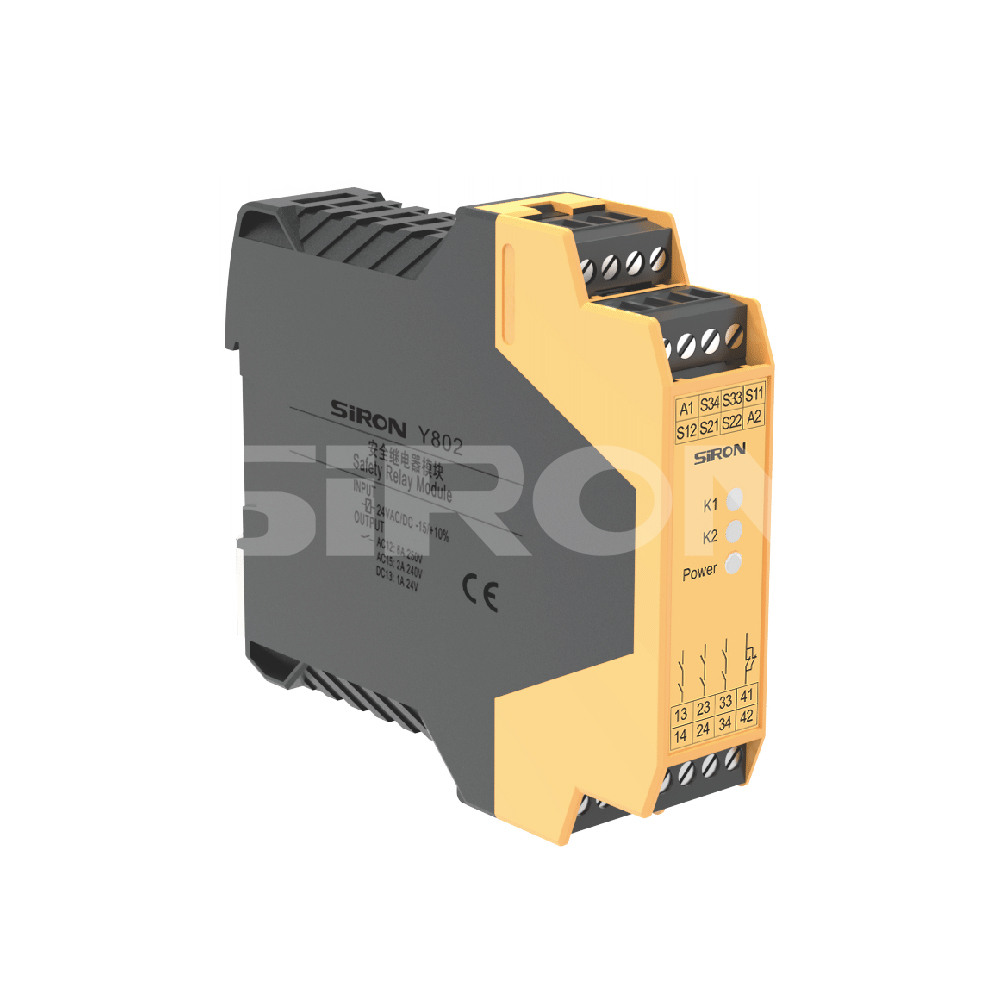

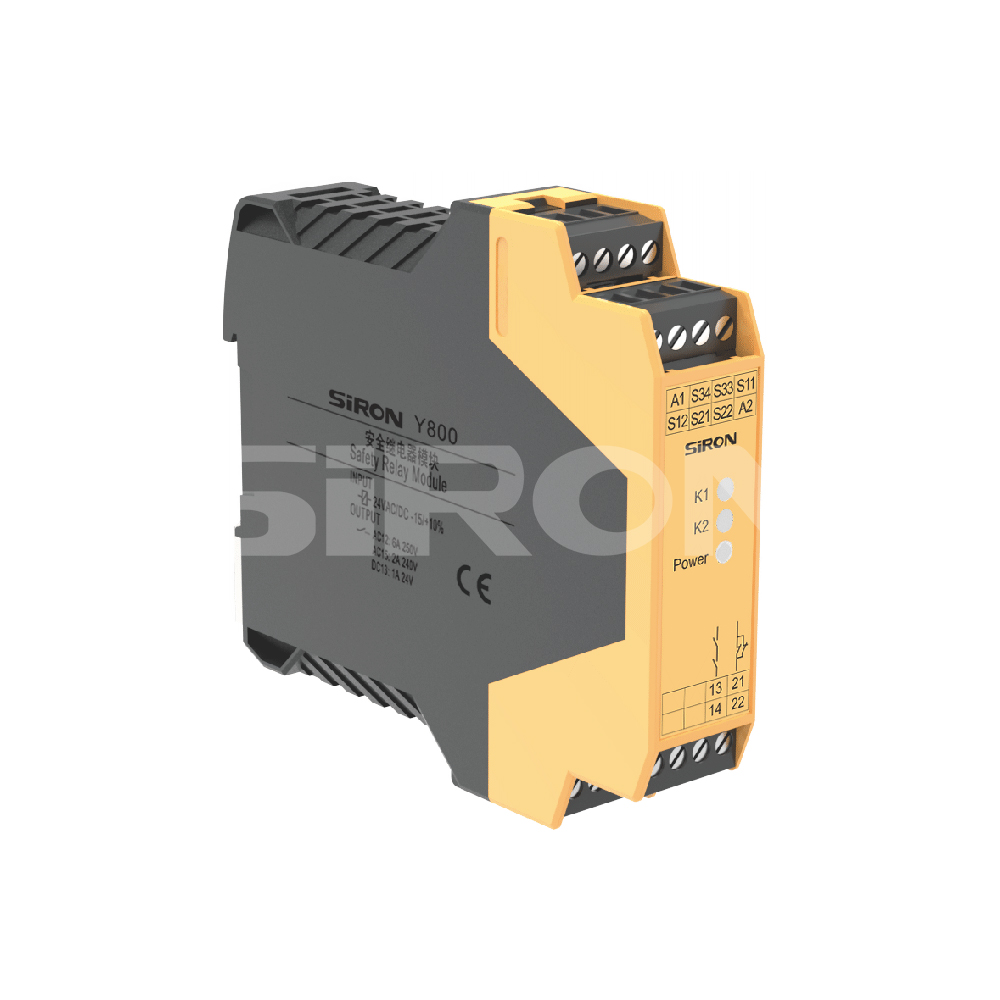

SiRON Y800/Y801/Y802/Y803 Series Safety Relay Module

Name: SiRON Y800/Y801/Y802/Y803 Series Safety Relay Module
Brand: SiRON
Rating: 5.0 (39 reviews)

Features

Safety relays for monitoring emergency stop switches and safety door switches;
Internal circuit redundancy desian, even if a sinale component fails, the safety function can stilloe maintained:
With built-in self-test function, each start and stop cycle automatically detects the normal actionand release of the internal relay;
Contact non-delay, up to 4 safety contact outputs, manual or automatic reset;
Meets the requirements of EN 60947-5-1 and EN 60204-1, and the safety performance level can be up tothe PLe level of ls0 13849-1:
LED lights indicate internal relay working status and power status.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Type selection reference

Model		Y800	Y801	Y802	Y803
Output form		A group of instantaneous Safety always on A group of alarms The contact is always closed	Two groups of instantaneous Safety always on	Three groups of instantaneous Safety always on A group of alarms The contact is always closed	Four groups of instantaneous Safety always on
Output	Maximum rated output power	144W(24VDC,T=0ms)48W(24VDC,T=40ms) 1500VA(250VAC,cosφ=1)250VA(250VAC,cosφ=0.4)
	Operating time (under rated woltege	≤100ms
	Release time (under rated voltage)	≤45ms
	Reoovery Time	≤0.5s
	Minimum switching voltage	15VDC/VAC
	Minimum on-off capacity	0.4W
	On-off capacity	6A 24VDC/5A 230VAC
Input	Rated operating voltage	24VAC/VDC
	Permissble eror of operating woltage	-15%～10%
	Frequency range	50Hz~60Hz
	Consumed power	Group 2：≤3 .5VA/1 .7W;Group 4：≤5 . 1VA/2 .4W
environment andlnstall	Operating temperature	-20～55℃
	Storage temperature	-40～85℃
	Wire strpping length	D I N 3 5 mm guide rail installation (Installed in a control cabinet with at least IP54 protection grade)
	Screw torque	IEC60947-5-1、IEC62061; ISO/EN 13849-1、IEC61508
	Protection grade	4kV
	The durability of electricity	10Hz~55Hz 1 . 5mmdouble-amplitude
	Mechanical durability	250VAC
	Weight	2
	External protective fuse	I
	Protection level	outer cover ：IP40
