SiRON Y446~Y450 Series Wide Base Type Signal Relay Module

Name: SiRON Y446~Y450 Series Wide Base Type Signal Relay Module
Brand: SiRON
Rating: 5.0 (54 reviews)

Features

Inputloutput side with surge absorbing circuit, which can effectively extend the life of the relay contact, and canslow the instantaneous impact current of load side.
NPN/PNP bipolar input coresponding, and the indicator light will also follow the input signal of different and bright color ;
Green - NPN .Red-the PNP.
Input side wrong line protection.

Product Description

Type selection reference

Model

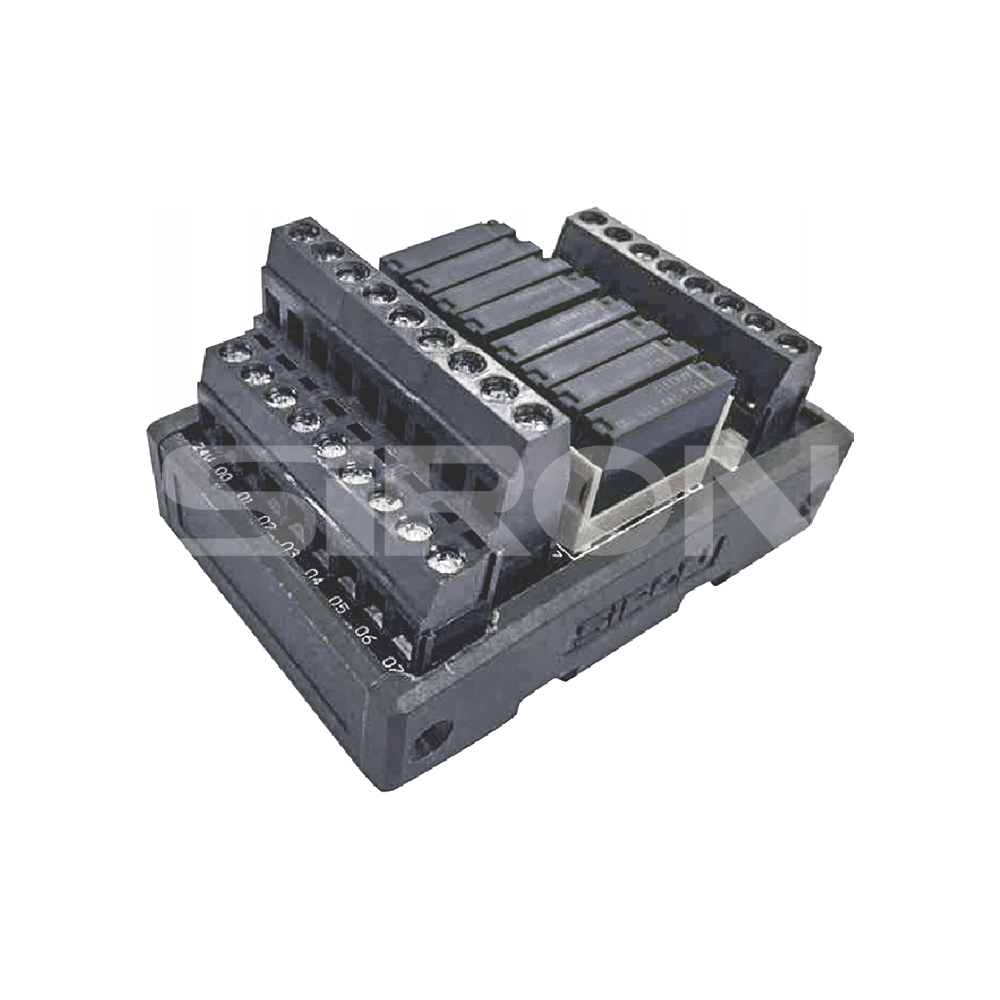

Y44 6/Y44 6 - C Y44 6 - O Y44 6 - P Y44 6 - O - P

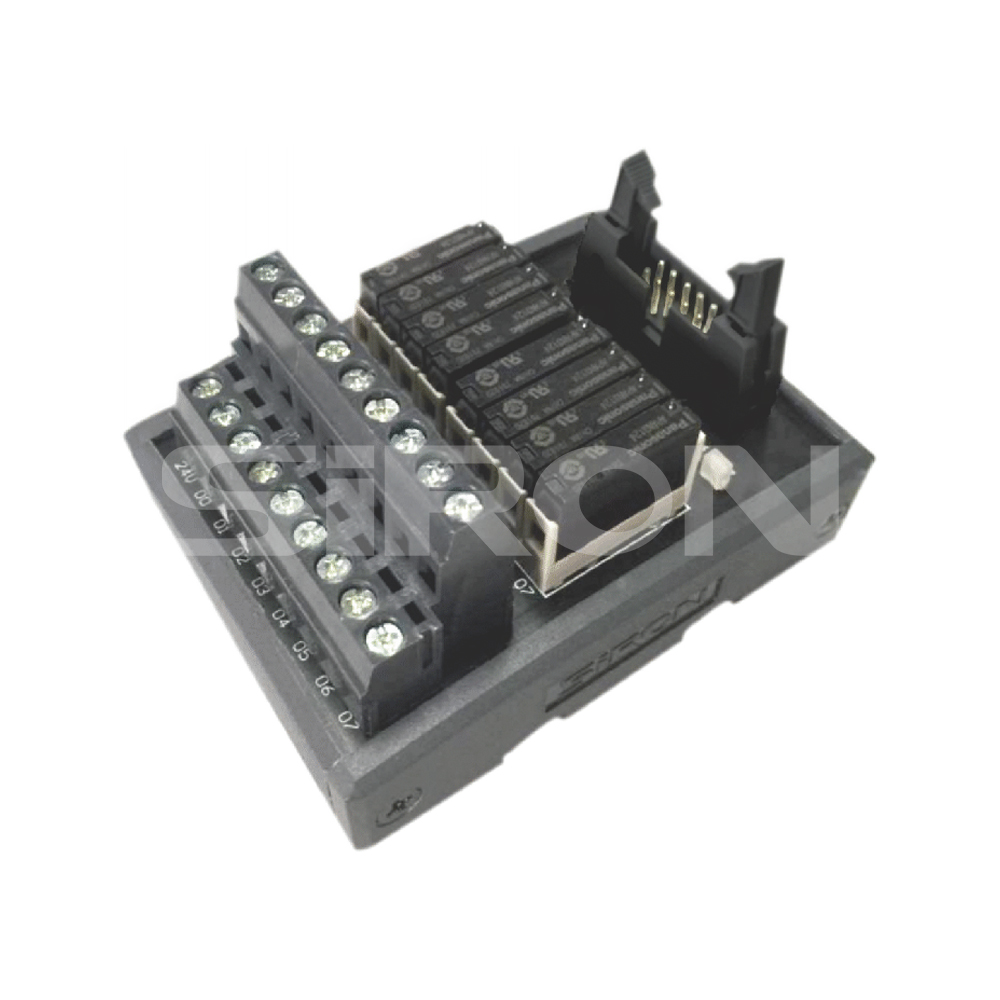

Y44 7 Y44 7 - C

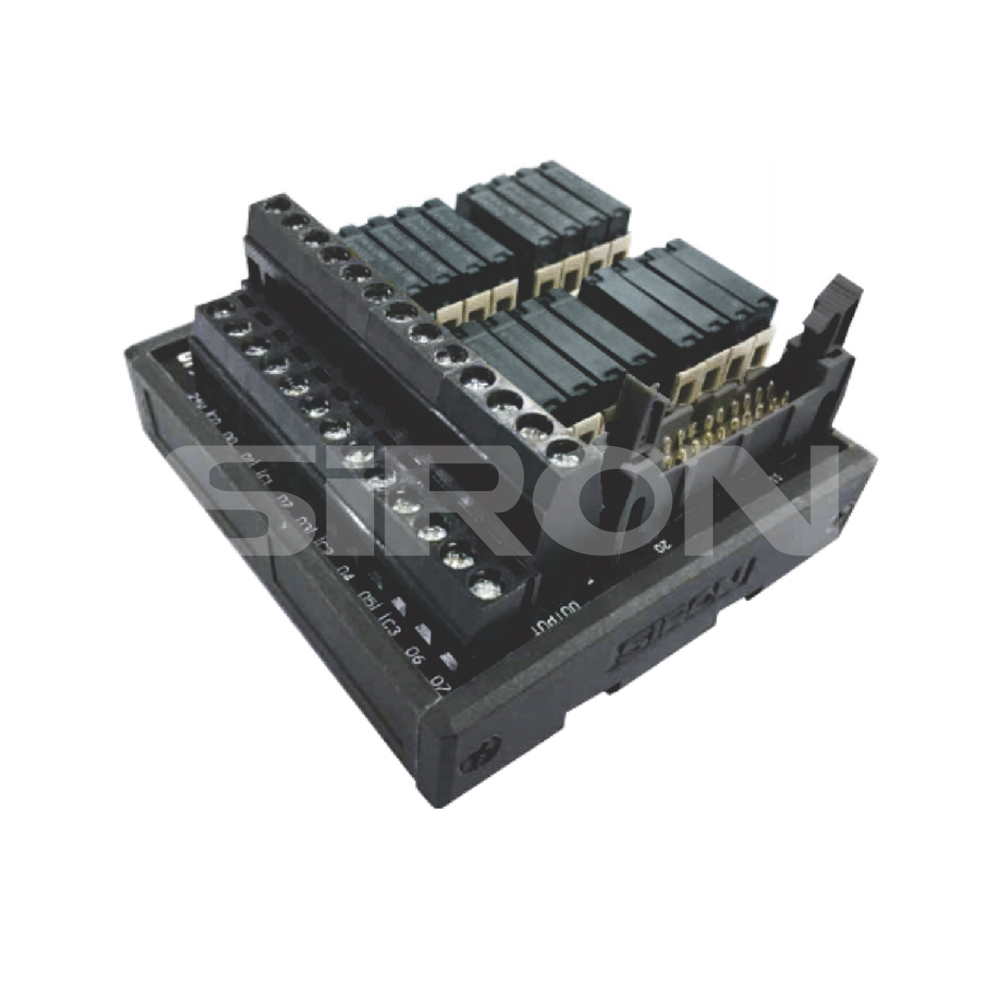

Y44 8 Y44 8 - C

Y444

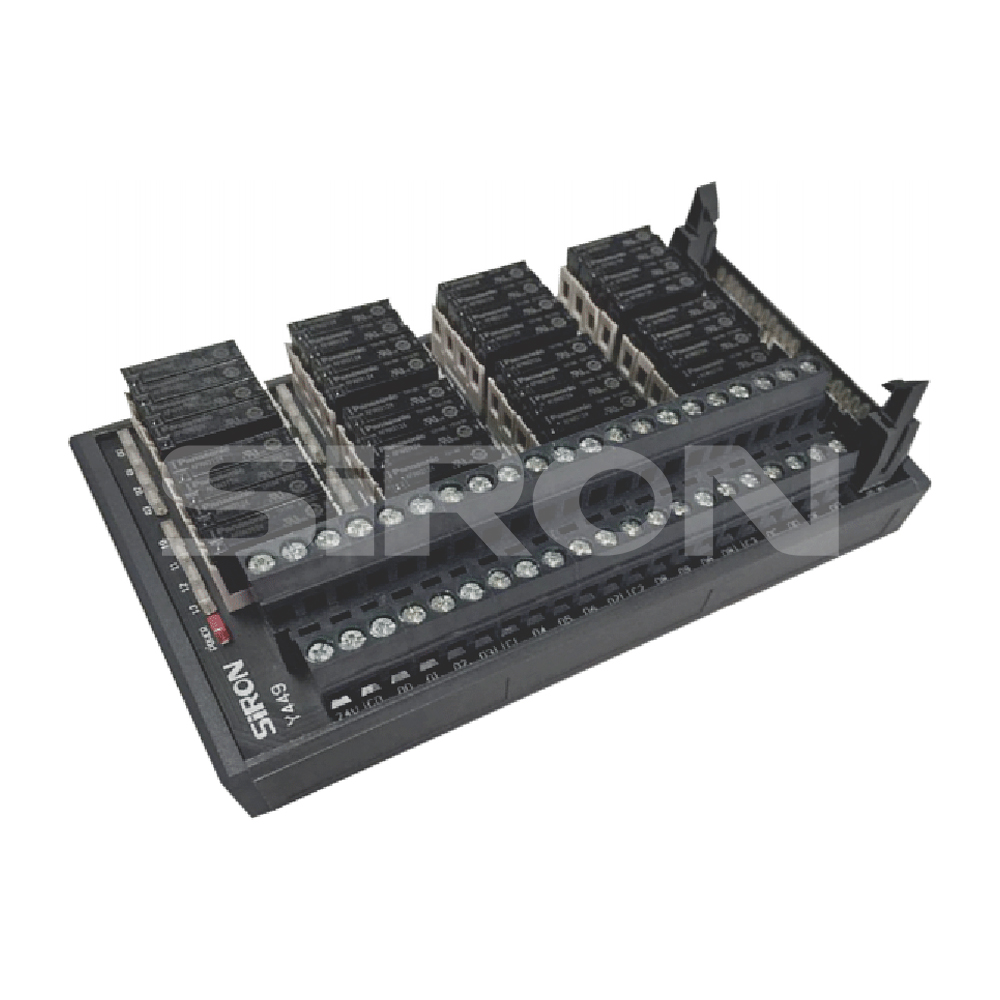

Y449/Y449 - D Y449 - C/ Y449 - T - C Y449 - D - C

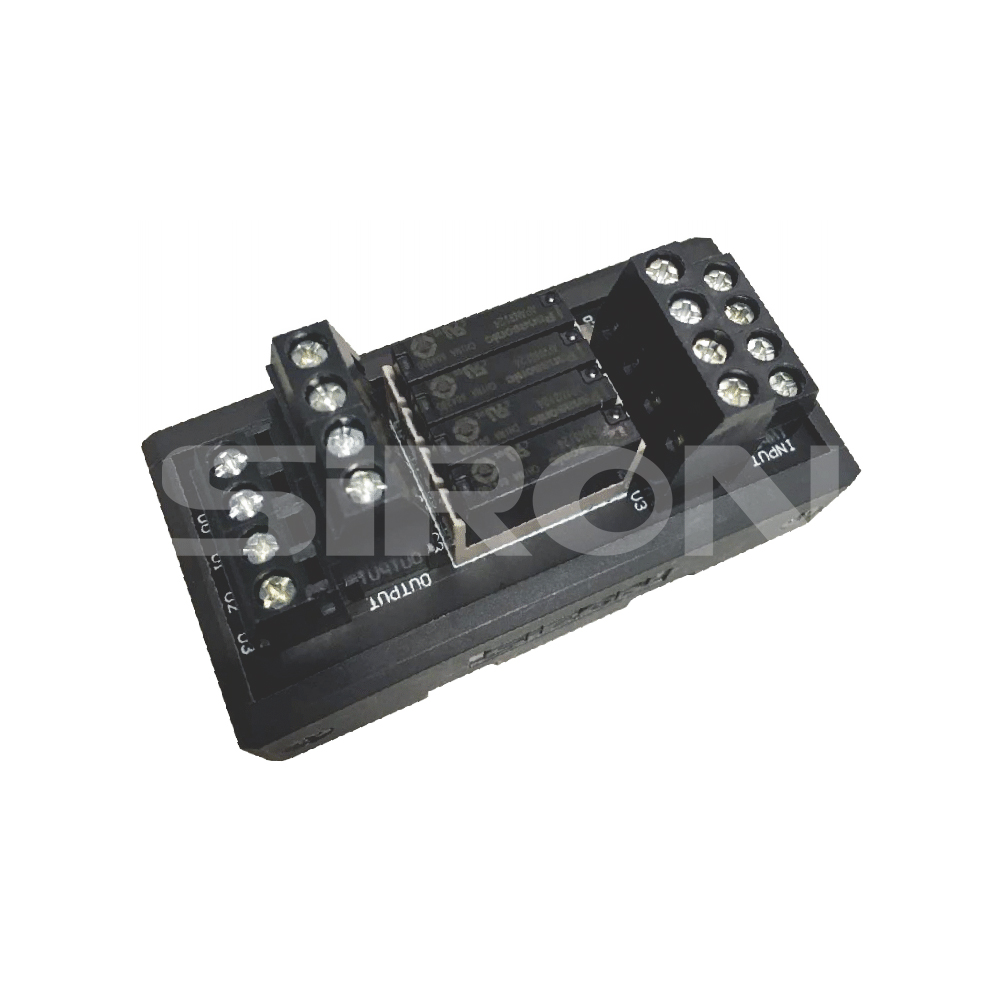

Y450

Y450-C

Name

8-bit signal
Relay module

16-bit signal
Relay module

32-bit signal
Relay module

4-bit signal
Relay module

The relay module control signal can be set as an NPN and PNP, specific methods please consult sales .

Specifications

model		Y446/Y446-C Y446-0 Y446-P Y446-O-P	Y447 Y447-C	Y448 Y448-C	Y449/Y449-D Y449-C Y449-T-C Y449-D-C	Y450 Y450-C
Input(coil)	Nominal coil voitage	DC 24V
	Nominal operaling cument	7.5mA
	Coil resistance	3200Ω
	operating voltage	Rated voltage70%
	reset voltage	Rated voltage5%
	Maximum allowable voltage	Rated voltage120%
	Rated current consumption	180mW
output (contact)	Contact structure	1Normally open(1NO)
	Insulation resistance	5A
	Contact material	AC250V,DC30V
	Behaviour of electricity	12A
Electrical properties	Mechanical endurance	10ms
	Ambient temperature	5ms
life	Ambient humidity	20 million times (on-off frequency 180 times per minute)
	Ambient humidity	100,000 times (on-off frequency 20 times per minute)
surroundings	Ambient humidity	-40℃~70℃
	Ambient humiditv	5%～85%
