SiRON Y440~Y445 Series Wide Base Type Signal Relay Module

Name: SiRON Y440~Y445 Series Wide Base Type Signal Relay Module
Brand: SiRON
Rating: 5.0 (97 reviews)

Features

Inputloutput side with surge absorbing circuit, which can effectively extend the life of the relay contact, and canslow the instantaneous impact current of load side.
NPN/PNP bipolar input coresponding, and the indicator light will also follow the input signal of different and bright color ;
Green - NPN .Red-the PNP.
Input side wrong line protection.

Product Description

Type selection reference

Model	Y440 Y440-0	Y441 Y441-0	Y442	Y443	Y444	Y445

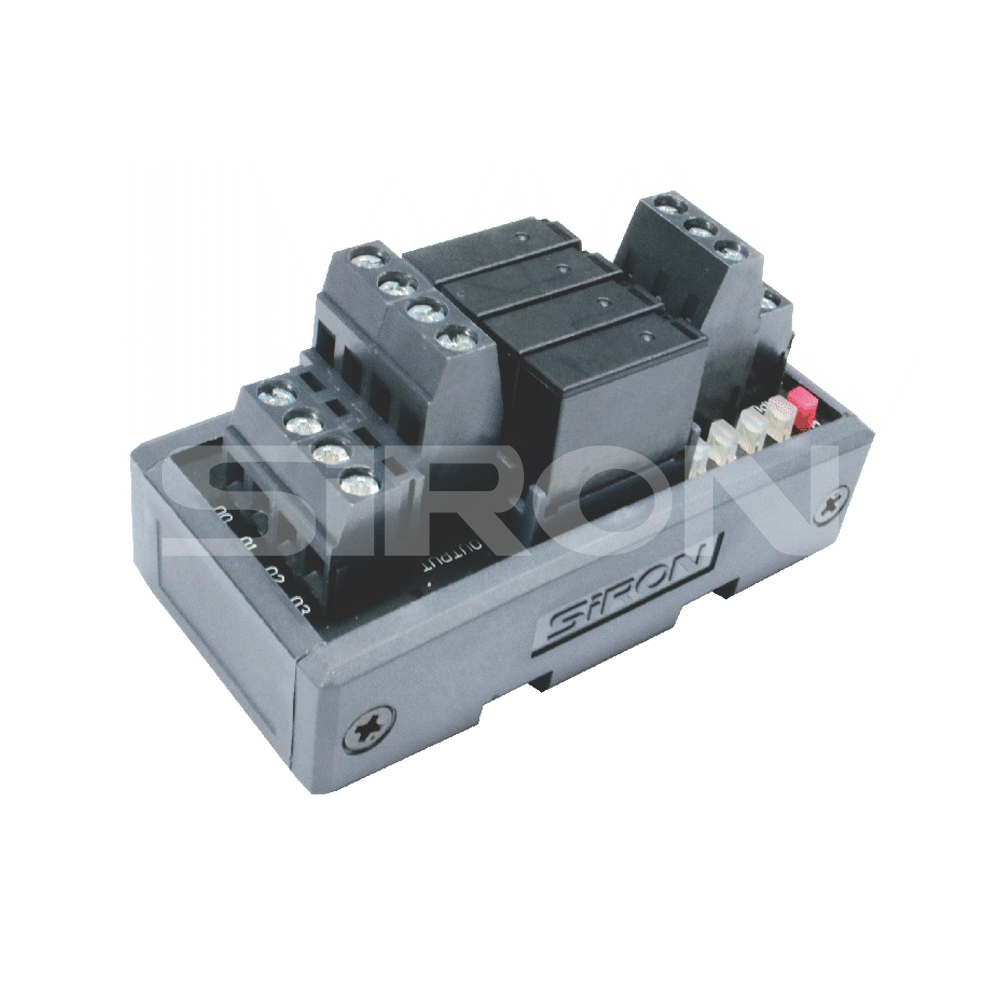

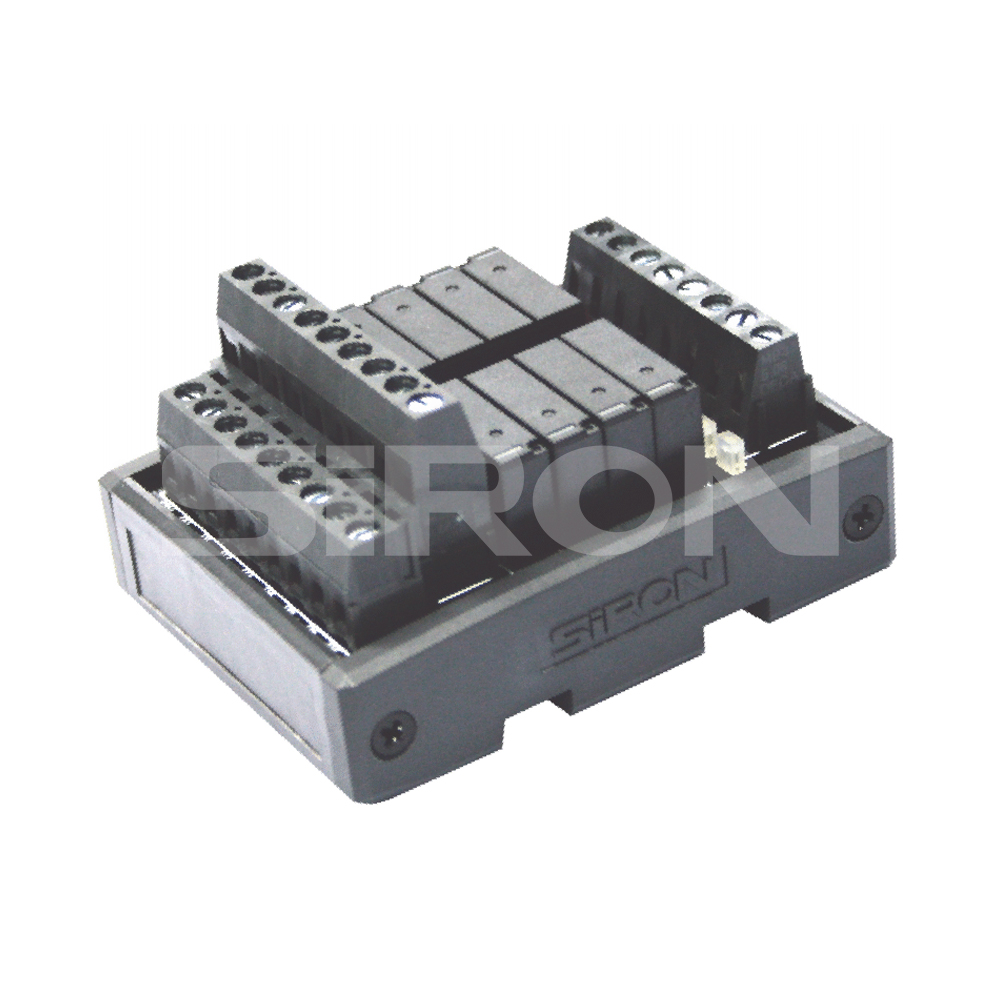

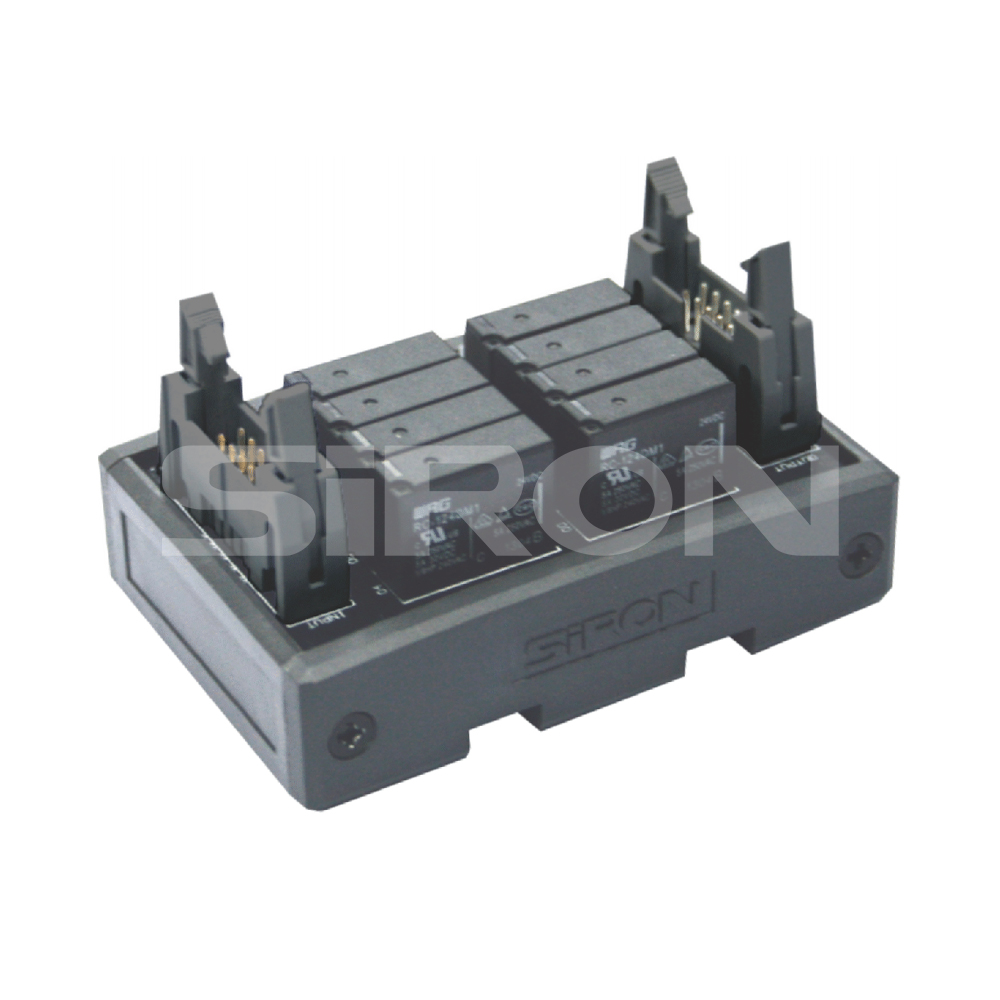

Name	4-bit signal Relay module	8-bit signal Relay module	8-bit MIL signal Relay module	8-bit signal Relay module	16-bit signal Relay module	32-bit signal Relay module

The relay module control signal can be set as an NPN and PNP, specific methods please consult sales .

Specifications

Model		Y440 Y440-O	Y441 Y441-O	Y442	Y443	Y444	Y445
The ministry of cirdle	Nominal coil voltage	DC 24V
	Nominal operating current	8.3mA
	Pick-up voltage	7 5 % Above all ( Constant-temperature environment )
	Release voltage	5 % Below( Constant-temperature environment)
	Actuation time	2 0 m s Below
	Release time	1 0 m sBelow
Switch Circuit	Contact resistance	1 0 0 m Q Below ( D C 6 V 1 A )
	Insulation resistance	1,000mΩ(500VDC)
	Contact material	silver alloy
	Behaviour of electricity	5A/250VAC,5A/30V DC
	Mechanical endurance	5,000,000time，“-O”500One million time
Ambient temperature		-40~85°(No ice or frost)
Ambient humidity		20~85%
