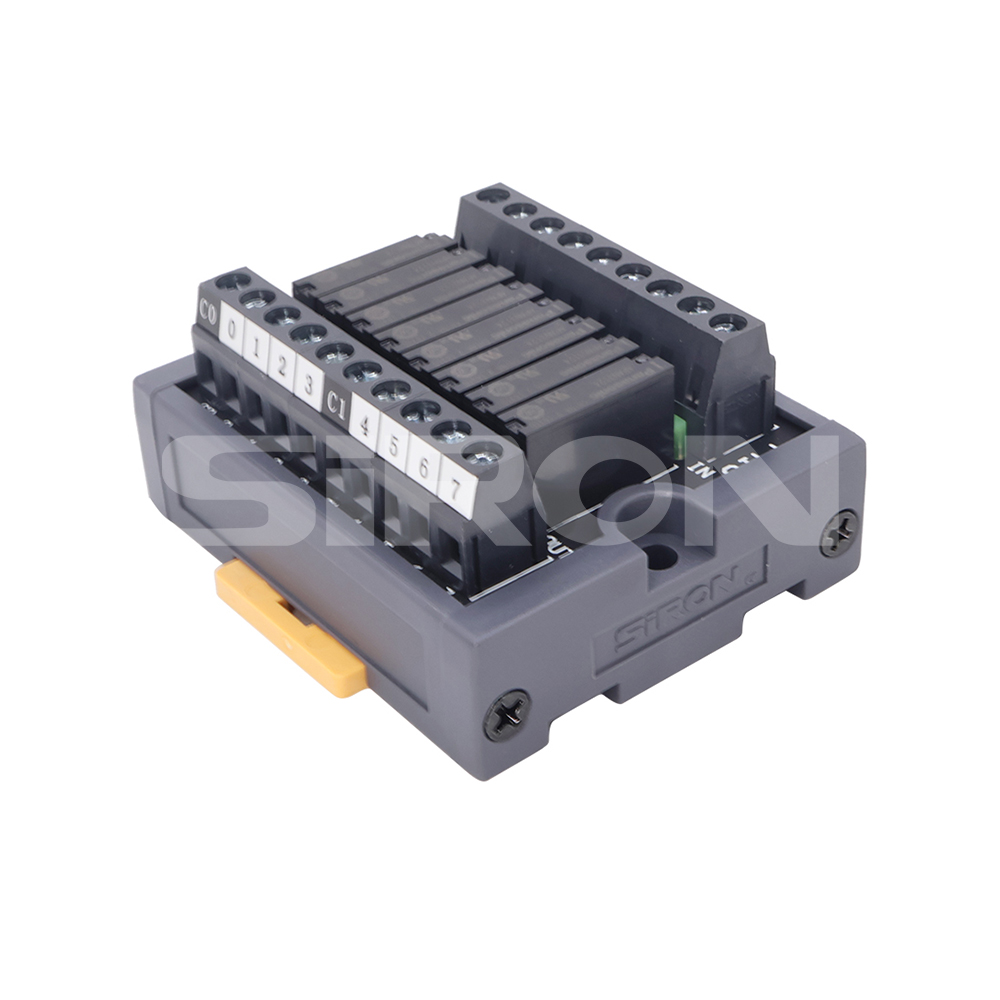

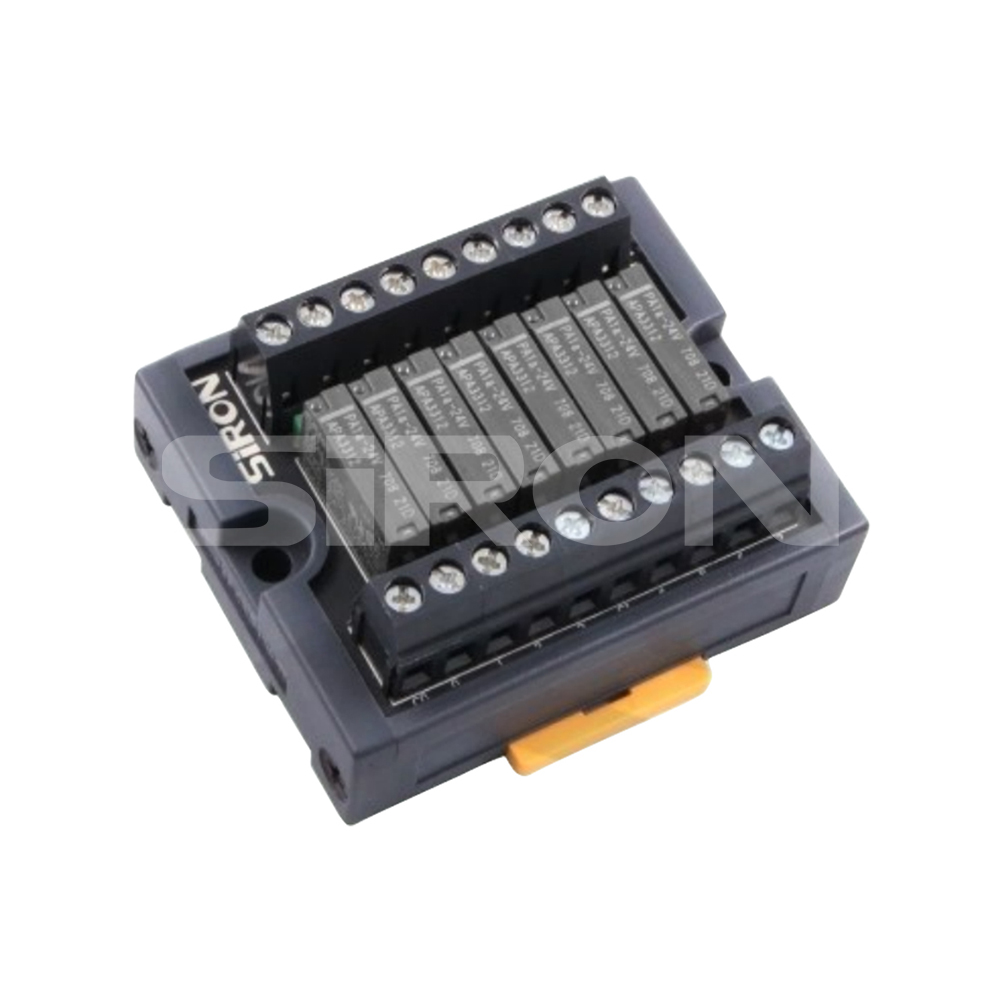

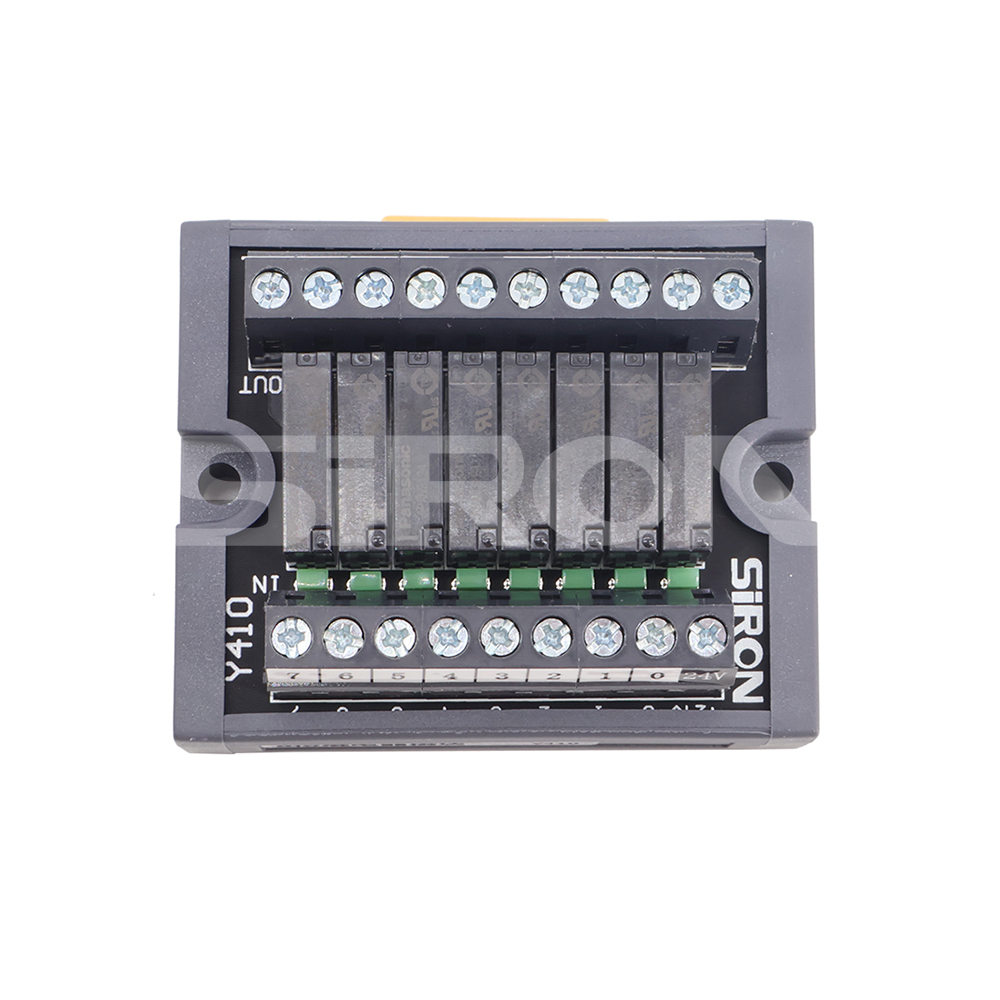

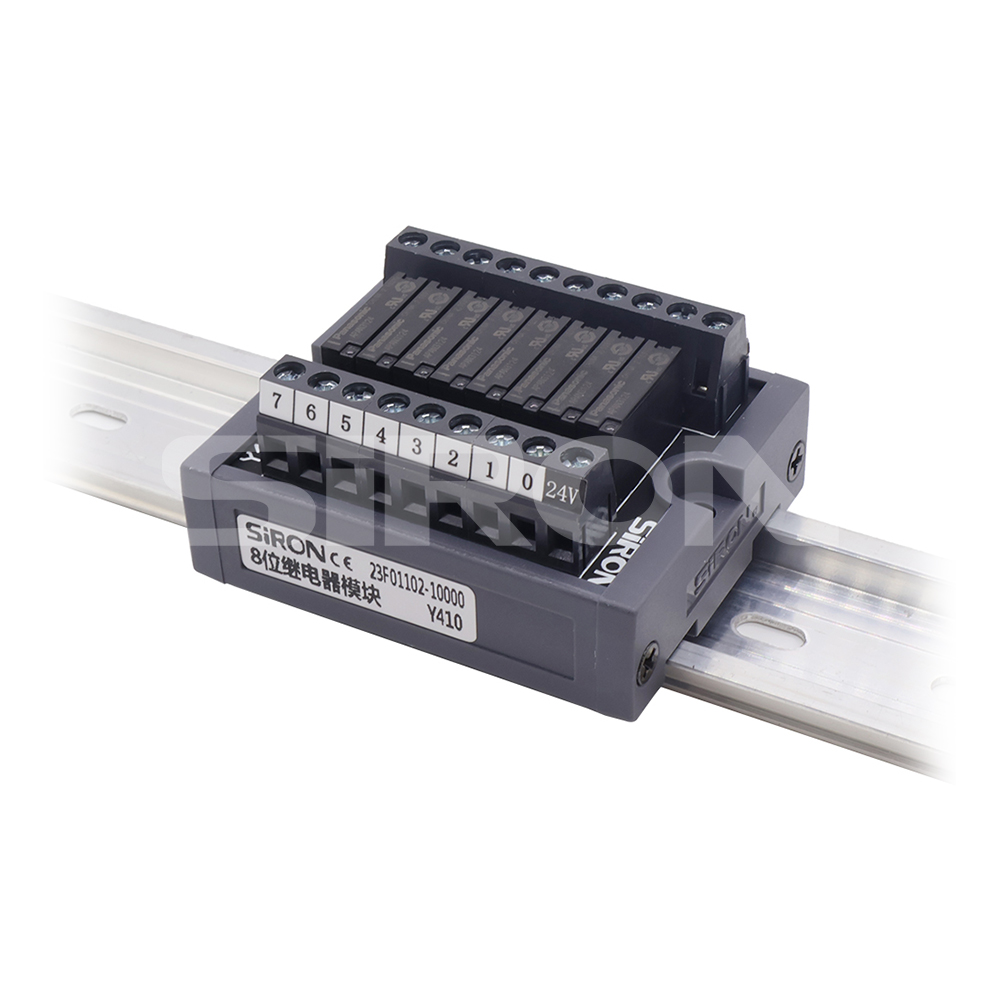

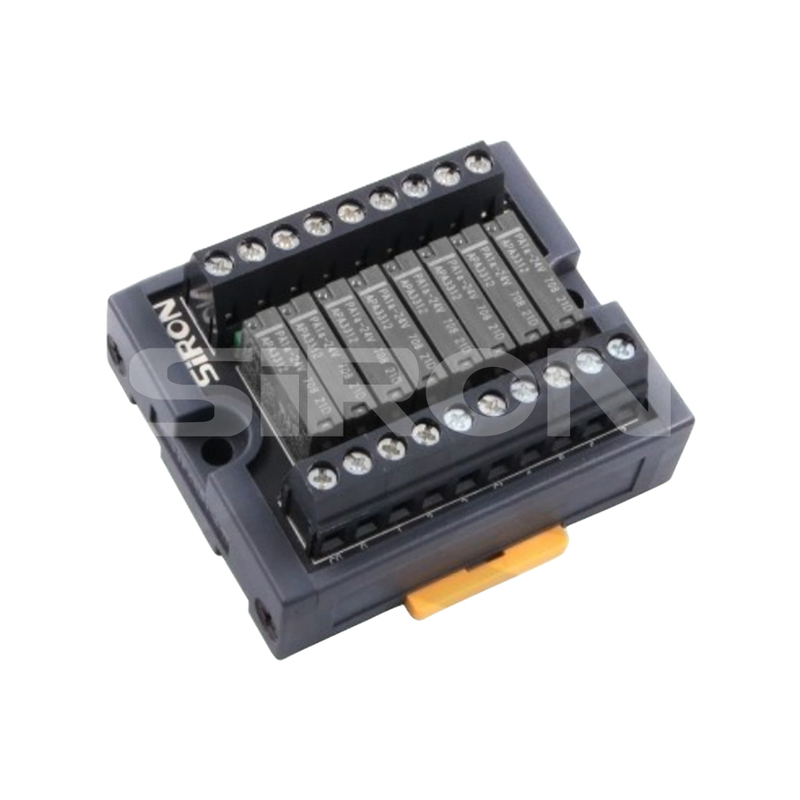

SiRON Y410~Y412 Series Plugged And Unplugged 8 Bit Relay Module

Name: SiRON Y410~Y412 Series Plugged And Unplugged 8 Bit Relay Module
Brand: SiRON
Rating: 5.0 (8 reviews)

Features

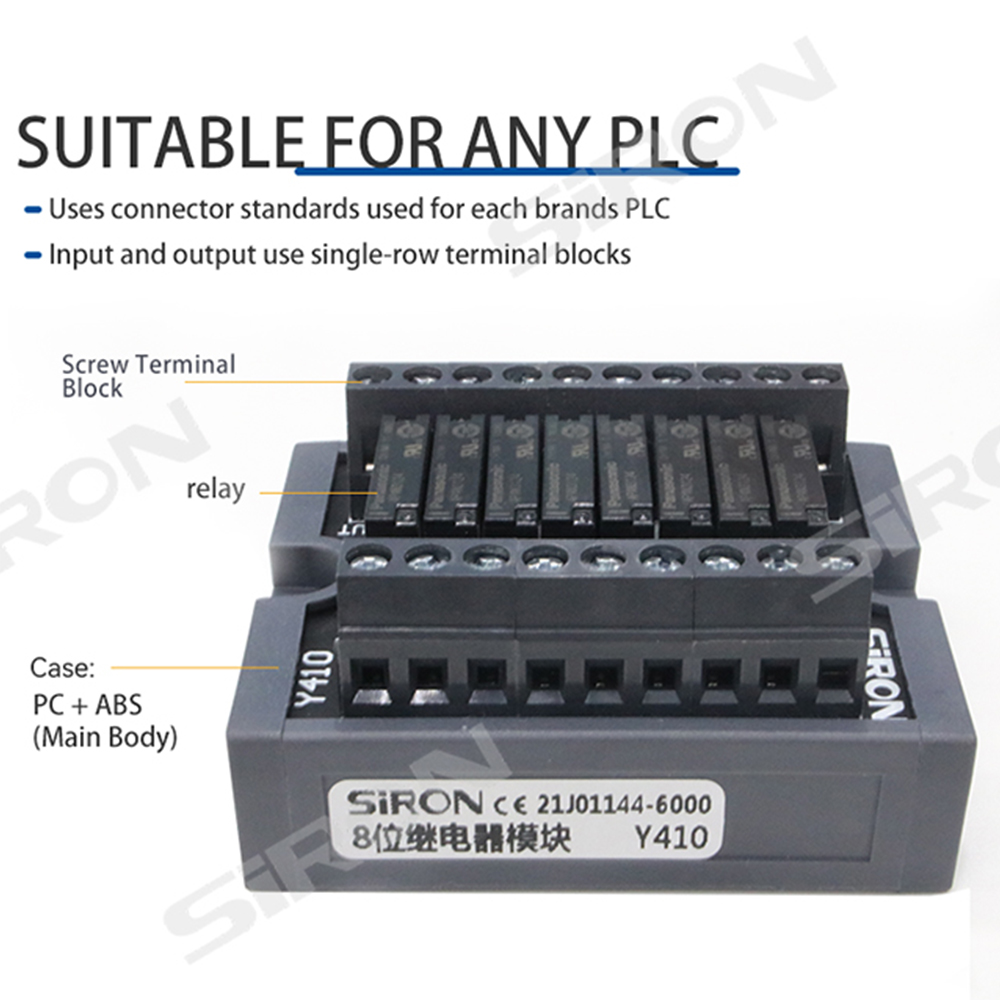

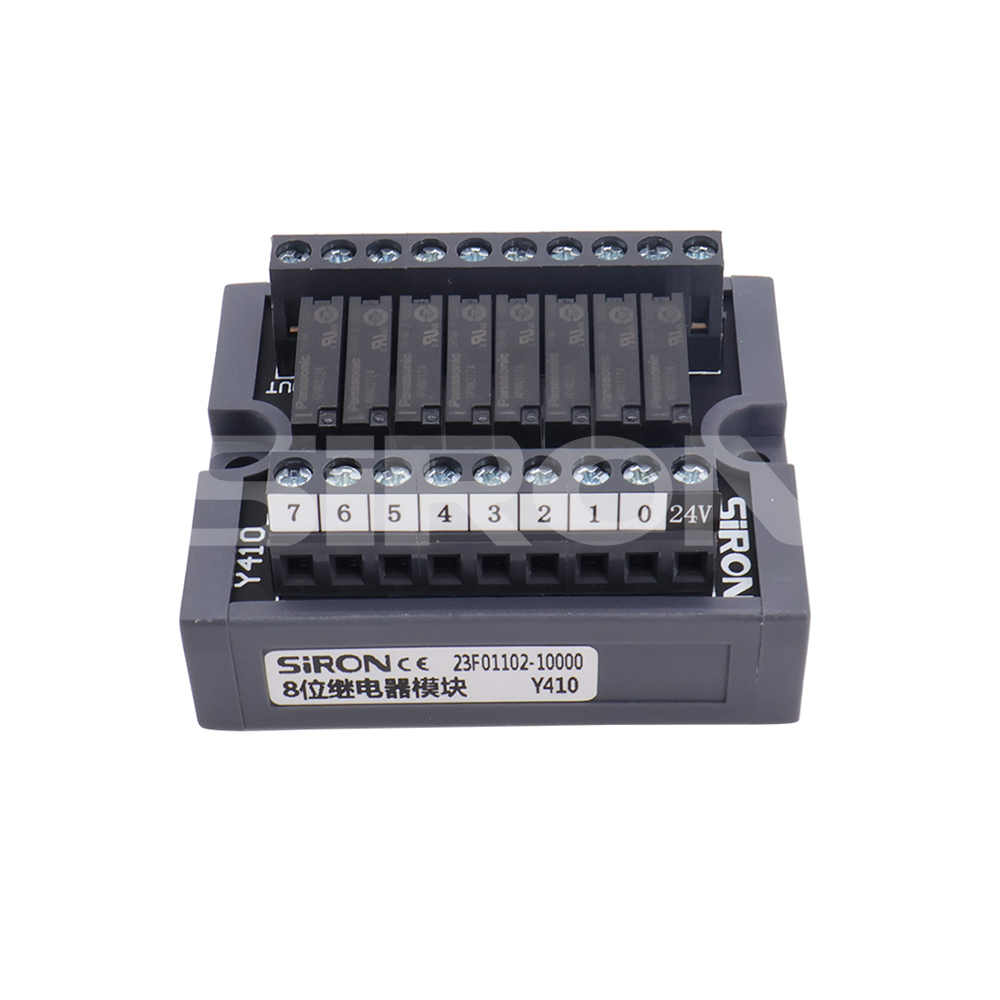

Y410/Y410-P module is an output module corresponding to all PLC with terminal block connection ; A single-strip terminal connection is used for both the input and output;
Y411/Y411-P module is an output module corresponding to all PLC with terminal block connection;A single-strip terminal black as the input end and a 10P MIL connector as the output end;
Y412/Y412-P utilizes a 10P MIL connector as the input end and a single-strip terminal black as the output end, output of electric shock are independent of each COM port
Y413/Y413-P utilizes MIL connection socket for both the input and output, facilitating remote wiring connection;

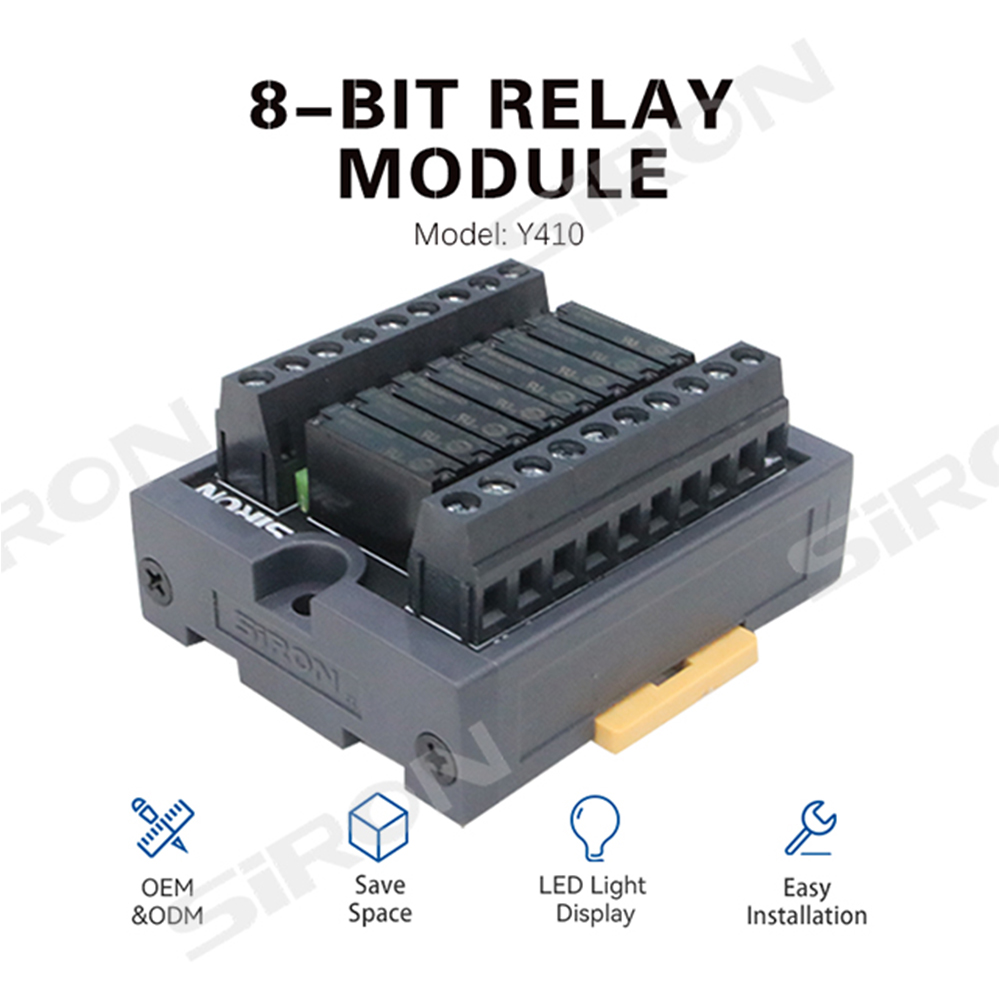

Utilizes an 8 bit relay module for compact design to save space;Utilizes LED display, so all input and output statuses are visible;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y410/Y411/Y412/Y413
Brand:
SiRON
Code:
8536901100

Plugged And Unplugged Relay 8-bit relay 10P MIL connector Relay With LED display Relay

Product Description

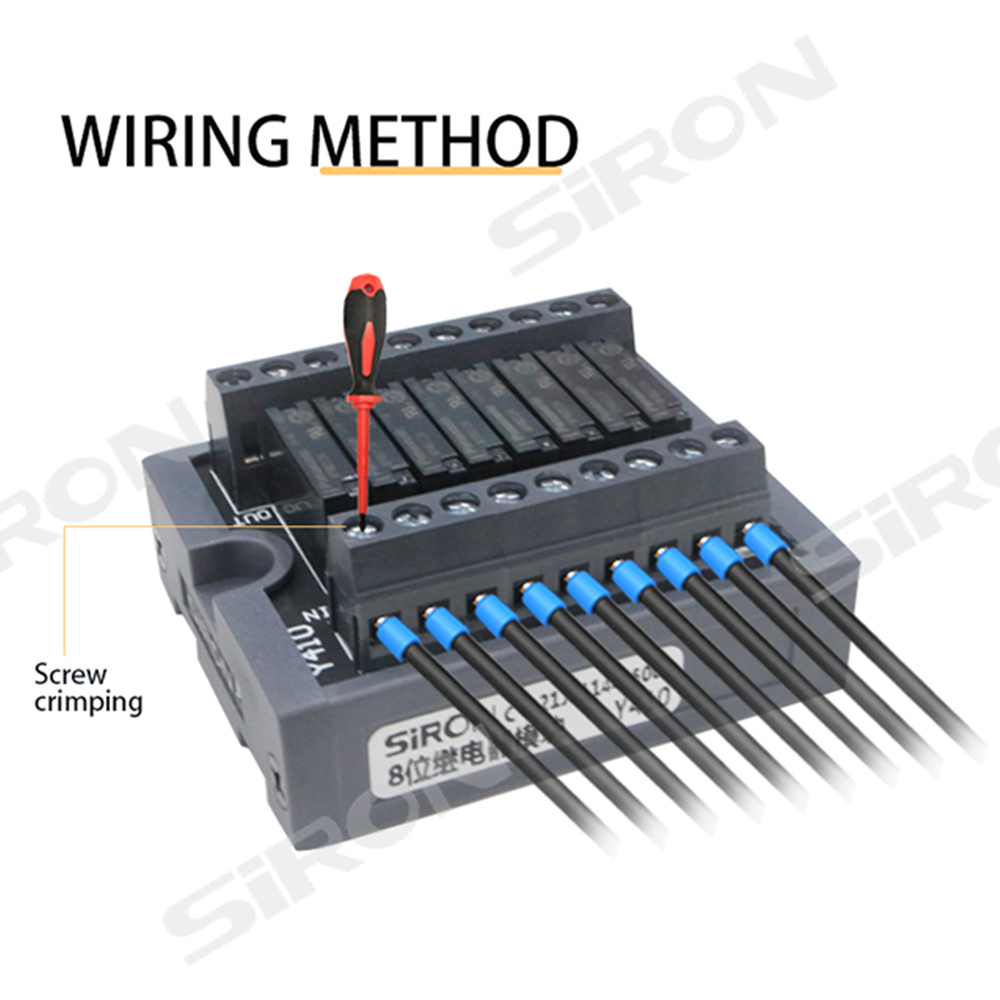

Suitable wire

主图11端子台

Type selection reference

Model	Y410/Y410-P/Y410-T Y410-C/Y410-P-C Y410-T-C	Y410-A/Y410-D/Y410-AT Y410-A-C/Y410-D-C Y410-AT-C	Y411/Y411-P Y411-C Y411-P-C	Y412/Y412-P Y412-C Y412-P-C	Y413/Y413-P Y413-C Y413-P-C
Name	8-bit relay module	8-bit pluggable Relay module	8-bit relay module	8-bit relay module	8-bit relay module

Note: 1. Add "C" after the model number for economical type, such as "Y410-C" 2. Add "O" after the model number for Omron exclusive use, such as "Y410-O" 3. For Omron pluggable, such as "Y410-A-O", please consult the relevant sales staf

Suitable PLC

Unlimited brand	Unlimited PLC
Panasonic Direct connection		FP0-C16T/C16CT(OUT) FP0-E8YT FPO-C16P/C16CP(OUT FPO-E16YT FPO-C32T/C32CT/T32CT(OUT) Fp-C32(OUT) FP0-C32P/C32CP/T32CP(OUT) Fp-C28(OUT) FP0-E16T/P(OUT) FPO-E32T/P(OUT)
Unlimited brand	Unlimited PLC	Unlimited PLC

Specifications

Input	Relay Coil Specifications
	Nominal coil voiltage		DC24V
	Nominal operating current		7.5mA
	Coil resislance		3200Ω
	Pick-up Voitage		Rated voltage 7 0 %
	Drop-out Voltage		Rated voltage 5 %
	Max.aliowable voltage		Rated voltage 1 2 0 %
	Nominal operating power		180 MW
Output	Swilch Circuit
	Contact Specifications	Arrangement	1Normally open(1NO)
		Initial contact resistance	30mΩ(Voltage drop through the DC6V1A France)
		Nominal switchingcapaczy (resistiveload)	5A250VAC,5A30V DC
		Max.switching power(resistive load)	1250VA,150W
		Max.switching woltage	5A
		Max.switching capacity	250VAC;30VDC
		Min.switching capacity	DC100mv 100uA
	COM port	Max.switching capacity	12A
	Expected Life	Mechanical	2000 One million time (on-off frequency is 180 times per minute)
		Electrial	10 One million time(on-off frequency is 20 times per minute)
Corresponding output Devices			Solenoid,Warning Light,Relay or Contactor.
Electrical properties		Action time	10ms
		Teset time	5ms
Surroundings		Operating temparature	-40℃~70℃
		Use humidity	5%～85%
