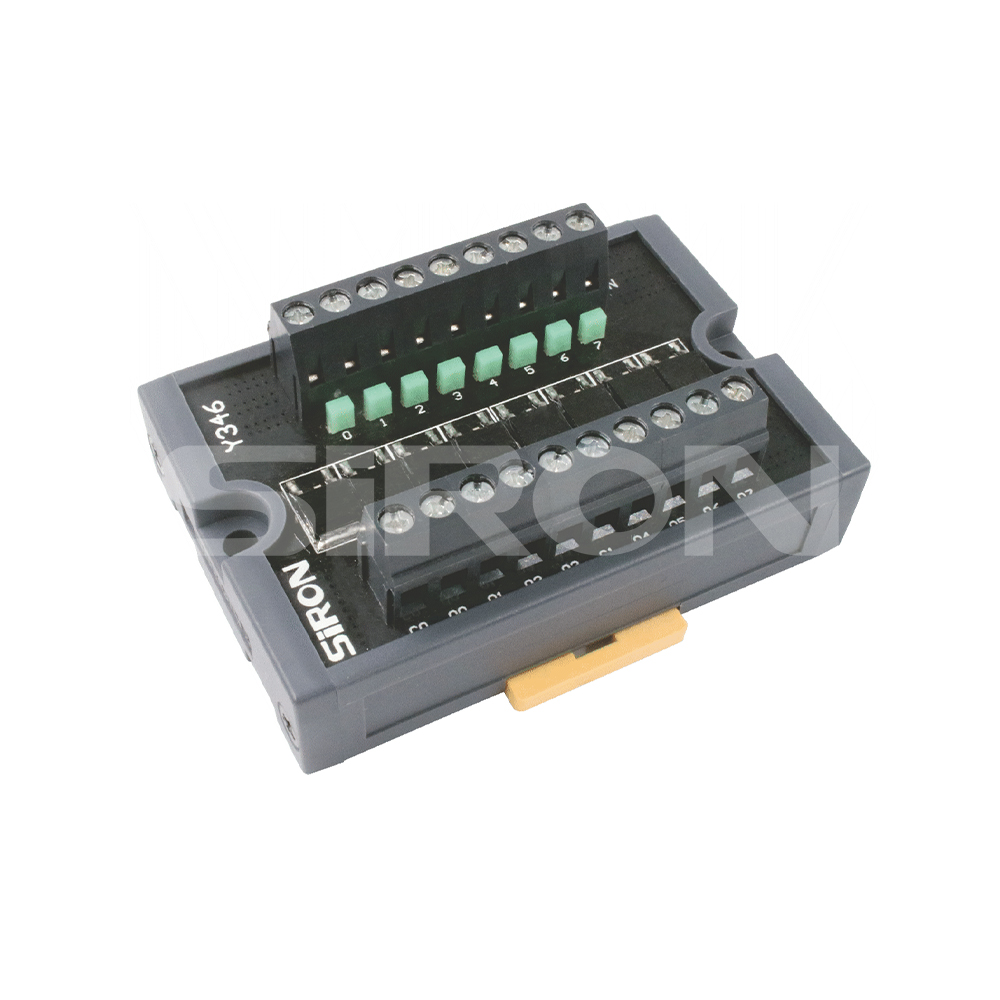

SiRON Y346/Y346-P Series Optical Coupling Isolation Type Dc Solid State Relay

Name: SiRON Y346/Y346-P Series Optical Coupling Isolation Type Dc Solid State Relay
Brand: SiRON
Rating: 5.0 (93 reviews)

Features

Input/output optical coupling isolation;
High responsiveness,High temperature self protection;
The input signal is NPN type, and the -P model is PNP input signal;
The output signal is NPN/PNP general-purpose type.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y346/Y346-P
Brand:
SiRON
Code:
8536411090

Y346/Y346-P Series Solid State Relay Optical Coupling Isolation Type Relay NPN/PNP Relay Input/output Relay Module

Product Description

For Selection

Suitable wire

63d09982-a583-4342-a51b-a1c2e945c1c0

Type selection reference

Model	Name	Input polarity	Input	Output
Y346	8-bit DC solid-state Relay module	NPN	The input side is a screw terminal	Output one COM terminal for every 4 channels
Y346-P	8-bit DC solid-state Relay module	PNP	The input side is a screw terminal	The input side is a screw terminal

Specifications

Input Side	Nominal coil voltage	24V DC
Input Side	Nominal operating current	5mA
Exit Side	Maximum voltage rating	≤60V DC
	Continuous working current	≤1A
	Instantaneous maximum current	1A
	The largest operating frequency	10K HZ
	Conduction time(10~90%)	Less than 1 millisecond
	Closing time(10~90%)	Less than 1 millisecond

Note: ※1When the body temperature of 100 ℃, disconnect the output signal from protection, temperature drop after the next trigger when conducting again.
