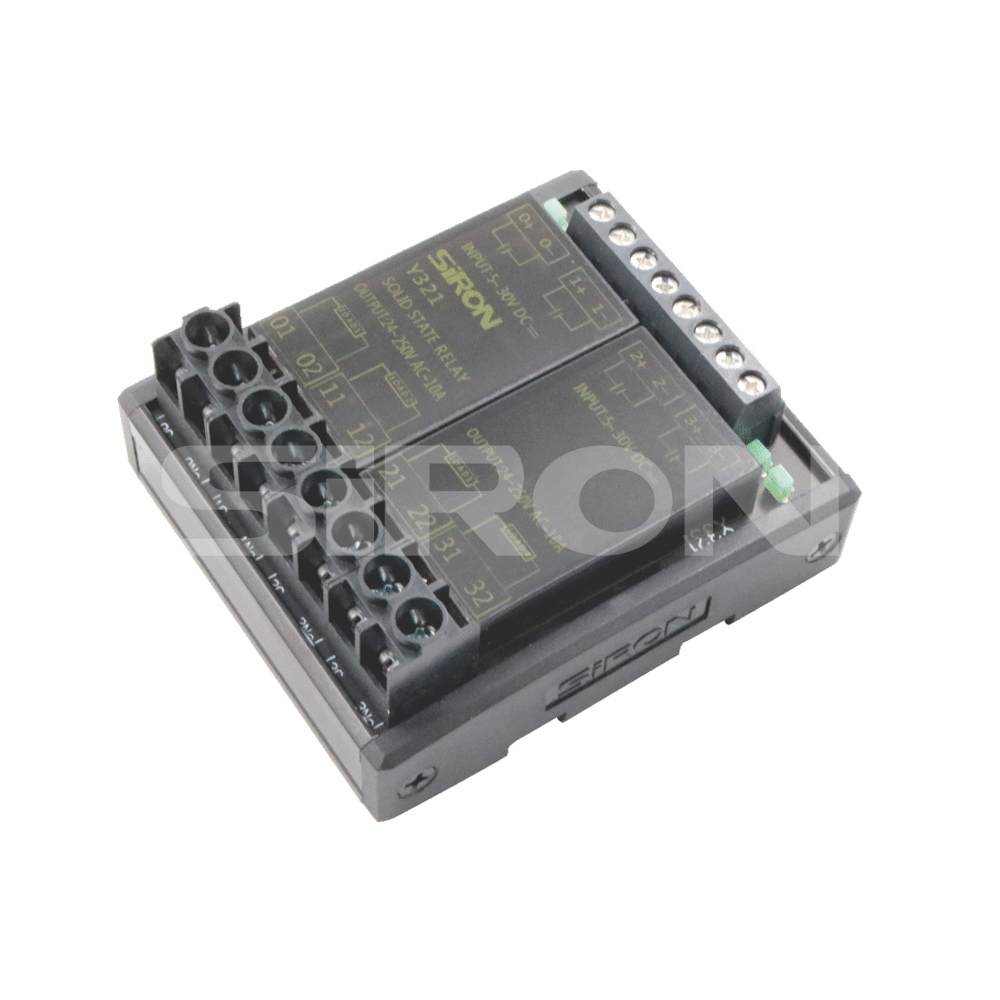

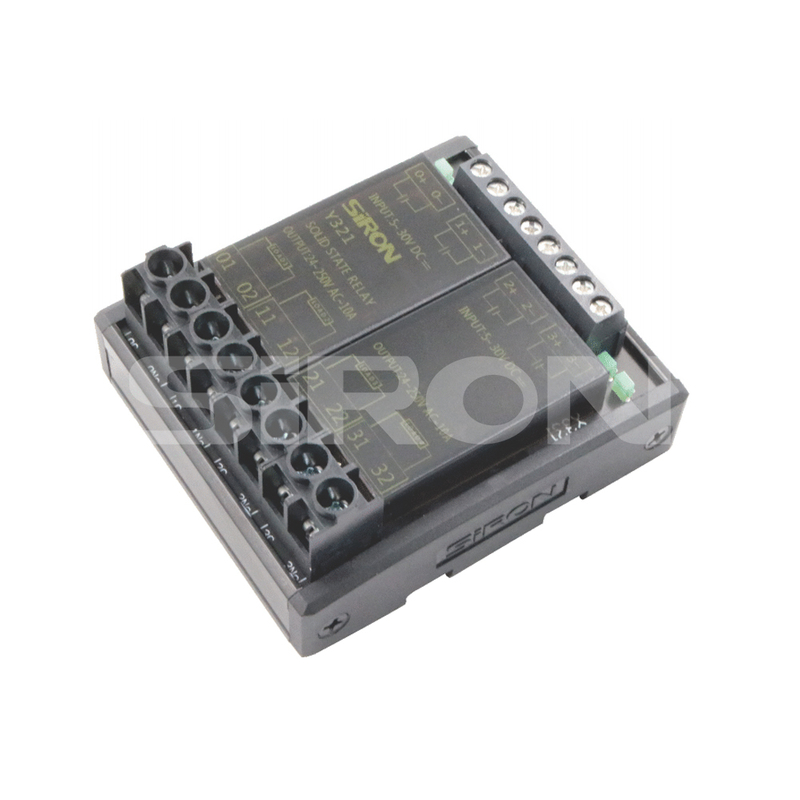

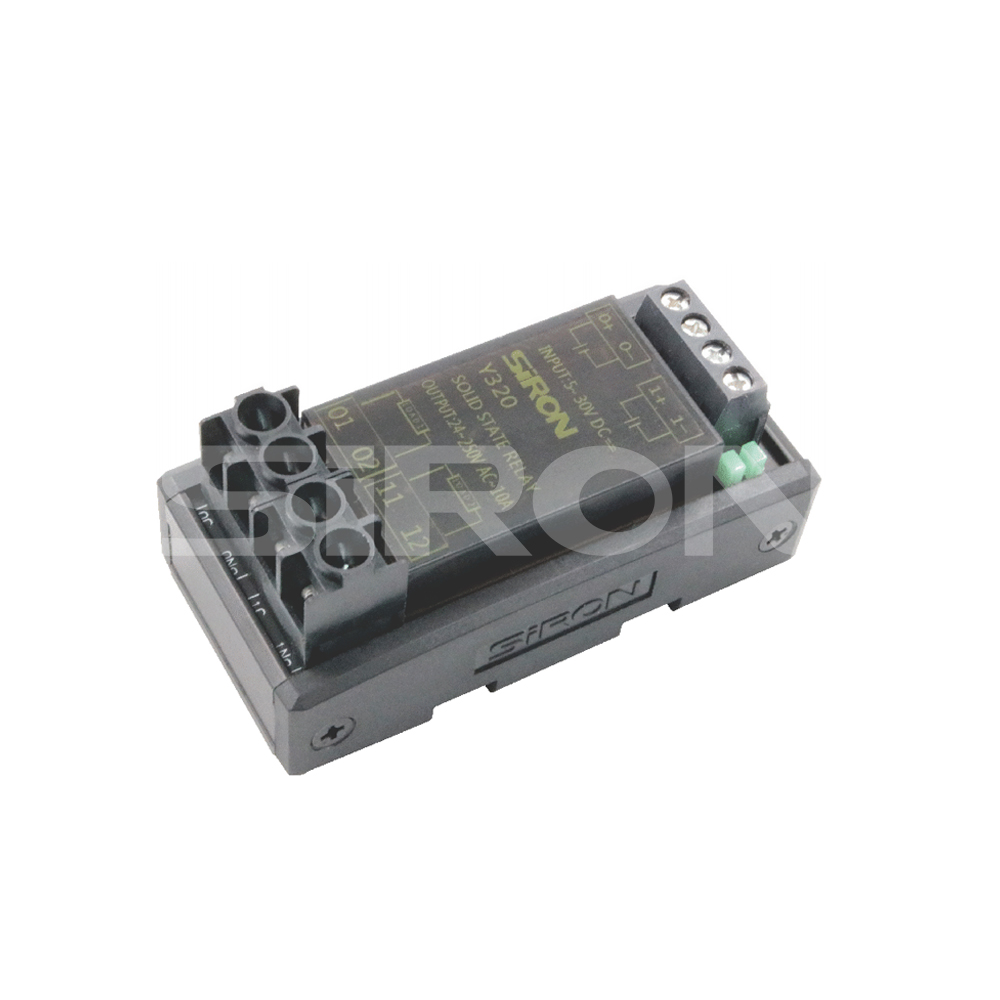

SiRON Y320/Y321 Series AC Solid State Relay Module

Features
  • Input/output optical coupling isolation;
  • High responsiveness,The zero conduction;
  • DIN Guide the installation;
  • Aluminum frame, strong higher heat resistance.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Y320/Y321

  • SiRON

  • 8536411090

Y320/Y321 Series Solid State Relay AC Type Relay NPN/PNP Relay Input/output Relay Module
Product Description

Suitable wire

63d09982-a583-4342-a51b-a1c2e945c1c0


Type selection reference

Model Y320 Y321
Name 2-bit AC solid state relay module
 4-bit AC solid state relay module


Specifications

Model Y320/Y321
Input Side Nominal coil voltage 12-24V    DC
Nominal operating current 25mA      MAX

Exit Side		 Peak voltage 600V   AC
Continuous working current 6A      AC220V
Instantaneous maximum current 10A      AC220V
Operating frequency 50～60   HZ
Export pressure drop 1 . 6V below
Insulation resistance 1 0 0 M Q below
Withstand voltage AC   2500V    1min
Conduction time(10~90%) 1 m s below
Turn-off time(10~90%) 1 m s below
