SiRON Y318~Y319 Series Dc Solid State Relay Module

Name: SiRON Y318~Y319 Series Dc Solid State Relay Module
Brand: SiRON
Rating: 5.0 (94 reviews)

Features

Input/output optical coupling isolation;
High responsiveness,High temperature self protection;
The input signal is NPN type, and the -P model is PNP input signal;
The output signal is NPN/PNP general-purpose type.

Quantity:
Availability:





Inquire Add to Basket

Model:
Y318~Y319
Brand:
SiRON
Code:
8536411090

Y318~Y319 Series Solid State Relay Dc Solid State Relay Module NPN/PNP Relay Input/output Relay Module

Product Description

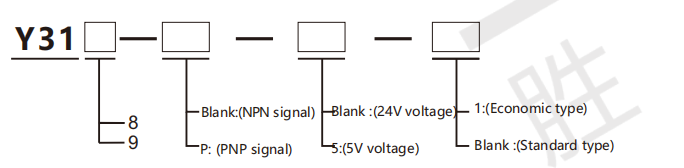

Type selection reference

Note: Add "1" after the model number for economical type, such as"Y318-1", please consult the relevant sales staff for details.

Suitable wire

63d09982-a583-4342-a51b-a1c2e945c1c0

Related products

Suitable cable	X 2 0 / X 2 1 / X 2 2 series
	For details,please referto the directory cable series
Relay accessories		Y926-24/Y926-24-1

Type selection reference

Model	Y318/Y318-P/Y318-1	Y319/Y319-P/Y319-T/Y319-1
Name	16-bit DC solid-state Relay module	32-bit DC solid-state Relay module

Note: The "-5V" model is controlled by an input 5V signal

Specifications

Input Side	Nominal coil voltage	24V DC
Input Side	Nominal operating current	5mA
Exit Side	Maximum voltage rating	≤60V DC
	Continuous working current	≤1A
	Instantaneous maximum current	1A
	The largest operating frequency	200HZ
	The maximum pressure drop (temperature-40~100℃)	0~0.8V
	Insulation resistance	10¹²Ω
	Isolation voltage	3750Vrms
	Conduction time(10~90%)	0.5ms
	Turn-off time(10~90%)	0.03ms
	Maximum temperature rise	100℃ ※1

Note: ※1When the body temperature of 100 ℃, disconnect the output signal from protection, temperature drop after the next trigger when conducting again.
