SiRON Y315~Y317 Series Optical Coupling Isolation Type Dc Solid State Relay

Name: SiRON Y315~Y317 Series Optical Coupling Isolation Type Dc Solid State Relay
Brand: SiRON
Rating: 5.0 (82 reviews)

Features

Input/output optical coupling isolation;
High responsiveness,High temperature self protection;
The input signal is NPN type, and y315-p and y316-pare inputPNP, the output signal is of general type NPN/PNP.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y315~Y317
Brand:
SiRON
Code:
8536411090

Y315~Y317 Series Solid State Relay Optical Coupling Isolation Relay NPN/PNP Relay Input/output Relay Module

Product Description

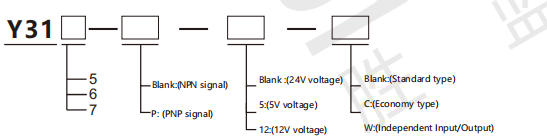

Type selection reference

0d899cea-314e-480c-a192-43362b522b3f

the model number for economical type, such as "Y315-C" or "Y315-1", please consult the relevant sales staff for details.

Suitable wire

63d09982-a583-4342-a51b-a1c2e945c1c0

Related products

Suitable cable	X 2 0 / X 2 1 / X 2 2 series
	For details,please referto the directory cable series
Relay accessories		Y926-24/Y926-24-1/P.208

Type selection reference

Model	Y315N315-P Y315-CY315-P-C Y315-1 Y315-1P Y315-1-5V	Y315-5V Y315-5V-C Y315-1 Y315-1P Y315-1-5V	Y316/Y316-P Y316-C/Y316-P-C Y316-1/Y316-5V Y316-1P Y316-1-5V	Y317/Y317-V/Y317-P Y317-C/Y317-P-C Y317-1 Y317-1P Y317-1-5V

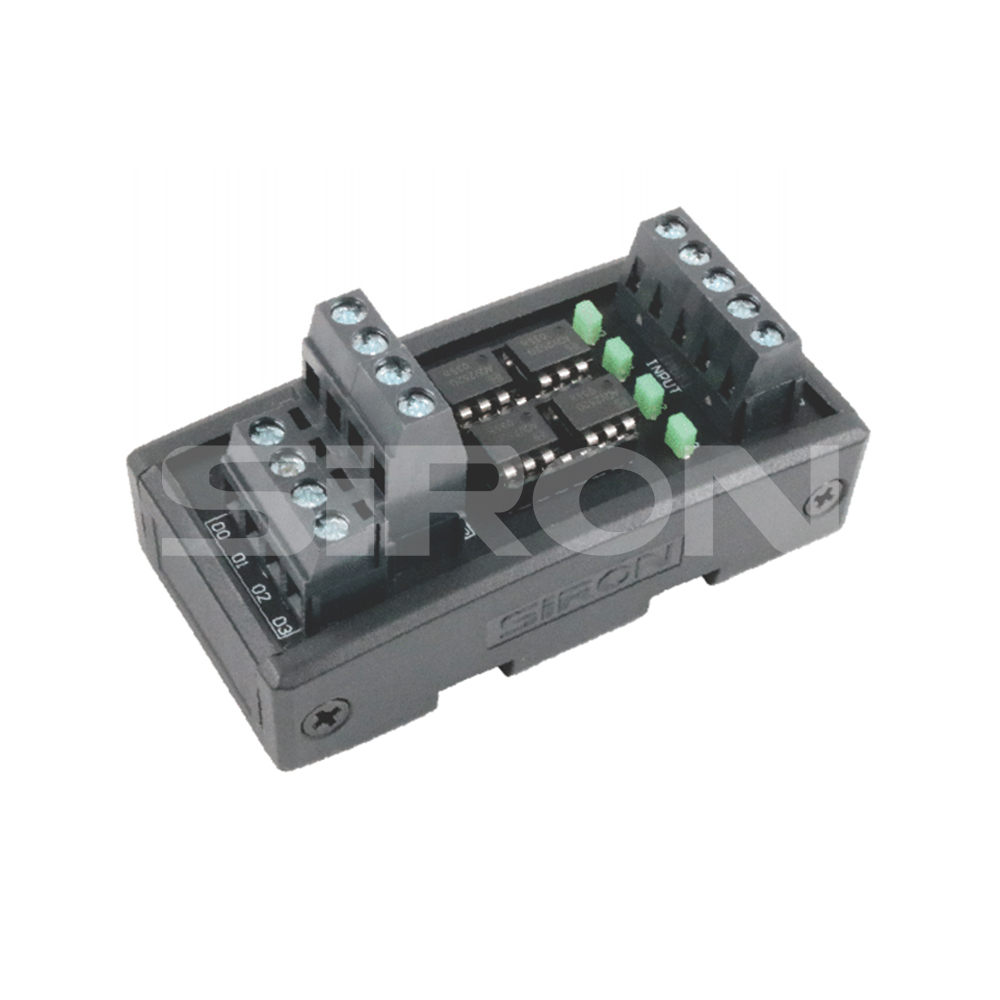

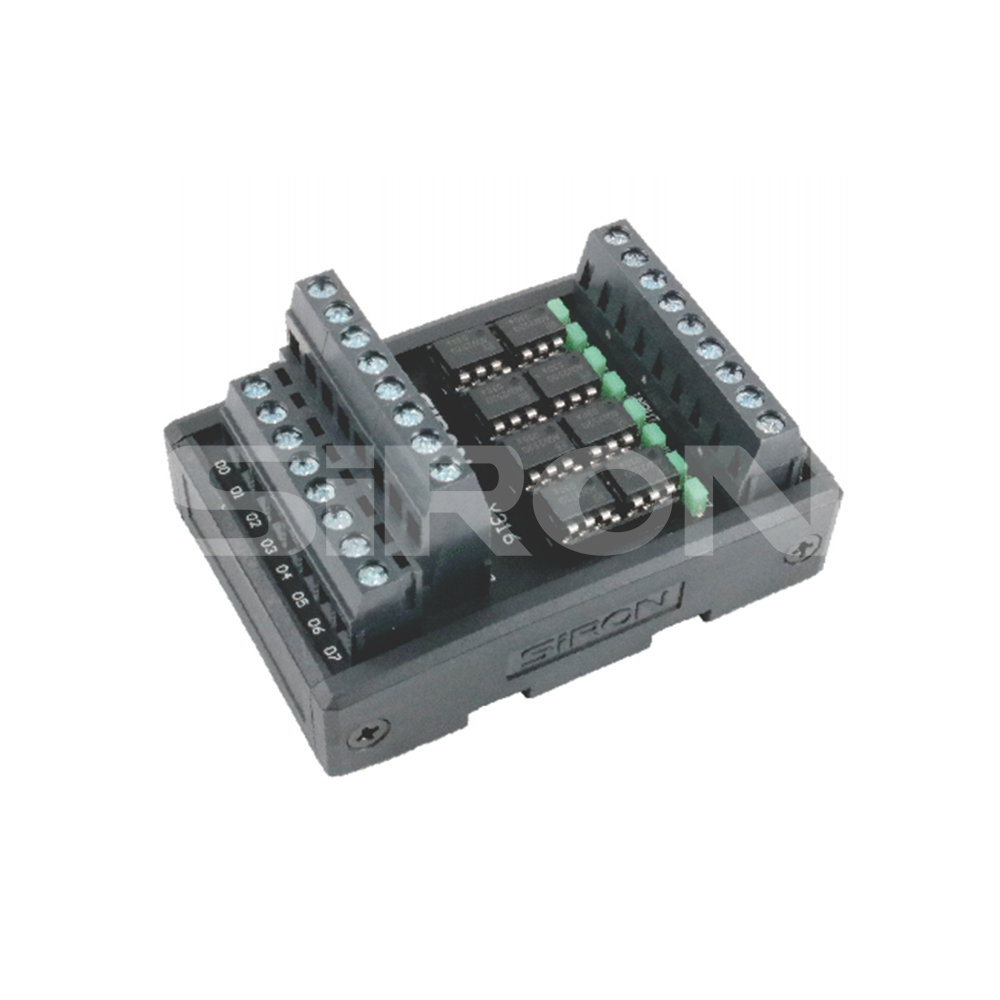

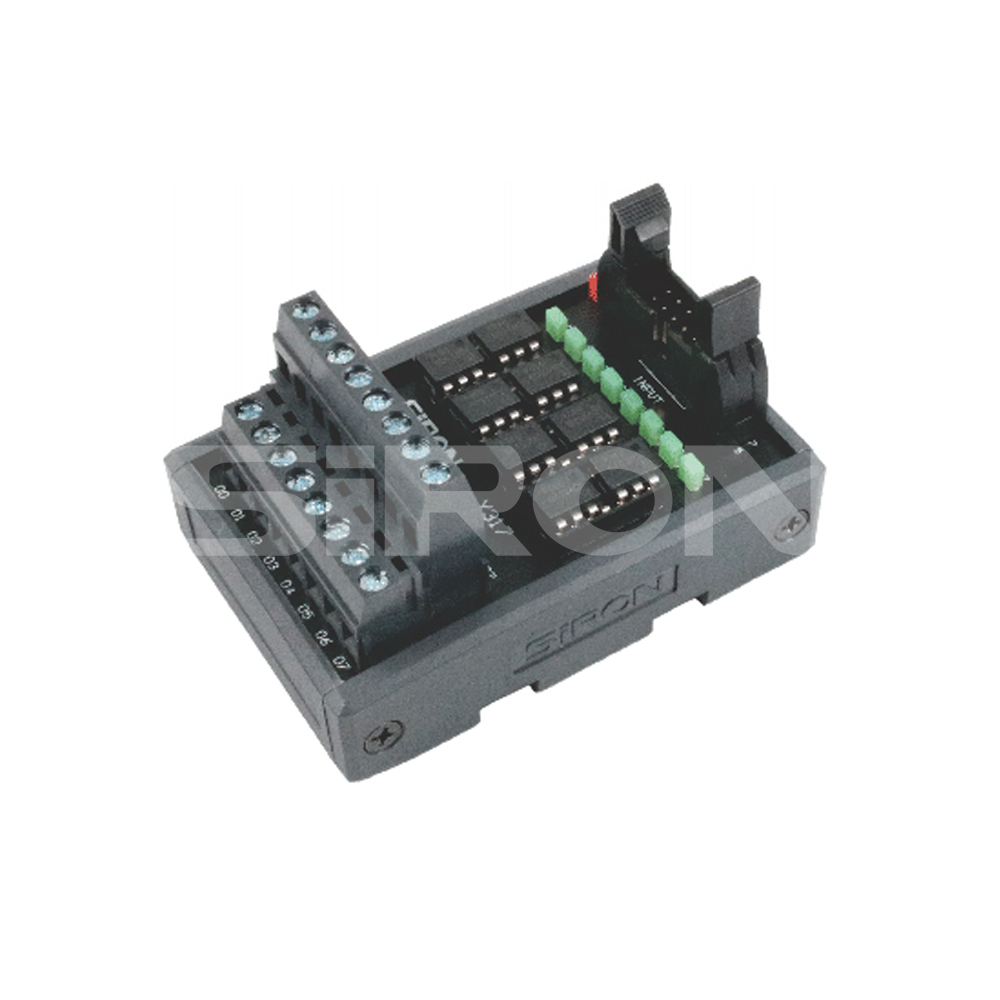

Name	4-bit DC solid-state Relay module	Input 5V DC solid State relay module	8-bit DC solid-state Relay module	8-bit DC solid-state Relay module

Note: The "-5V" model is controlled by an input 5V signal

Specifications

Input Side	Nominal coil voltage	24V DC
	Nominal operating current	5mA
	Maximum voltage rating	≤60V AC/DC
	Continuous working current	≤1A
	Instantaneous maximum current	1A
	The largest operating frequency	200HZ
	The maximum pressure drop(temperature-40~100℃)	0~0.8V
Exit Side	Insulation resistance	10⊃1;⊃2;Ω
	Isolation voltage	3750Vrms
	Conduction time(10~90%)	0.5ms
	Turn-off time(10~90%)	0.03ms
	Maximum temperature rise	100℃ ※1

Note: ※1When the body temperature of 100 ℃, disconnect the output signal from protection, temperature drop after the next trigger when conducting again.
