SiRON Y291-1L Series Intelligent Temperature Controller

Name: SiRON Y291-1L Series Intelligent Temperature Controller
Brand: SiRON
Rating: 5.0 (52 reviews)

Features

High-speed sampling, Al artificial intelligence adjustment algorithm, double PiD heating and cooling intelligent adjustment, AT
automatic calculation function;
16-bit MCu high-speed computing accuracy, dual digital display (Pv/sv), 100ms high-speed sampling rate and 0.5% display accuracy;
SSR driver output/relay output/current output optional, terminal type wiring: easy to connect and maintain,

Product Description

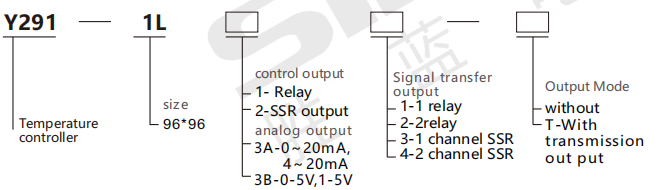

For Selection

5873a59e4ed8bce3651ad97c46382a31

Note: Analog output (3A, 3B) and output mode (T) cannot be selected simultaneously.

Product function

Rated voltage	100-240V AC,50Hz
Dimension	96*96
Power consumption	≤5VA
Working environment	Environmental humidity: 0℃-50℃ Relative humidity: 35%-85%RH(no condensation)
Storage temperature	-25℃-65℃(Avoid icing or condensation)
Resolution	1℃,0.1℃(Adjustable)
Connection mode	terminal blocks
Measurement accuracy	±0.5%FS
Installation environment	Installation type II, pollution level 2
Memory protection	Non-volatile RAM
Relay output	RELAY CONTACT OUTPUTAC220V/DC30V,3A
Logic level output	ON：DC24V;OFF：DC0.5VBelow; Maximum flow: 30mA, load resistance≥1K
