SiRON X92 Series 304 Stainless Steel Type A Shell

Name: SiRON X92 Series 304 Stainless Steel Type A Shell
Brand: SiRON
Rating: 5.0 (69 reviews)

Features

The bayonet and rivet adopt304 stainless steel, with pulley, metal elastic pressing;
The shell is fireproof and flame retardant,durable;
The shell thread is automatically operated by mechanization, the effect is fine, bright and accurate;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X920
Brand:
SiRON
Code:
8538900000

X92 Series Flame retardant material shell X92 Series Upper cover X92 Series Lower shell

Product Description

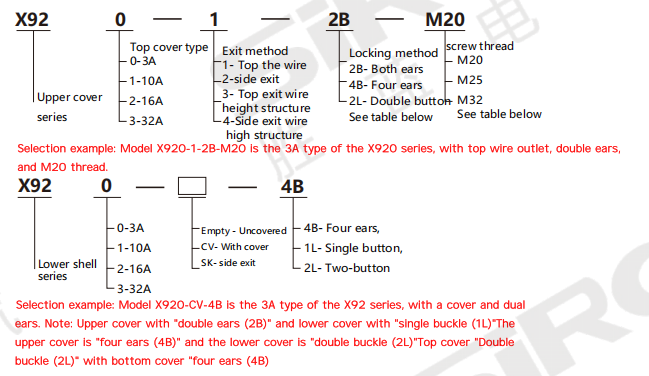

About selection

X92

Type selection reference

model

Match the lower cover

Specification

Wiring method

Missing button

Screw thread

X920-1-2B-M20

X920-1L X920-CV-1L X920-SK-1L

3A

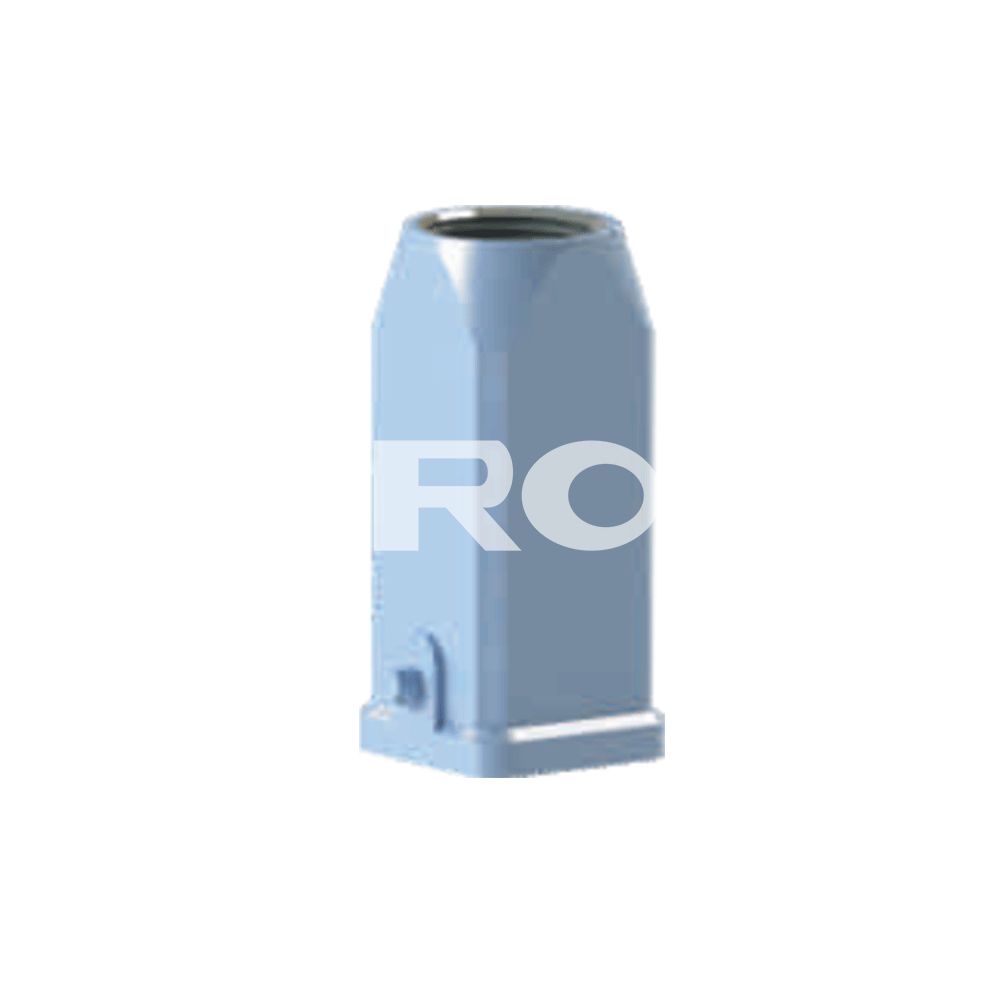

Top-out wire

Two ears

M20

X920-2-2B-M20

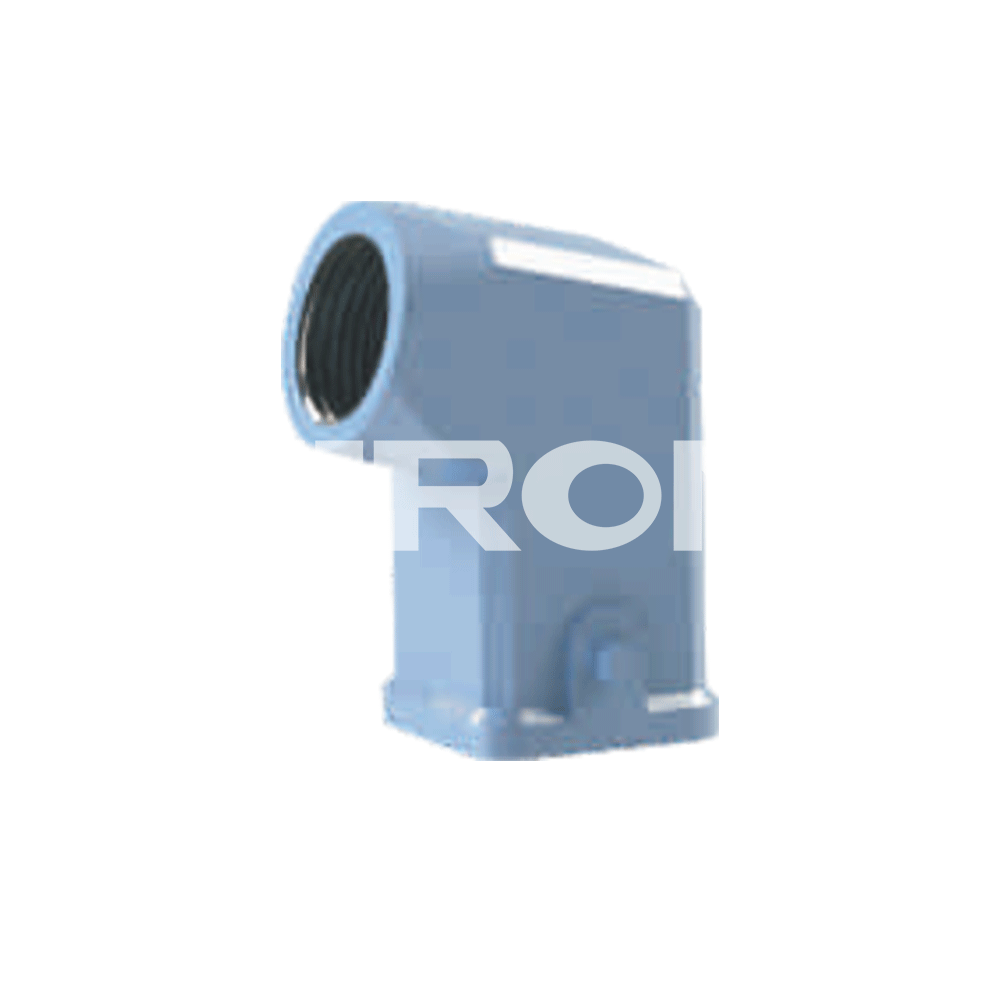

Lateral outlet wire

X921-1-2B-M20

X921-1L
X921-CV-1L

10A

Top wire

X921-2-2B-M20

Side-out wire

X921-3-2B-M25

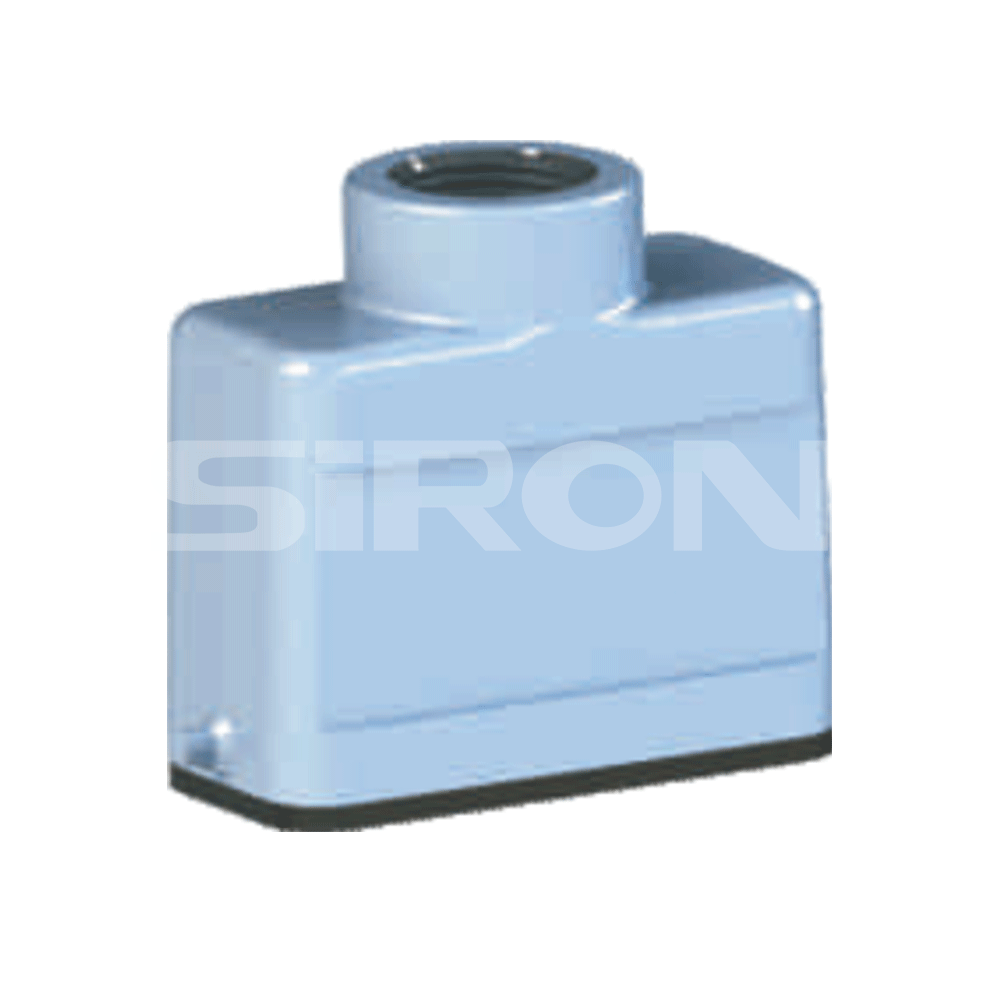

The top exit wire has a high structure

M25

X921-4-2B-M25

Side exit wire high structure

X922-1-2B-M20

X922-1L
X922-CV-1L

16A

Top-out wire

M20

X922-2-2B-M20

Lateral outlet wire

X922-3-2B-M25

The top exit wire has a high structure

M25

X922-4-2B-M25

Side exit wire high structure

X923-2-4B-M25

X923-2L

32A

Lateral outlet wire

Four ears

X923-2-2L-M25

X923-CV-4B

Two-button

X923-3-4B-M25/M32

X923-2L

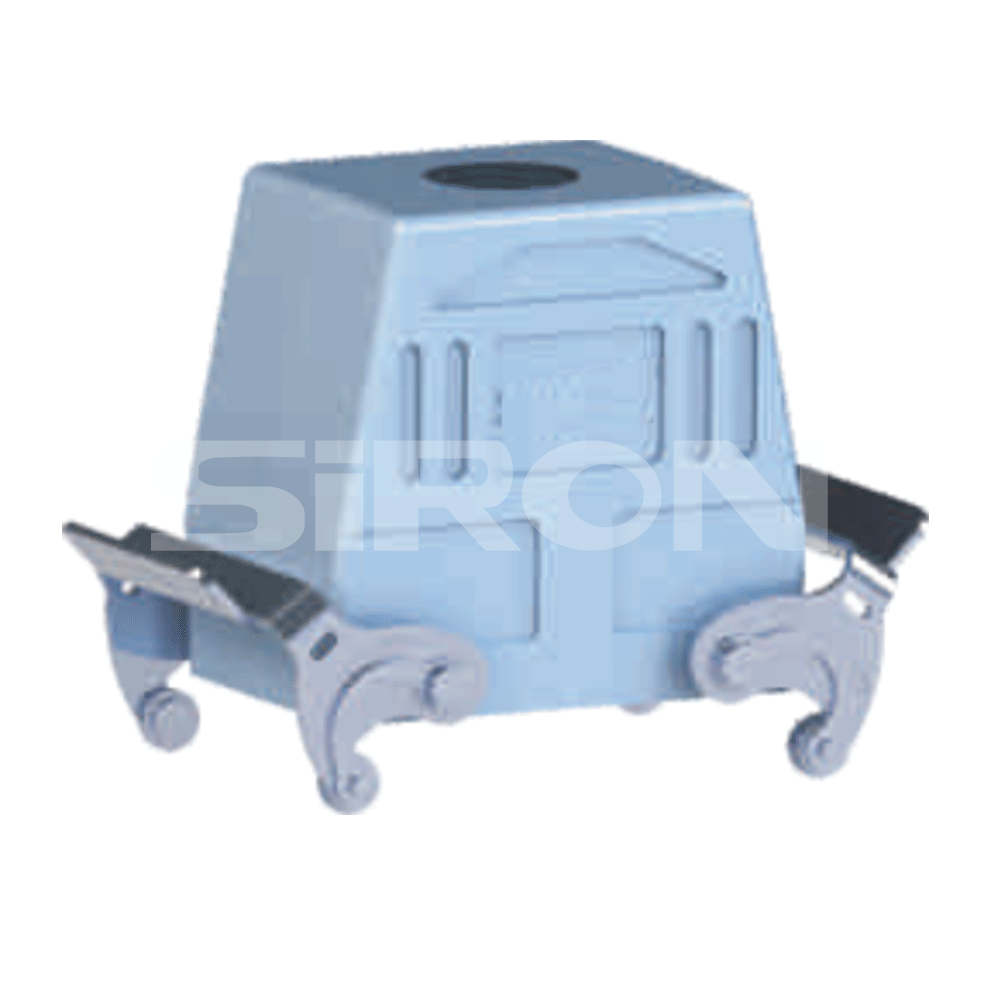

The top exit wire has a high structure

Four ears

M32

X923-3-2L-M25/M32

X923-CV-4B

Two-button

X923-4-4B-M25/M32

X923-2L

Side exit wire high structure

Four ears

X923-4-2L-M25/M32

X923-CV-4B

two-button

Supporting plastic cable connector

Material	Nylon
Seal	Buna-N rubber
Protection Level	IP68
Temperature range	Static state：-40℃~100℃ Dynamic state：-20C~80℃
Metric	M20×1.5	M25×1.5	M32×1.5	M40×1.5
Scope of bayonet	6-12	13-18	18-25	22-32
Thread diameter	20	25	32	40
Wrench size	24	32	42	52
Length of thread	9	11	11	12
