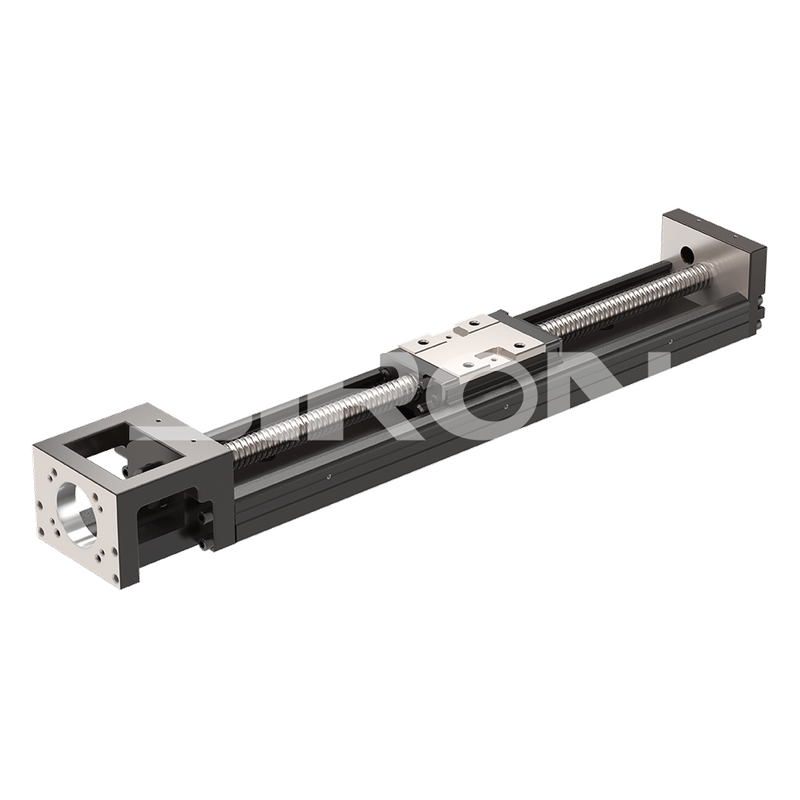

SiRON M369-60 Single Axis Slide Table

About selection

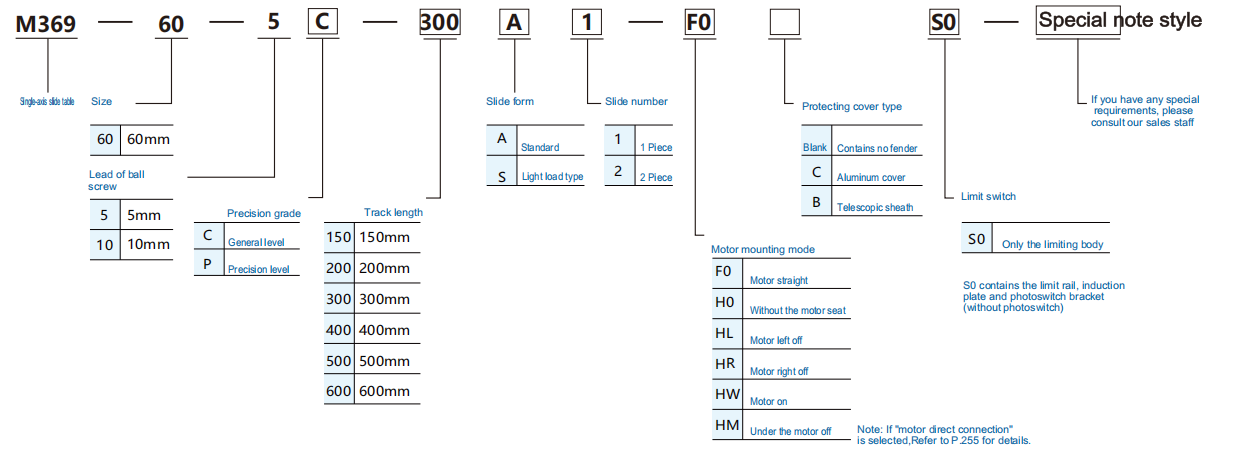

Selection example: M369-60-5C-300A1-F0S0: M369 series, size 60mm, lead 5mm, precision grade general, body length 300mm, standard sliding seat 1, motor direct connection, no cover, only limit body

Note: 1. When the length of the main body is 100mm, the number of sliding seats is only applicable to 1.

2. If you need the photoelectric switch, please order it separately

Product specification

Model					M369-60 series
Track length					150	200	300	400	500	600
Accuracy class	Reproducibility oflocalization	Precision			±0.003
		Generallevel			±0.01
	Positioning accuracy	Precision			±0.020
	Parallelism of walking	Precision			±0.010
	Maximum starting torque	Precision			15
		Generallevel			7
Maximum                speed	Lead of ball screw				05;10
	Speed	Precision			550(1100)*When the lead is 10mm, please refer to the parameters in "0" for details					340(670)
		Generallevel			390(790)					340(670)
Ball screw	Nominalouter diameter	Precision/General level			12
	Lead	Precision/General level			5(10)
	Basic dynamic load rating	Precision			3744(2410)
		General level			3377(2107)
	Basic static load rating	Precision			6243(3743)
		General level			5625(3234)
Load specification	Linear slide	Basic dynamic load rating	Precision/General level	Slide A	13230
				Slide S	7173
		Basic static load rating	Precision/General level	Slide A	21462
				Slide S	11574
		Allowable static moment	Tilt   M₂ (N-m)	Slide A1	152
				Slide A2	760
				Slide S1	72
				Slide S2	367
			Yaw M,(N-m)	Slide A1	152
				Slide A2	760
				Slide S1	72
				Slide S2	367
			Yaw Ma(N-m)	Slide A1	419
				Slide A2	838
				Slide S1	241
				Slide S2	482
Home sensor		Outside			K017-A6(optional)

Installation method

Load specification legend

Inductor wiring diagram

Dimensions

without cover

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideA1	Slide A2	SlideA1	Slide A2
150	220	25	100	2	2	60	/	1.5	/
200	270	50	100	2	2	110	/	1.8	/
300	370	50	200	3	2	210	135	2.4	2.7
400	470	50	100	4	4	310	235	3	3.3
500	570	50	200	5	3	410	335	3.6	3.9
600	670	50	100	6	6	510	435	4.2	4.6

L2(mm) Track length	L1(mm) Fullength	G(mm)	K(mm)	n	m	(mm)		(kg) Weight
						Maximum	stroke
						SlideA1	SlideA2	SlideA1	Slide A2
150	195	25	100	2	2	60	/	1.4	/
200	245	50	100	2	2	110	/	1.7	/
300	345	50	200	3	2	210	135	2.3	2.6
400	445	50	100	4	4	310	235	3.2	3.2
500	545	50	200	5	3	410	335	3.5	3.8
600	645	50	100	6	6	510	435	4.1	4.5

L2(mm) Track length	L1(mm)   Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideA1	Slide A2	Slide A1	Slide A2
150	216.7	25	100	2	2	60	/	1.4	/
200	266.7	50	100	2	2	110	/	1.7	/
300	366.7	50	200	3	2	210	135	2.3	2.6
400	466.7	50	100	4	4	310	235	3.2	3.2
500	566.7	50	200	5	3	410	335	3.5	3.8
600	666.7	50	100	6	6	510	435	4.1	4.5

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide A1	Slide A2	Slide A1	Slide A2
150	216.7	25	100	2	2	60	/	1.4	/
200	266.7	50	100	2	2	110	/	1.7	/
300	366.7	50	200	3	2	210	135	2.3	2.6
400	466.7	50	100	4	4	310	235	3.2	3.2
500	566.7	50	200	5	3	410	335	3.5	3.8
600	666.7	50	100	6	6	510	435	4.1	4.5

L 2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideA1	SlideA2	Slide A1	Slide A2
150	216.7	25	100	2	2	60	/	1.4	/
200	266.7	50	100	2	2	110	/	1.7	/
300	366.7	50	200	3	2	210	135	2.3	2.6
400	466.7	50	100	4	4	310	235	3.2	3.2
500	566.7	50	200	5	3	410	335	3.5	3.8
600	666.7	50	100	6	6	510	435	4.1	4.5

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideA1	Slide A2	Slide A1	SlideA2
150	216.7	25	100	2	2	60	/	1.4	/
200	266.7	50	100	2	2	110	/	1.7	/
300	366.7	50	200	3	2	210	135	2.3	2.6
400	466.7	50	100	4	4	310	235	3.2	3.2
500	566.7	50	200	5	3	410	335	3.5	3.8
600	666.7	50	100	6	6	510	435	4.1	4.5

with aluminum protective cover

L2(mm) Track length	L1(mm) Fullength	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideA1	Slide A2	Slide A1	Slide A2
150	220	25	100	2	2	60	/	1.7	/
200	270	50	100	2	2	110	/	2.1	/
300	370	50	200	3	2	210	135	2.7	3.0
400	470	50	100	4	4	310	235	3.3	3.6
500	570	50	200	5	3	410	335	3.9	4.2
600	670	50	100	6	6	510	435	4.6	5.0

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideA1	Slide A2	SlideA1	Slide A2
150	195	25	100	2	2	60	/	1.6	/
200	245	50	100	2	2	110	/	2.0	/
300	345	50	200	3	2	210	135	2.6	2.9
400	445	50	100	4	4	310	235	3.2	3.5
500	545	50	200	5	3	410	335	3.8	4.1
600	645	50	100	6	6	510	435	4.5	4.9

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideA1	Slide A2	SlideA1	Slide A2
150	216.7	25	100	2	2	60	/	1.6	/
200	266.7	50	100	2	2	110	/	2.0	/
300	366.7	50	200	3	2	210	135	2.6	2.9
400	466.7	50	100	4	4	310	235	3.2	3.5
500	566.7	50	200	5	3	410	335	3.8	4.1
600	666.7	50	100	6	6	510	435	4.5	4.9

L2(mm) Track length	L1(mm) Ful length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide A1	Slide A2	Slide A1	Slide A2
150	216.7	25	100	2	2	60	/	1.6	/
200	266.7	50	100	2	2	110	/	2.0	/
300	366.7	50	200	3	2	210	135	2.6	2.9
400	466.7	50	100	4	4	310	235	3.2	3.5
500	566.7	50	200	5	3	410	335	3.8	4.1
600	666.7	50	100	6	6	510	435	4.5	4.9

L2(mm) Track length	L1(mm) Ful length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide A1	Slide A2	Slide A1	Slide A2
150	216.7	25	100	2	2	60	/	1.6	/
200	266.7	50	100	2	2	110	/	2.0	/
300	366.7	50	200	3	2	210	135	2.6	2.9
400	466.7	50	100	4	4	310	235	3.2	3.5
500	566.7	50	200	5	3	410	335	3.8	4.1
600	666.7	50	100	6	6	510	435	4.5	4.9

L2(mm) Track length	L1(mm) Fullength	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideA1	Slide A2	Slide A1	Slide A2
150	216.7	25	100	2	2	60	/	1.6	/
200	266.7	50	100	2	2	110	/	2.0	/
300	366.7	50	200	3	2	210	135	2.6	2.9
400	466.7	50	100	4	4	310	235	3.2	3.5
500	566.7	50	200	5	3	410	335	3.8	4.1
600	666.7	50	100	6	6	510	435	4.5	4.9

with telescopic protective cover

L2(mm)  Track length	L1(mm) Full length	Joumey	G(mm)	K(mm)	n	m	Sheath expansion		Weight
							Minimum expansion	Maximum expansion
150	220	50	25	100	2	2	13	66	1.7
200	270	90	50	100	2	2	19.5	110	2.1
300	370	160	50	200	3	2	35	195	2.7
400	470	230	50	100	4	4	49.5	278	3.3
500	570	310	50	200	5	3	59.5	370	3.9
600	670	380	50	100	6	6	75	455	4.6

L2(mm) Track length	L1(mm) Fullength	Journey	G(mm)	K(mm)	n	m	Sheathexpansion		Weight
							Minimum expansion	Maximum expansion
150	195	50	25	100	2	2	13	66	1.6
200	245	90	50	100	2	2	19.5	110	2.0
300	345	160	50	200	3	2	35	195	2.6
400	445	230	50	100	4	4	49.5	278	3.2
500	545	310	50	200	5	3	59.5	370	3.8
600	645	380	50	100	6	6	75	455	4.5

L2(mm) Track length	L1(mm) Full length	Journey	G(mm)	K(mm)	n	m	h Sheath expansion		Weight
							Minimum expansior	Maximum expansio
150	261.7	50	25	100	2	2	13	66	1.6
200	266.7	90	50	100	2	2	19.5	110	2.0
300	366.7	160	50	200	3	2	35	195	2.6
400	466.7	230	50	100	4	4	49.5	278	3.2
500	566.7	310	50	200	5	3	59.5	370	3.8
600	666.7	380	50	100	6	6	75	455	4.5

L2(mm) Track length	L1(mm) Full length	Journey	G(mm)	K(mm)	n	m	Sheath expansion		Weight b
							Minimum expansior	Maximum expansio
150	261.7	50	25	100	2	2	13	66	1.6
200	266.7	90	50	100	2	2	19.5	110	2.0
300	366.7	160	50	200	3	2	35	195	2.6
400	466.7	230	50	100	4	4	49.5	278	3.2
500	566.7	310	50	200	5	3	59.5	370	3.8
600	666.7	380	50	100	6	6	75	455	4.5

L2(mm) Track length	L1(mm) Ful length	Joumey	G(mm)	K(mm)	n	m	Sheath expansion		Weight
							Minimum expansion	Maximum expansior
150	261.7	50	25	100	2	2	13	66	1.6
200	266.7	90	50	100	2	2	19.5	110	2.0
300	366.7	160	50	200	3	2	35	195	2.6
400	466.7	230	50	100	4	4	49.5	278	3.2
500	566.7	310	50	200	5	3	59.5	370	3.8
600	666.7	380	50	100	6	6	75	455	4.5

L2(mm) Track length	L1(mm) Full length	Journey	G(mm)	K(mm)	n	m	Sheath expansion		Weight
							Minimum expansion	Maximum expansion
150	261.7	50	25	100	2	2	13	66	1.6
200	266.7	90	50	100	2	2	19.5	110	2.0
300	366.7	160	50	200	3	2	35	195	2.6
400	466.7	230	50	100	4	4	49.5	278	3.2
500	566.7	310	50	200	5	3	59.5	370	3.8
600	666.7	380	50	100	6	6	75	455	4.5

Light-load type slide seat without cover

L2(mm) Track length	L1(mm)   Ful ength	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide S1	Slide S2	Slide S1	Slide S2
150	220	25	100	2	2	85	34	1.4	1.6
200	270	50	100	2	2	135	84	1.7	1.9
300	370	50	200	3	2	235	184	2.3	2.5
400	470	50	100	4	4	335	284	2.9	3.1
500	570	50	200	5	3	435	384	3.5	3.7
600	670	50	100	6	6	535	484	4.1	4.3

L2(mm) Track length	L1(mm) Ful length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideS1	Slide S2	Slide S1	Slide S2
150	195	25	100	2	2	85	34	1.3	1.5
200	245	50	100	2	2	135	84	1.6	1.8
300	345	50	200	3	2	235	184	2.2	2.4
400	445	50	100	4	4	335	284	2.8	3.0
500	545	50	200	5	3	435	384	3.4	3.6
600	645	50	100	6	6	535	484	4.0	4.2

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideS1	Slide S2	Slide S1	Slide S2
150	216.7	25	100	2	2	85	34	1.3	1.5
200	266.7	50	100	2	2	135	84	1.6	1.8
300	366.7	50	200	3	2	235	184	2.2	2.4
400	466.7	50	100	4	4	335	284	2.8	3.0
500	566.7	50	200	5	3	435	384	3.4	3.6
600	666.7	50	100	6	6	535	484	4.0	4.2

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide S1	Slide S2	Slide S1	Slide S2
150	216.7	25	100	2	2	85	34	1.3	1.5
200	266.7	50	100	2	2	135	84	1.6	1.8
300	366.7	50	200	3	2	235	184	2.2	2.4
400	466.7	50	100	4	4	335	284	2.8	3.0
500	566.7	50	200	5	3	435	384	3.4	3.6
600	666.7	50	100	6	6	535	484	4.0	4.2

L2(mm) Track length	L1(mm) Fullength	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide S1	Slide S2	SlideS1	Slide S2
150	216.7	25	100	2	2	85	34	1.3	1.5
200	266.7	50	100	2	2	135	84	1.6	1.8
300	366.7	50	200	3	2	235	184	2.2	2.4
400	466.7	50	100	4	4	335	284	2.8	3.0
500	566.7	50	200	5	3	435	384	3.4	3.6
600	666.7	50	100	6	6	535	484	4.0	4.2

L2(mm) Track length	L1(mm) Fullength	G(mm)	K(mm)	n	m	Maximum stroke		g) Weight
						Slide S1	Slide S2	Slide S1	SlideS2
150	216.7	25	100	2	2	85	34	1.3	1.5
200	266.7	50	100	2	2	135	84	1.6	1.8
300	366.7	50	200	3	2	235	184	2.2	2.4
400	466.7	50	100	4	4	335	284	2.8	3.0
500	566.7	50	200	5	3	435	384	3.4	3.6
600	666.7	50	100	6	6	535	484	4.0	4.2

Light-load type slide seat with aluminum cover

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideS1	Slide S2	Slide S1	Slide S2
150	195	25	100	2	2	85	34	1.5	1.7
200	245	50	100	2	2	135	84	1.8	2.0
300	345	50	200	3	2	235	184	2.4	2.6
400	445	50	100	4	4	335	284	3.0	3.2
500	545	50	200	5	3	435	384	3.6	3.8
600	645	50	100	6	6	535	484	4.2	4.7

L2(mm)  Tracklength	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide S1	Slide S2	Slide S1	Slide S2
150	220	25	100	2	2	85	34	1.6	1.8
200	270	50	100	2	2	135	84	1.9	2.1
300	370	50	200	3	2	235	184	2.5	2.7
400	470	50	100	4	4	335	284	3.1	3.3
500	570	50	200	5	3	435	384	3.7	3.9
600	670	50	100	6	6	535	484	4.4	4.6

L2(mm) Track length	L1(mm) Ful length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide S1	Slide S2	Slide S1	SlideS2
150	216.7	25	100	2	2	85	34	1.5	1.7
200	266.7	50	100	2	2	135	84	1.8	2.0
300	366.7	50	200	3	2	235	184	2.4	2.6
400	466.7	50	100	4	4	335	284	3.0	3.2
500	566.7	50	200	5	3	435	384	3.6	3.8
600	666.7	50	100	6	6	535	484	4.2	4.7

L2(mm) Tracklength	L1(mm) Fullength	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide S1	Slide S2	Slide S1	Slide S2
150	216.7	25	100	2	2	85	34	1.5	1.7
200	266.7	50	100	2	2	135	84	1.8	2.0
300	366.7	50	200	3	2	235	184	2.4	2.6
400	466.7	50	100	4	4	335	284	3.0	3.2
500	566.7	50	200	5	3	435	384	3.6	3.8
600	666.7	50	100	6	6	535	484	4.2	4.7

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						SlideS1	Slide S2	Slide S1	Slide S2
150	216.7	25	100	2	2	85	34	1.5	1.7
200	266.7	50	100	2	2	135	84	1.8	2.0
300	366.7	50	200	3	2	235	184	2.4	2.6
400	466.7	50	100	4	4	335	284	3.0	3.2
500	566.7	50	200	5	3	435	384	3.6	3.8
600	666.7	50	100	6	6	535	484	4.2	4.7

L2(mm) Track length	L1(mm) Full length	G(mm)	K(mm)	n	m	Maximum stroke		Weight
						Slide S1	Slide S2	Slide S1	Slide S2
150	216.7	25	100	2	2	85	34	1.5	1.7
200	266.7	50	100	2	2	135	84	1.8	2.0
300	366.7	50	200	3	2	235	184	2.4	2.6
400	466.7	50	100	4	4	335	284	3.0	3.2
500	566.7	50	200	5	3	435	384	3.6	3.8
600	666.7	50	100	6	6	535	484	4.2	4.7

Light-load type slide seat with telescopic protective cover

L2(mm) Track length	L1(mm) Fullength	(mm) Journey	G(mm)	K(mm)	n	m	Sheath expansion		Weight h
							Minimum expansior	Maximum expansio
150	220	70	25	100	2	2	16	86	1.6
200	270	115	50	100	2	2	23.5	128	1.9
300	370	180	50	200	3	2	36	216	2.5
400	470	250	50	100	4	4	51	301	3.1
500	570	330	50	200	5	3	61	391	3.7
600	670	400	50	100	6	6	78	476	4.3

L2(mm) Track length	L1(mm) Fullength	Journey	G(mm)	K(mm)	n	m	Sheath expansion		Weight h
							Minimum expansior	Maximum expansio
150	195	70	25	100	2	2	16	86	1.5
200	245	115	50	100	2	2	23.5	128	1.8
300	345	180	50	200	3	2	36	216	2.4
400	445	250	50	100	4	4	51	301	3.0
500	545	330	50	200	5	3	61	391	3.6
600	645	400	50	100	6	6	78	476	4.2

L2(mm) Track length	L1(mm) Fulllength	Journey	G(mm)	K(mm)	n	m	Sheathexpansion		Weight
							Minimum expansion	Maximum expansion
150	261.7	70	25	100	2	2	16	86	1.6
200	266.7	115	50	100	2	2	23.5	128	2.0
300	366.7	180	50	200	3	2	36	216	2.6
400	466.7	250	50	100	4	4	51	301	3.2
500	566.7	330	50	200	5	3	61	391	3.8
600	666.7	400	50	100	6	6	78	476	4.5

L2(mm) Track length	L1(mm) Fullength	Journey	G(mm)	K(mm)	n	m	Sheathexpansion		Weight
							Minimum expansion	Maximum expansion
150	261.7	70	25	100	2	2	16	86	1.6
200	266.7	115	50	100	2	2	23.5	128	2.0
300	366.7	180	50	200	3	2	36	216	2.6
400	466.7	250	50	100	4	4	51	301	3.2
500	566.7	330	50	200	5	3	61	391	3.8
600	666.7	400	50	100	6	6	78	476	4.5

L2(mm) Track length	L1(mm)   Fullength	Journey	G(mm)	K(mm)	n	m	Sheath expansion		Weight h
							Minimum expansion	Maximum expansio
150	261.7	70	25	100	2	2	16	86	1.6
200	266.7	115	50	100	2	2	23.5	128	2.0
300	366.7	180	50	200	3	2	36	216	2.6
400	466.7	250	50	100	4	4	51	301	3.2
500	566.7	330	50	200	5	3	61	391	3.8
600	666.7	400	50	100	6	6	78	476	4.5

L2(mm) Track length	L1(mm) Ful length	Journey	G(mm)	K(mm)	n	m	Sheath expansion		Weight
							Minimum expansior	Maximum expansio
150	261.7	70	25	100	2	2	16	86	1.6
200	266.7	115	50	100	2	2	23.5	128	2.0
300	366.7	180	50	200	3	2	36	216	2.6
400	466.7	250	50	100	4	4	51	301	3.2
500	566.7	330	50	200	5	3	61	391	3.8
600	666.7	400	50	100	6	6	78	476	4.5

Motor connection support
