SiRON T11 IP20 EtherCAT Bus Module

Name: SiRON T11 IP20 EtherCAT Bus Module
Brand: SiRON
Rating: 5.0 (72 reviews)

Features

Protection grade lp20;
Integrated l/O,EtherCAT bus, small size 80x75x38mm;
Small footprint, fast speed, fast wiring, pluggable wiring terminals;
Simple configuration, suitable for most manufacturers' master stations such as Omron and Inovance.

Quantity:
Availability:





Inquire Add to Basket

Model:
T11
Brand:
SiRON
Code:
8471800000

spring terminal EtherCAT bus module MIL plug EtherCAT bus module Compact EtherCAT bus module IP20 EtherCAT bus module

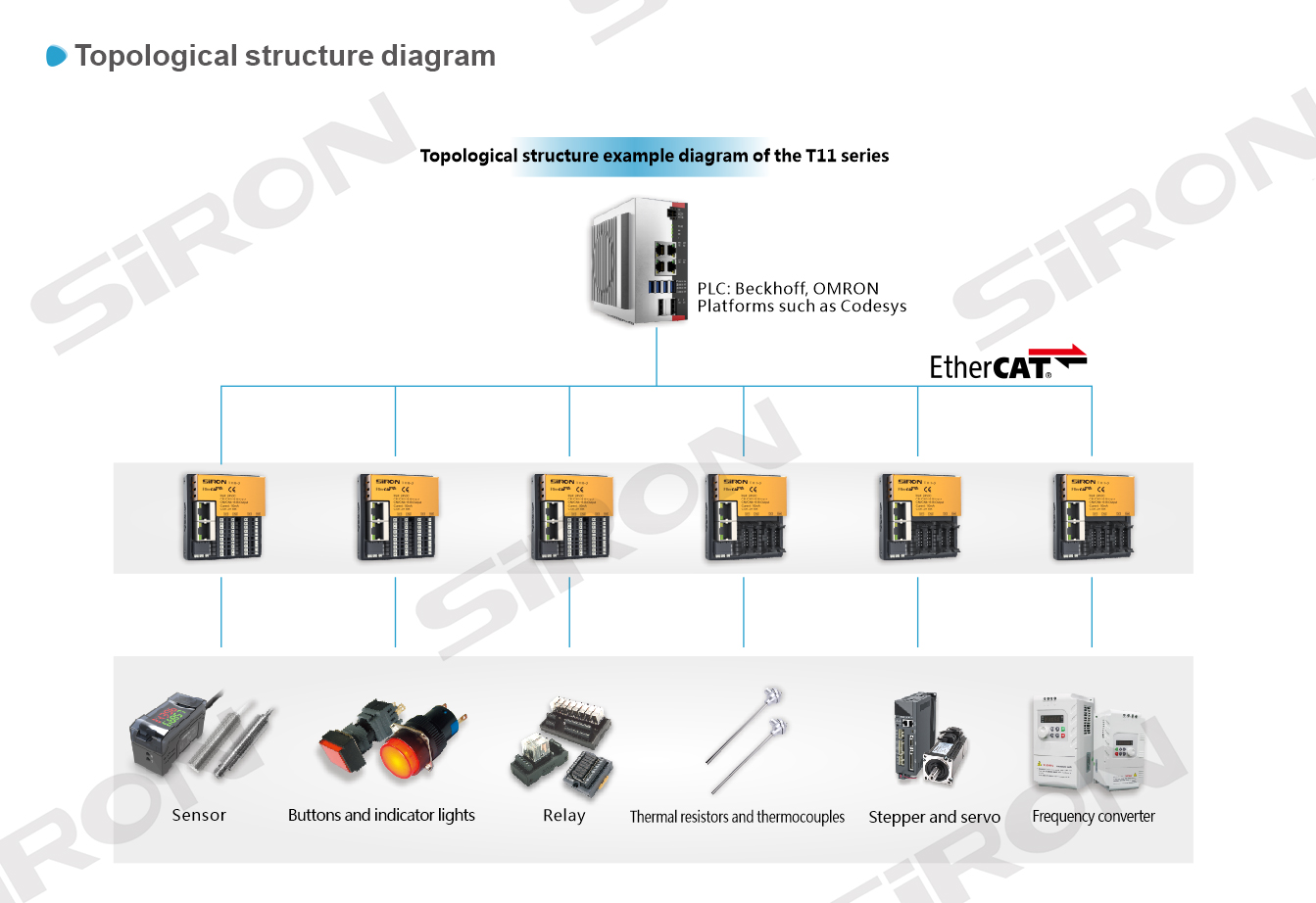

Product Description

About selection

企业微信截图_17544592331526

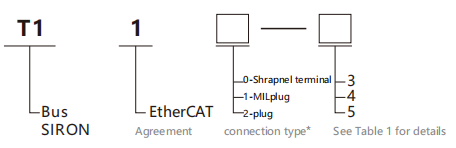

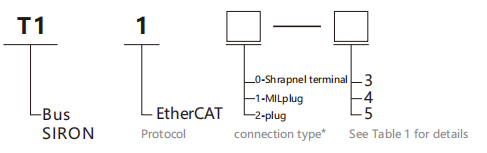

Selection example: T110-3 indicates T1 second-generation bus module, the protocol is EtherCAT, the connection mode is shrapnel terminal, and the input/output characteristics are: 16-channel digital input and 16-channel digital output. Note * : The connection method of the plug is still under development and is not on the market.

Table 1: Input/output characteristics

Code	Enter	Output
3	16 channels digital input	16 channels digital output
4	32 channels digital input	0 channels digital output
5	0 channel digital input	32 channels digital output
6	8-channel analog input(0-10V)	0 channels analog output
7	8 channel analog input(0-20mA)	0 channel analog output
8	0 channel analog input	8-channel analog output(0-10V)
9	0 channel analog input	8-channel analog output(0-20mA)

Specifications

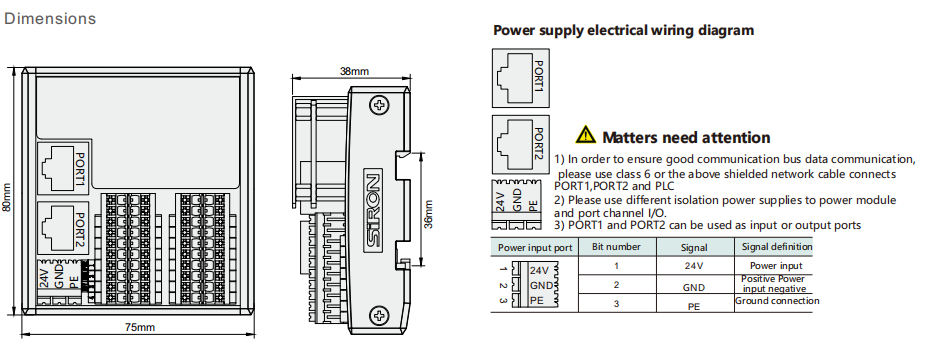

Rated voltage	24V DC(12～30V)
Current consumption	60mA

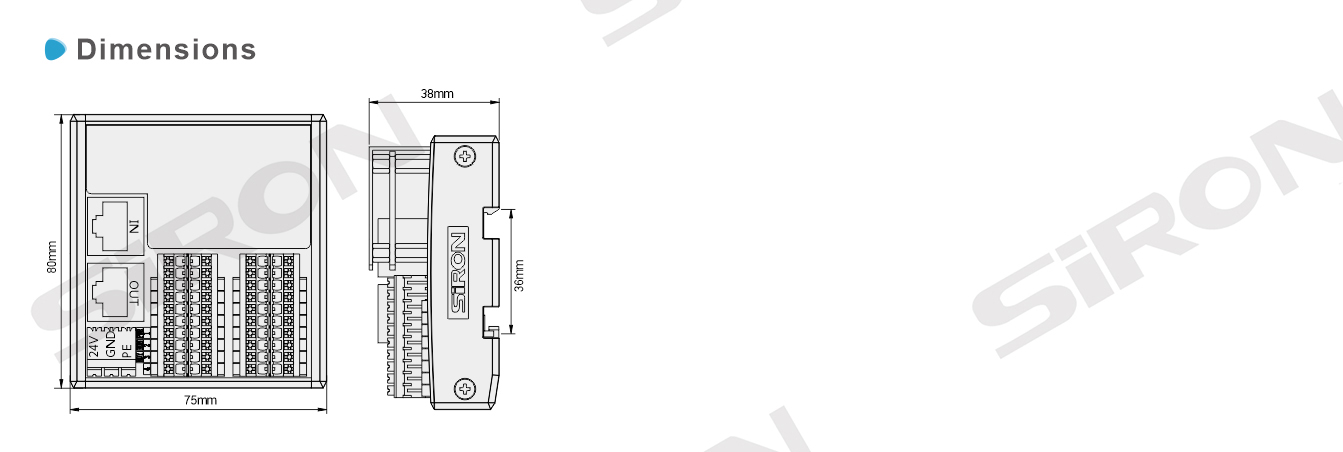

Size	80×75×38mm
Protection grade	IP20
Working temperature	-20～60℃
Storage temperature	-20～75℃
Relative humidity	95%,No condensation
Weight	130g

Digital input and output module

Model	Specification Description

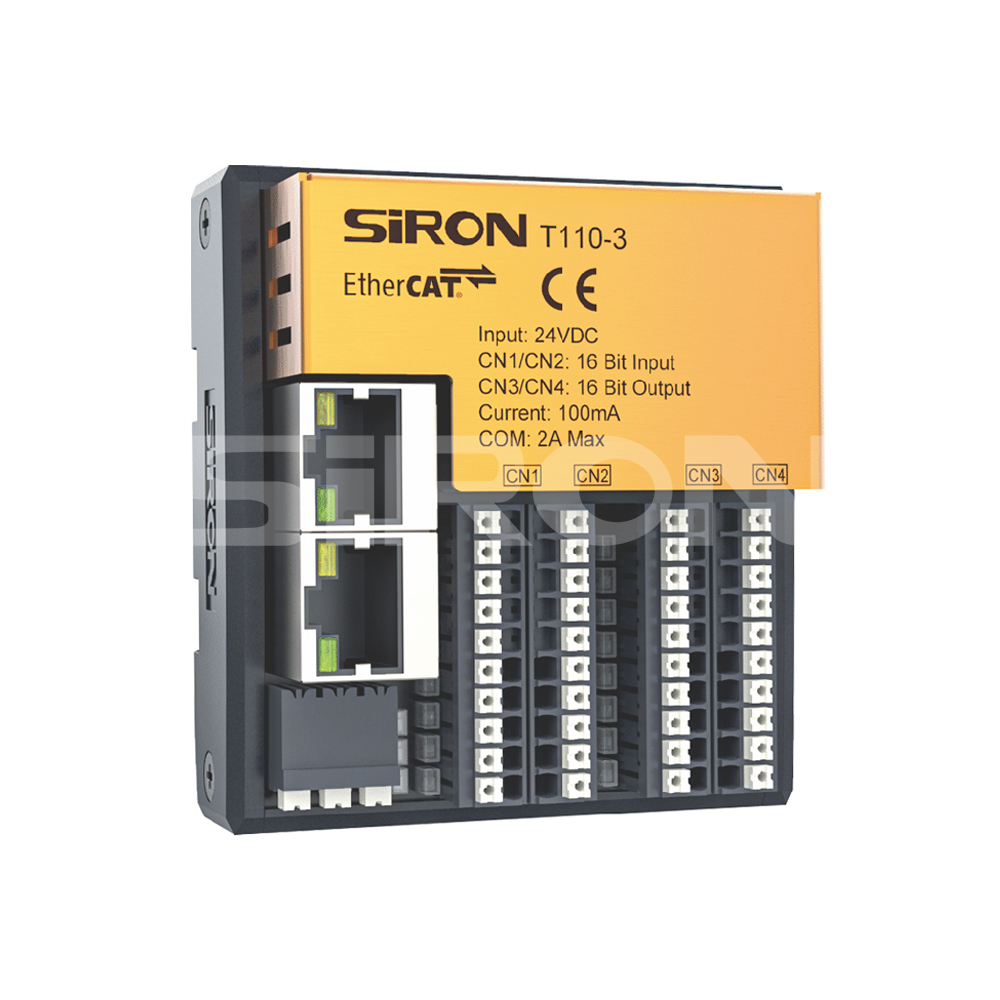

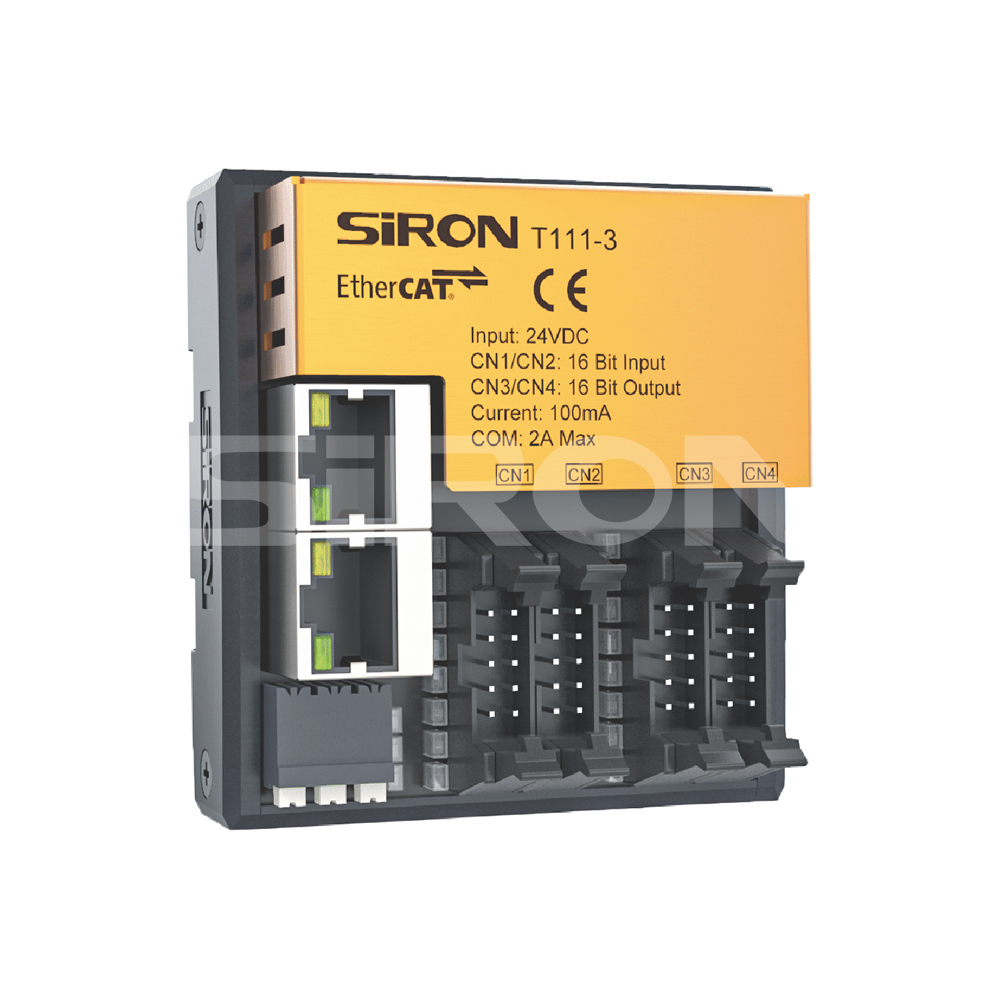

T110-3/T111-3	16 inputs(NPN&PNP-compatible)and 16 outputs(NPN)
T110-3P	16 inputs(NPN&PNP-compatible)and 16 outputs(PNP)
T110-4/T111-4	32 inputs(NPN&PNP-compatible)and 0 outputs

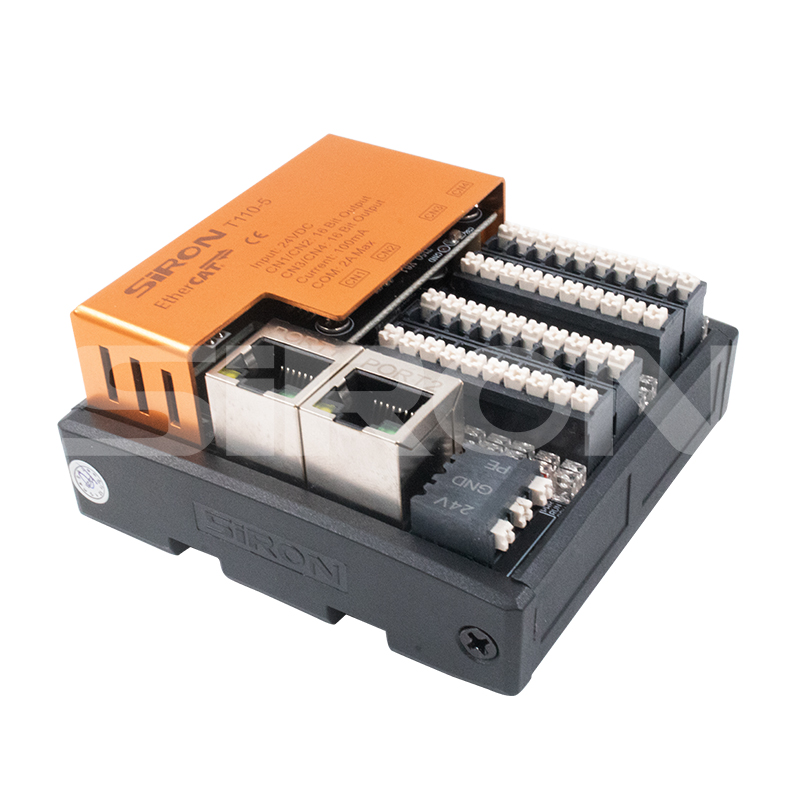

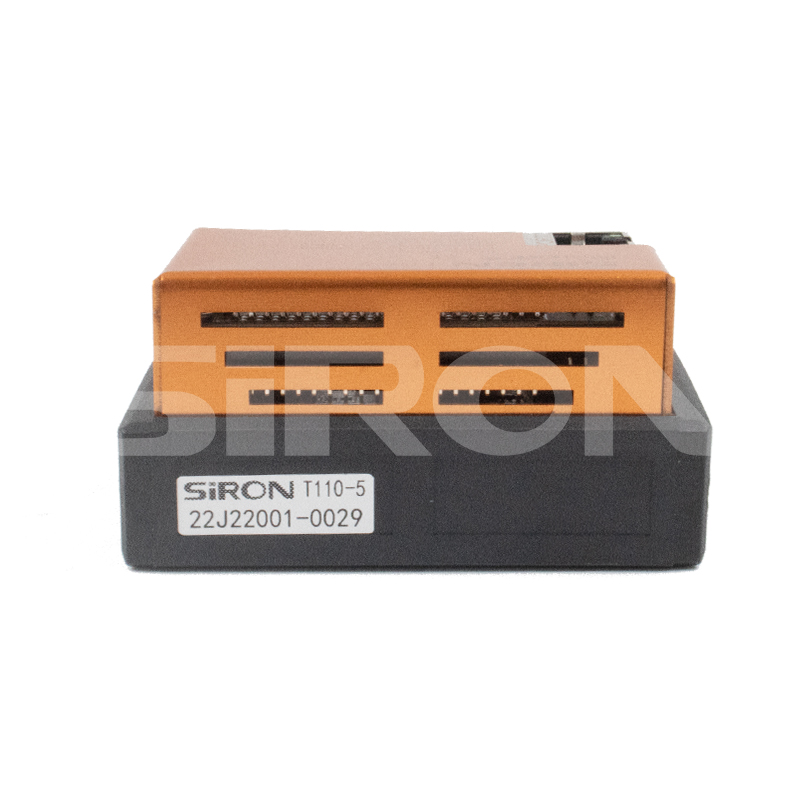

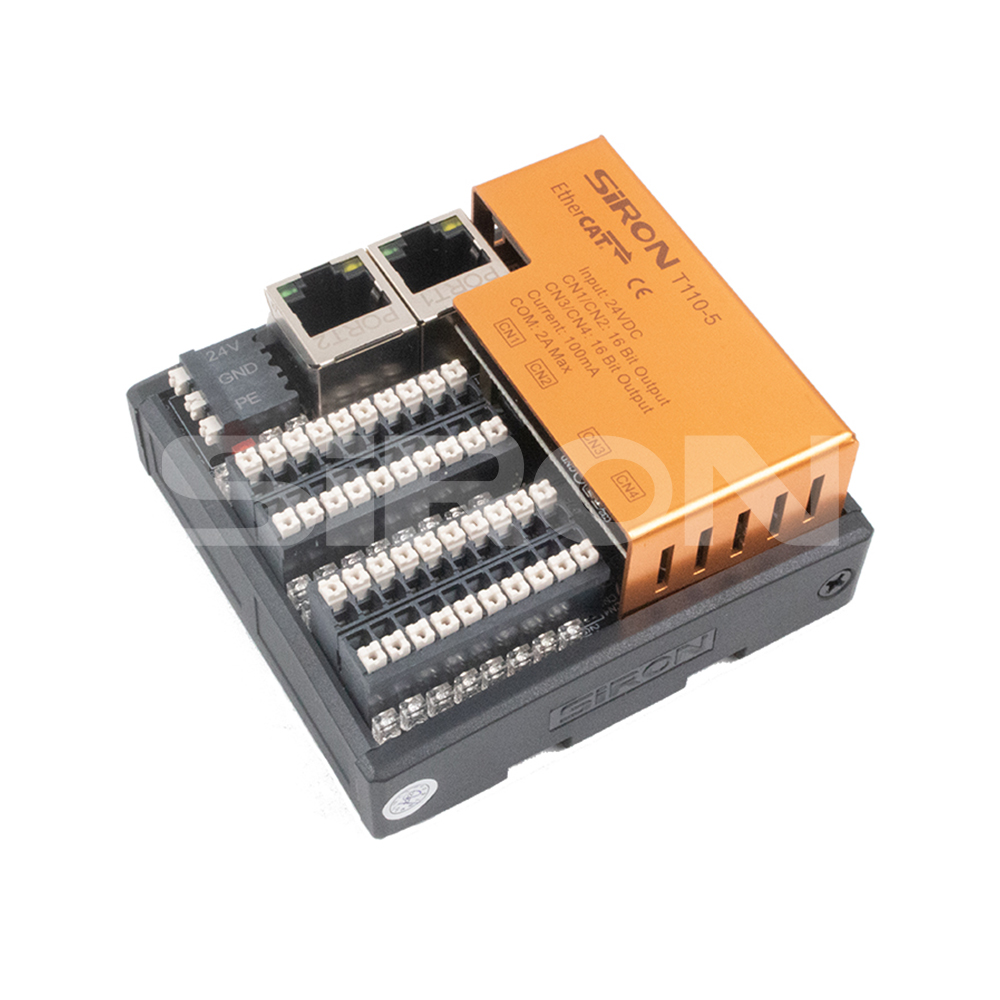

T110-5/T111-5	0 input and 32 output(NPN)
T110-5P	0 input and 32 output(PNP)

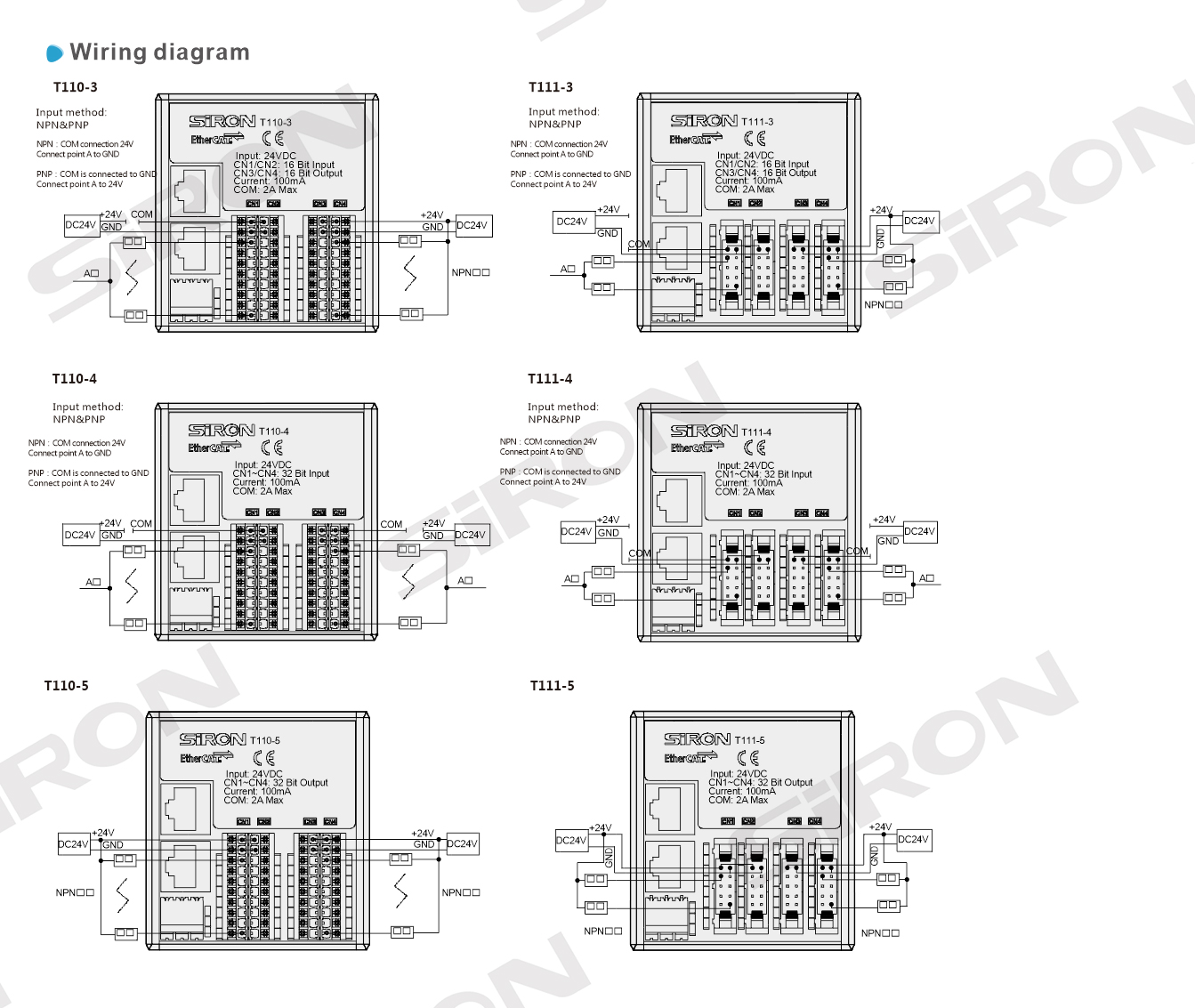

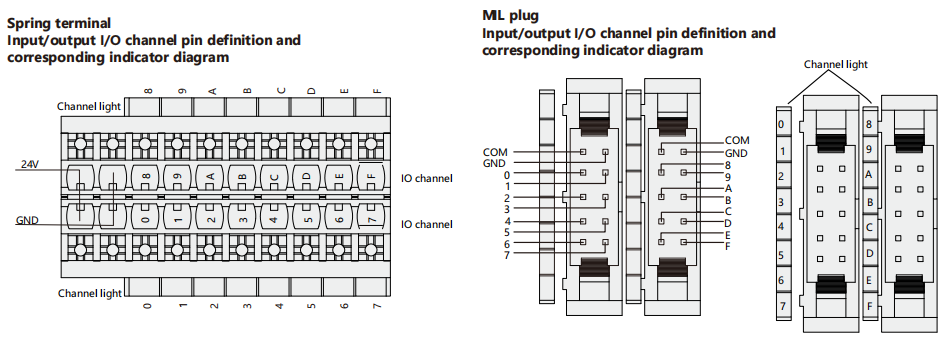

Note: When the input common end is connected to a 24V high level, the effective level of the channel input is NPN; When the input common end is connected to GND, the effective level of the channel input is PNP.

Communication bus interface

EtherCATEthernet interface	Interface	Signal	Signal definition
	1	TX+	Data sending positive end
	2	TX-	Data sending negative end
	3	RX+	receiving positive end
	4	/	/
	5	/	/
	6	RX-	Data receiving negative end
	7	/	/
	8	/	/
	Connector housing	PE	Chassis ground

Input module parameters

Interface parameters	Digital input
Signal type	NPN	PNP
Rated level	0V DC	24V DC
"1"signal level	0~5VDC	15~30VDC
"0"signal level	15~30VDC	0~5VDC
S ingle channel current	5mA(MAX)	5mA(MAX)
Port protection	Overvoltage impact protection	Overvoltage impact protection
Electrical isolation	Optocoupler isolation	Optocoupler isolation
Isolation voltage	AC 500V	AC 500V
Signal indication	Green LED light	Green LED light

Output module parameters

Interface parameters	Transistor output
Signal type	NPN	PNP
Effective signal level	<1.5V	15~30VDC
Single channel rated current1	rated:0.1A,MAX:0.15A	rated:0.1A,MAX:0.15A
Port protection	Overvoltage	Overvoltage
Electrical isolation	Optocoupler isolation	Optocoupler isolation
Isolation voltage	AC 500V	AC 500V
Signal indication	Green LED light	Green LED light
