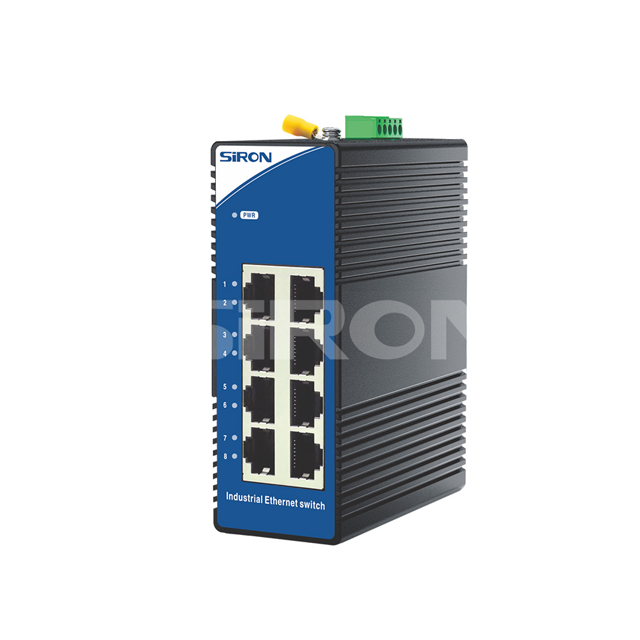

SiRON T380-13-C 8-Port Unmanaged 100Mbps Industrial Switch

Name: SiRON T380-13-C 8-Port Unmanaged 100Mbps Industrial Switch
Brand: SiRON
Rating: 5.0 (77 reviews)

Features
● Provide 8 10/100/1000Mbps electrical ports, EMC industrial level 4 electromagnetic anti-interference.
● Support dual power supply redundancy backup, reverse protection input power supply.
● Support IP40 protection class, fanless design, aluminum alloy metal housing, DIN rail mounting/wall mounting.
● Support wide temperature design -40℃ ~ 85℃ to meet harsh environment application requirements.

Quantity:
Availability:





Inquire Add to Basket

Model:
T380-13-C
Brand:
SiRON
Code:
8428909090

8-port Industrial Switch unmanaged industrial switch 100Mbps Industrial Switch IP40 industrial switch

Product Description

Selection reference

Model	T380-13-C
Electrical interface	8
Speed	Gibagit
Power source	DC12-52V
Port description	8x10/100/1000Mbps RJ45port

Specification

Rj45port		10/100/1000BaseT (X)automatic detection;Ful/half-duplex MDI/MDI-X adaptive
Network protocol		EEE802.3-CSMA/CD;IEEE802.3i-10Base-T; EEE802.3u-100Base-TX/FX;IEEE802.3x-Flow Control; EEE802.3z-1000Base-X;IEEE802.3ab-1000Base-T;
Access terminal		Phoenix Terminal
Mean time between failures		300,000 hours
Switch properties	Backplane bandwidth	16Gbps	Mechanical characteristic	Shell	P40 protection grade,metal casing
	Application level	Two layers		Install	DIN card rail type,wall-mounted type
	Packet forwarding rate of the system	11.904Mpps		Heat dissipation mode	Install natural cooling,fanless
	MAC table	8K	Working environment	Operating temperature	-40~85°℃(-40~185°F)
	Packet buffer	2M		Storage temperature	-40~85℃(-40~185°F)
	Delay time	<3μs		Relative humidity	5%~95%(without condensation)
	Switching mode	Storage -Forwarding	LED index	Power indicator light	PWR
	Overall power consumption	<3W	LED index	Interface indicator	Electrical interface(Link/ACT)

Industry standard

EMI:
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
EC(EN)61000-4-2(ESD):±8kV(contact),±15kV(air)
EC(EN)61000-4-3(RS):10V/m(80～1000MHz)
IEC(EN)61000-4-4(EFT):Power Port:±4kV;Data Port:±2kV
EC(EN)61000-4-5(Surge):Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
IEC61000-4-6(CS):10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EM):30V cont.300V,1s
EC 60068-2-27(Shock)/IEC 60068-2-32(Freefall)/IEC 60068-2-6(Vibration)
