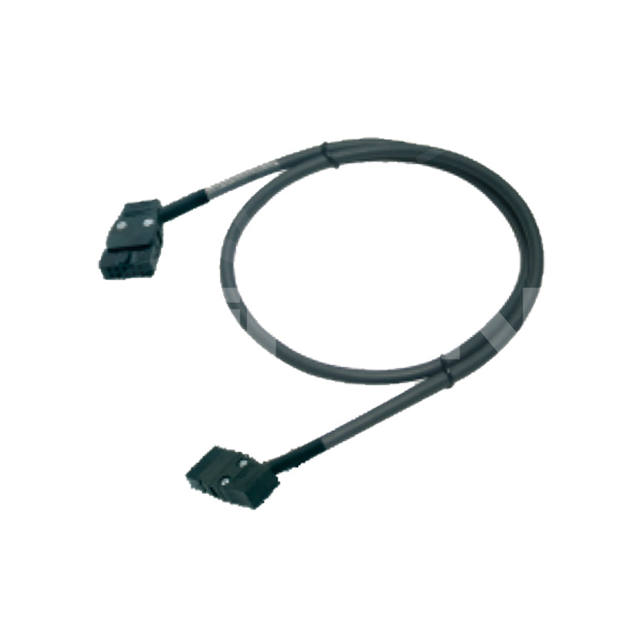

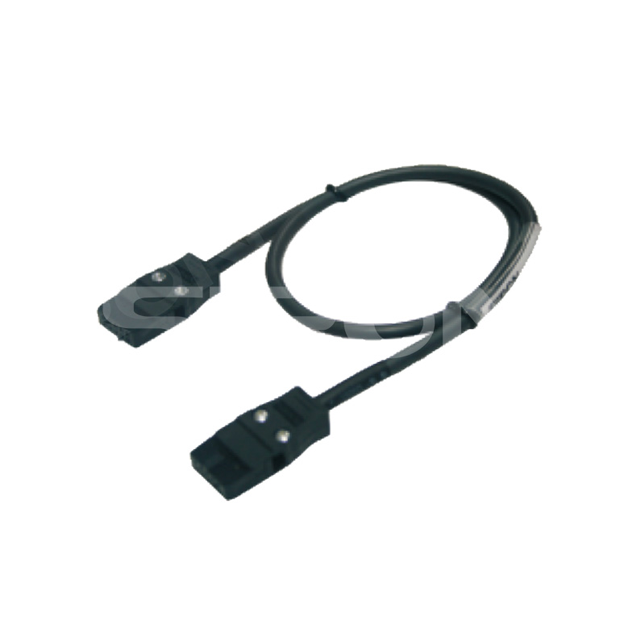

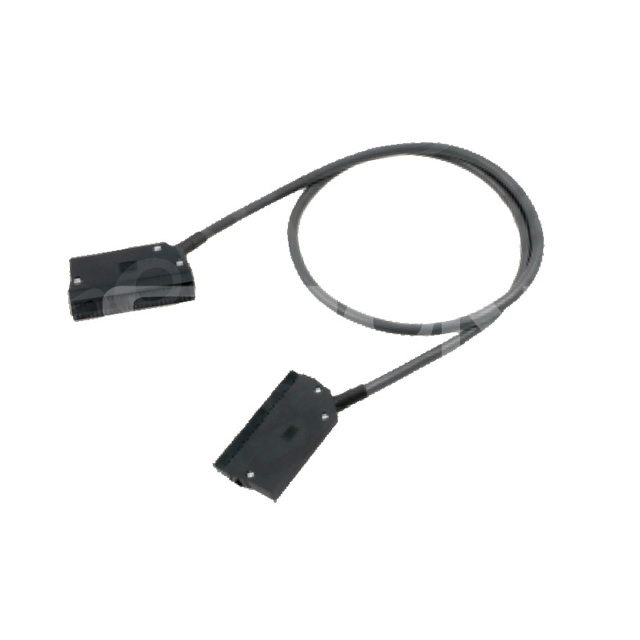

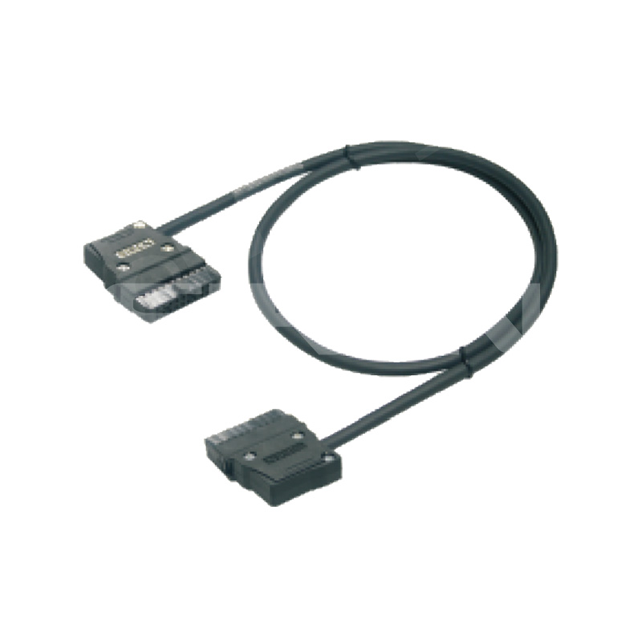

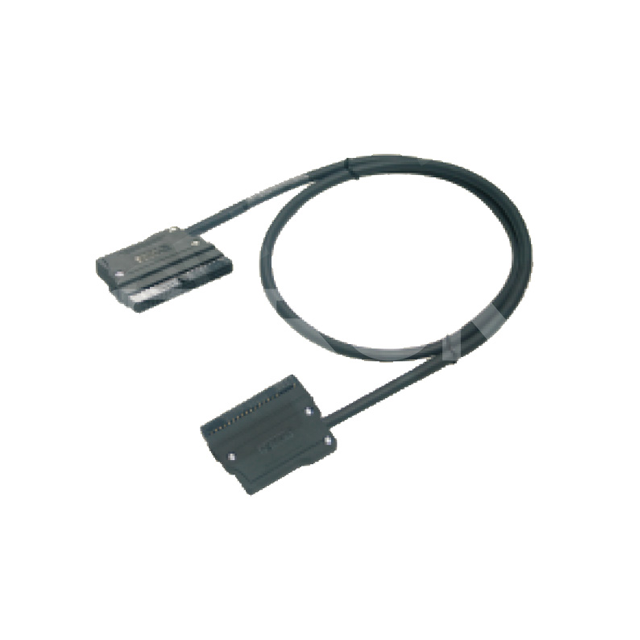

SiRON X210 Cable Manufacturer Single Double Headed Cable

Name: SiRON X210 Cable Manufacturer Single Double Headed Cable
Brand: SiRON
Rating: 5.0 (64 reviews)

Features

● Used path conductor and cable is covered by soft materials, also with good flexural performance.
● With standard plug cover, and all colors march together and beautiful.
● Supplies single cable and double cable which can be applicable to many different situations.
● Please according to PLC and Terminal Block specifications,select the suitable cable.
● Please don’t arbitrarily changed cable internal product.

Quantity:
Availability:





Inquire Add to Basket

Model:
X210
Brand:
SiRON
Code:
8536901100

MlL connector Cable Weatherproof X210 ML Cable PVC X210 MIL Cable Annealed copper wire Easy-Connect X210 MlL Cable Flexible-Design X210 MlL Cable

Product Description

Cable specification

Cable specification	AWG28
Wire constitute	7/0.127
Conductor material	Annealed copper wire
Insulation materials	PE
Twistand polishing	Filling:Cotton thread Bag strap Paper tape
Isolation	No
Appearance condition coaling	PVC
Conductor impedance	Below 239Ω/Kn
Voltage resistance (air)	AC500V/min
Insulation resistance	Above 50MΩ/Kn

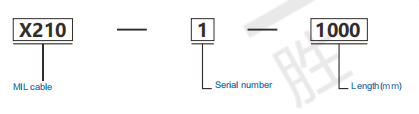

Example

Notice : The above is standard cable model. If you need the screen cables, Please sign “S” after the model.

If you want to use the chain wire, Please sign “T” after the model. Please contact sales for more details.

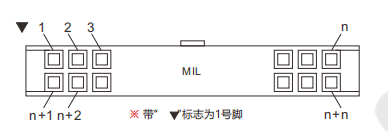

Holes arrangement table

Hole location arrangement plan for SiRON company define the order of the standard, different manufacturers female head side of the hole location order may be different, and when using please pay attention to check.

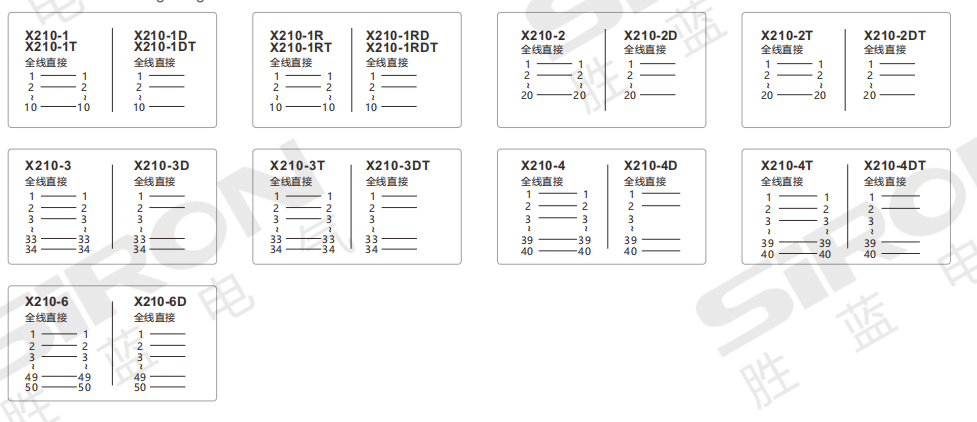

Port corresponding list

All the products mentioned on the table are owned by SiRON Company, and please refer to the comprehensive catalogue for the relative specifications of T series Cable CN1 plug can be corresponding to the number of all the same P MIL jack PLC or other controller products.

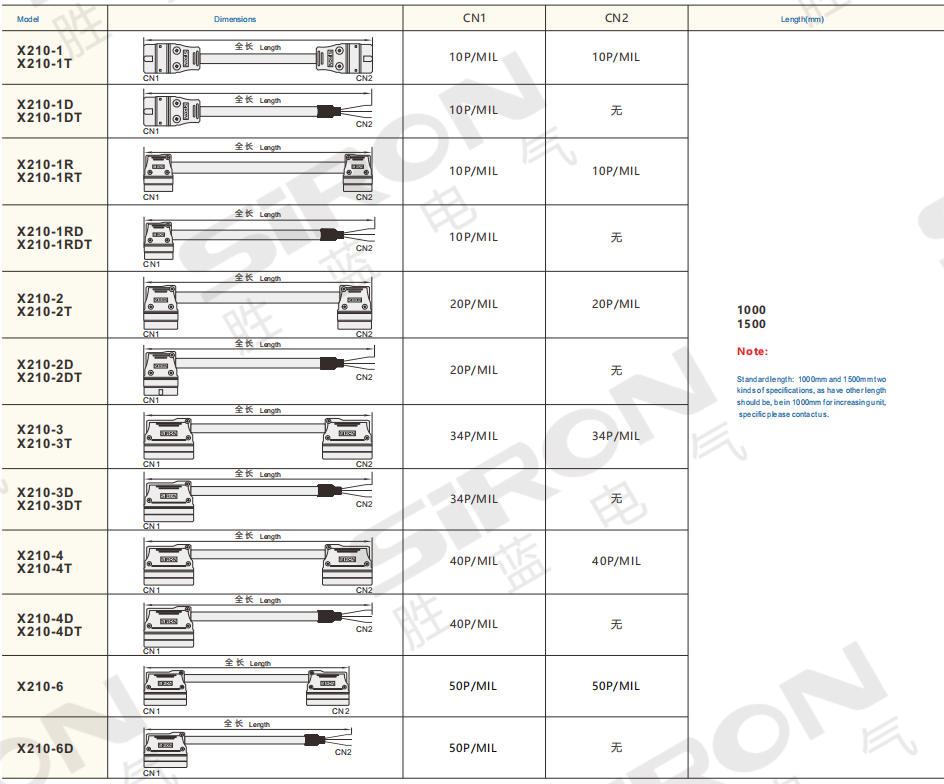

Model	Corresponding to CN1		Corresponding to CN2
	Brand	Module	Terminal Blocks
X210-1/1T	No limit	No limit	T series、Y series
X210-1R/1RT			T series、Y series
X210-2/2T			T022、T032
X210-3/3T			T023、T033、T061
X210-4/4T			T000、T024、T034、 T063、T062、T065
X210-6			T807/T807-K
X210-1D/1DT	No limit	No limit	No
X210-1RD/1RDT
X210-2D/2DT
X210-3D/3DT
X210-4D/4DT
X210-6D
