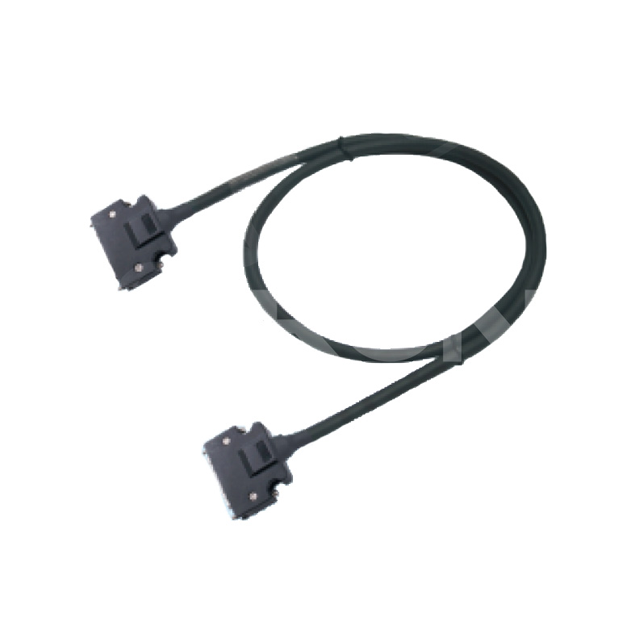

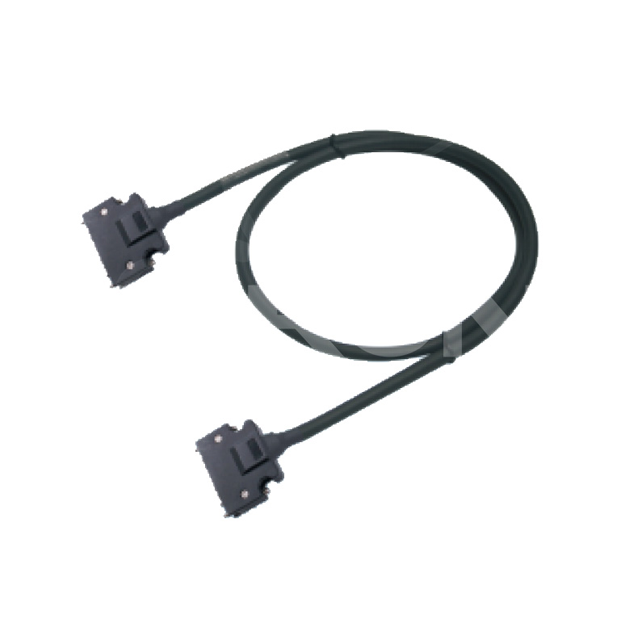

X220
SiRON
Cable specification
Cable specification | AWG28 |
| Wire constitute | 7/0.127 |
Conductors and insulators material | Conductor:Soft copper wire Insulator:PE |
Twist and polishing | Filling:Cotton thread Wrapping tape:Paper tape |
Appearance condition coating | PVC |
Conductor resistance and insulation resistance | Conductor impedance:Below 239Ω/Kn;Insulation resistance:above 50 Ω2/Kn |
| Voltage resistance (air) | AC500V/min |
Example

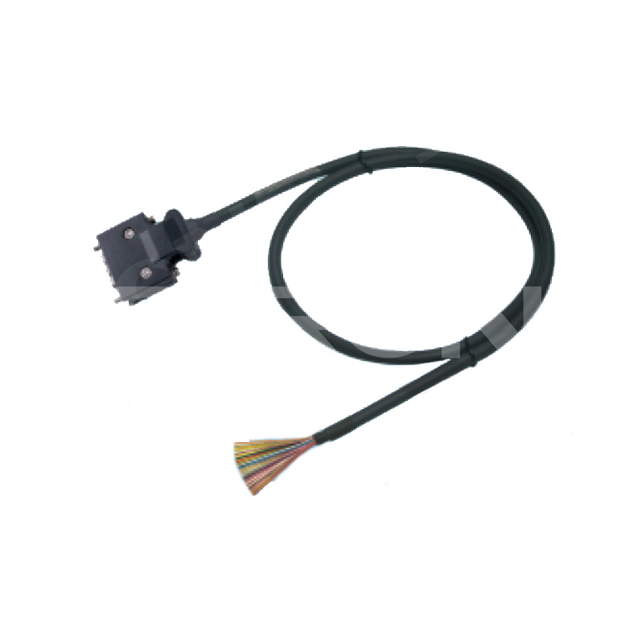

Notice：The above are standard models. If you need a loose line on the other side, please add "D"after the model. For details, please consult relevant sales staff.
Holes arrangement table
Hole location arrangement plan for SiRON company define the order of the standard, different manufacturers female head side of the hole location order may be different, and when using please pay attention to check.
Port corresponding list
All the products mentioned on the table are owned by SiRON Company, and please refer to the comprehensive catalogue for the relative specifications of T series
Model | Corresponding to CN1 | Corresponding to CN2 |
| Brand | Terminal Blocks | |
X220-1S | PANASONIC KEYENCE YASKAWA FUJI DELTA SANYO AB MITSUBISHI | T064 T234 |
X220-3S | T022 T032 | |
X220-4S | T235 | |
X220-5S | - | |
X220-8S | T232 | |
| X220-9S | T233 |

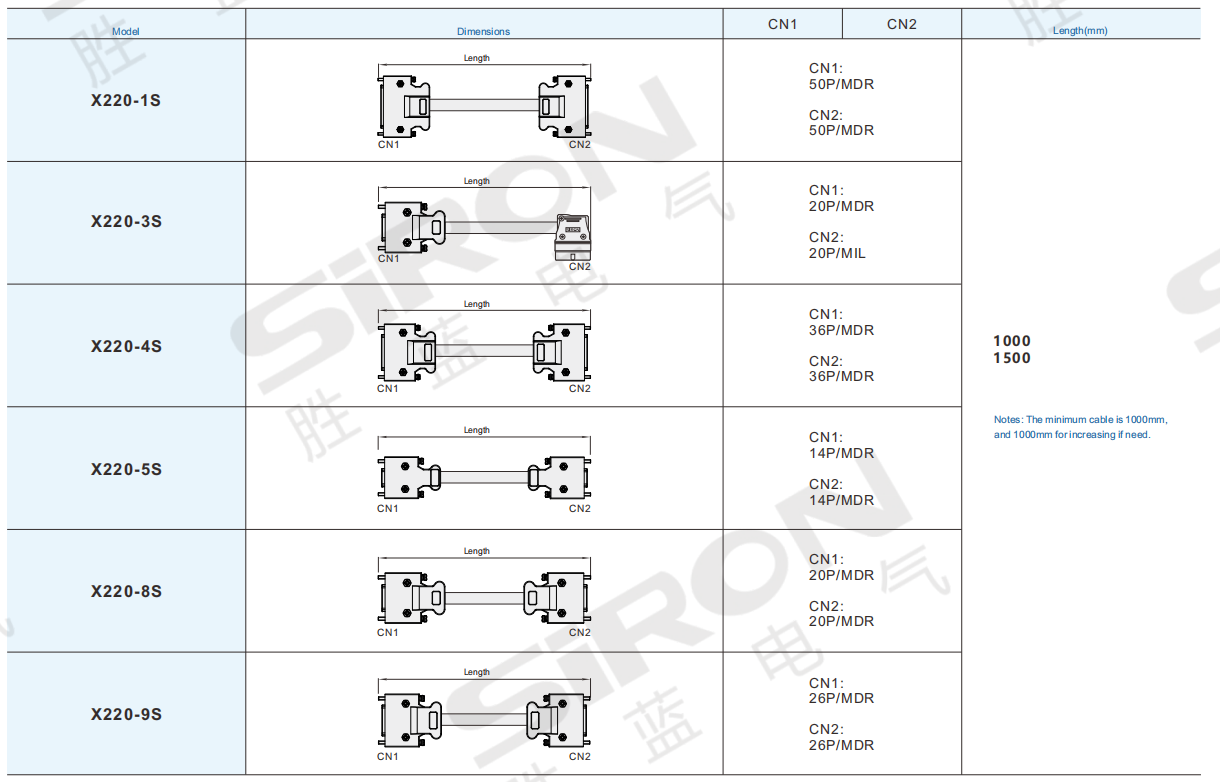

Outline
On the drawing, CN1 refers to PLC, CN2 refers to terminal block.

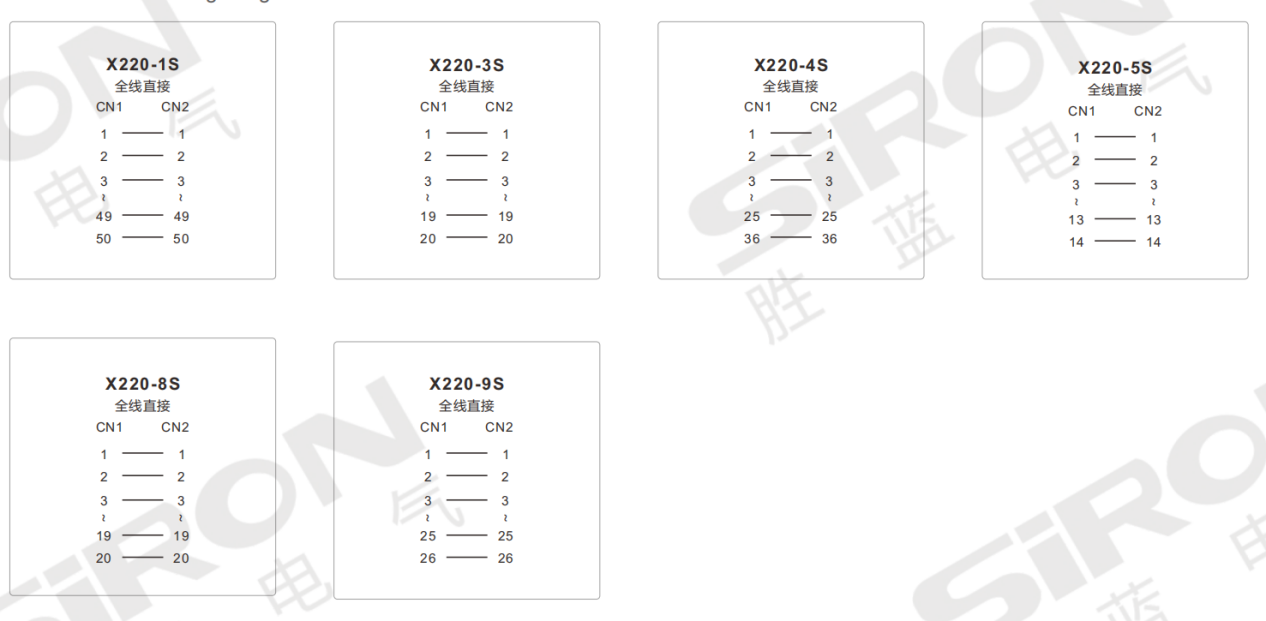

Wiring Diagram
