X236 M8 IO Precast Connection Cable Convert The Pin Socket To RJ45 Type

X236 M8 IO Precast Connection Cable Convert The Pin Socket To RJ45 Type manufacturer

Reliable Signal X236 M8 10 Precast Connection Cable Convert The Pin Socket To RJ45 Type

High-Speed X236 M8 10 Precast Connection Cable Convert The Pin Socket To RJ45 Type

SiRON X236 M8 IO Precast Connection Convert The Pin Socket To RJ45 Type Cable

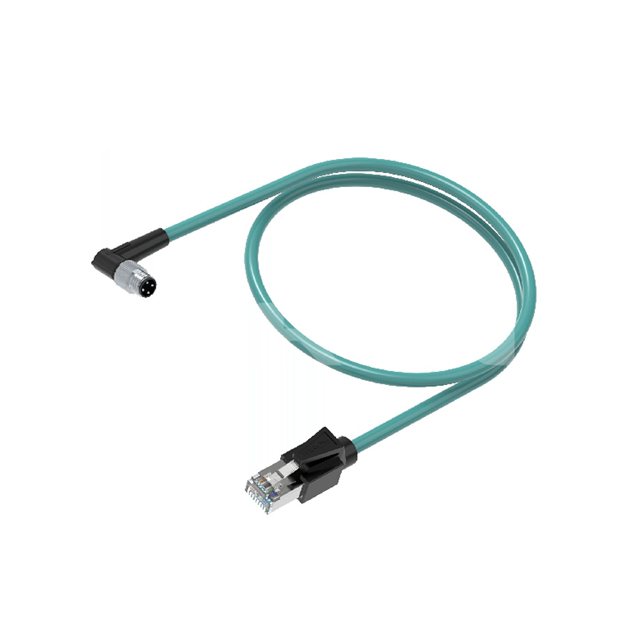

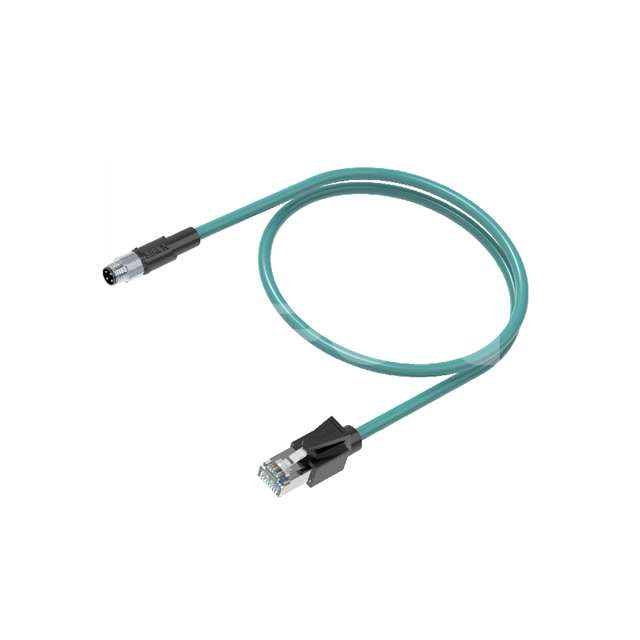

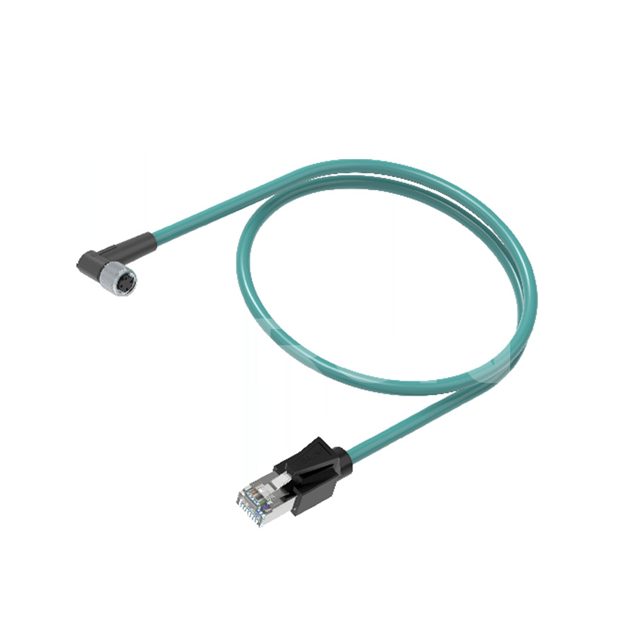

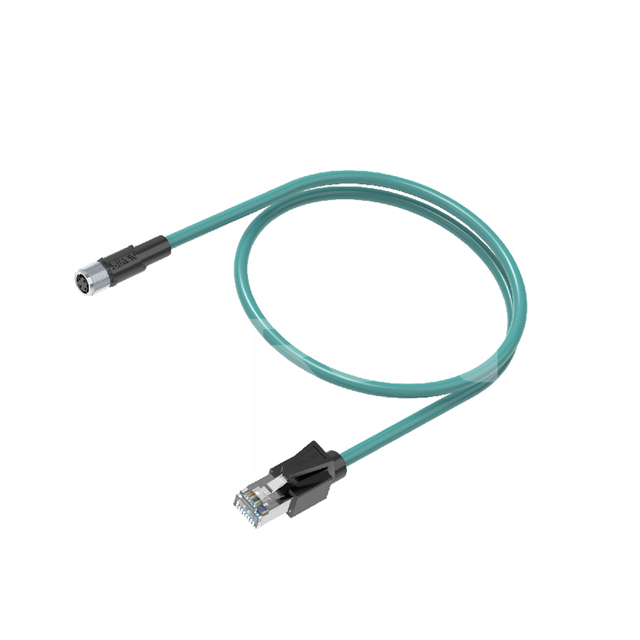

Name: SiRON X236 M8 IO Precast Connection Convert The Pin Socket To RJ45 Type Cable
Brand: SiRON
Rating: 5.0 (68 reviews)

Features
● Low loss, anti-interference, excellent conductivity.
● Wear-resistant, stretch-resistant and durable.
● Stable transmission and long service life.

Quantity:
Availability:





Inquire Add to Basket

Model:
X236
Brand:
SiRON

straight RJ45 Cable Shielded M8 IO Cable Precast Connection Cable 26AWG Convert The Pin Socket To RJ45 Type IP67 X236 Connection Cable

Product Description

Example

Selection example: X236-04AFS represents X236 series, the number of cores is 4 cores, the connector type is type A, the product type is straight pin type, straight RJ45, shielded.

Note: Type D is only available with 4 cores, and the e-chain® wire is made of PUR.

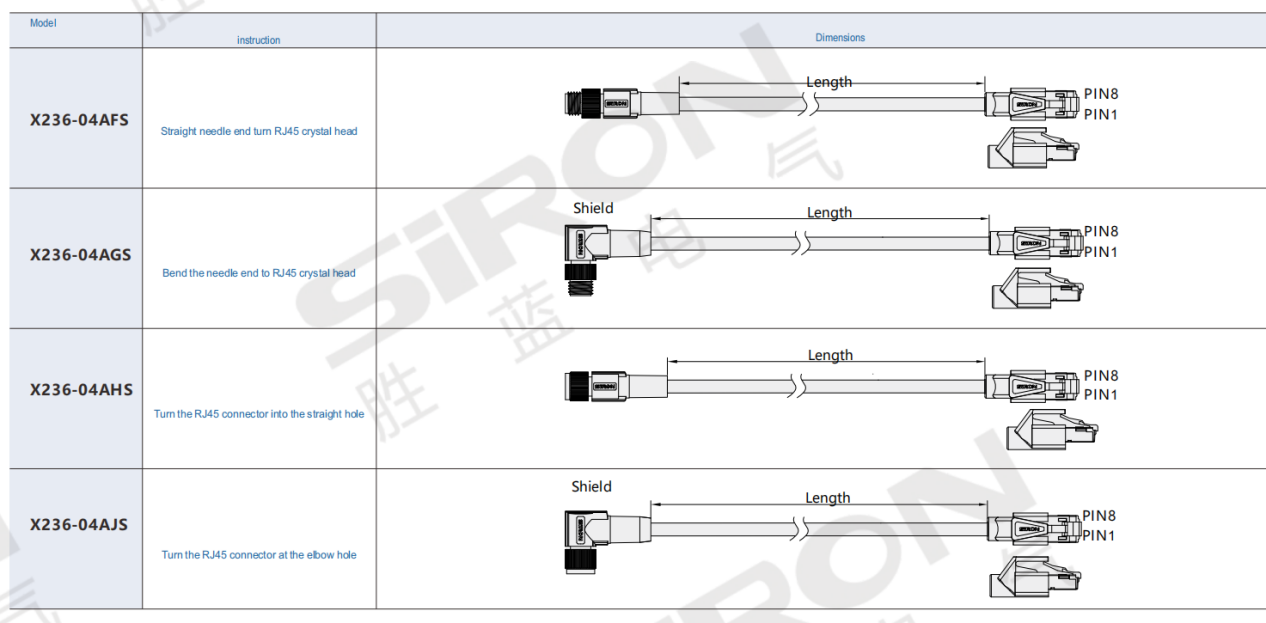

Table 1:Product Type

F	Straight pin type,straight RJ45
G	Bend pin type,straight RJ45
H	Straight hole type,straight RJ45
J	Bend hole type,bend RJ45

Cable specification

Name	M8 I/O Connection line
Number of cores	M8 I/O Connection line
Model	X236-04AFS	X236-04AGS	X236-04AHS	X236-04AJS
Wire outer diameter	5.2
Cable specifications	26AWG/2P
Operating Volitage	Maximum 30V
Protection level	IP67
Cable jacket	PVC/PUR
